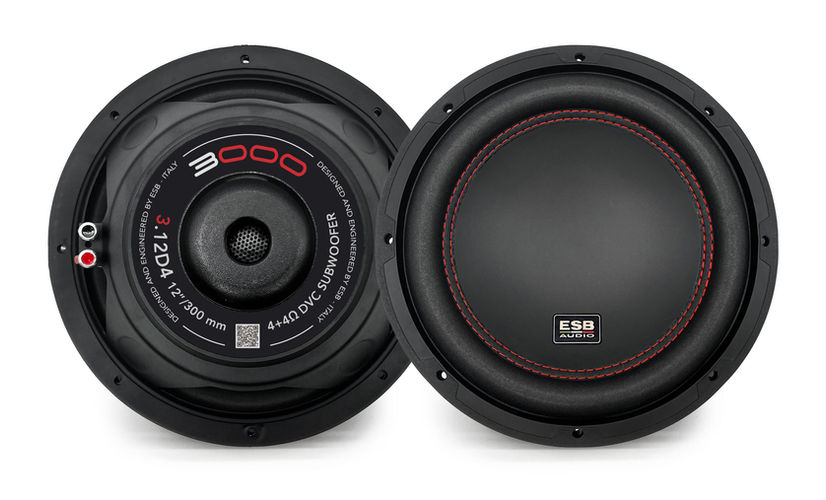

ESB Audio 3.12D4 car subwoofer
The ESB Audio 3.12D4 is a high-quality 12" car subwoofer designed to deliver high-performance bass reproduction. To achieve the best performance, we recommend using a dedicated enclosure – two enclosure recommendations are included in the datasheet.
Enclosure recommendation
Sealed enclosure (recommended)
- Net volume: 35 liters (1.23 ft³)
- External dimensions: 530 (W) × 350 (H) × 268 (D) mm
- Wall thickness: 18 mm
- Add damping material to approximately 35% of the volume
Bass reflex enclosure (recommended)
- Net volume: 45 liters (1.59 ft³)
- External dimensions: 650 (W) × 350 (H) × 313 (D) mm
- Reflex port: 267 (D) × 247 (E) × 30 (F) mm
- Wall thickness: 18 mm
- Add damping material to approximately 35% of the volume
See also
Technical specifications
- Impedance: 2x 4 Ohm (DVC)
- Nominal power: 300 W RMS
- Peak power: 600 W
- Frequency response: 28 Hz – 500 Hz
- Sensitivity: 92 dB 2.83V/1m
- Voice coil: 2" / 50 mm
- Cone: non-pressed paper cone, long-throw foam surround
- Magnet: dual ferrite 44.7 oz
- Basket: steel, anti-resonance coating
