Phoenix Gold Plug & Play mono amplifier for many different Volvos.

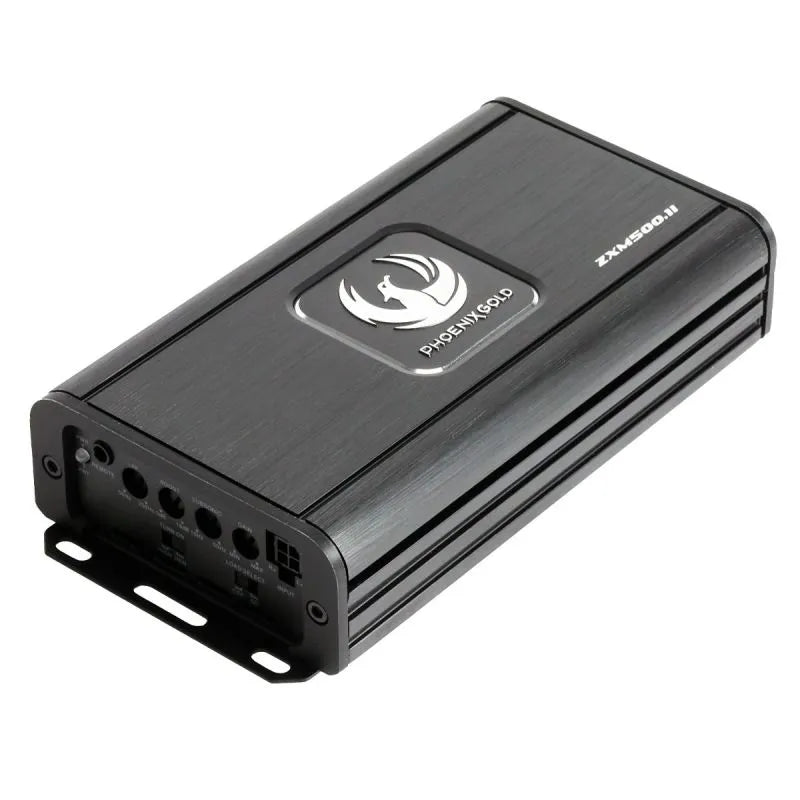

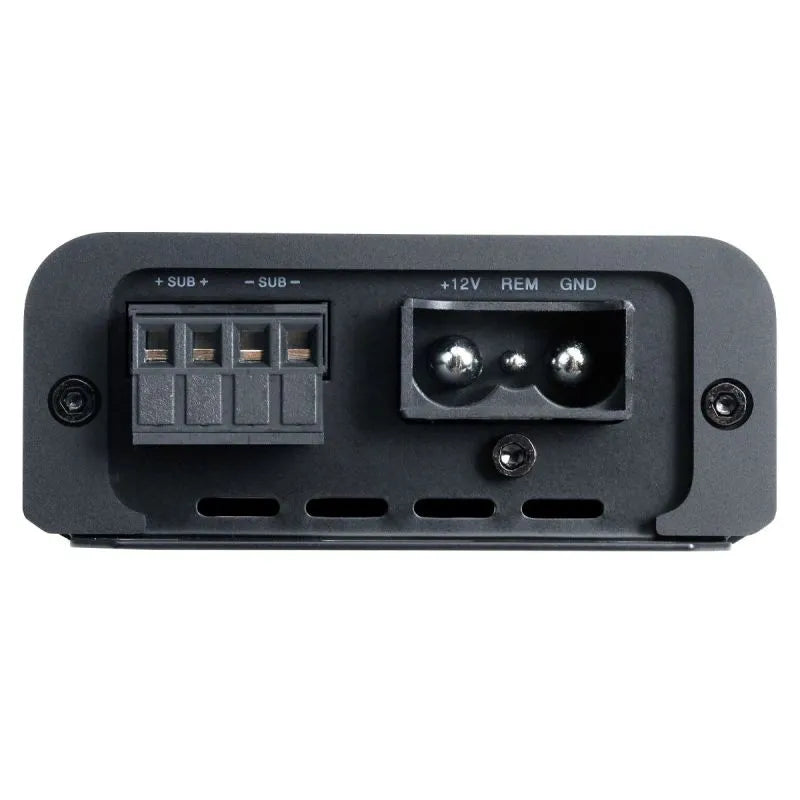

The Phoenix Gold ZXMS-VOL5 is a Plug & Play mono amplifier that can be installed in many different Volvo models.

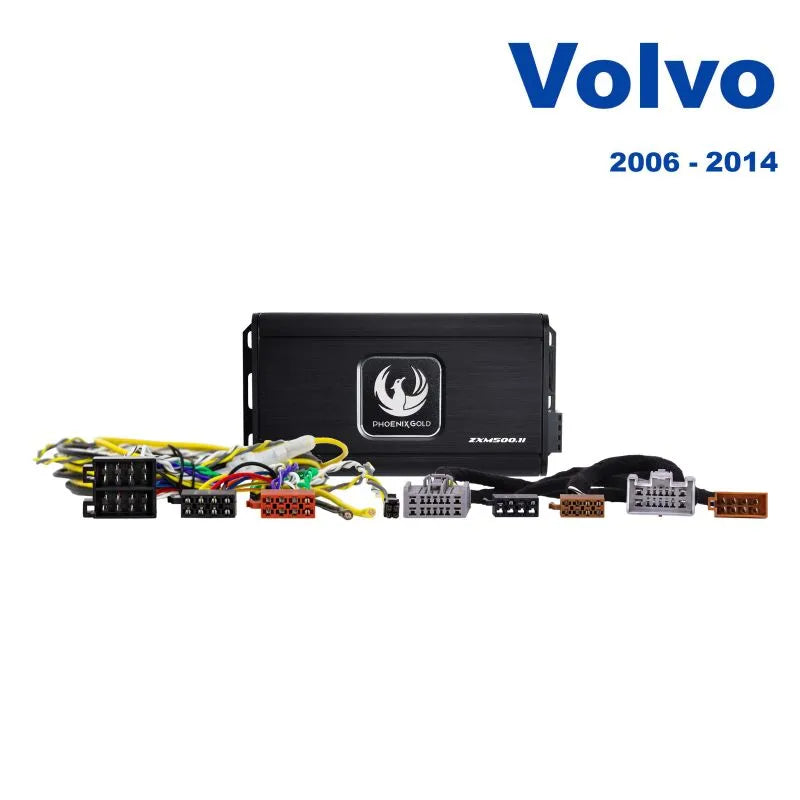

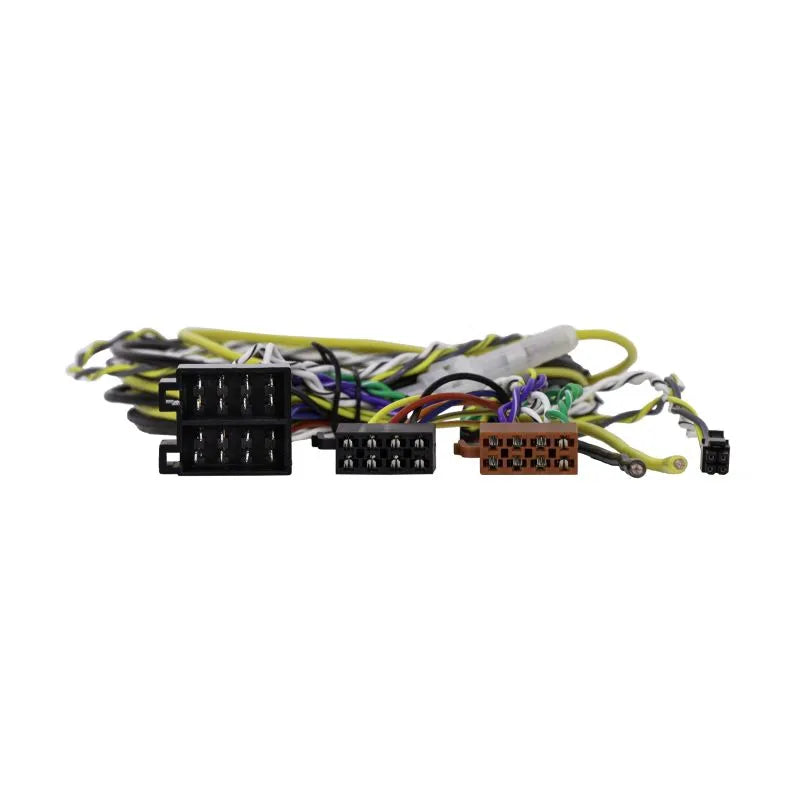

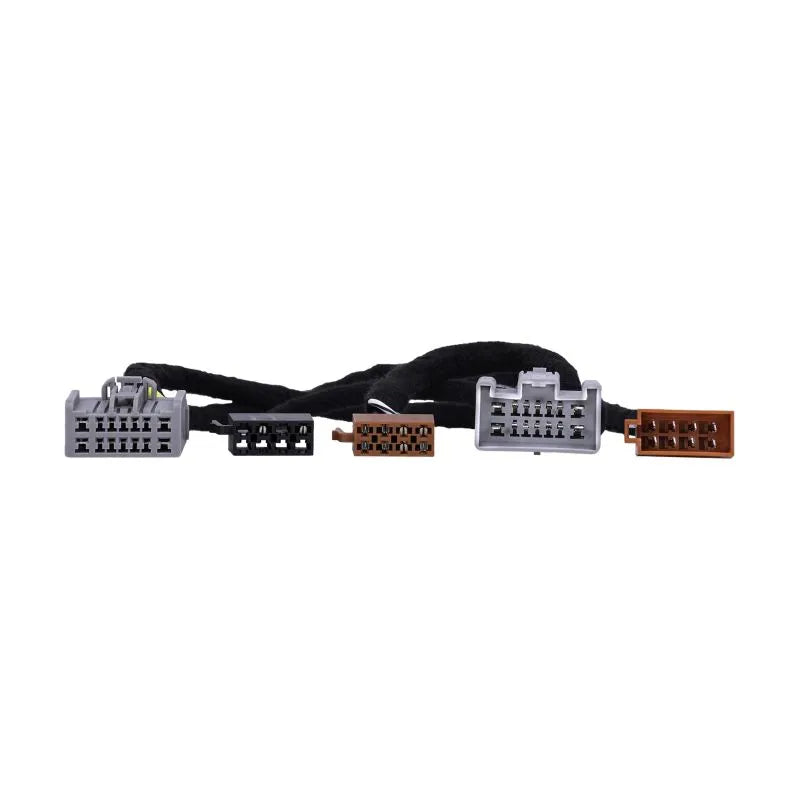

The amplifier requires no modifications to the car's wiring or structure; it connects directly to the original car stereo's wiring harness using the included ISO and Volvo T-harness. After this, you can add your desired subwoofer to the amplifier.
- No wire cutting
- No modifications to the car's structure
- No visible changes to the car's interior
- Plug & Play installation
Compatible car models:
| MODEL | YEAR | GENERATION / VERSION | TRIM LEVEL |
|---|---|---|---|
| Volvo C30 | 2006 – 2010 | I | Without original amplifier |
| Volvo C30 | 2010 – 2013 | I (Facelift) | Without original amplifier |
| Volvo C70 | 2006 – 2010 | II | Without original amplifier |
| Volvo C70 | 2010 – 2013 | II (Facelift) | Without original amplifier |
| Volvo S40 | 2004 – 2007 | II | Without original amplifier |
| Volvo S40 | 2007 – 2012 | II (Facelift) | Without original amplifier |
| Volvo V50 | 2004 – 2008 | I | Without original amplifier |
| Volvo V50 | 2007 – 2012 | I (Facelift) | Without original amplifier |
| Volvo XC90 | 2007 – 2014 | I (Facelift) | Without original amplifier |
Technical specifications:
- 1 x 500 W RMS @ 1 Ω
- 1 x 360 W RMS @ 2 Ω
- 1 x 230 W RMS @ 4 Ω
- Frequency response: 20 Hz – 500 Hz
- Signal-to-noise ratio: >90 dB
- THD: <0.3 %
- Class D efficiency ensures maximum power with minimal heat generation and minimal distortion.

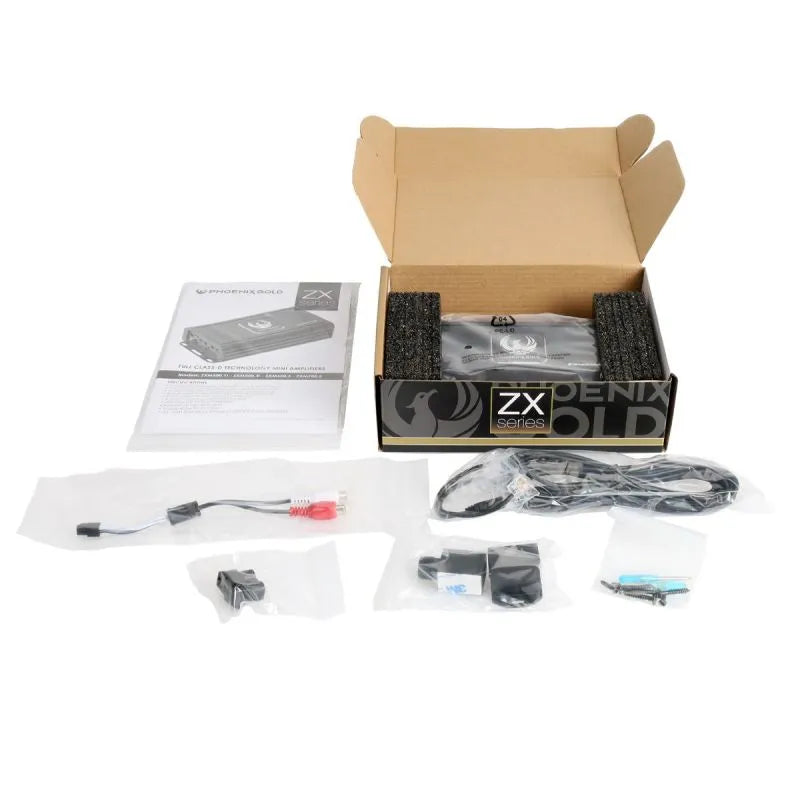

- Includes Plug & Play wiring harnesses

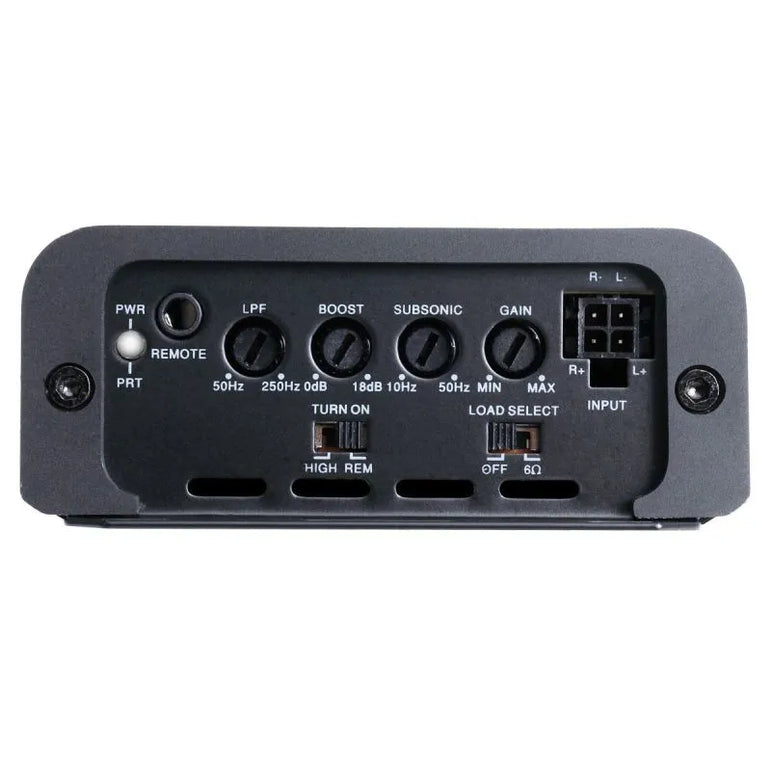

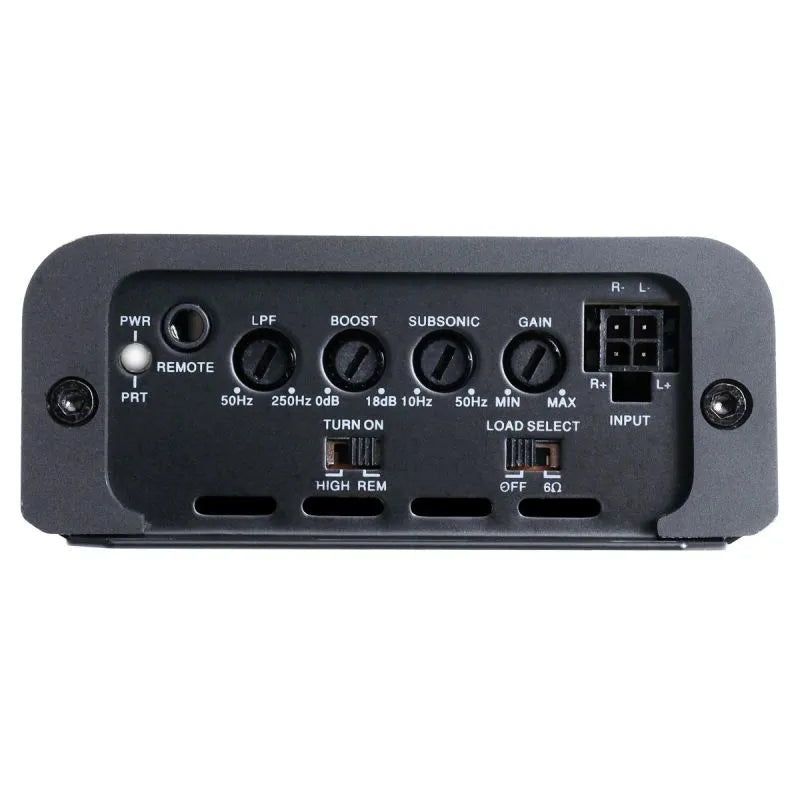

- Adjustable 50–250 Hz 24 dB/oct low-pass and subsonic filters
- Adjustable bass boost (0–18 dB @ 45 Hz)
- Includes remote level control (5 m cable)
- Short circuit, thermal, over- and undervoltage protection

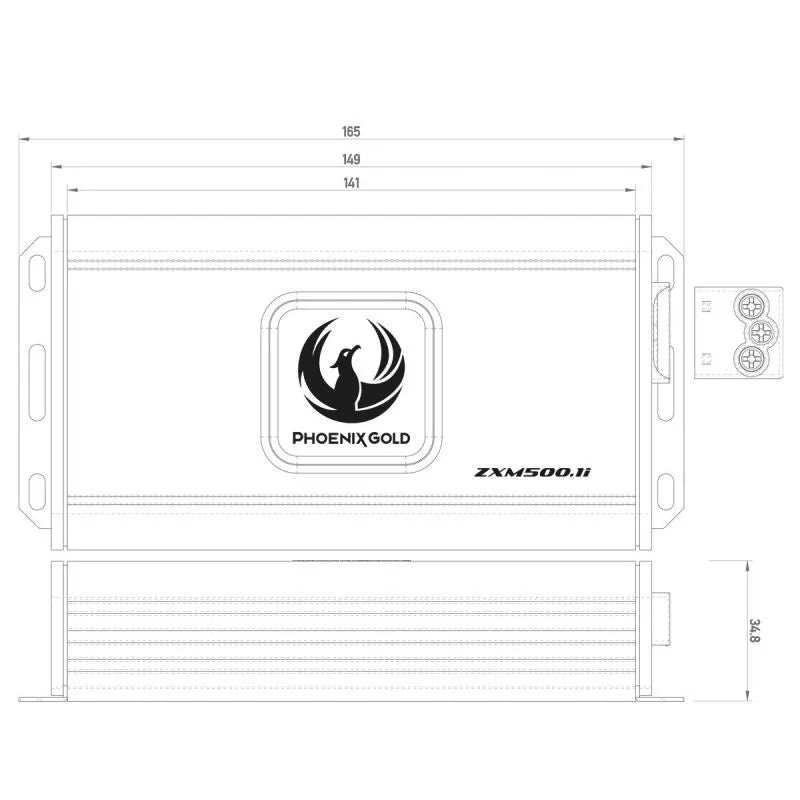

- Dimensions: 165 × 83.1 × 34.8 mm
Compatible subwoofers:
Here we have compiled pre-enclosed subwoofers that work great with the ZXMS-VOL5 amplifier.
- DLS PESB18
- GAS MAX B1-16
- GAS MAX B1-18
- Phoenix Gold ZX18PDF
- Phoenix Gold ZX210PBSi
Note: The ZXMS-VOL5 with the Plug & Play wiring harness is intended for use with a four-ohm load.
If you use the amplifier with a two- or one-ohm load, a power cable (10 mm²) must be run directly from the battery to the amplifier.
