MATCH UP 10DSP MK2

MATCH UP 10DSP MK2

• Very powerful DSP amplifier
• 10-channel amplifier
• 8 x 65W + 2 x 160W
• 1-channel line output
• 11-channel DSP
• Extension Card 2.0 slot
• USB-C

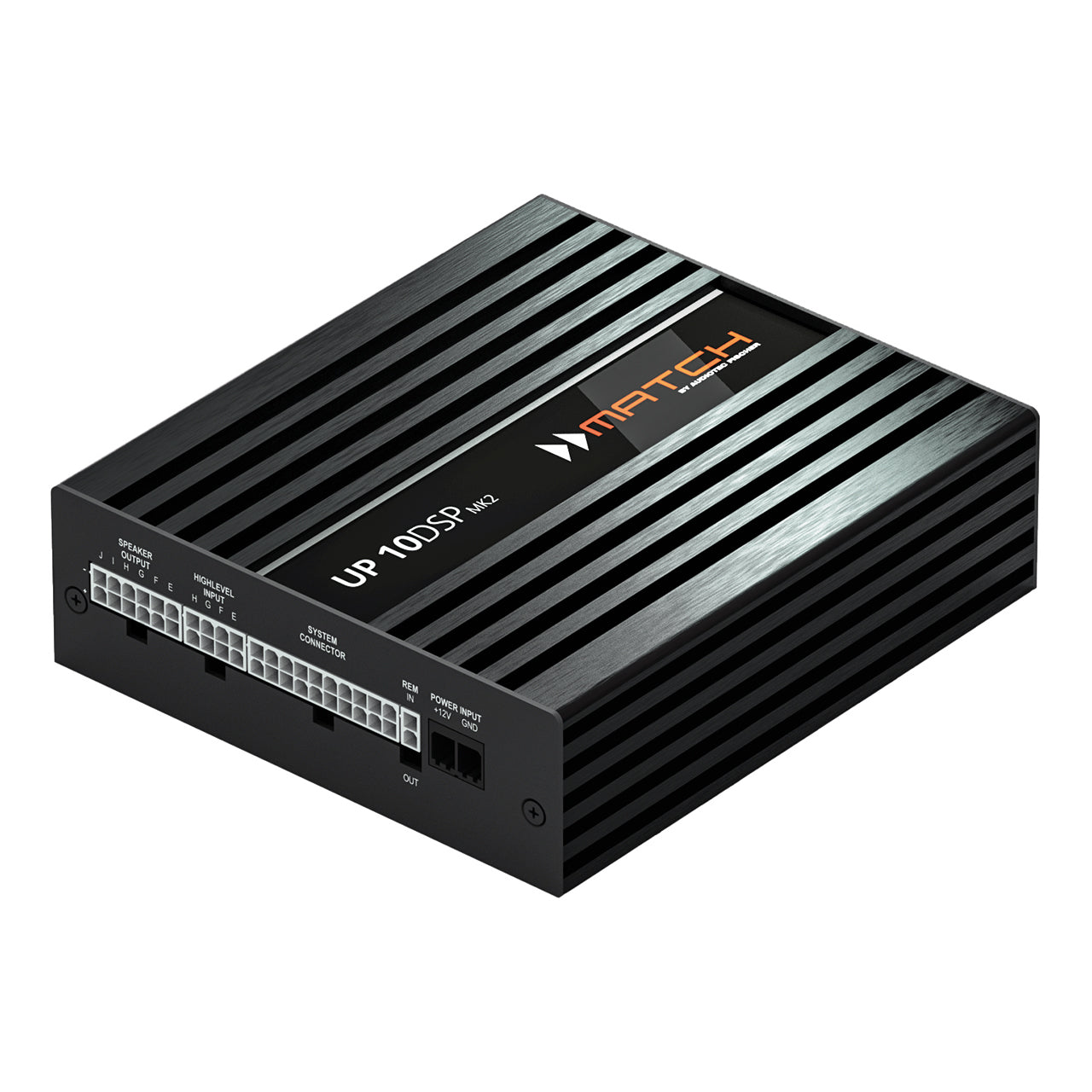

The Match UP 10DSP MK2 is an easy way to upgrade the multi-channel sound systems of many premium vehicles to a whole new level.

With the MK2 update, Match DSP amplifiers gained a new Extension Card 2.0 slot and a modern USB-C connection for adjustment and programming.

This small box contains a powerful 10-channel Class-HD amplifier and a versatile 11-channel 64-bit DSP. The DSP also includes a selection of intelligent functions such as "Augmented Bass Processing", "StageXpander" and "RealCenter".

Thanks to the ADEP.3 input circuit, the amplifier is easy to connect to almost any OEM system. Various installation kits are also available for different systems. Installation is easy with the professional and user-friendly DSP PC-Tool software.

The Match UP 10DSP MK2 is the best DSP amplifier to upgrade multi-channel systems in premium cars today.


NOTE!! The wiring harness does not have power supply; it must be connected separately from the car's power system. Please read the instructions carefully before installation!

Specifications:
Technical data
Power RMS ≤ 1% THD+N
- @ 4 Ohms Channels A - H: 65 Watts (min. 3 Ohms*)
Channels I - J: 75 Watts (min. 3 Ohms*)
- @ 2 Ohms Channels I - J: 125 Watts
- @ 1 Ohm -
- bridged @ 4 Ohms -
- bridged @ 2 Ohms -
Max. output power per channel** Channels A - H: up to 80 Watts RMS @ 4 Ohms
Channels I - J: up to 90 Watts RMS @ 4 Ohms
Channels I - J: up to 160 Watts RMS @ 2 Ohms
Amplifier technology Class GD

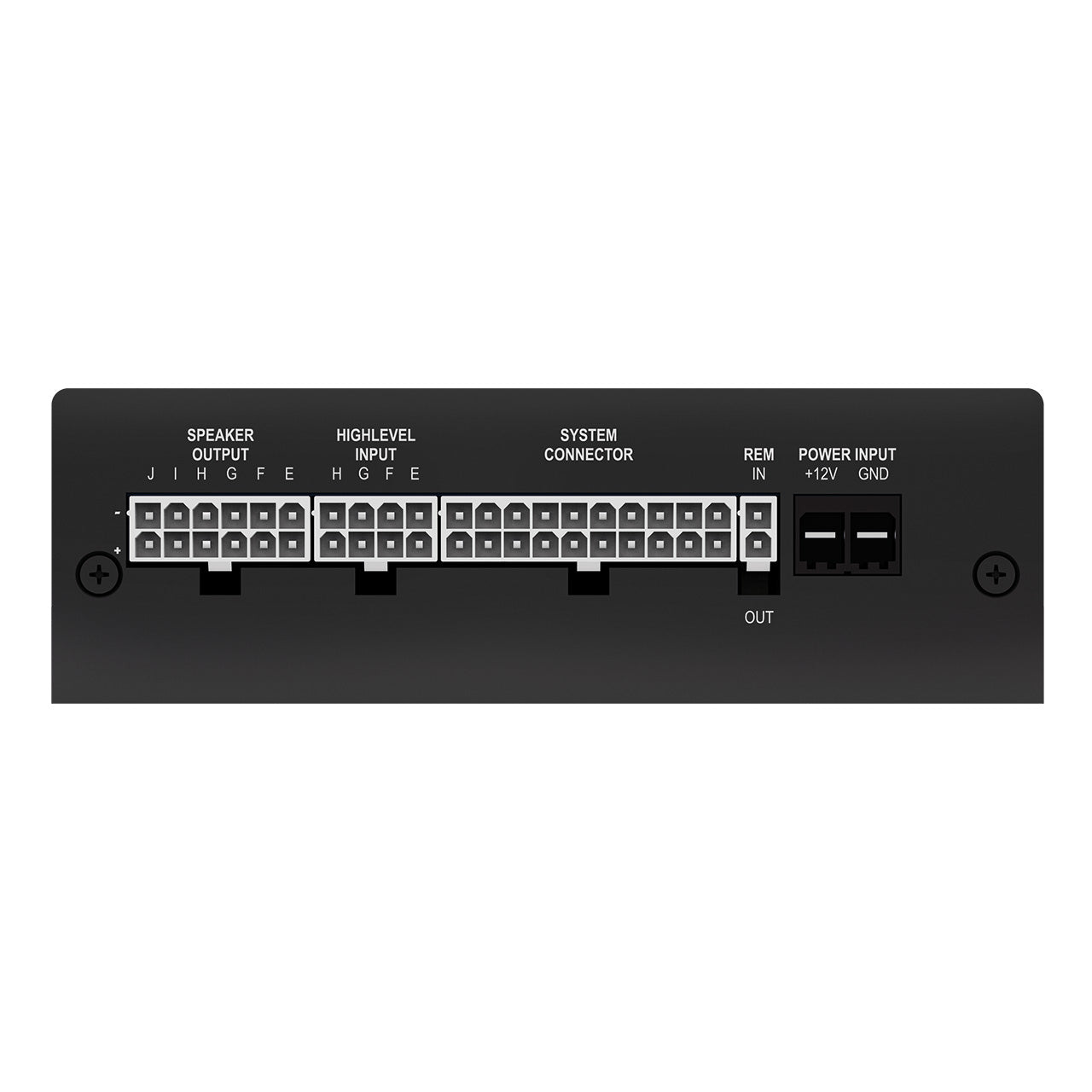

Inputs 8 x Highlevel speaker input

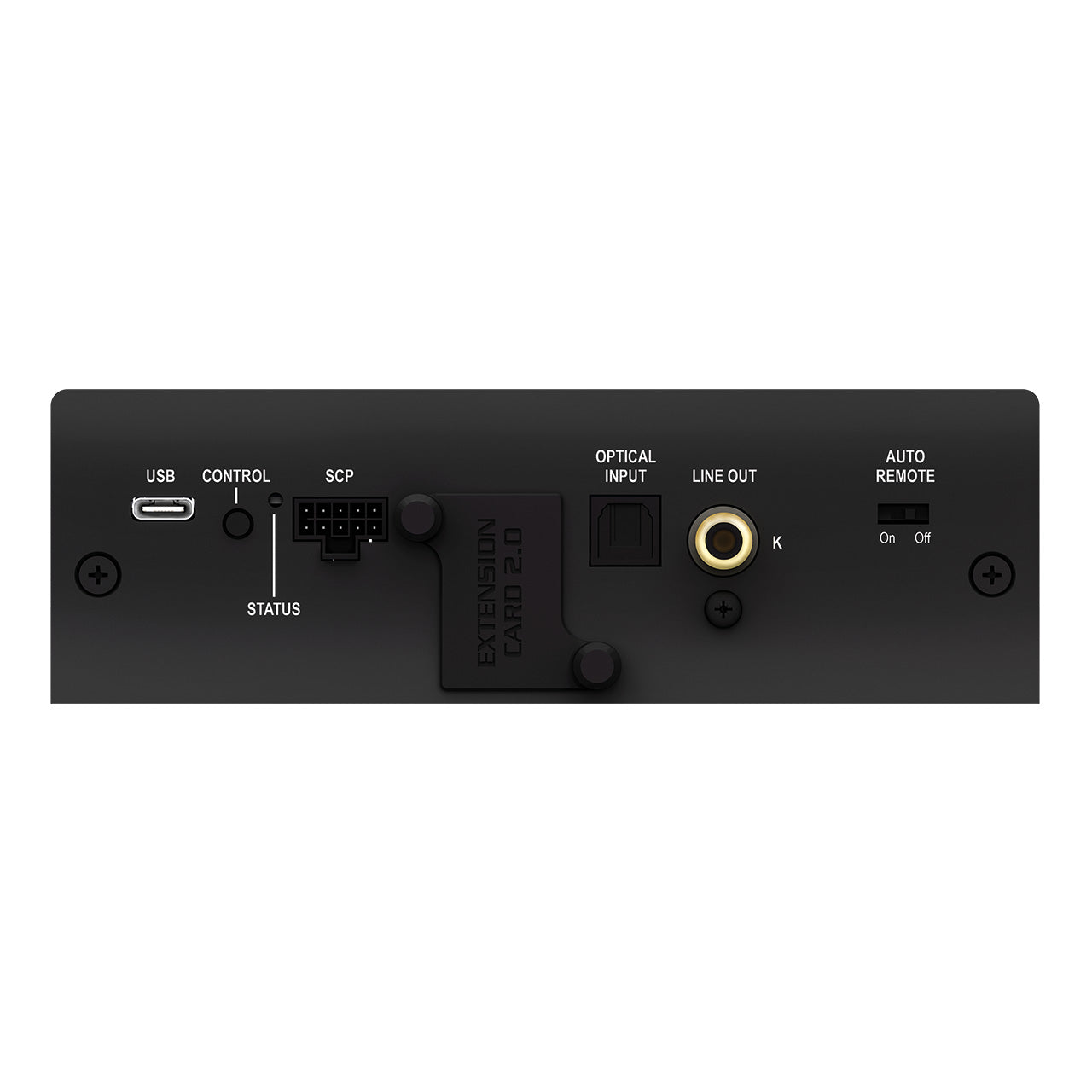

1 x Optical SPDIF (12 - 96 kHz)
1 x Extension Card 2.0
Input sensitivity Channels A - F: 4 - 16 Volts
Channels G - H: 4 - 32 Volts
Input impedance RCA / Cinch -
Input impedance highlevel 9 - 33 Ohms with ADEP.3
Outputs 10 x Speaker output
1 x RCA / Cinch
1 x Remote Out
Output voltage RCA / Cinch 3 Volts RMS
Frequency response 15 Hz - 22,000 Hz
DSP resolution 64 Bit
DSP power 295 MHz (1.2 billion MAC operations/second)
Sampling rate 48 kHz
DSP type Audio signal processor
Signal converters A/D: BurrBrown
D/A: BurrBrown
Signal-to-noise ratio digital input 105 dB (A-weighted)
Signal-to-noise ratio analog input 103 dB (A-weighted)
Distortion (THD @ 1 kHz, 1 W into 4 Ohms) 0.015 %
Distortion (THD+N @ 1 kHz, 1 W into 4 Ohms) 0.02 %
Distortion (THD @ 100 Hz, 1 W into 4 Ohms) -
Distortion (THD+N @ 100 Hz, 1 W into 4 Ohms) -
Operating voltage 10.5 - 18 Volts (max. 5 sec. down to 6 Volts)
Power rating DC 12 V ⎓ 60 A max.
Idle current 500 mA
Max. remote output current 500 mA
Operating temperature range -40° C to +70° C
Fuse 2 x 25 A LP-Mini-fuse (APS)
Additional features Class GD technology with dynamically controlled
power supply, 32 Bit CoProcessor, ADEP.3 circuit, Start-Stop capability, Smart Control Port, USB-C, Auto Remote switch
Dimensions (H x W x D) 46 x 145 x 163 mm /
1.81 x 5.71 x 6.42″
* DC resistance min. 3.0 Ohms
** In typical multi-channel applications

Scope of delivery
1 x MATCH UPGRADE amplifier UP 10DSP MK2
2 x Connection cable
1 x Power Input connector
1 x Mounting plates & material
1 x USB cable
1 x Instruction manual
