The NEW MODEL is Match UP 10DSP MK2
Match UP 10DSP

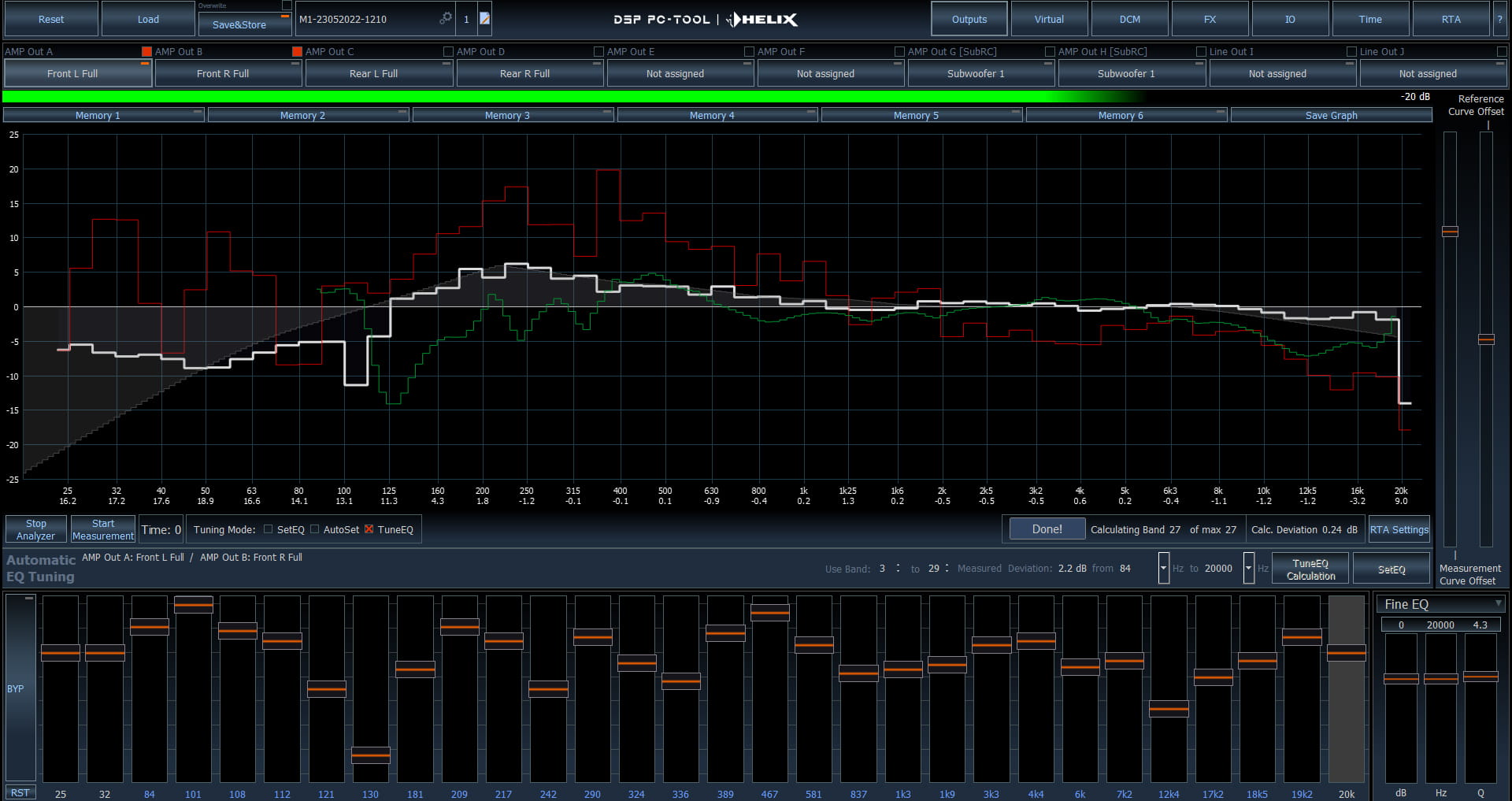

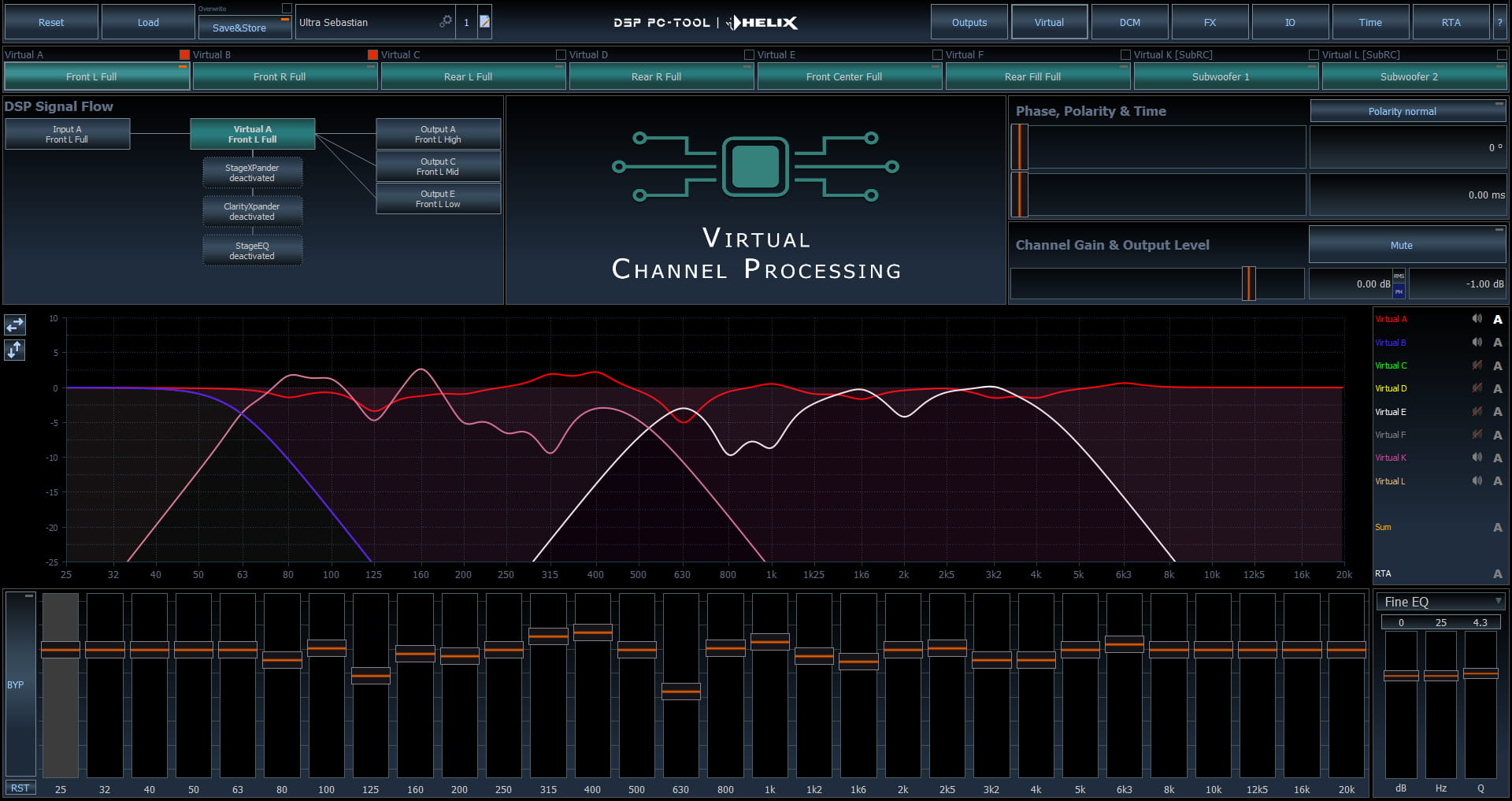

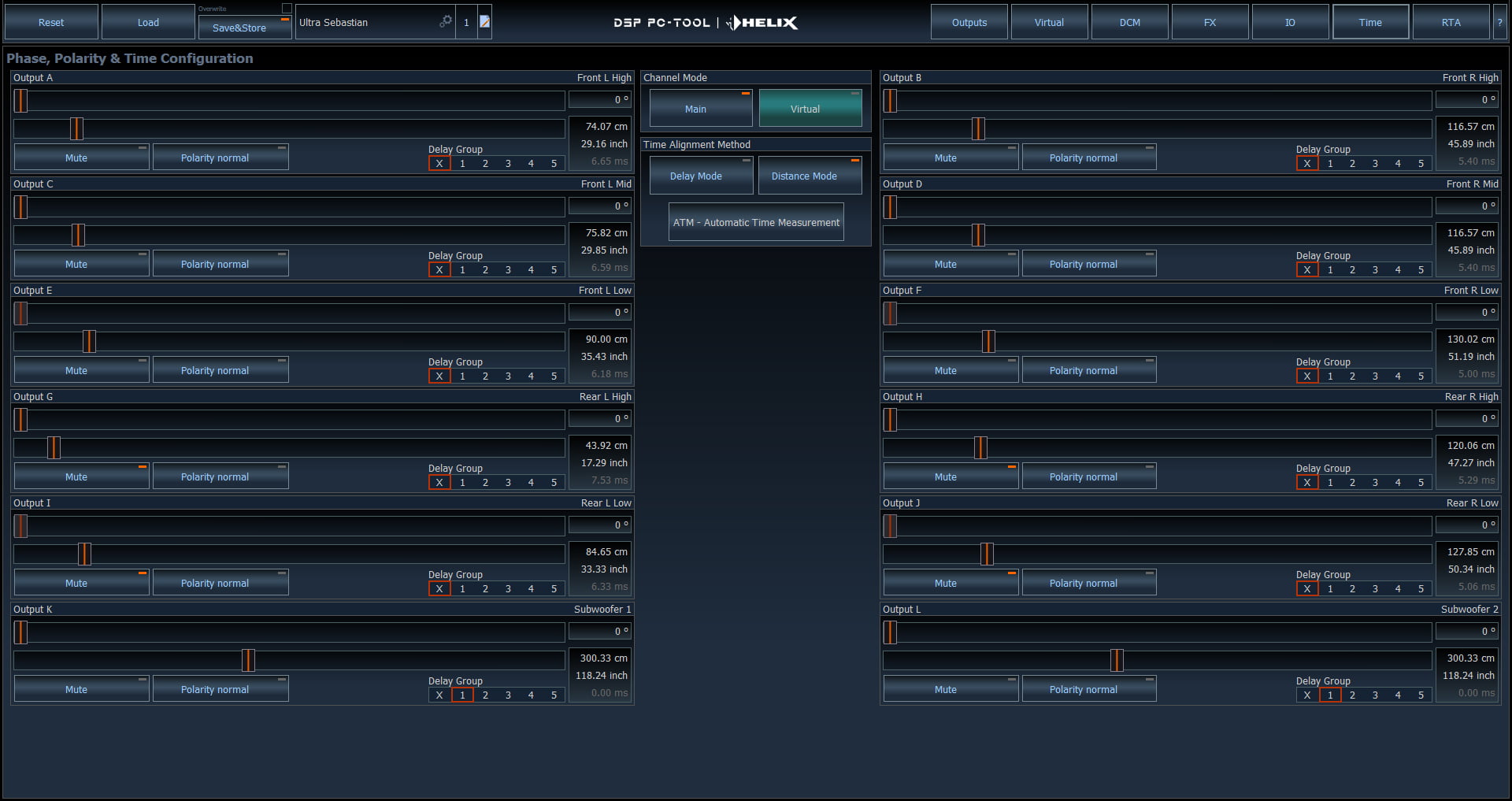

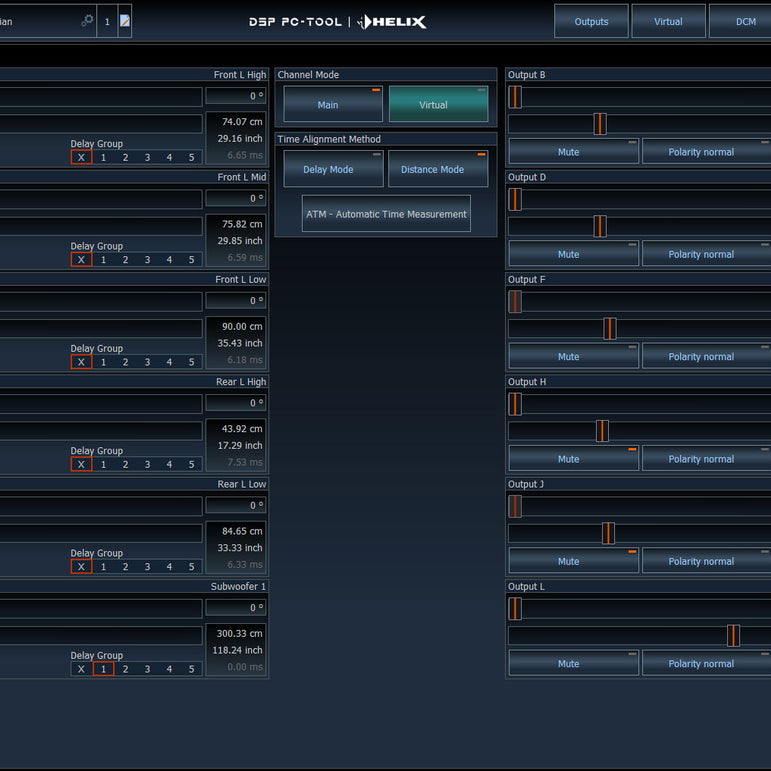

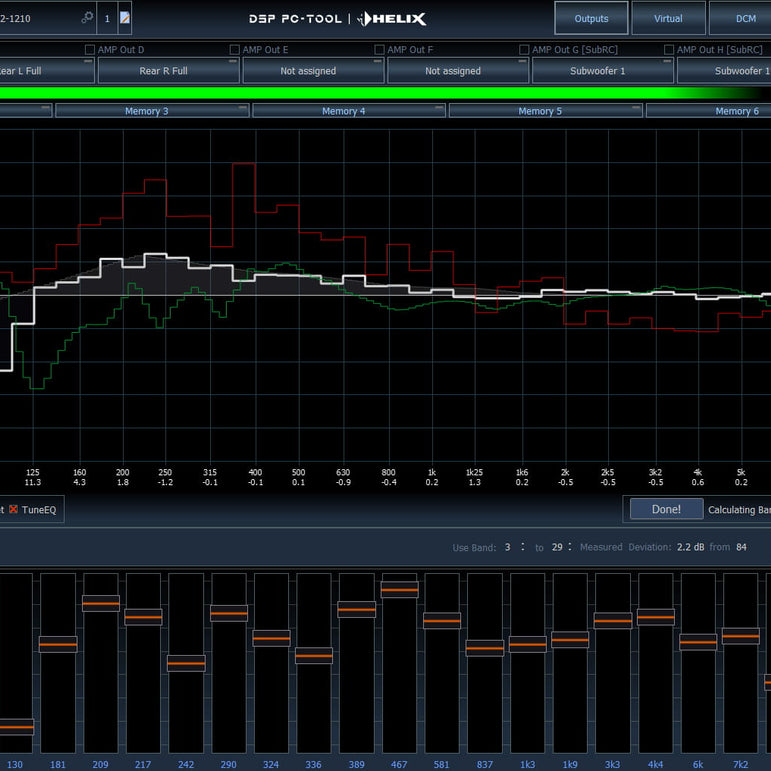

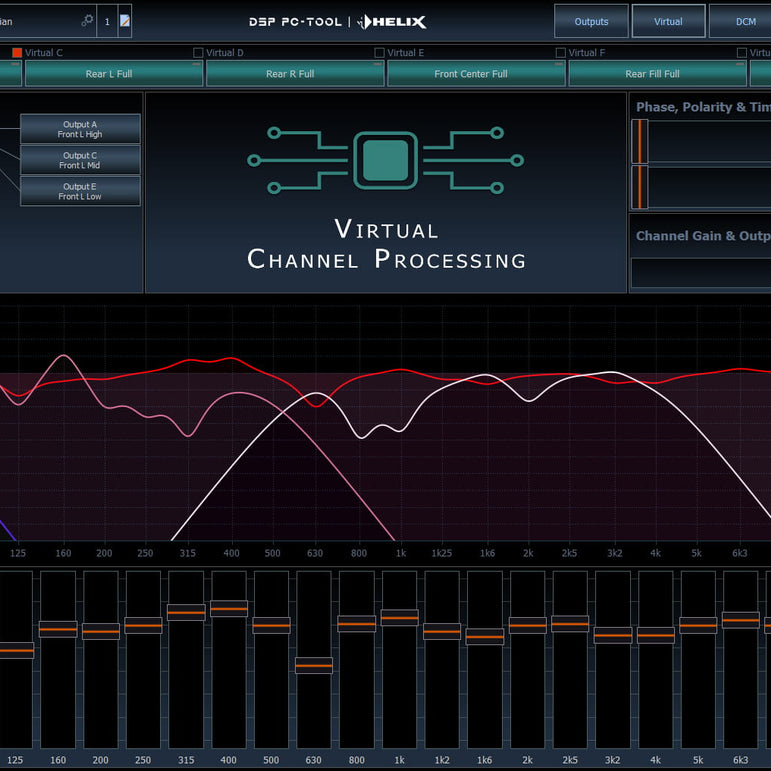

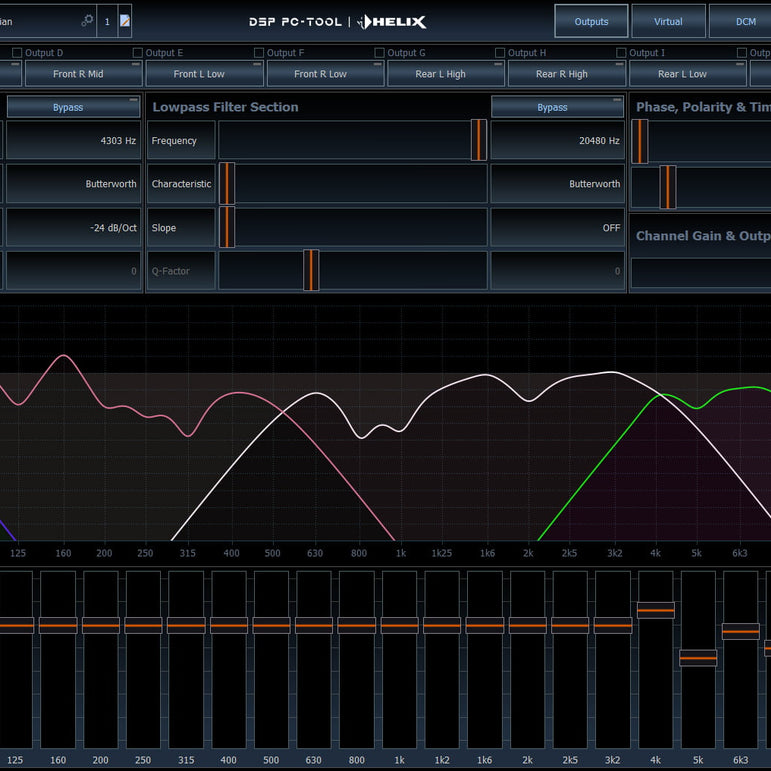

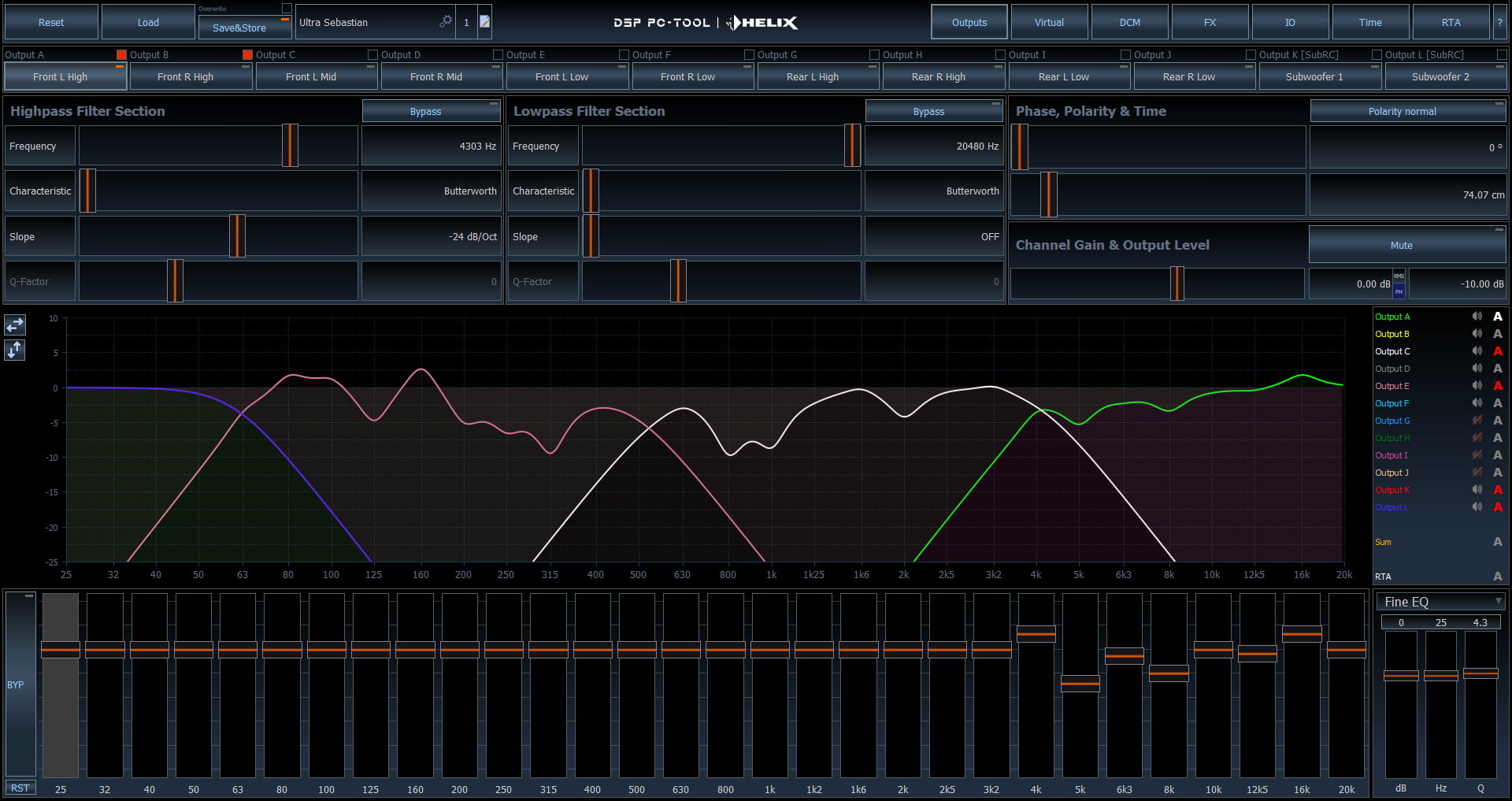

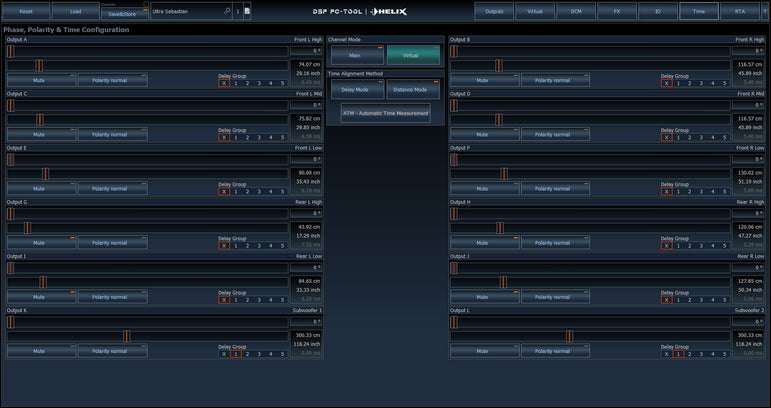

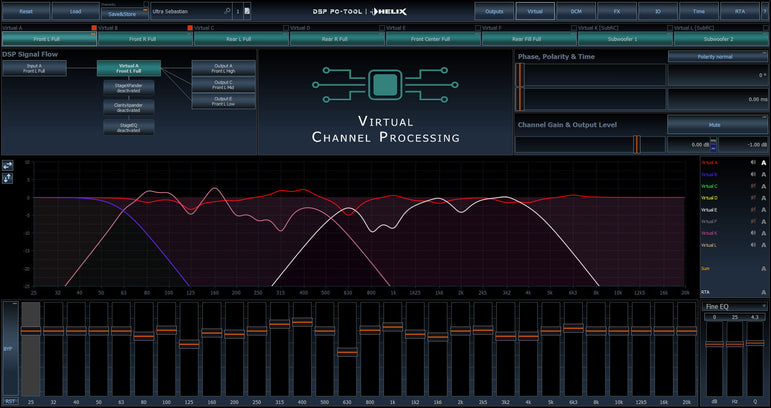

The Match UP 10DSP offers an easy way to upgrade the multi-channel sound systems of many premium vehicles to a whole new level. This small box contains a powerful, yet efficient 10-channel Class-HD amplifier and a versatile 11-channel 64-bit DSP. The DSP also includes a selection of intelligent functions such as "Augmented Bass Processing", "StageXpander" and "RealCenter". The ADEP.3 input circuit allows the amplifier to be easily connected to almost any OEM system. Various installation kits are also available for different systems. Installation is made easy with the professional and user-friendly DSP PC-Tool software. The Match UP 10DSP is the best DSP amplifier to upgrade multi-channel systems in premium cars today.
NOTE!! The wiring harness does not provide power, it must be connected separately from the car's power system. Please read the instructions carefully before installation!
Technical specifications:
- @ 4 OhmsChannels A - H: 8 x 65 Watts
- @ 2 Ohms-
- @ 1 Ohm-
- bridged @ 4 Ohms-
- bridged @ 2 Ohms-
- Subwoofer output @ 4 OhmsChannels I - J: 2 x 90 Watts
- Subwoofer output @ 2 OhmsChannels I - J: 2 x 160 Watts
Amplifier technologyClass GD

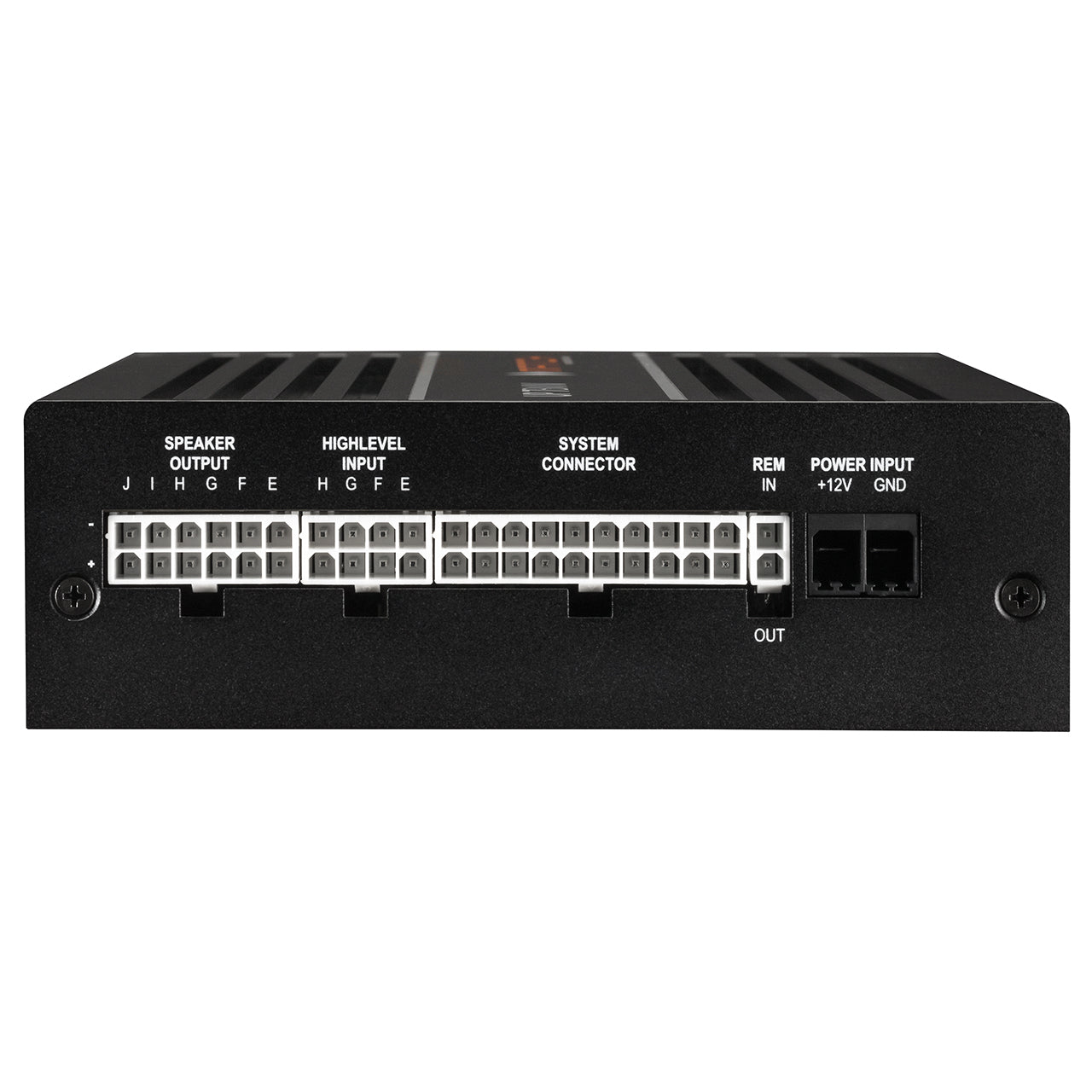

Inputs8 x Highlevel speaker input

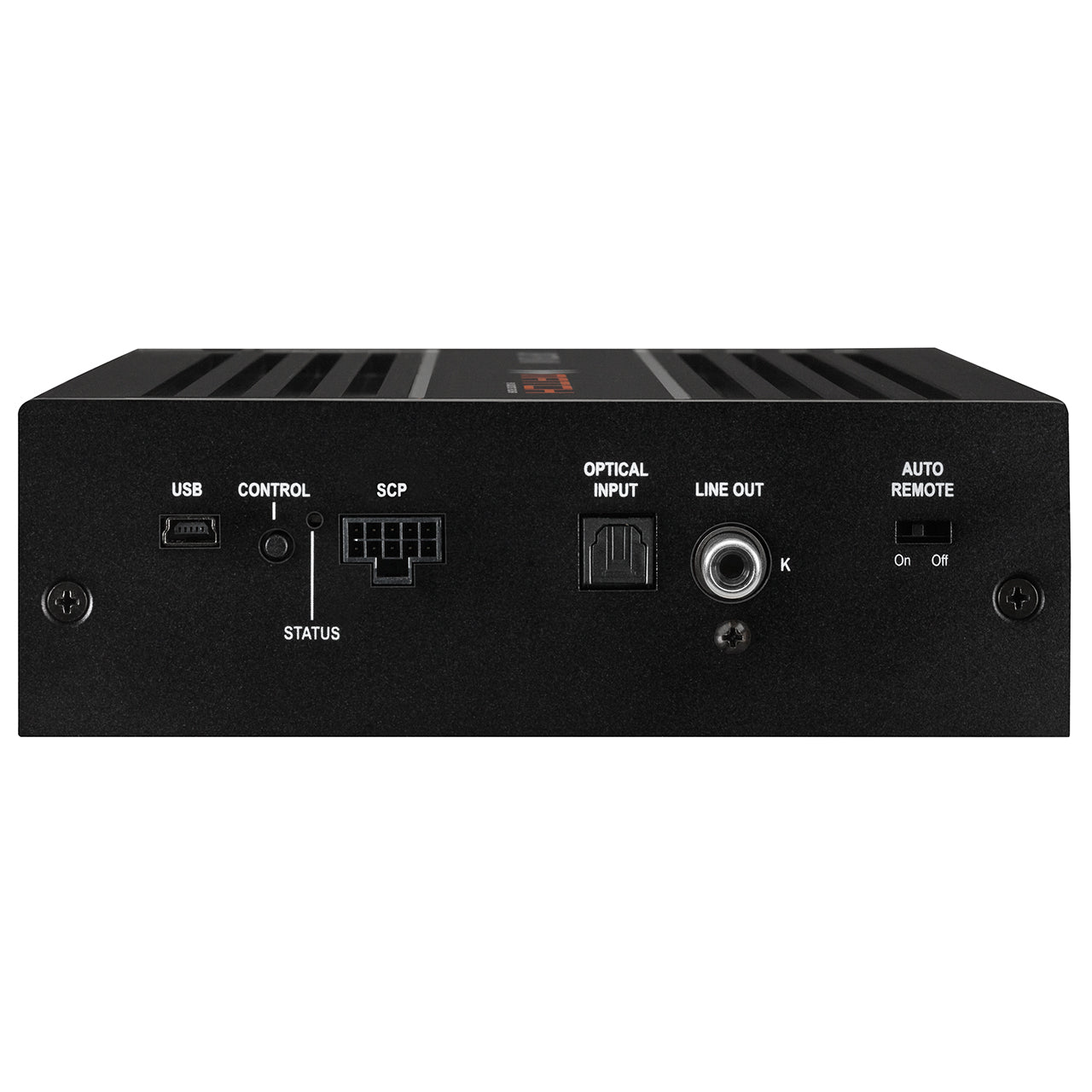

1 x Optical SPDIF (12 - 96 kHz)
1 x Remote In
Input sensitivityChannels A - F: 4 - 16 Volts
Channels G - H: 4 - 16 or 8 - 32 Volts
Input impedance RCA / Cinch-
Input impedance highlevel9 - 33 Ohms with ADEP.3
Outputs10 x Speaker output
1 x RCA / Cinch
1 x Remote Out
Output voltage RCA / Cinch3 Volts
Frequency response20 Hz - 22,000 Hz
DSP resolution64 Bit
DSP power295 MHz (1.2 billion MAC operations/second)
Sampling rate48 kHz
DSP typeAudio signal processor
Signal convertersA/D: BurrBrown
D/A: BurrBrown
Signal-to-noise ratio digital input105 dB (A-weighted)
Signal-to-noise ratio analog input103 dB (A-weighted)
Distortion (THD) 0.03 %
Damping factor 100
Operating voltage10.5 - 17 Volts (max. 5 sec. down to 6 Volts)
Power ratingDC 12 V ⎓ 60 A max.
Idle current500 mA
Max. remote output current500 mA
Fuse2 x 25 A LP-Mini-fuse (APS)
Additional featuresClass GD technology with dynamically controlled
power supply, 32 Bit CoProcessor, ADEP.3 circuit, Start-Stop capability, Smart Control Port, USB, MEC slot, Auto Remote switch, galvanically isolated Line Out
Dimensions (H x W x D)46 x 145 x 163 mm /
1.81 x 5.71 x 6.42″.
