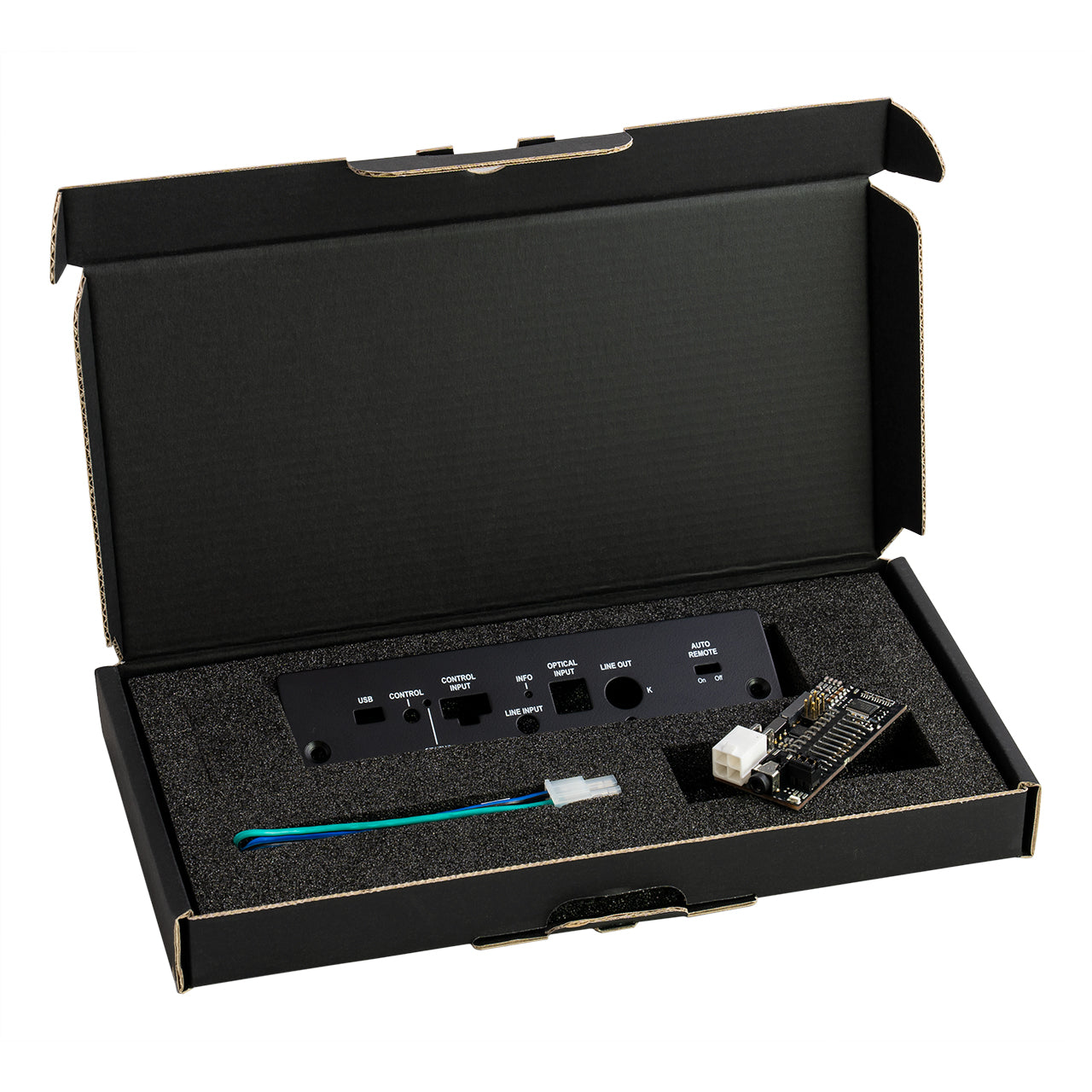

MATCH MEC ANALOG IN - UP 10DSP
With the MATCH expansion card MATCH MEC ANALOG IN, you can expand MATCH products with two analog input channels.
With the module you can, for example:
- you can connect a low-level input signal (3.5mm) to MATCH DSP amplifiers
- upgrades OEM systems that require additional speaker-level inputs
- you can connect analog audio sources, such as a TV or smartphone, etc.
The input sensitivity of the 3.5mm input can be adjusted like the speaker level input, with the adjustment range being 0.5 -8V. The speaker level input adjustment range is 1.5 -30V.
Specifications:
Input voltage high level
1.5 - 30 Volts (adjustable)
Input voltage low level
0.5 - 8 Volts (adjustable)
Low-level input
3.5 mm jack
Additional features
ADEP.3, Auto Remote function
Compatibility
1 x MEC ANALOG IN module
1 x Device-specific side panel
1 x Instruction manual
Scope of delivery
1 x MEC ANALOG IN module
1 x Device-specific side panel
1 x Instruction manual.
