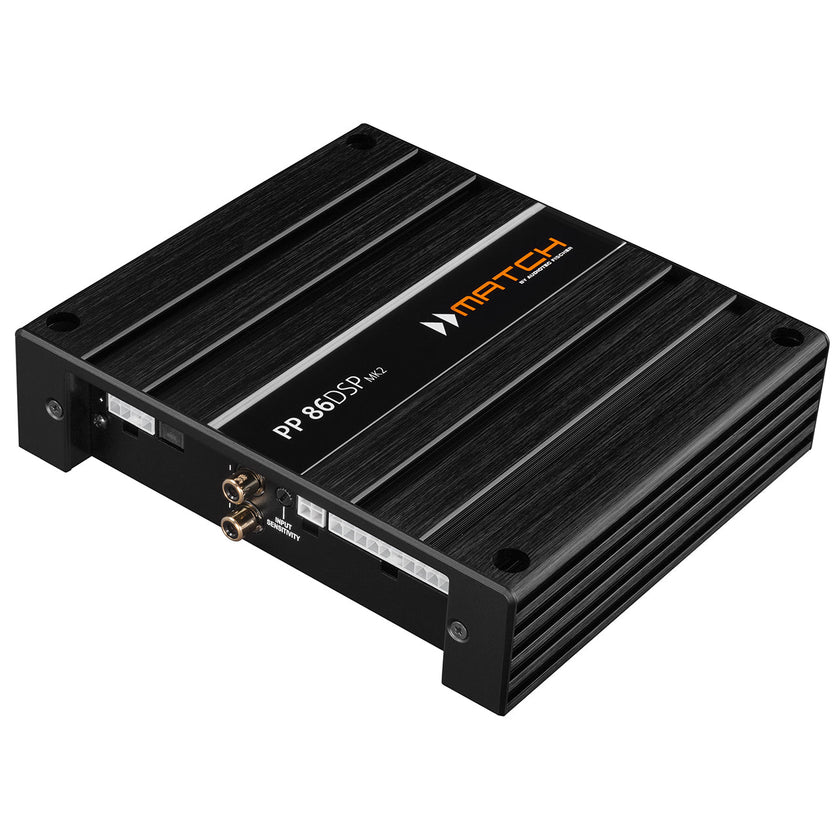

Match PP 86DSP MK2
The Match PP 86DSP is a powerful DSP amplifier.
The amplifier has 8 channels, one RCA output and a 9-channel DSP processor.
The RCA output is intended for a separate subwoofer amplifier, for example. All these channels can be adjusted as desired. The amplifier is versatile and can be used with original and retrofitted speakers.
Audiotec Fischer's Class HD technology, the incredible computing power of the 64-bit DSP, and new innovative DSP functions guarantee a top-class listening experience.
ACO
The Match UP PP 86DSP is implemented on Audiotec Fischer's new ACO platform (ACO = Advanced 32 Bit CoProcessor), which makes the device incredibly fast and efficient.
The amplifier naturally also has an additional MEC module slot where you can connect, for example, a Bluetooth Audio Streaming module or an HD USB input for audio.
6-channel ADEP .3 high-level input ( 5-11V )
ISA (Input Signal Analyzer) and InputEQ, i.e. input signal measurement and equalizer.
Adjustments are made via the clear DSP PC-Tool software on a PC.
Specifications:
Technical data:
Output power RMS
- @ 4 Ohms 8 x 55 Watts
- @ 2 Ohms 8 x 70 Watts
- @ 1 Ohm -
- bridged @ 4 Ohms -
- bridged @ 2 Ohms -
- Subwoofer output @ 4 Ohms -
- Subwoofer output @ 2 Ohms -
Amplifier technology Class HD
Inputs 6 x High level speaker input
1 x Optical SPDIF (12 - 96 kHz)
1 x MEC
1 x Remote In
Input sensitivity High level 5 - 11 Volts
Input impedance RCA / Cinch -
Input impedance high level 9 - 33 Ohms with ADEP.3
Outputs 8 x Speaker output
2 x RCA / Cinch (mono)
2 x Remote Out
Output voltage RCA / RCA 3 Volts RMS
Frequency response 20 Hz to 22,000 Hz
DSP resolution 64 Bit
DSP power 295 MHz (1.2 billion MAC operations/second)
Sampling rate 48 kHz
DSP type Audio signal processor
Signal converters A/D: BurrBrown
D/A: BurrBrown
Signal-to-noise ratio digital input 105 dB (A-weighted)
Signal-to-noise ratio analog input 103 dB (A-weighted)
Distortion (THD) 0.015 %
Damping factor 100
Operating voltage 10.5 - 18 Volts (max. 5 sec. down to 6 Volts)
Power rating DC 12 V ⎓ 40 A max.
Idle current 685 mA
Max. remote output current 500 mA
Operating temperature range -40° C to +70° C
Fuse 2 x 25 A LP-Mini-fuse (APS)
Additional features Class HD technology with dynamically controlled
power supply, 32 Bit CoProcessor, ADEP.3 circuit, Smart Control Port, Start-Stop capability, USB, MEC slot, Auto Remote switch, galvanically isolated Line Outs
Dimensions (H x W x D) 44 x 185 x 164 mm /
1.73 x 7.28 x 6.46“
Scope of delivery
1 x Amplifier MATCH PP 86DSP MK2
3 x Connection cable
1 x USB cable
1 x Mounting material
1 x Instruction manual
