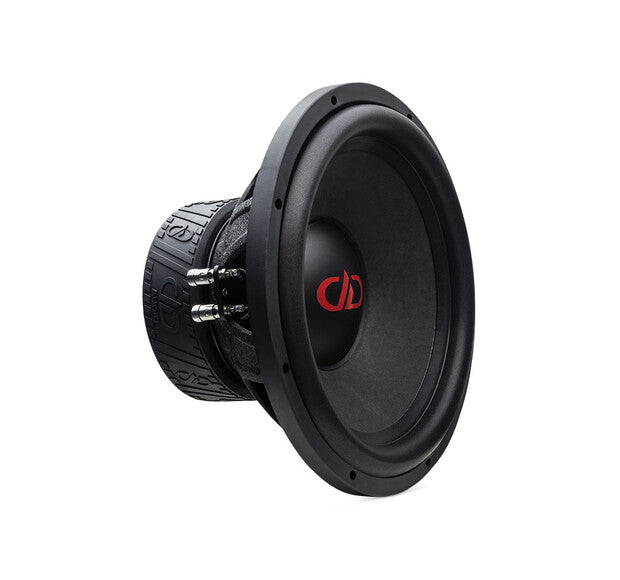

DD Audio 512e-D4 – powerful 12" subwoofer from the 500e series
The new 500e-series DD Audio subwoofers have been updated to meet today's demands. A fiberglass-reinforced non-pressed paper cone, larger surround, 50% more excursion, multi-layer spider, and a new frame and magnet offer a price/performance ratio that was previously unimaginable.
Technical specifications
- Diameter: 12" (308 mm outer diameter)
- Voice Coil: 3" (76 mm)
- Impedance: 2×4Ω (Dual Voice Coil)
- Power RMS: 700 W
- Power max: 2100 W
- Fs (resonant frequency): 33 Hz
- Qms: 4.88
- Qes: 0.73
- Qts: 0.64
- Vas: 30.16 L
- BL: 25 Tm
- Xmax: ±18 mm
- Xmech: 30 mm
- Mounting hole diameter: 280 mm
- Mounting depth: 165 mm
- Magnet: 120 oz
- Weight: 9.8 kg
Enclosure recommendation
- Ported: 50–78 liters (net)
