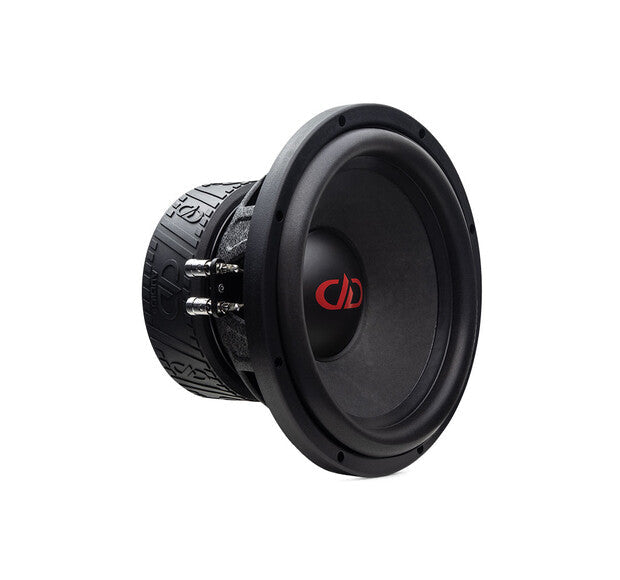

DD Audio 510e-D4 – powerful 10" subwoofer from the 500e series
The DD Audio 510e-D4 is a 10" subwoofer from the 500-series “e” revision, featuring a dual voice coil design (D4). Longer windings increase the Xmax value by 50% compared to its predecessor. A fiberglass-laminated cone, thicker EROM surround, and a double-layer spider with integrated tinsel leads ensure excellent durability and sound quality.
Technical Specifications
- Diameter: 10" (254 mm)
- Voice Coil: 3" (76 mm)
- Impedance: 2×4Ω (Dual Voice Coil)
- RMS Power: 700 W
- Max Power: 2100 W
- Fs (Resonance Frequency): 38 Hz
- Qts: 0.65
- Vas: 37.1 L
- Xmax: ±18 mm
- Mounting Hole Diameter: 227 mm (8.93")
- Mounting Depth: 150 mm (5.9")
- Magnet: 120 oz
- Weight: 6.35 kg
See also – 500e-series
- DD Audio 510e-D2 – 10", 2×2Ω
- DD Audio 512e-D4 – 12", 2×4Ω
- DD Audio 512e-D2 – 12", 2×2Ω
- DD Audio 515e-D4 – 15", 2×4Ω
- DD Audio 515e-D2 – 15", 2×2Ω
