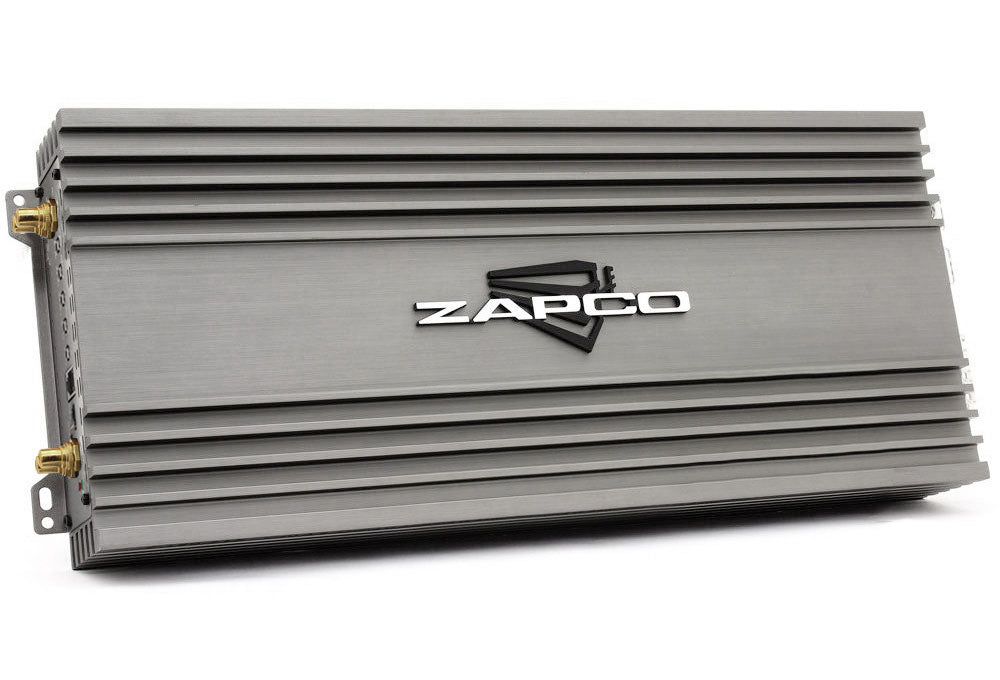

Zapco Z-2KD II Mono SQ Class D Amplifier

Zapco Z-2KD II Mono SQ Class D Amplifier

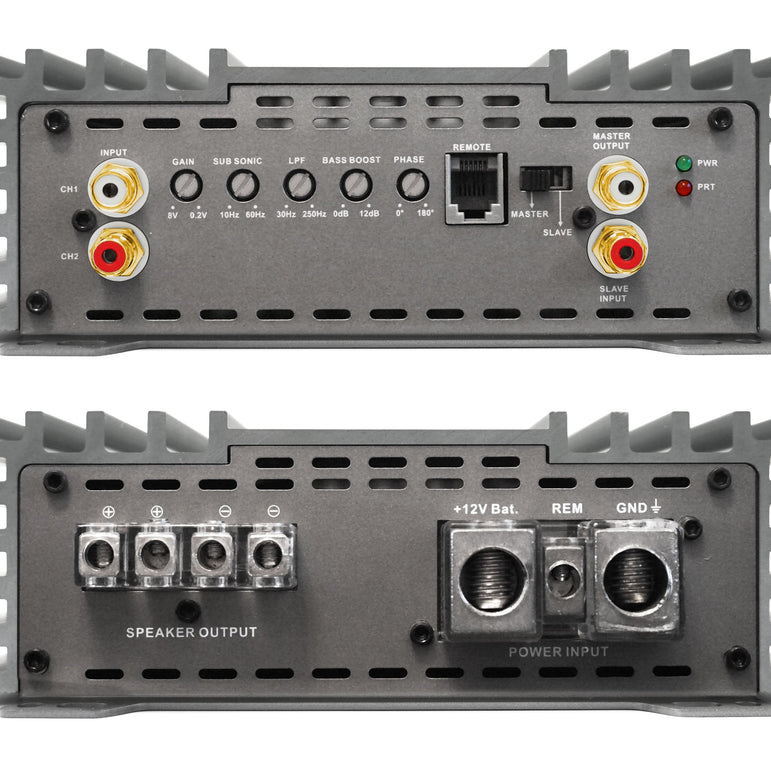

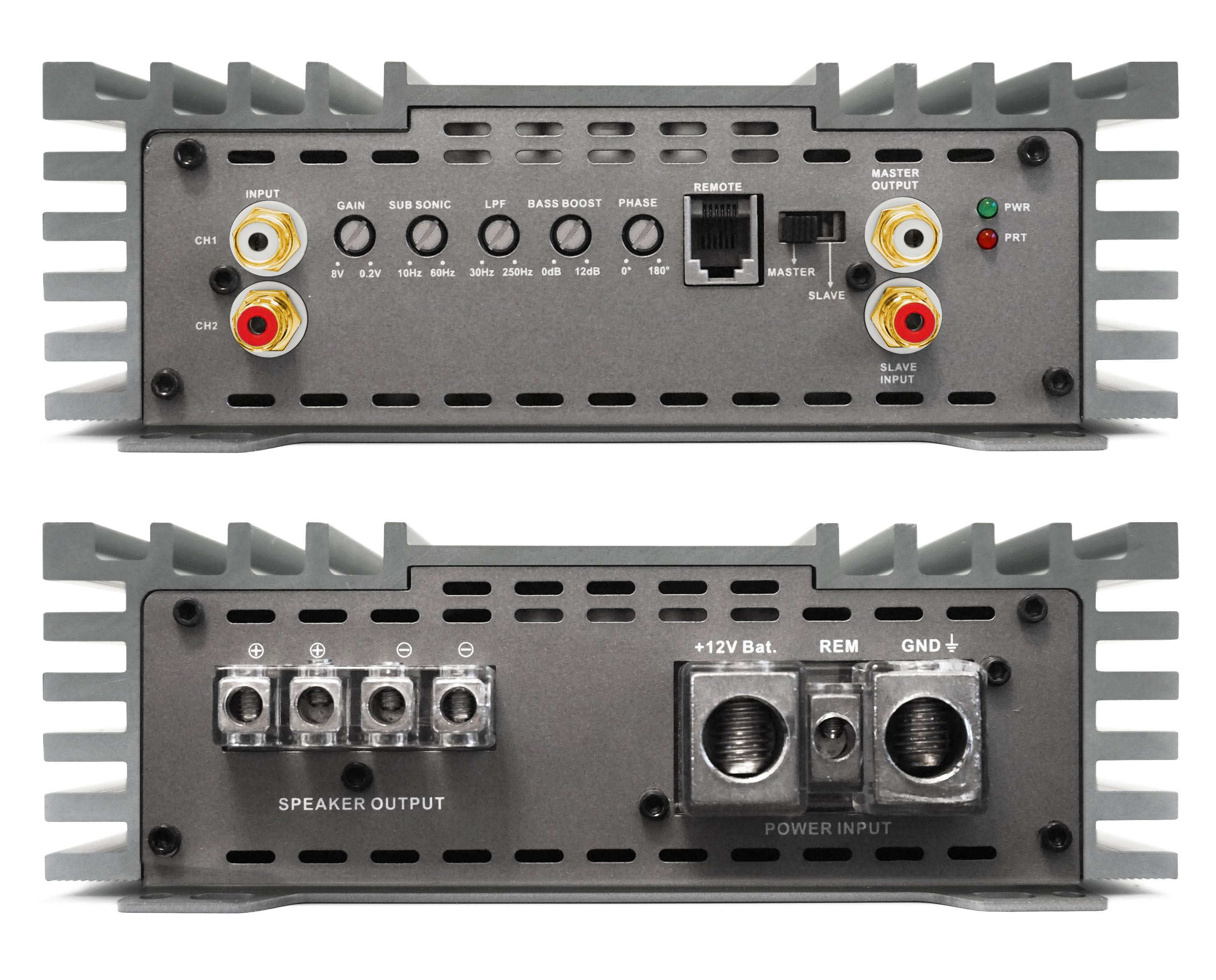

Features and Functions

• Mono Class D Linkable Bass Amplifier
• Stable at 1Ω (2Ω with two linked/bridged amplifiers)
• PWM MOSFET Power Supply
• 24 dB Adjustable Low Pass Filter (LPF)
• 12 dB Adjustable Bass Boost
• 0-180 Degree Adjustable Phase Shift
• 24 dB Adjustable Subsonic Filter
• Selectable Master/Slave Function for linked (bridged) amplifier configuration

Specifications

• Power @ 4Ω: 800 W
• Power @ 2Ω: 1,400 W
• Power @ 1Ω: 2,100 W
• Linked @ 2Ω: 3,600 W
• THD at rated power: < 0.05%
• S/N Ratio: > 90 dB
• Damping Factor: > 350
• Efficiency: 86%
• Input Sensitivity: 0.2 V – 8 V
• Net Dimensions (mm): 190 (W) x 62 (H) x 450 (L)
• Gross Dimensions (mm): 190 (W) x 62 (H) x 486 (L)
