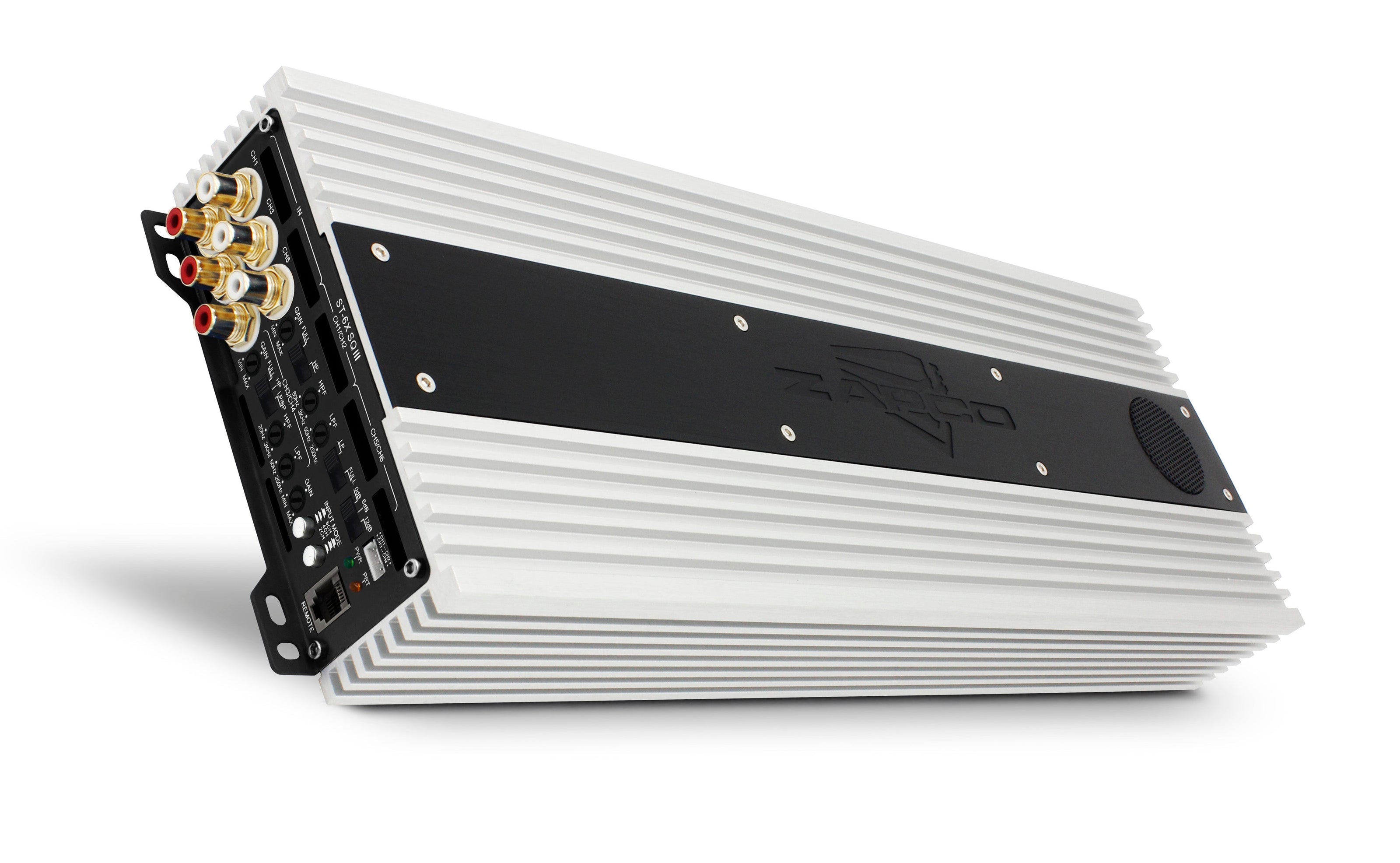

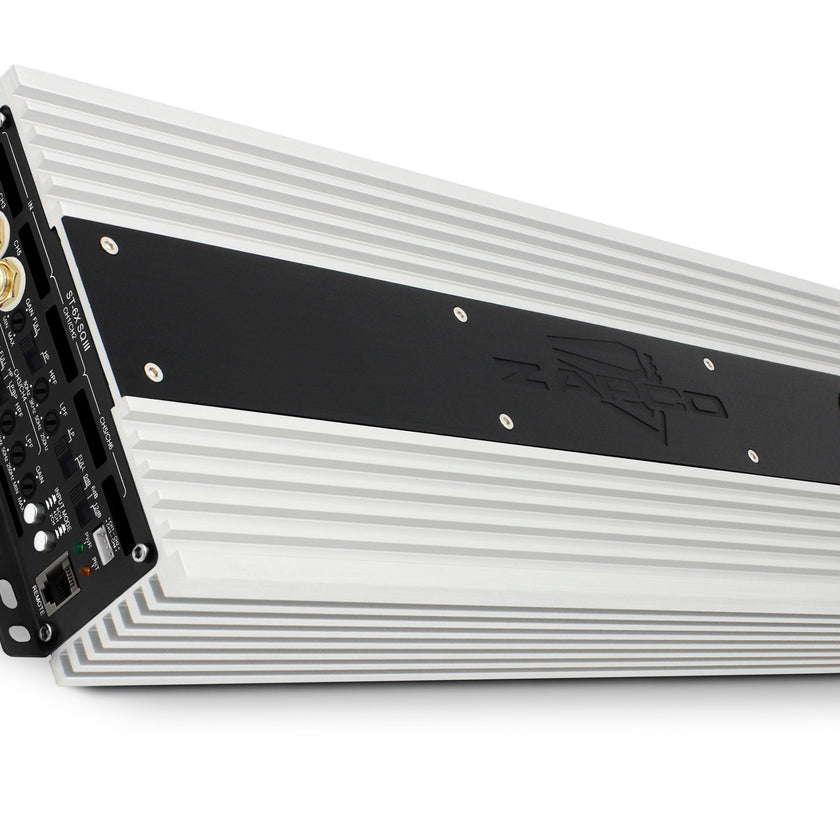

Zapco ST-6X SQ III 6-channel Class AB SQ Amplifier

Features and Functions

• 6-channel, full-range, Class A/B
• SQ enhancements: Op-amps, Capacitors, etc.
• Tiffany style panel mount RCA connector
• RCA and speaker level inputs
• Adjustable input gain control
• Adjustable electronic crossover
• Auto turn-on with speaker level inputs
• 2/4/6 channel input mode selector
• New aluminum chassis
• Adjustable bass boost control

Specifications

• Power @ 4 Ω: 6 x 100 W
• Power @ 2 Ω: 6 x 150 W
• Power bridged @ 4 Ω: 3 x 300 W RMS
• THD at rated power: < 0.5%
• S/N Ratio: > 95 dB
• THD + Noise: < 0.05%
• Channel separation: > 60 dB
• Frequency response: 15 Hz – 30 kHz ±1 dB
• Input sensitivity: 0.25 V – 5 V
• Net dimensions (mm): 160 (W) x 58 (H) x 450 (L)
• Gross dimensions (mm): 160 (W) x 58 (H) x 475 (L)
