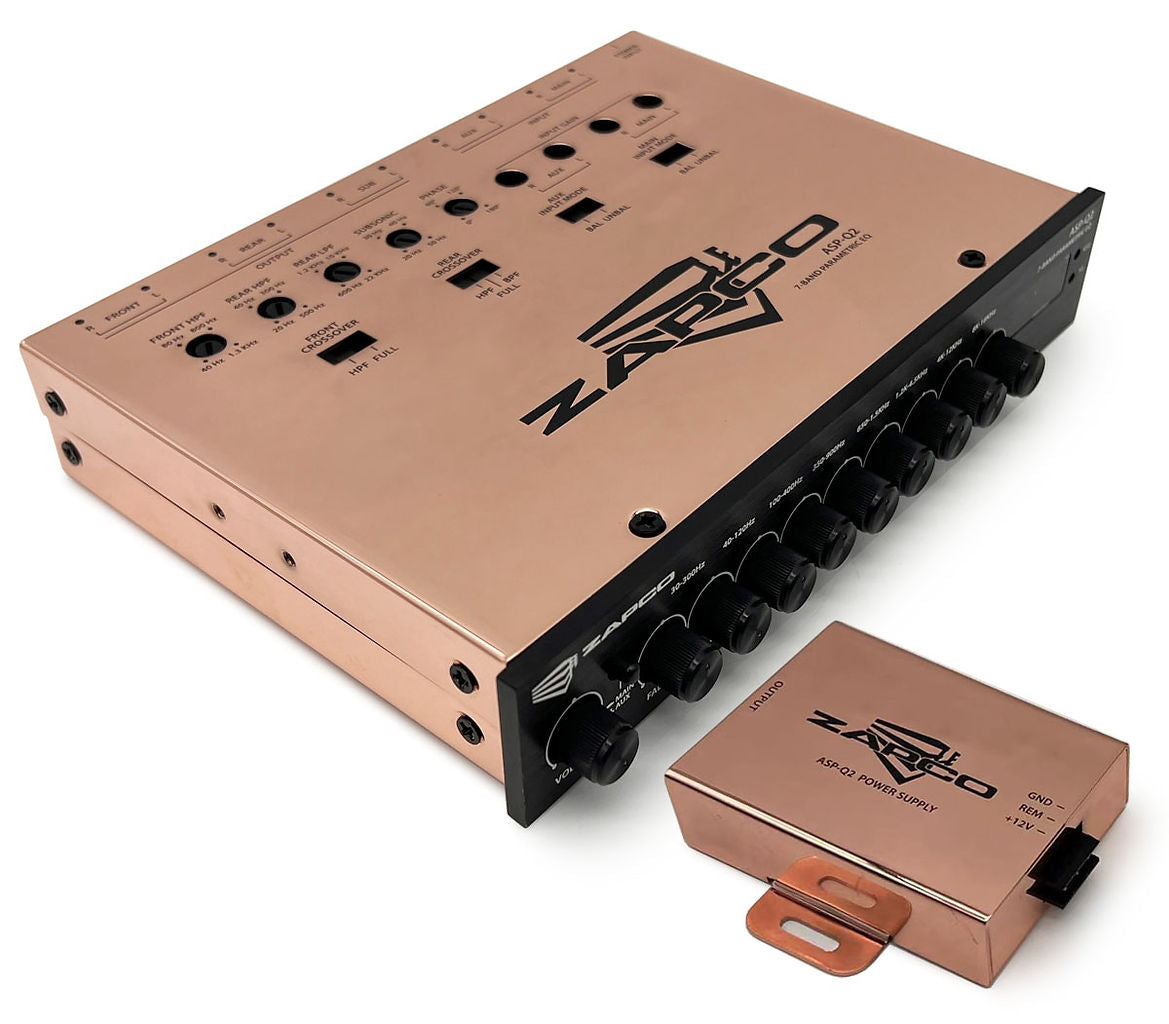

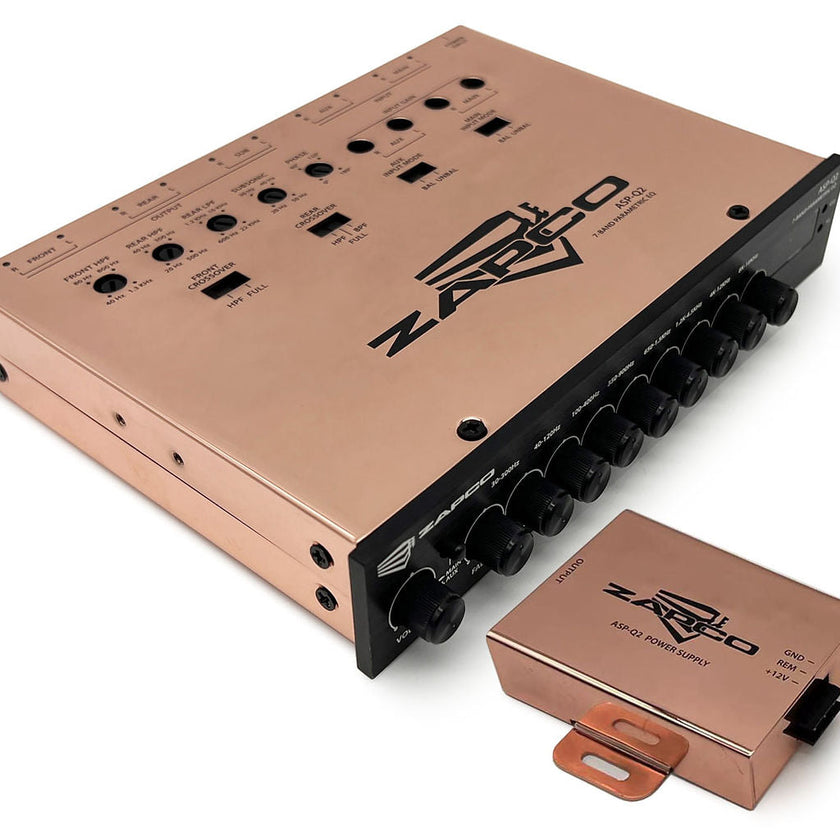

Zapco ASP-Q2 7-Band Parametric Equalizer, Electronic Crossover
Features and Functions
The ASP-Q2 is not just designed as a dashboard ornament. It is a powerful tool for adjusting and controlling the sound of your car audio system. With its 7-band parametric equalizer, you can make adjustments at any point in the frequency band. Separate bass level control allows you to balance the bass in relation to the high frequencies. Both the main and auxiliary input channels have their own input signal control.

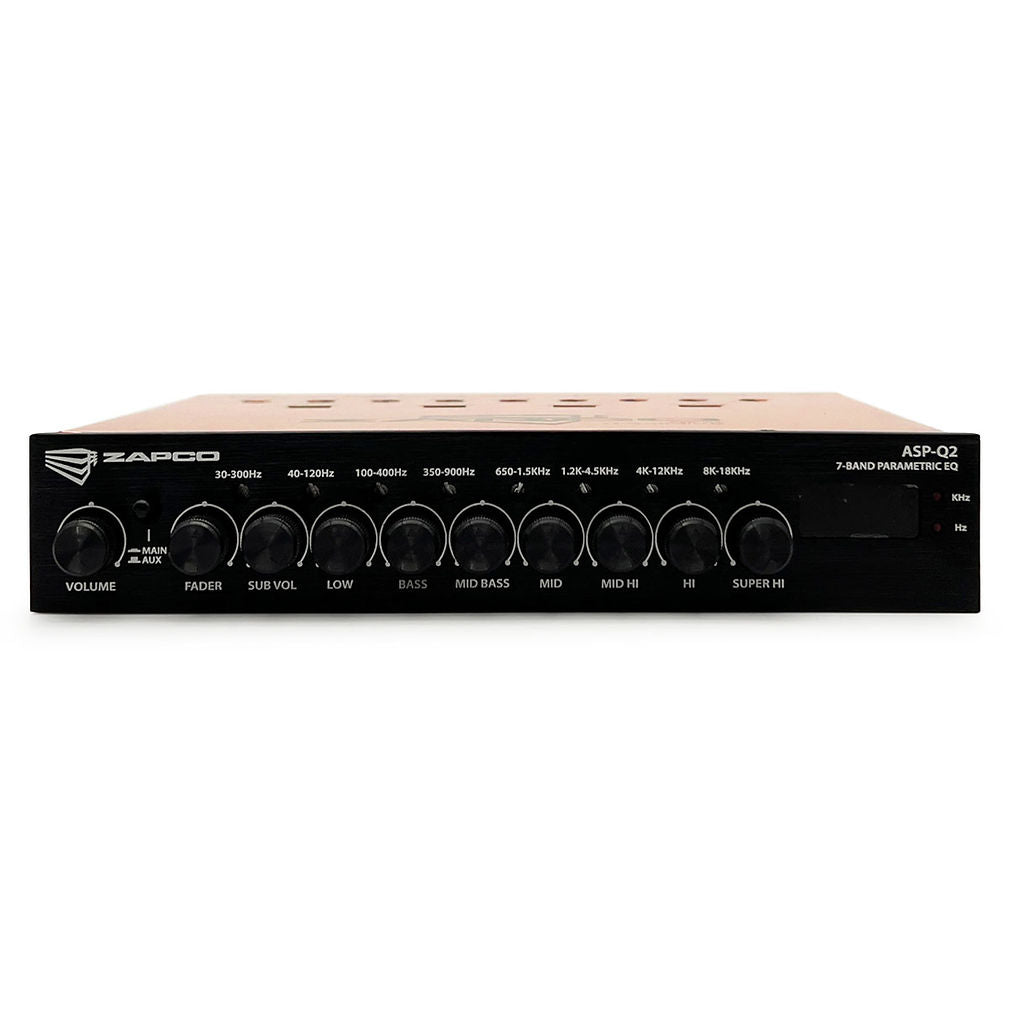

- Frequency ranges: 40–120 Hz (Bass), 100–400 Hz (Low), 350–900 Hz (Mid-low), 650 Hz–1.5 kHz (Mid), 1.2–4.5 kHz (Mid-high), 4–12 kHz (High), 8–18 kHz (Super-high)
- Subwoofer frequency: 30–300 Hz
- Subsonic frequency: 15–50 Hz

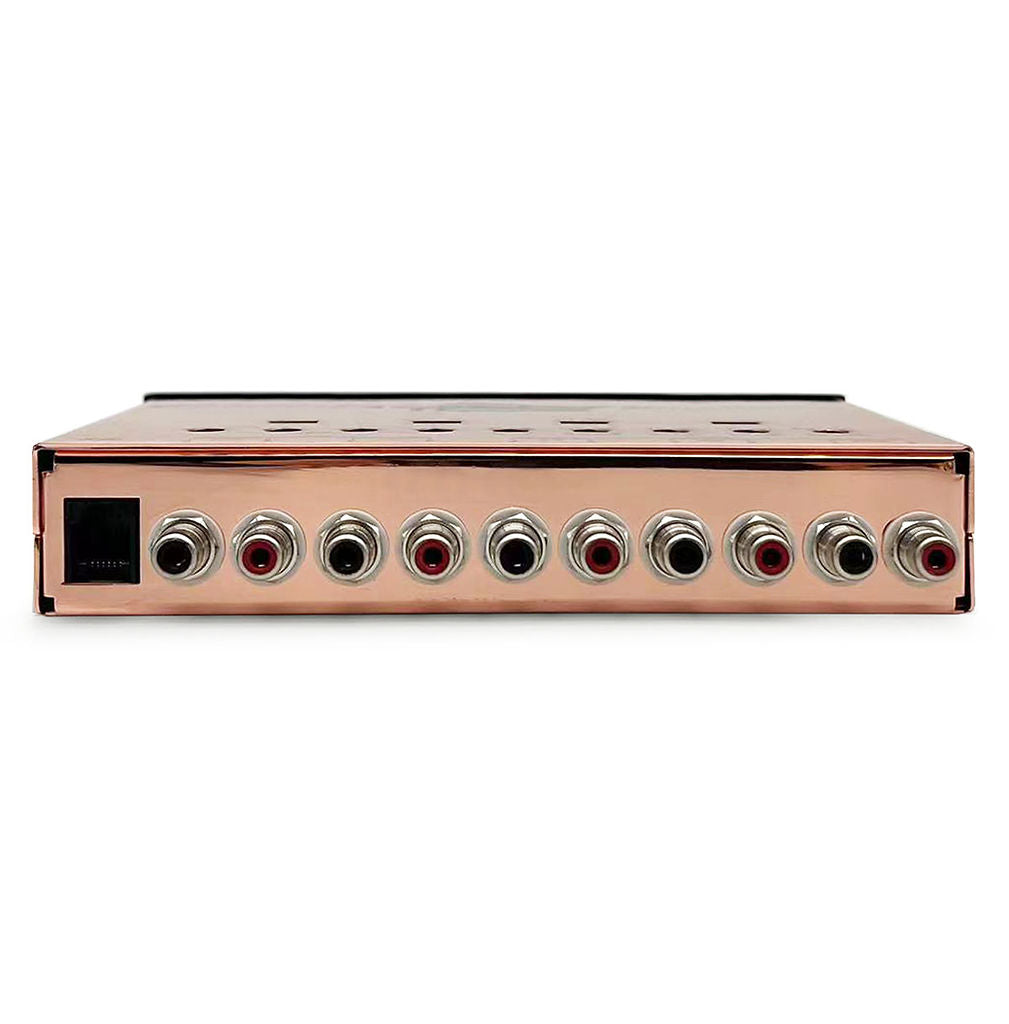

- RCA: 2-channel input (main, auxiliary) + 3-channel output (front, rear, sub)
Technical specifications
- THD: < 0.03%
- S/N ratio: > 110 dB
- Stereo channel separation: 70 dB
- Equalization range: ±12 dB
- Preamp output: 9.5 V RMS / 14 V peak
- Device dimensions (mm): 178 (W) x 33 (H) x 138 (D)
- Power supply dimensions (mm): 78 (W) x 24 (H) x 58 (D)
