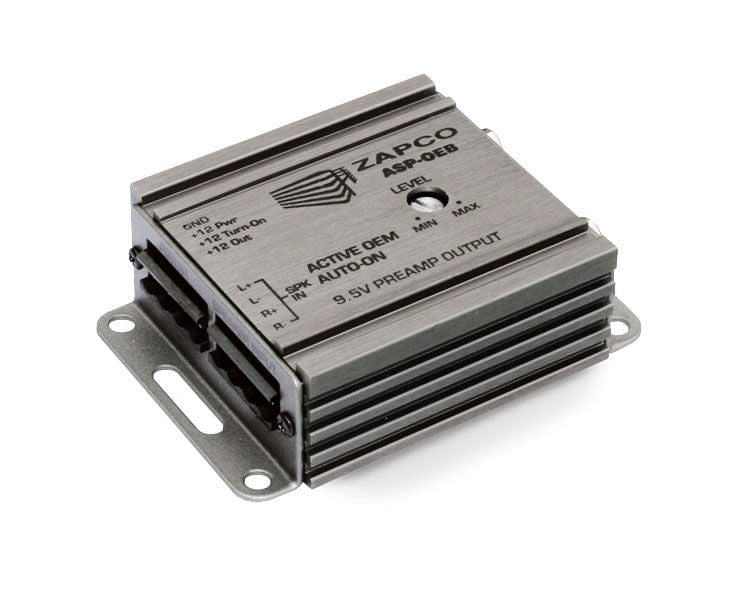

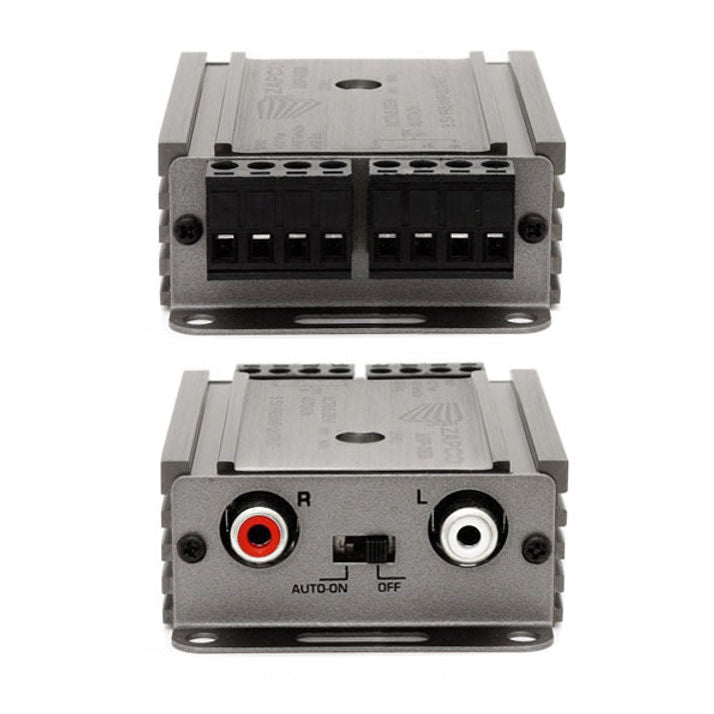

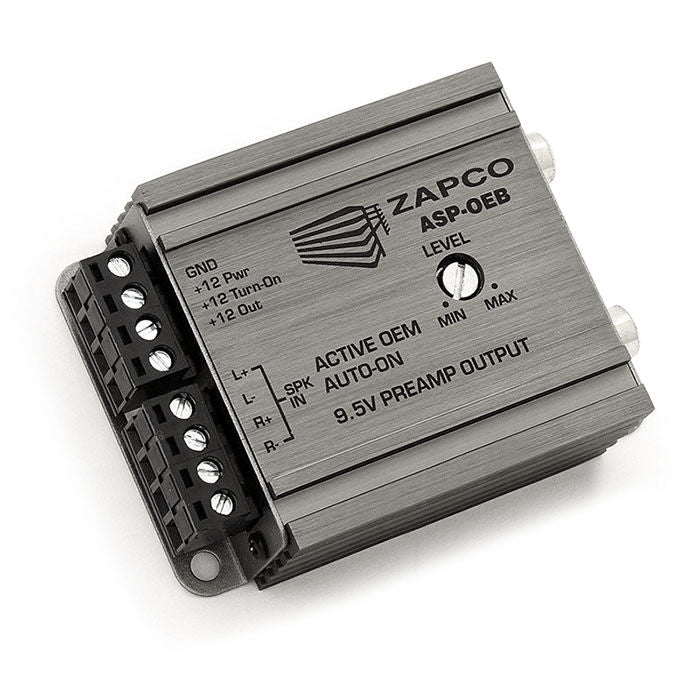

Zapco ASP-OEB speaker-level line converter - 2-channel, 9.5 V RMS

Zapco ASP-OEB speaker-level line converter converts a speaker-level signal to line level and amplifies it to 9.5 V RMS. Its...
Sale price €44,25Regular price €59,00
Regular price €44,25

Zapco ASP-OEB speaker-level line converter

converts a speaker-level signal to line level and amplifies it to 9.5 V RMS. Its line outputs can be configured as 2- or 4-channel. The line output level is 9.5 V RMS and the maximum level is 14 V.

Adjustable output level and automatic turn-on

The line output level control allows the signal level to be adjusted to the system. The automatic turn-on function can be disabled if necessary. The line output is configurable as 2- or 4-channel.

Technical specifications
  • Model: Zapco ASP-OEB
  • Product type: OEM adapter and speaker-level line converter
  • Speaker-level input: 2 channels
  • Line output: 2 channels, configurable as 2- or 4-channel
  • Preamp output level: 9.5 V RMS
  • Maximum output level: 14 V
  • Line output level control
  • Automatic turn-on: can be disabled
  • Total harmonic distortion (THD): less than 0.01 %
  • Signal-to-noise ratio (S/N): over 110 dB
  • Channel separation: 90 dB
  • Dimensions: 59 × 26 × 79 mm
  • Dimensions with connectors: 59 × 26 × 83 mm
