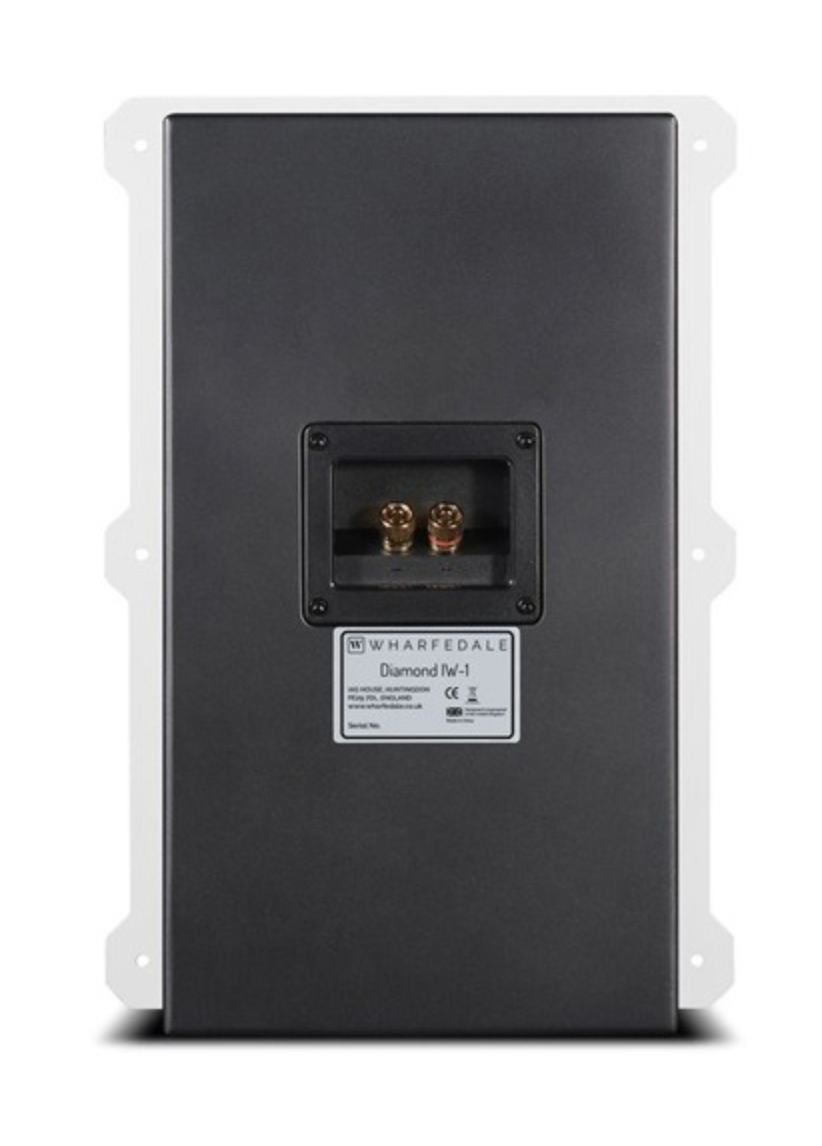

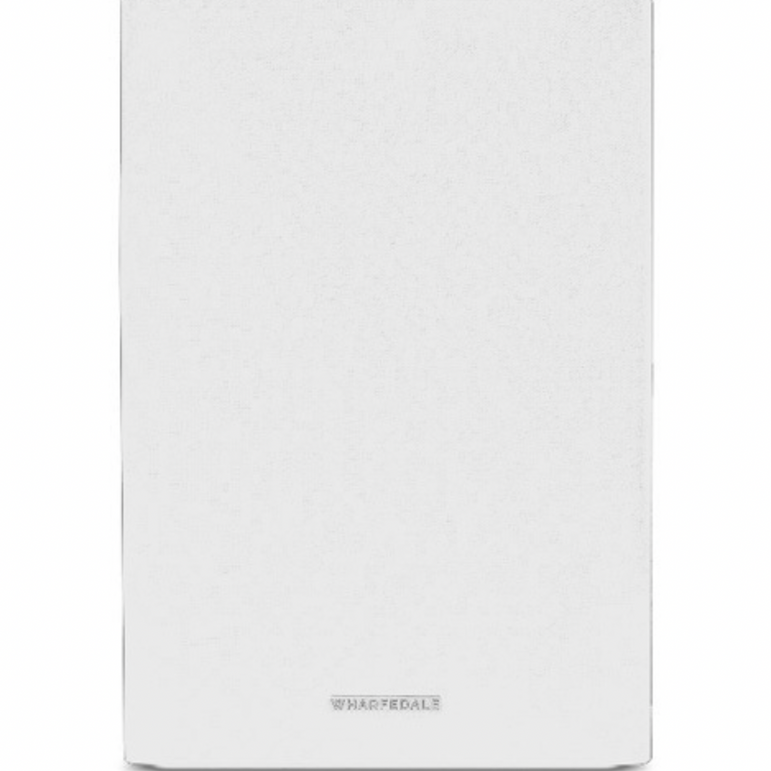

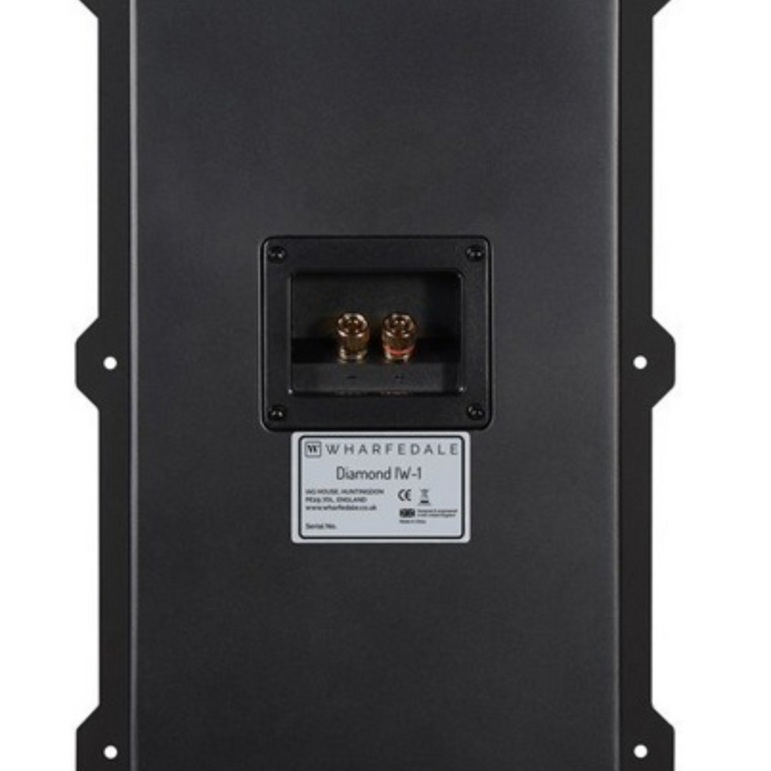

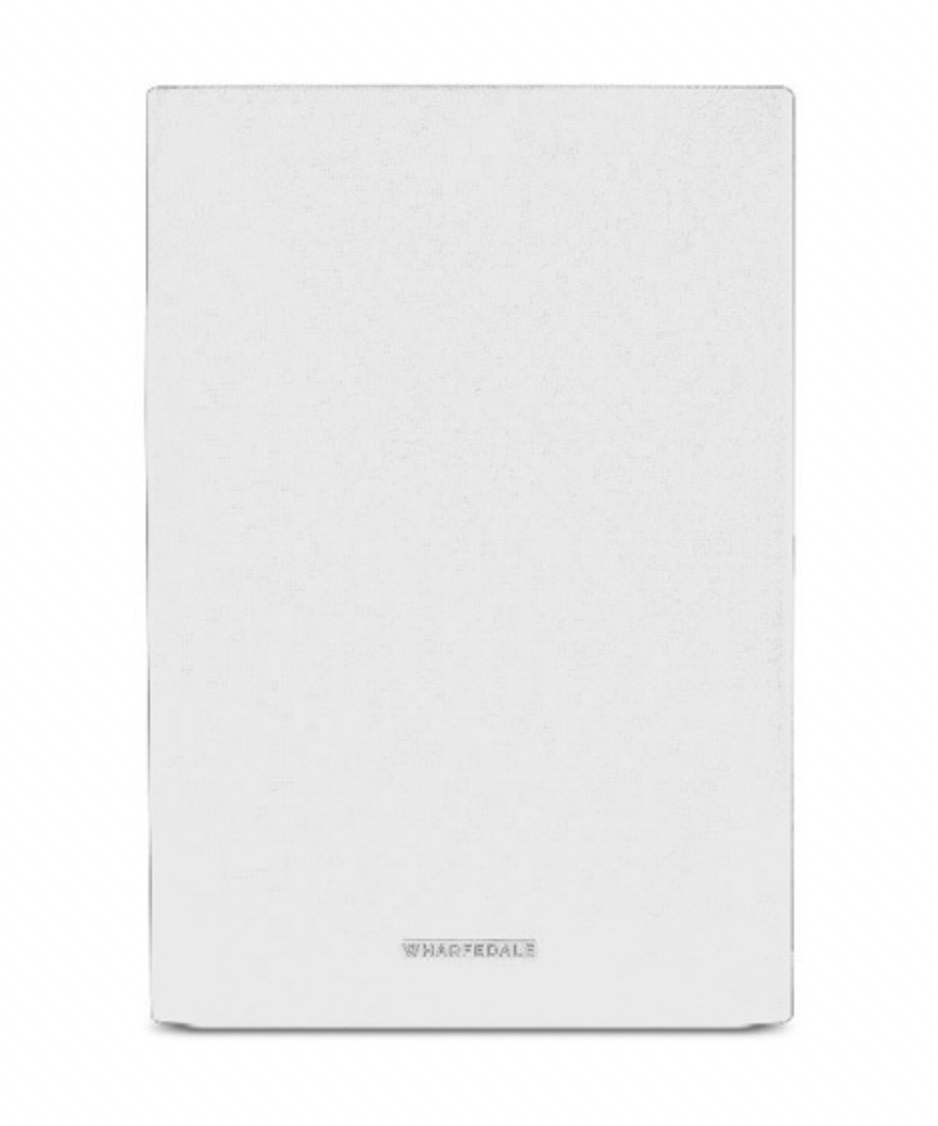

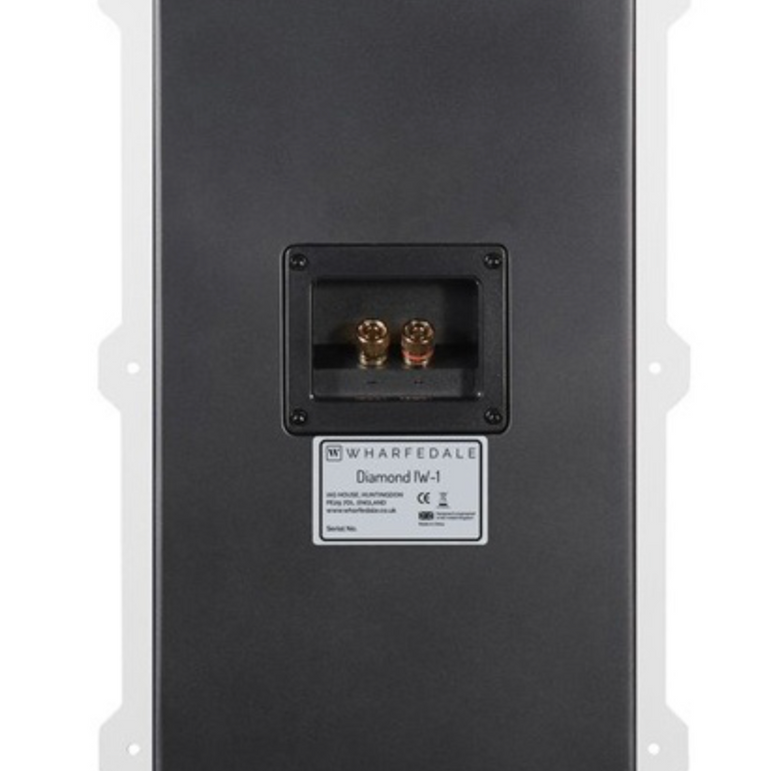

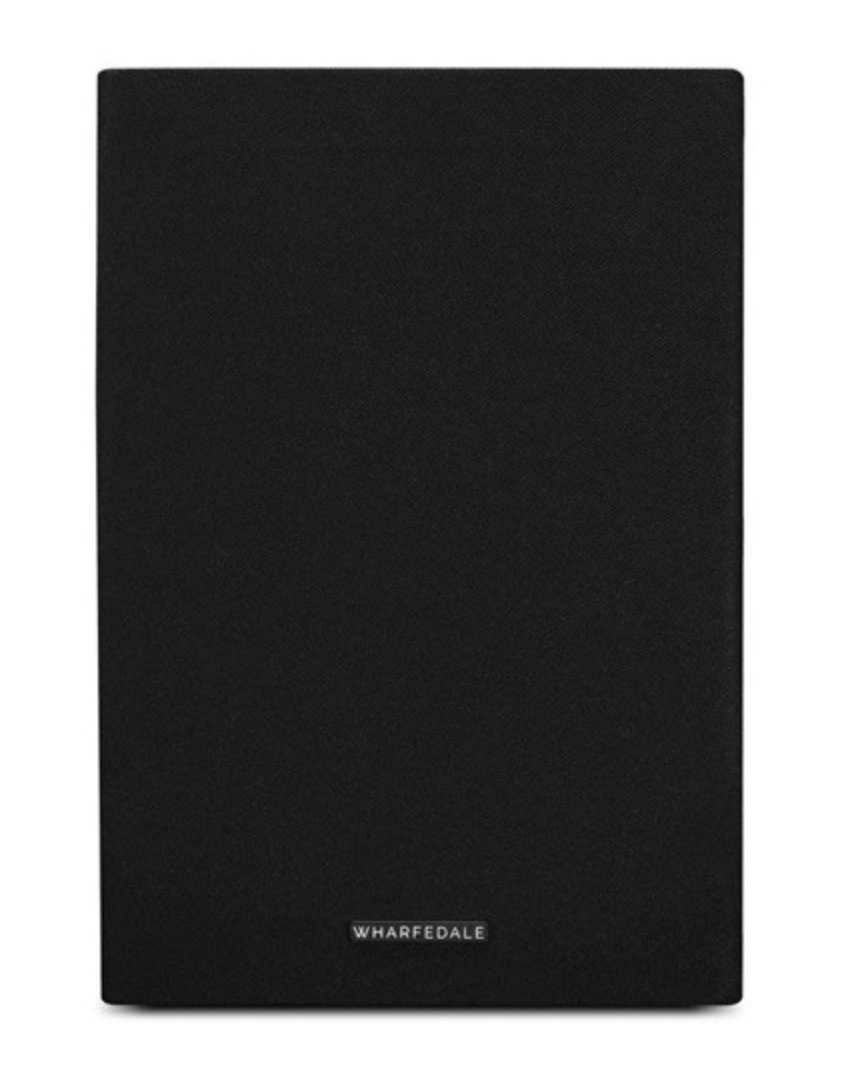

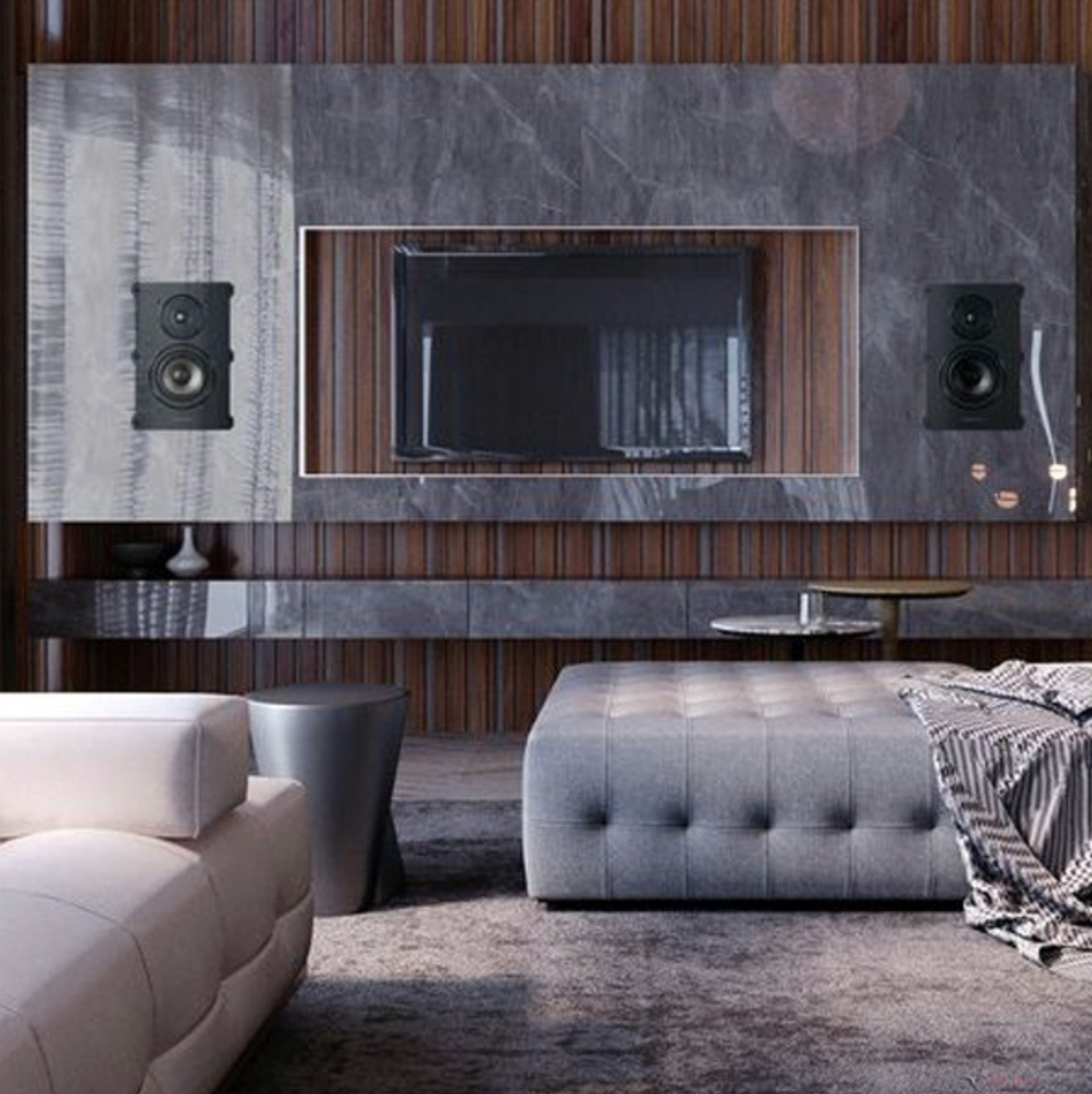

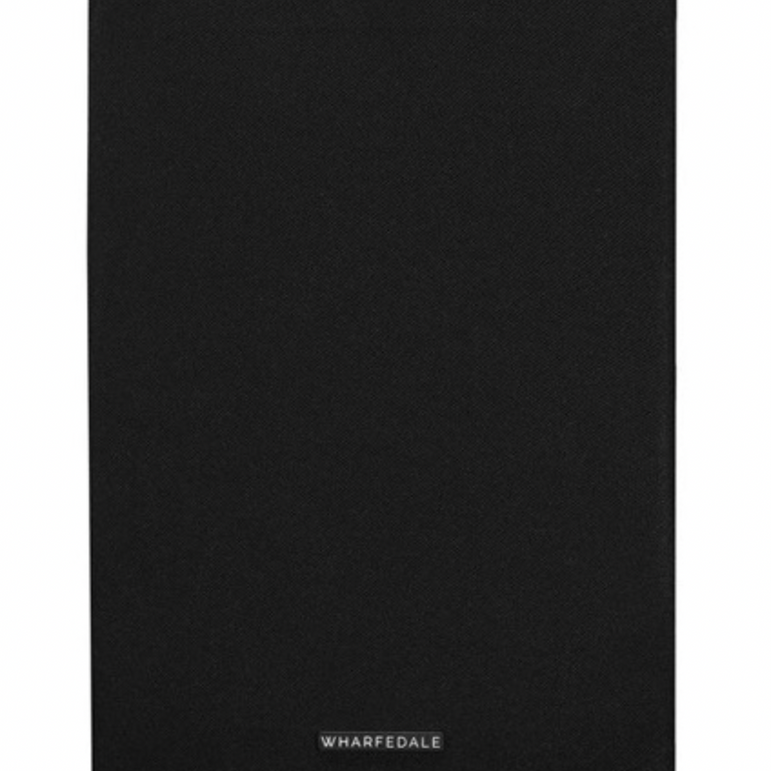

The Wharfedale Diamond IW-1 is an in-wall speaker developed from the award-winning Diamond 12 series, seamlessly integrating into your home theater system. The IW series brings the Diamond 12's sound quality to an architectural form – invisible yet audible.

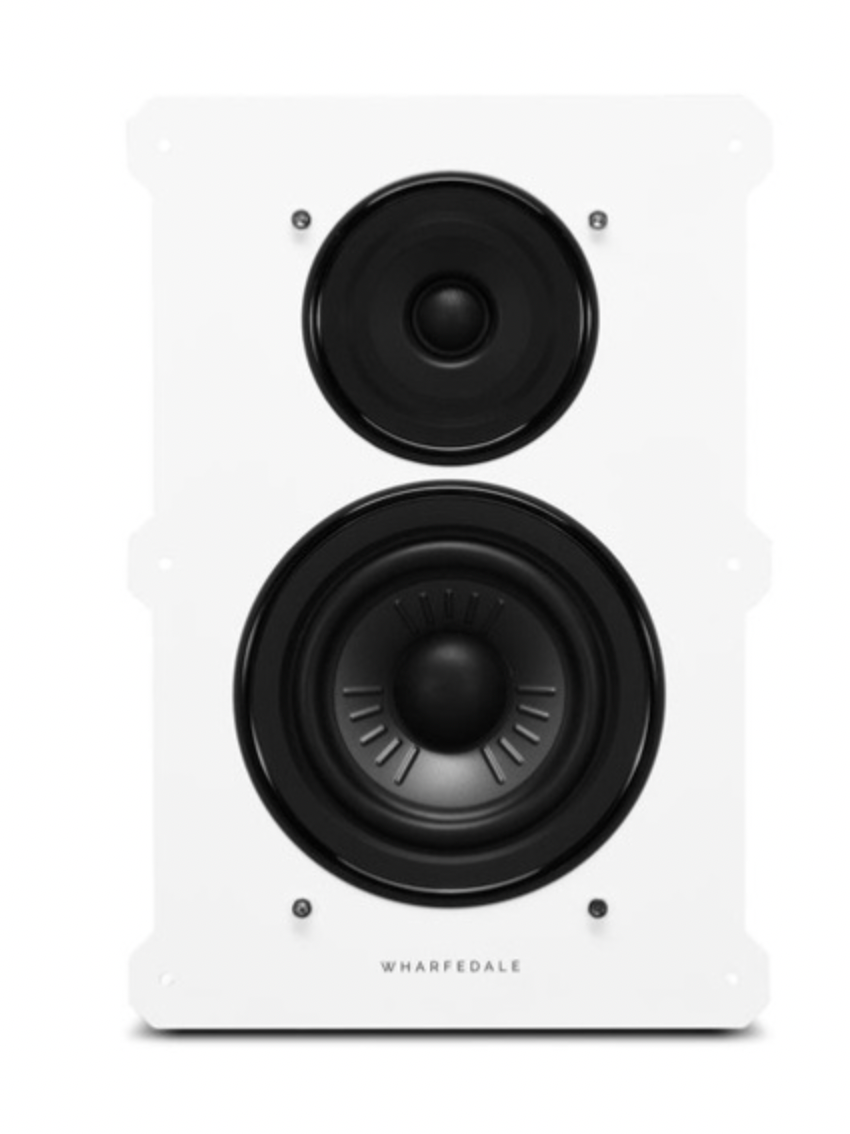

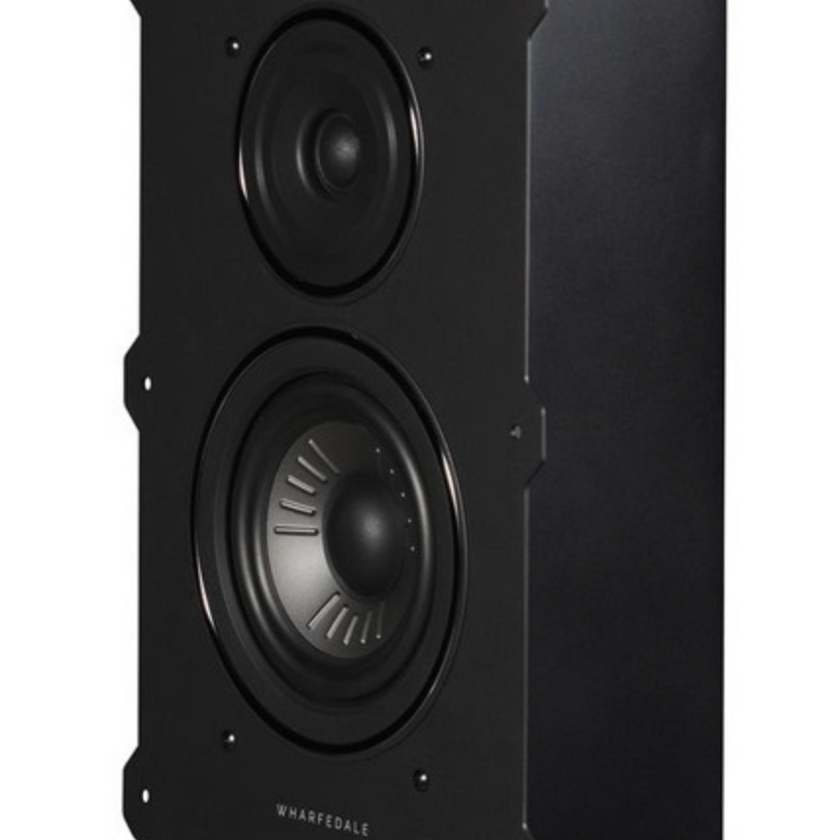

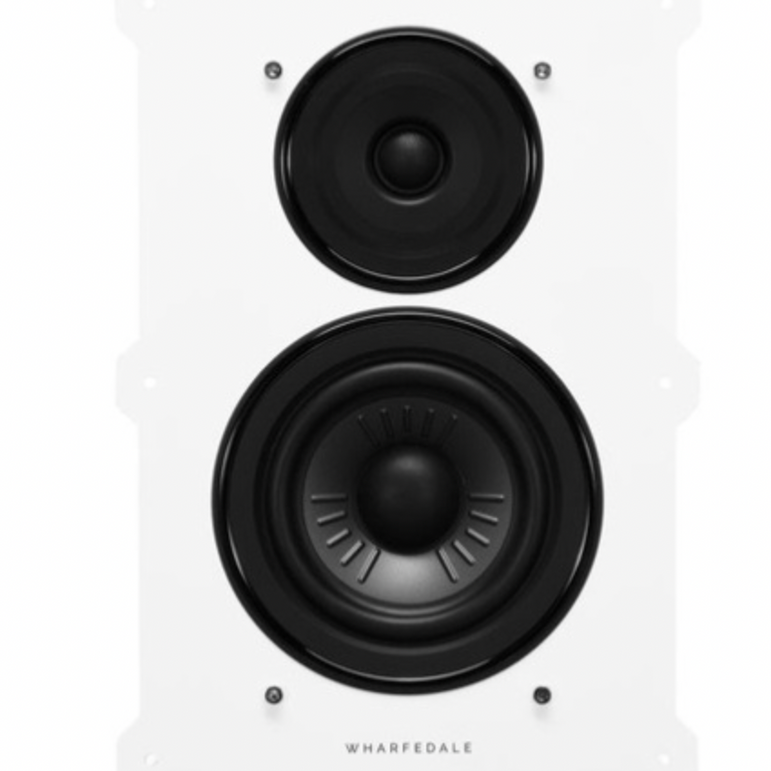

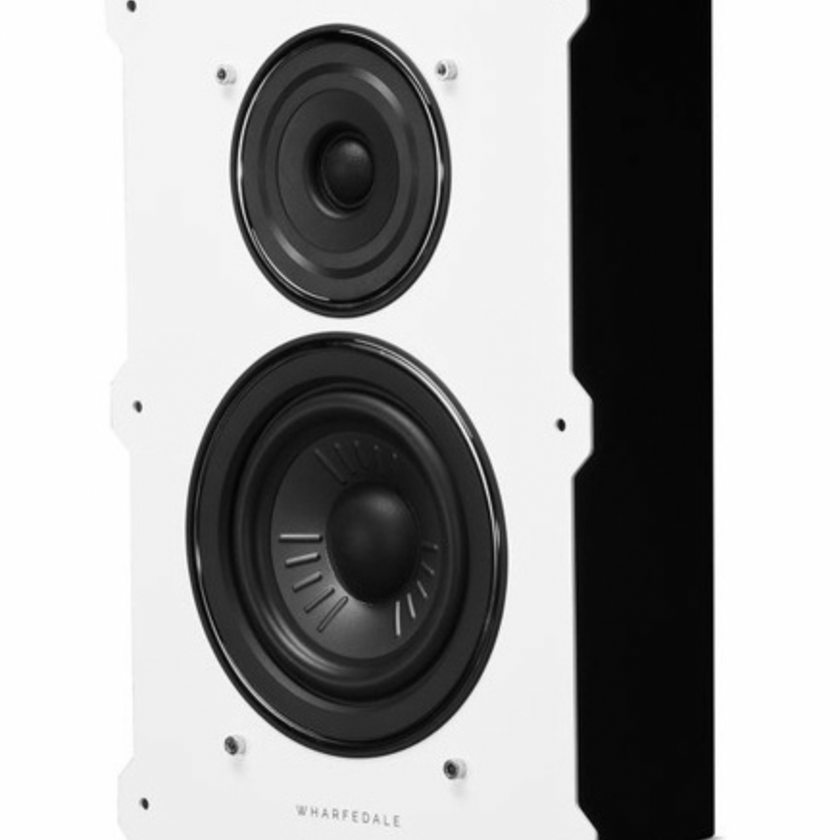

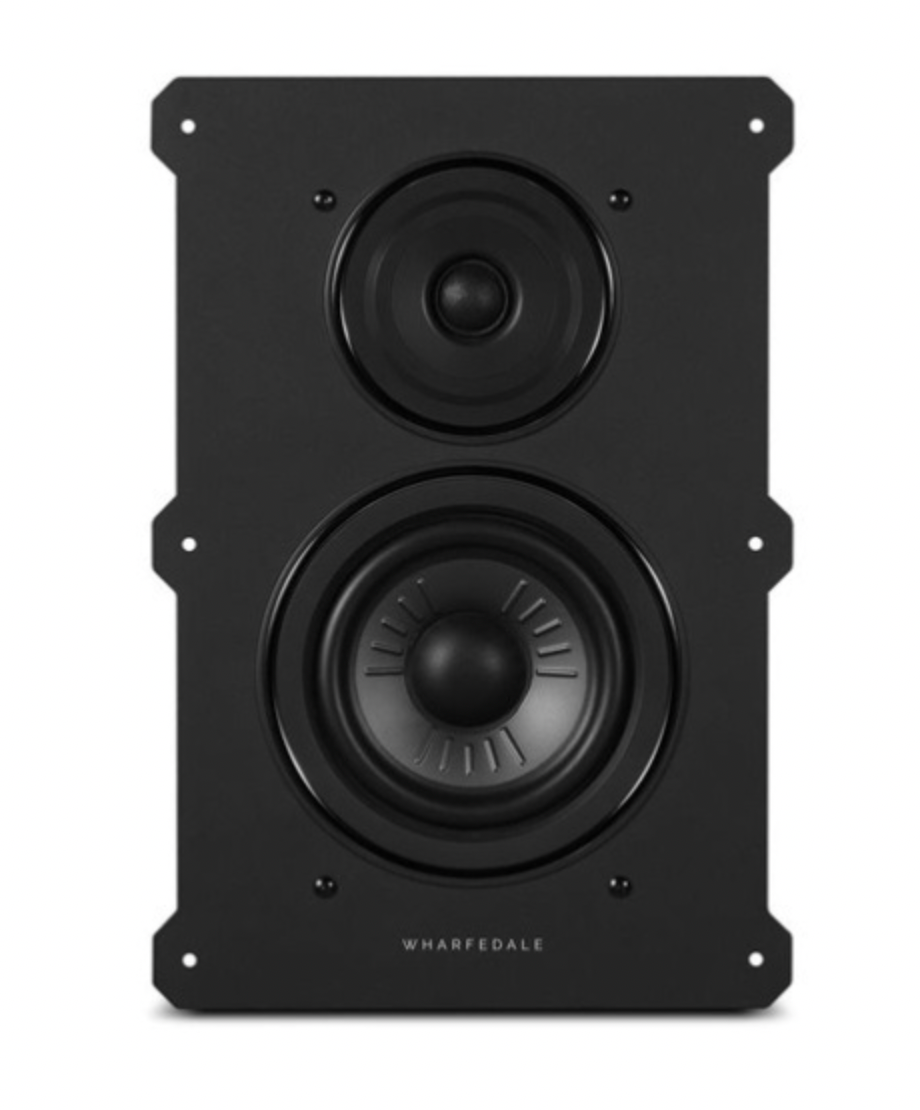

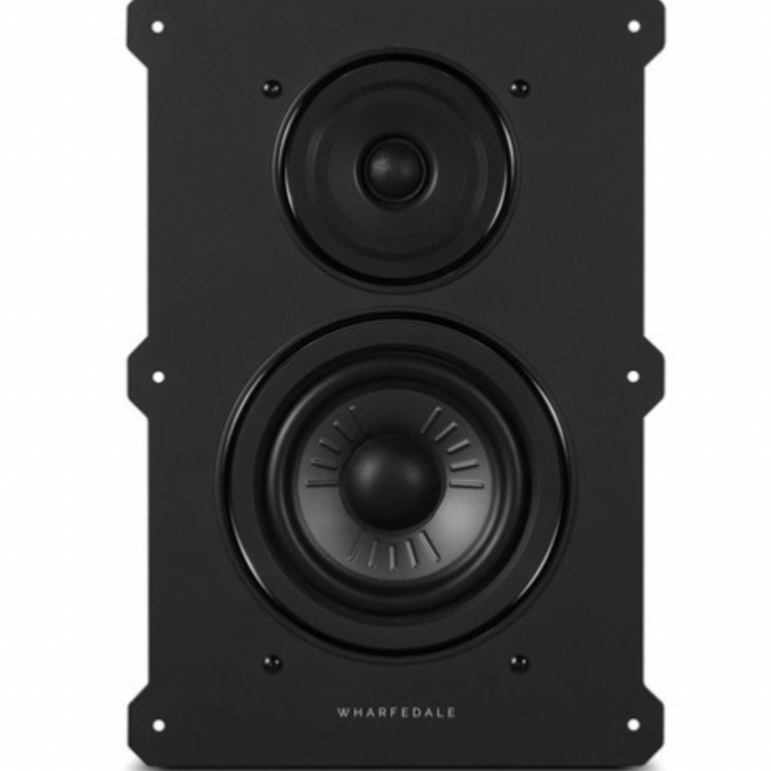

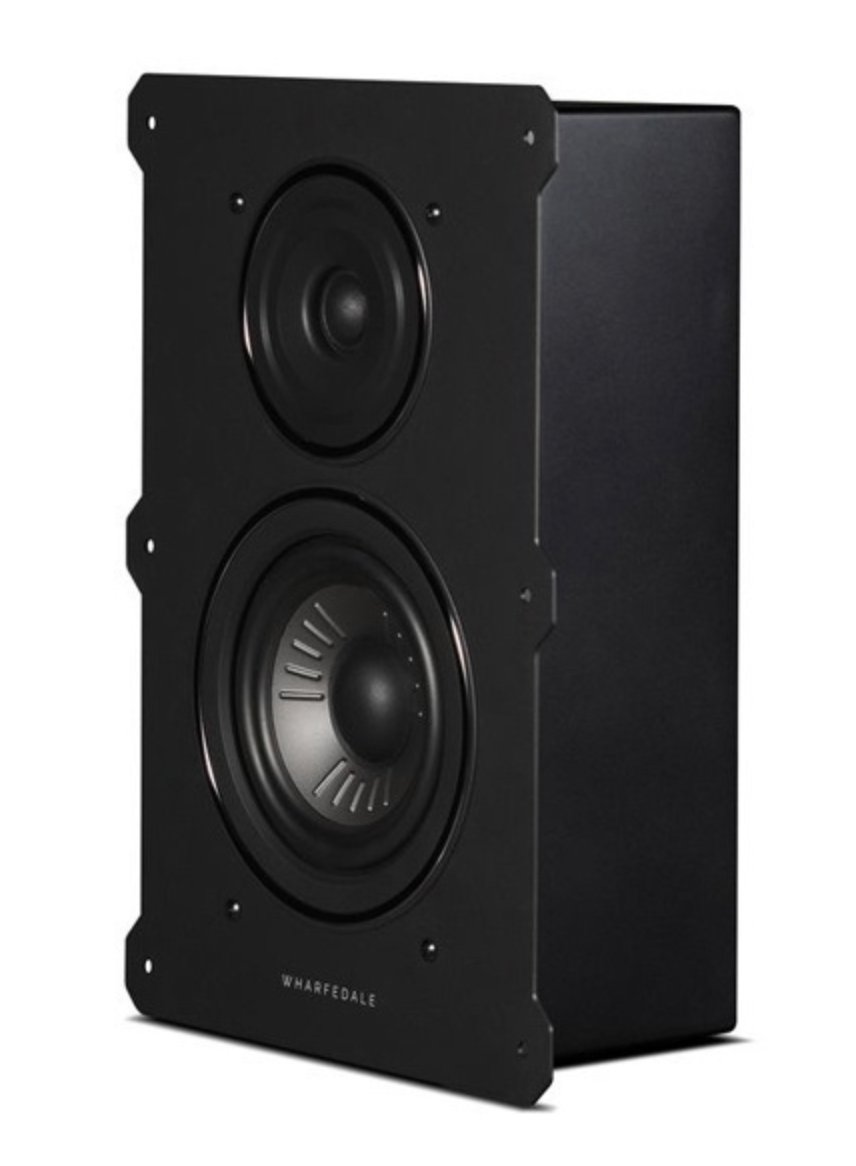

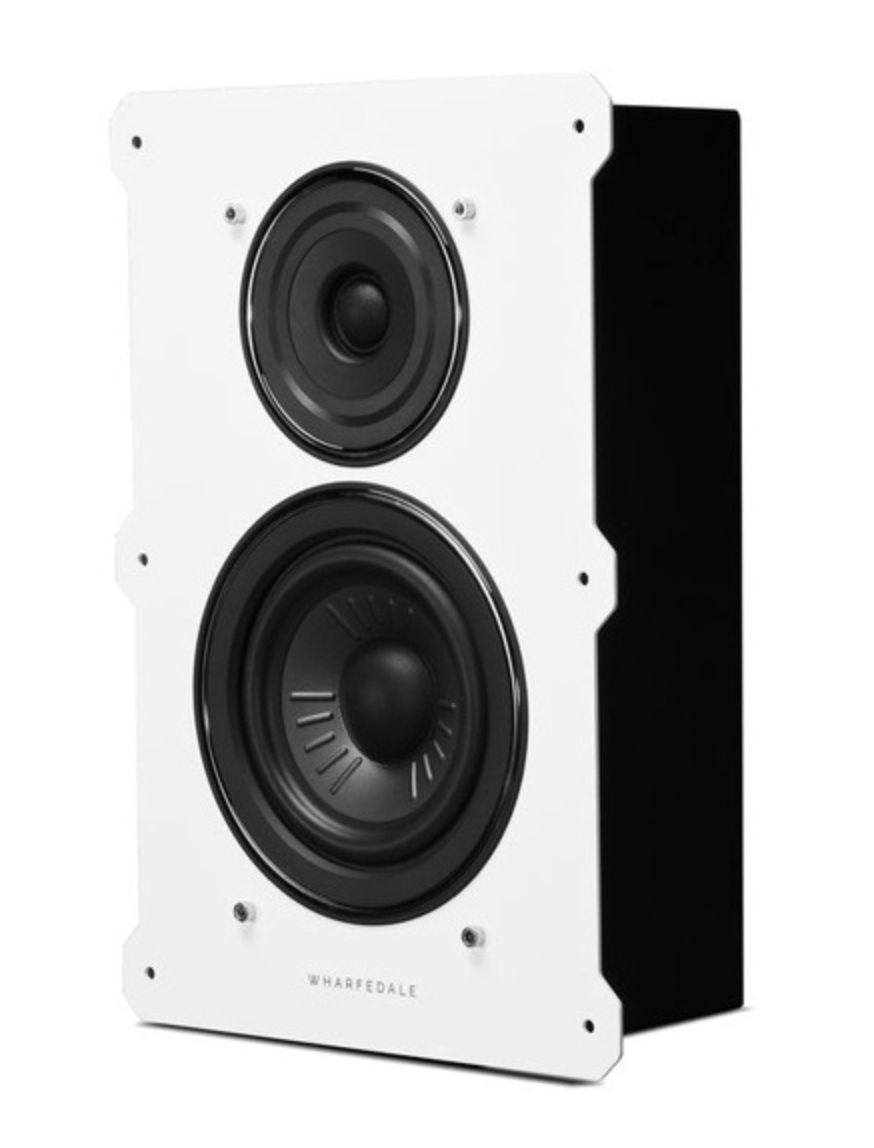

The speaker features a 6.5" PP cone bass driver and a 1" textile dome tweeter in a sealed enclosure. It is perfectly suited for combination with the Diamond IW-2 in a multi-channel system.
NOTE! Price per piece.
Technical specifications
- Type: 2-way, sealed box, in-wall speaker
- Bass driver: 6.5" (150 mm) PP cone
- Tweeter driver: 1" (25 mm) textile dome
- Sensitivity: 86 dB (2.83 V @ 1 m)
- Nominal impedance: 4 Ω
- Minimum impedance: 3.9 Ω
- Recommended amplifier power: 20–100 W
- Peak SPL: 96 dB
- Frequency response (±3 dB): 80 Hz – 20 kHz
- Bass extension (−6 dB): 75 Hz
- Crossover point: 2.6 kHz
- Enclosure volume: 4.86 l
- Dimensions (H × W × D): 360 × 200 × 141 mm
- Weight: 5.5 kg/pc
- Color: black, white
