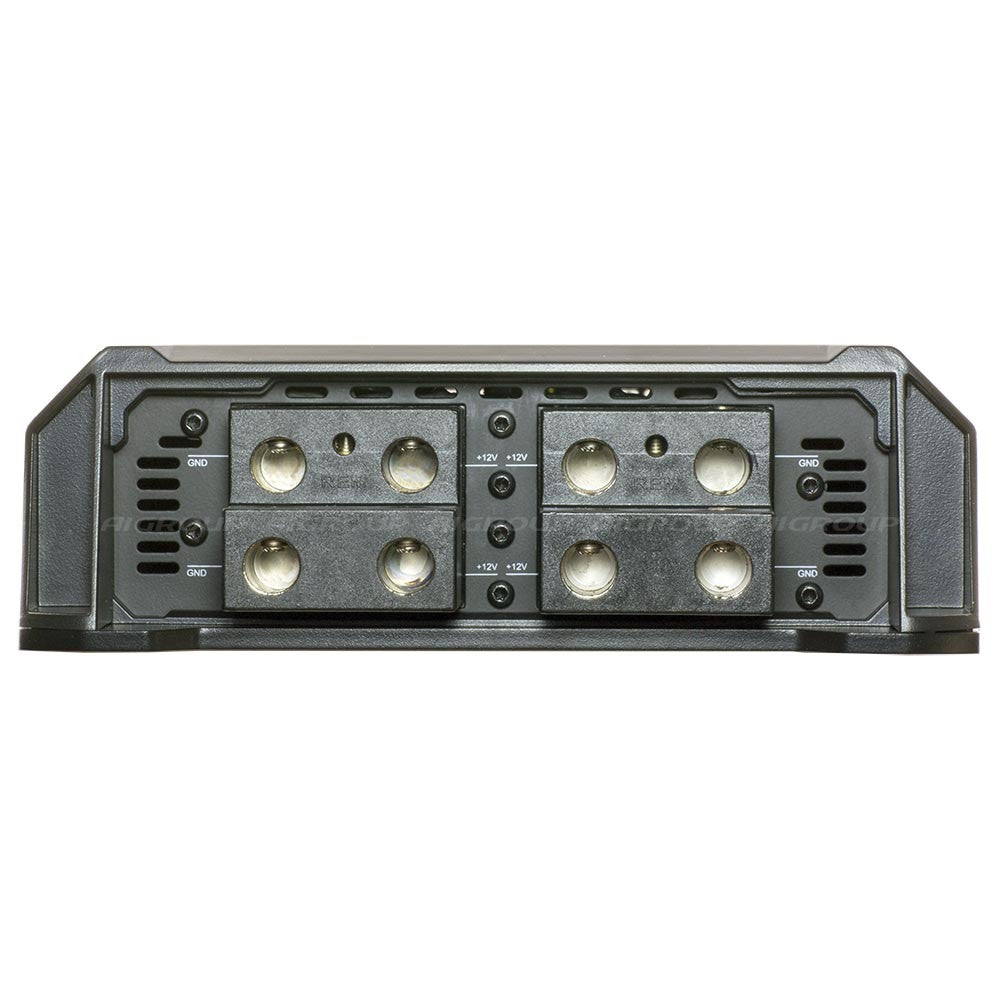

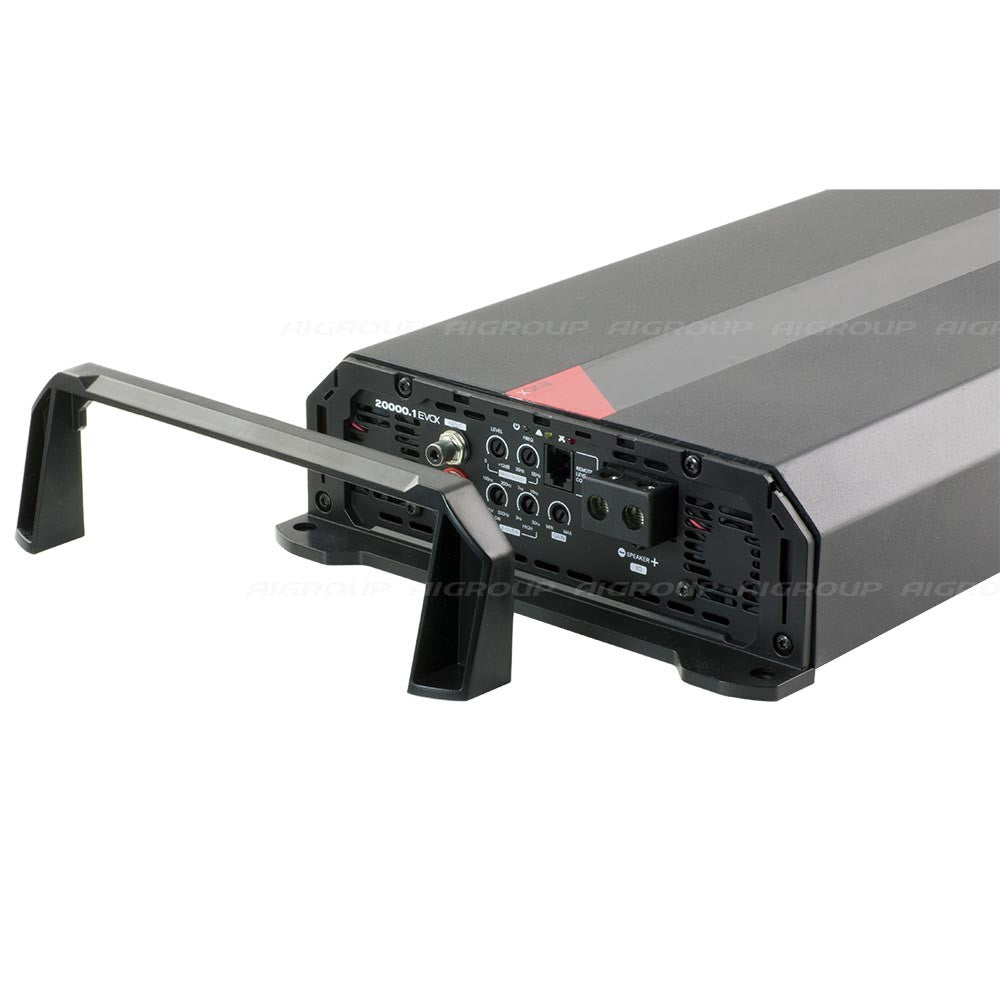

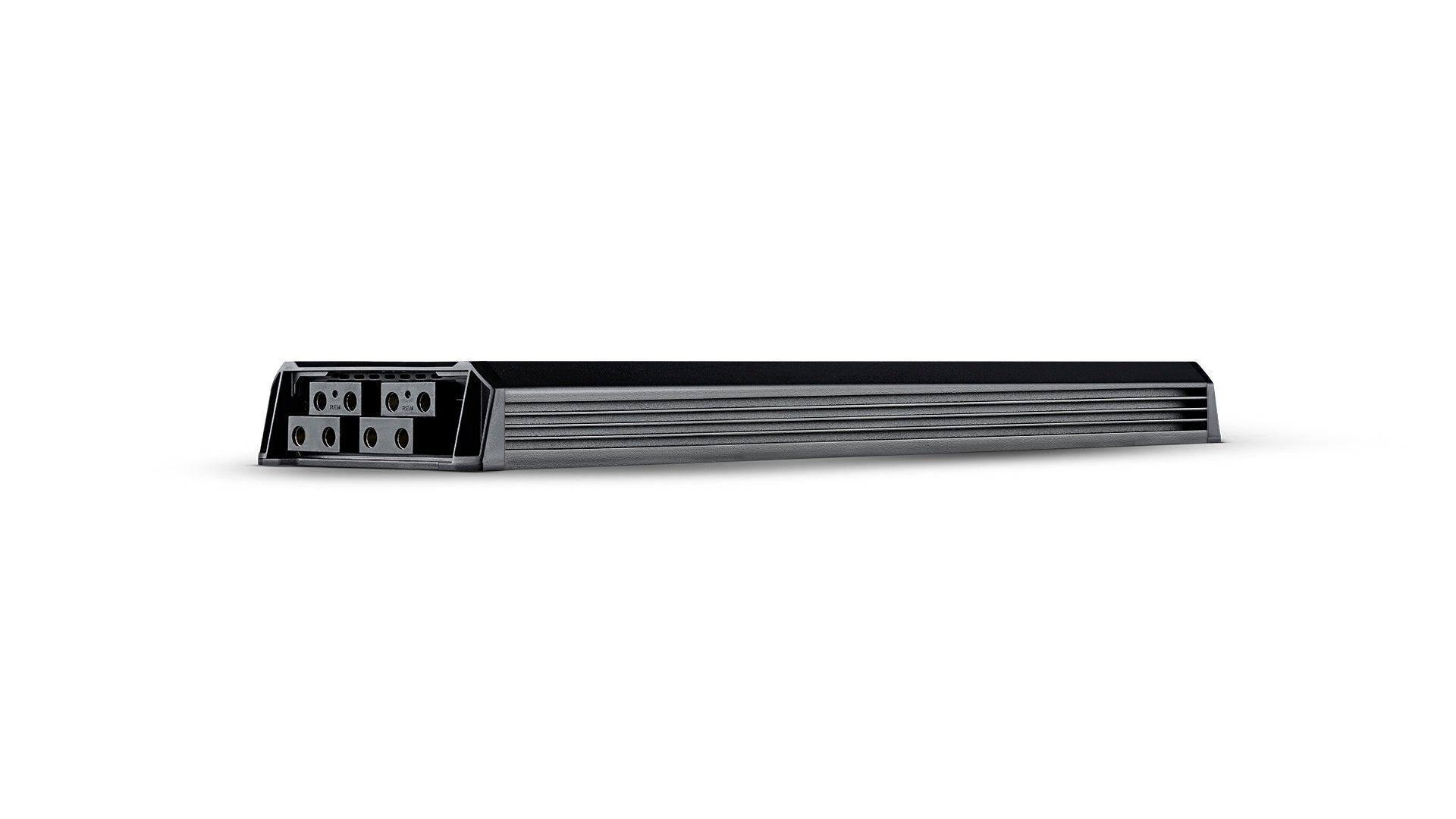

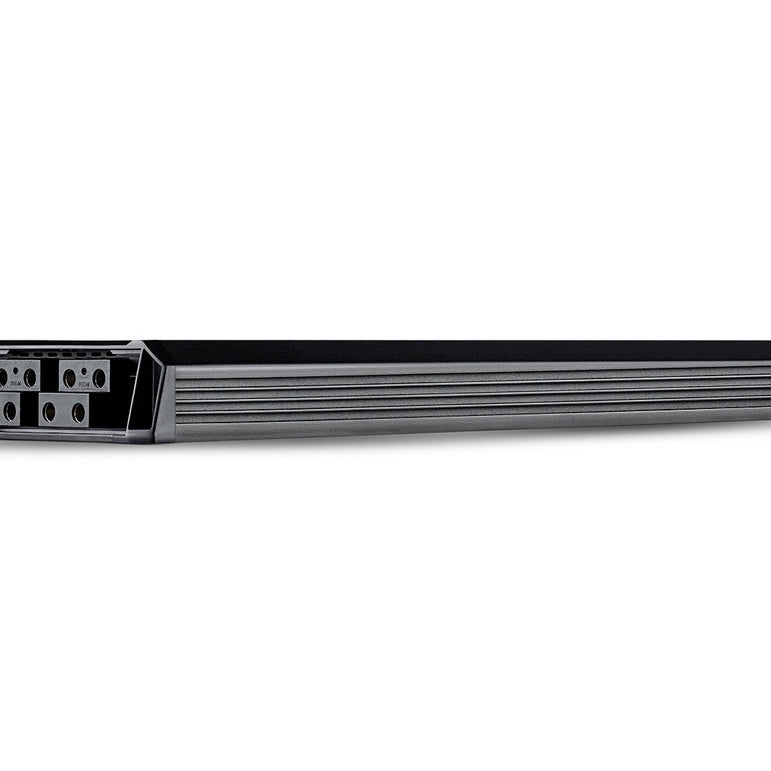

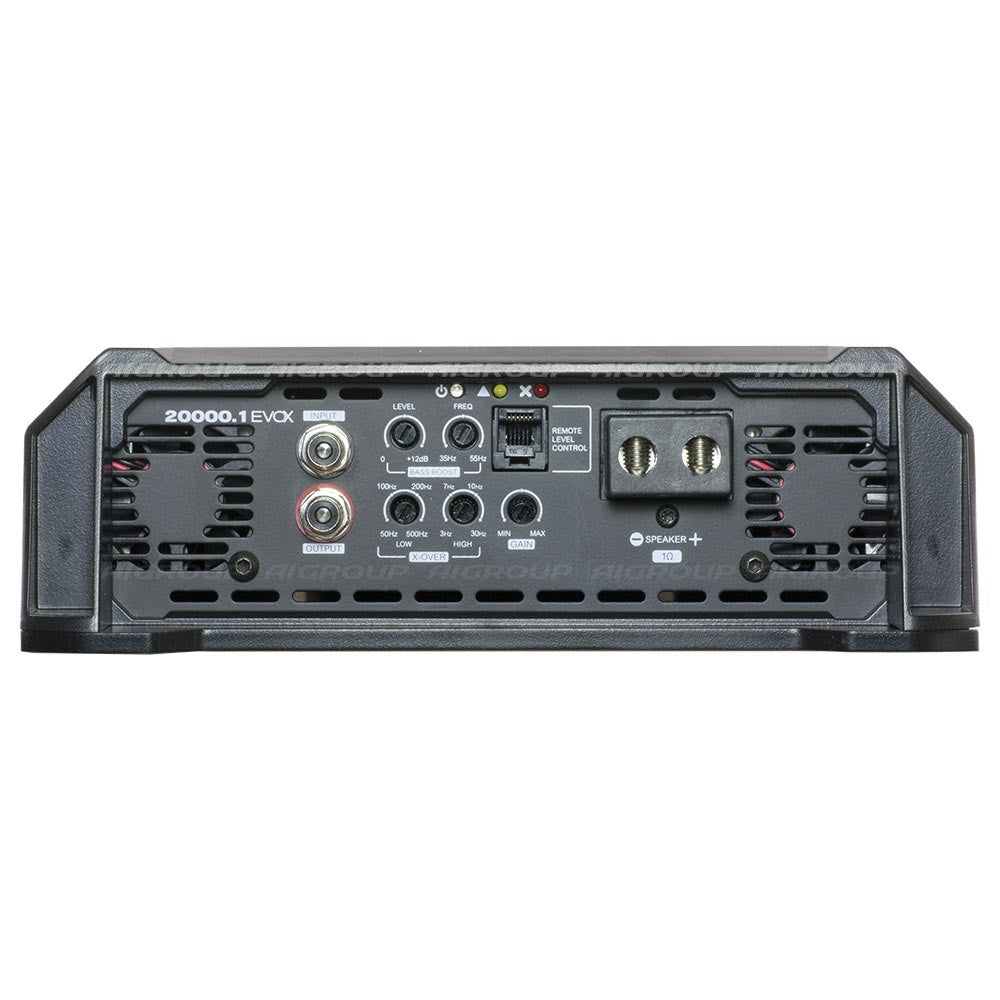

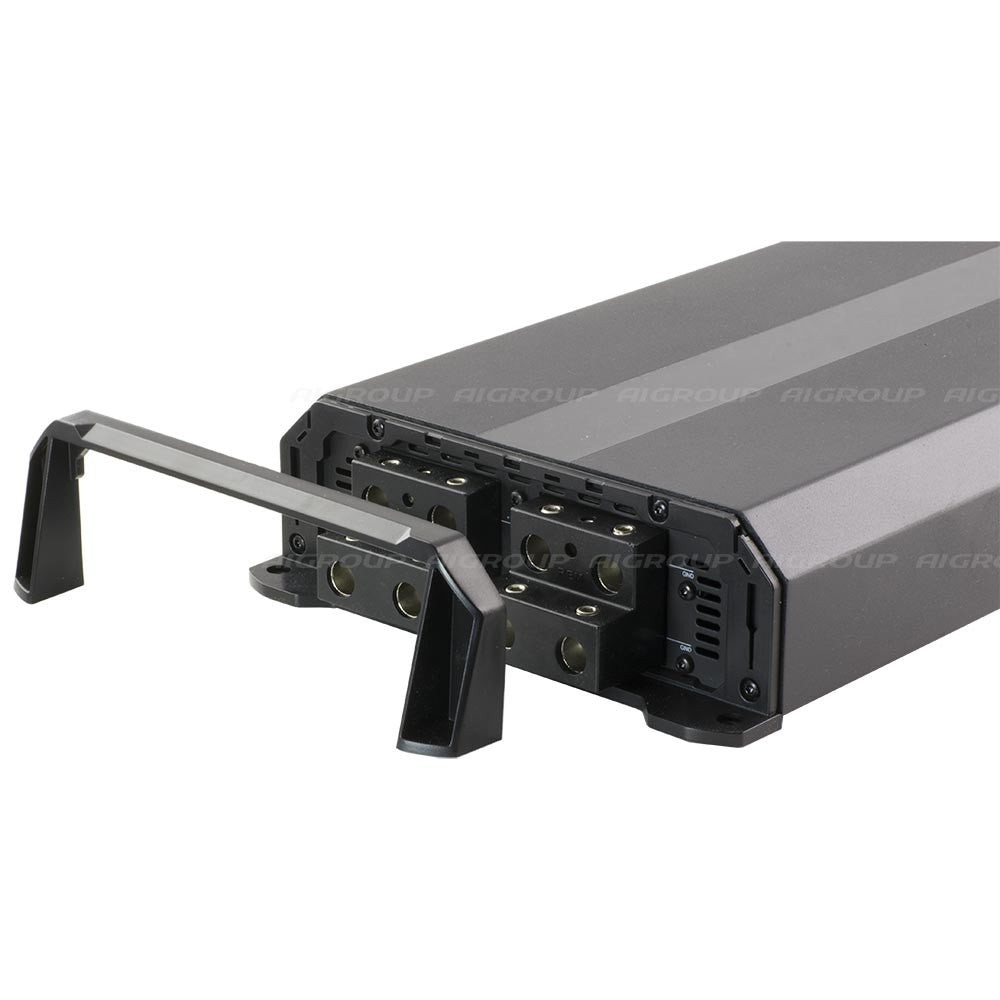

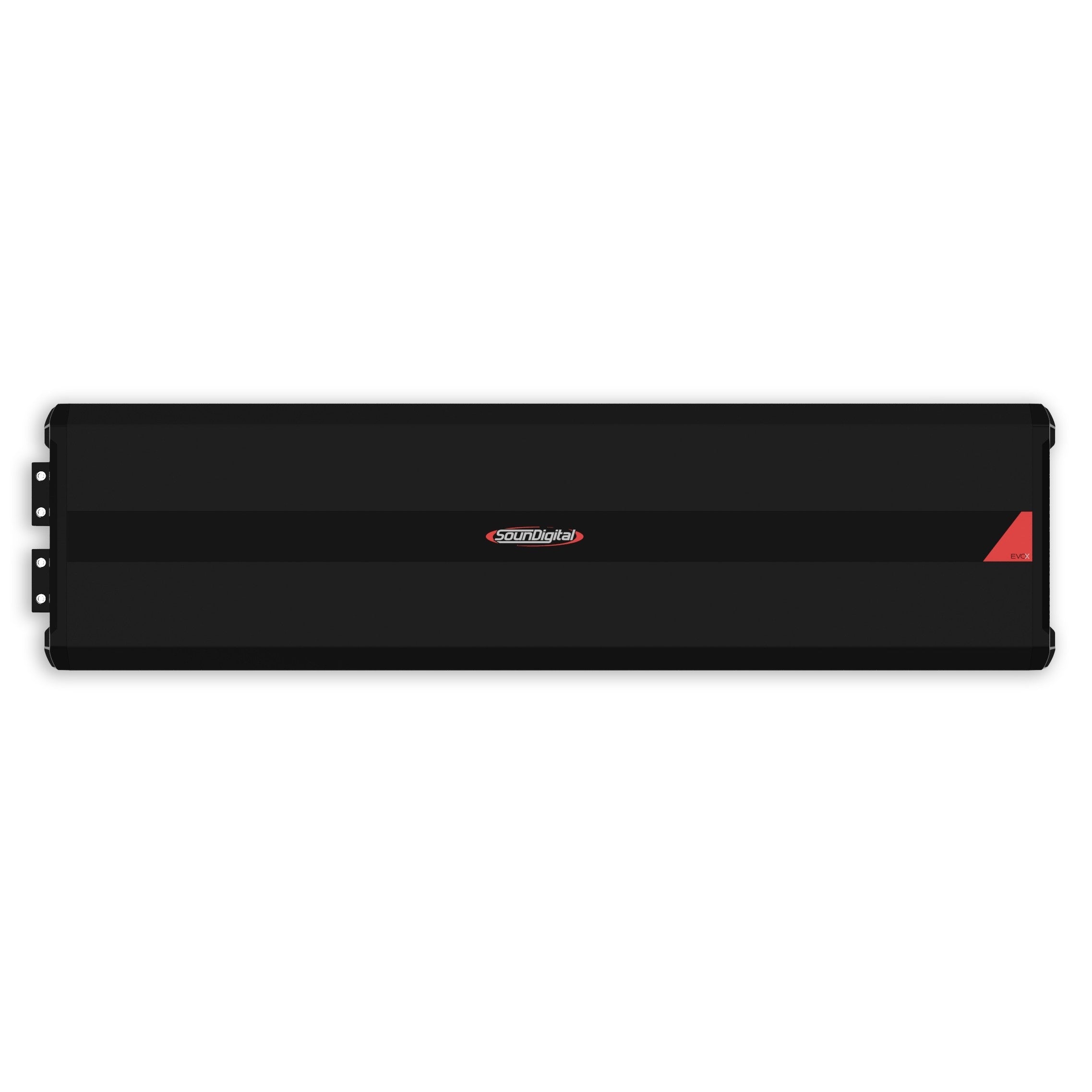

The SounDigital 20000.1 EVOX – EVO X Line brings the latest technology into a compact design with high-quality components. The unique RTGP system (Thermal Recovery for Power Generation) ensures greater thermal efficiency, durability, and improved stability. Compatible with the SD-RLC level controller.
Technical specifications
- Output power @ 12.6 V: 1 × 8712 W @ 4 Ω / 1 × 13,200 W @ 2 Ω / 1 × 20,000 W @ 1 Ω
- Output power @ 14.4 V: 1 × 9714 W @ 4 Ω / 1 × 14,718 W @ 2 Ω / 1 × 22,300 W @ 1 Ω
- Operating voltage: 8–16 V
- Current consumption (music): 980 A
- Current consumption (max): 1960 A
- Recommended fuse: 1200 A
- Efficiency: 81 %
- Damping factor: 200
- Frequency response: 5 Hz–500 Hz
- SNR: 76 dB
- THD+N (10 % of rated power): 0.2 %
- Crossover HPF: 5–30 Hz / LPF: 50–500 Hz
- Dimensions (L × W × H): 864 × 224 × 71 mm
- Weight: 12.2 kg
Do not connect the amplifier below the rated load!
