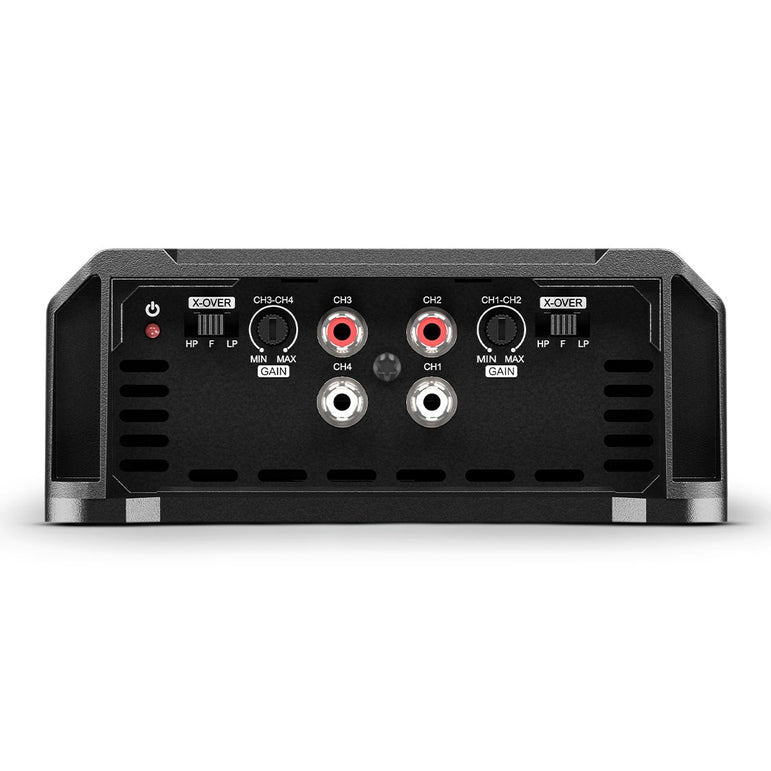

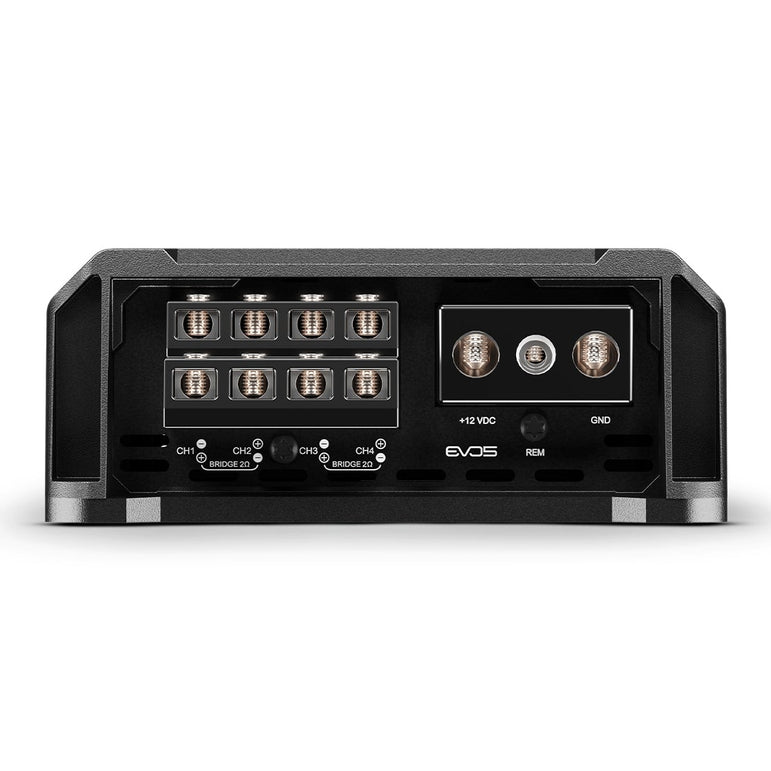

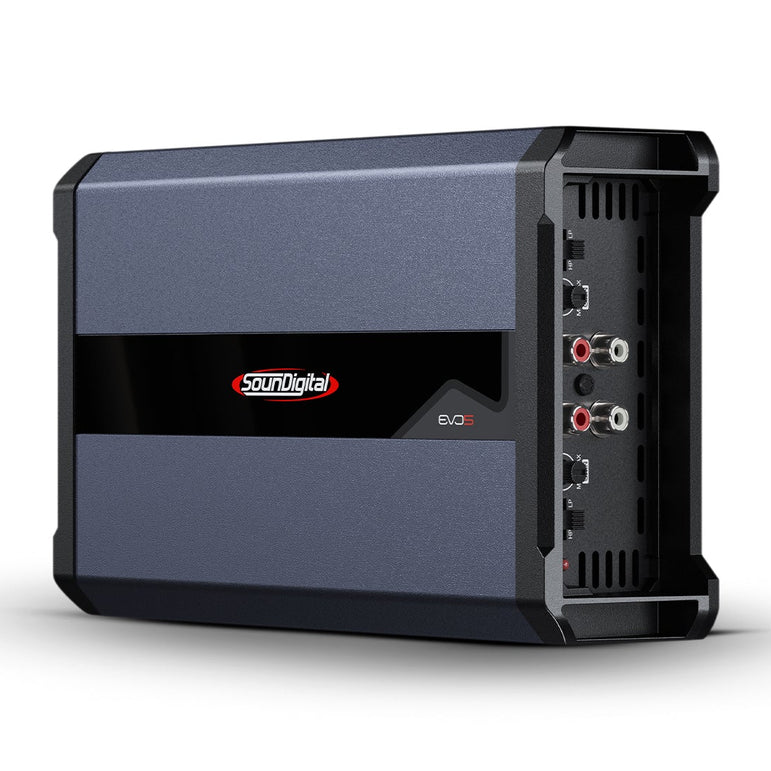

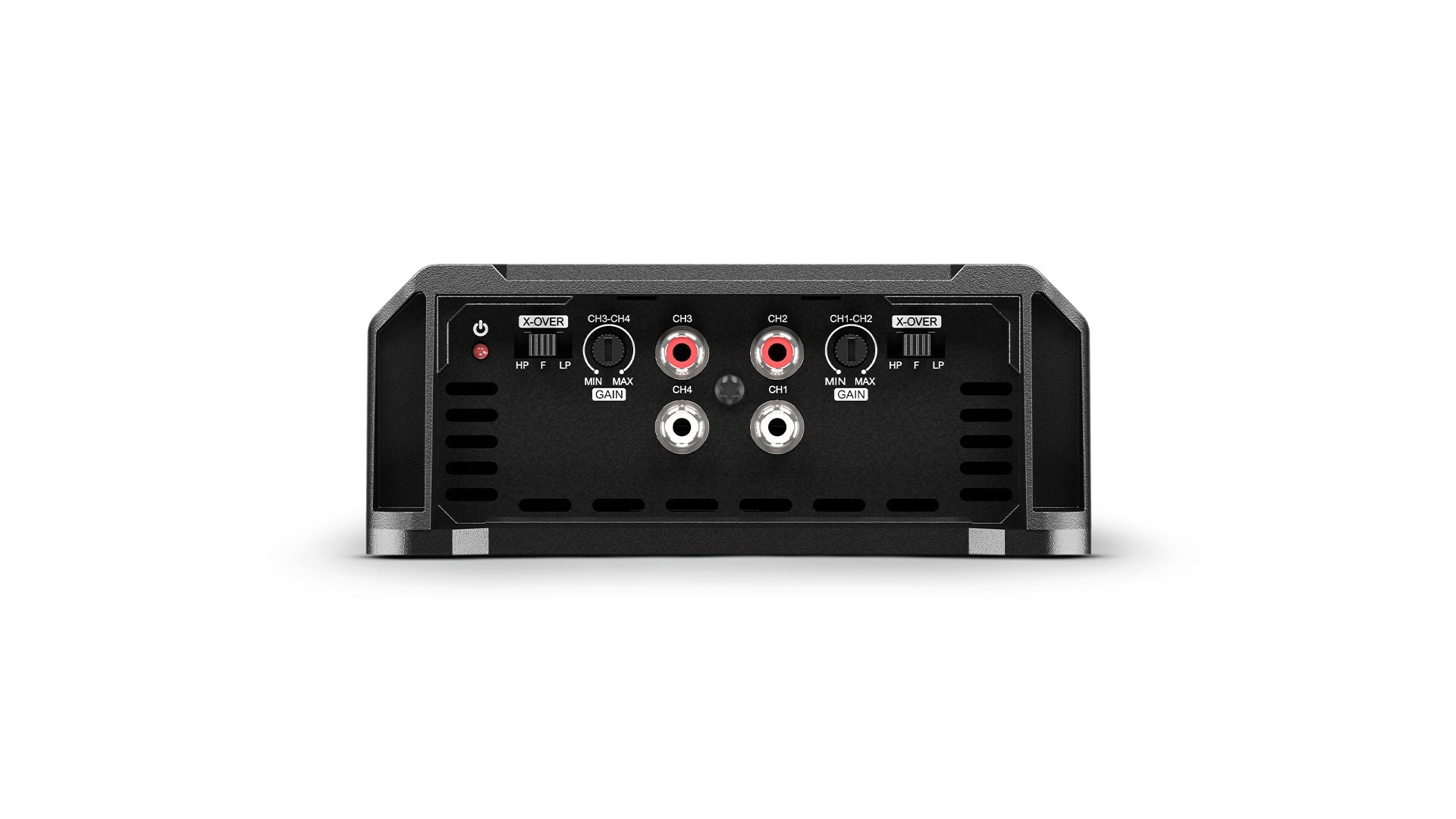

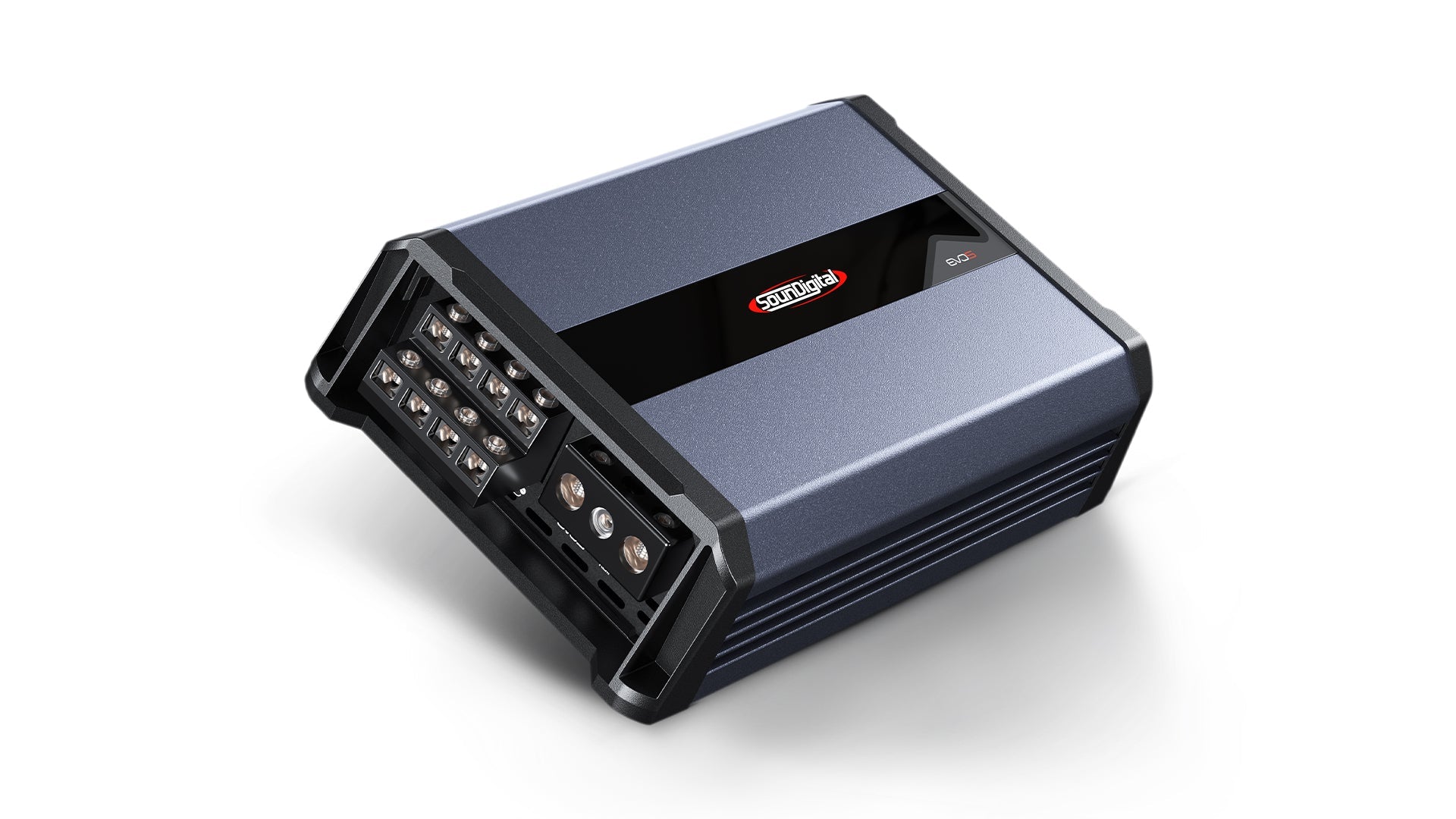

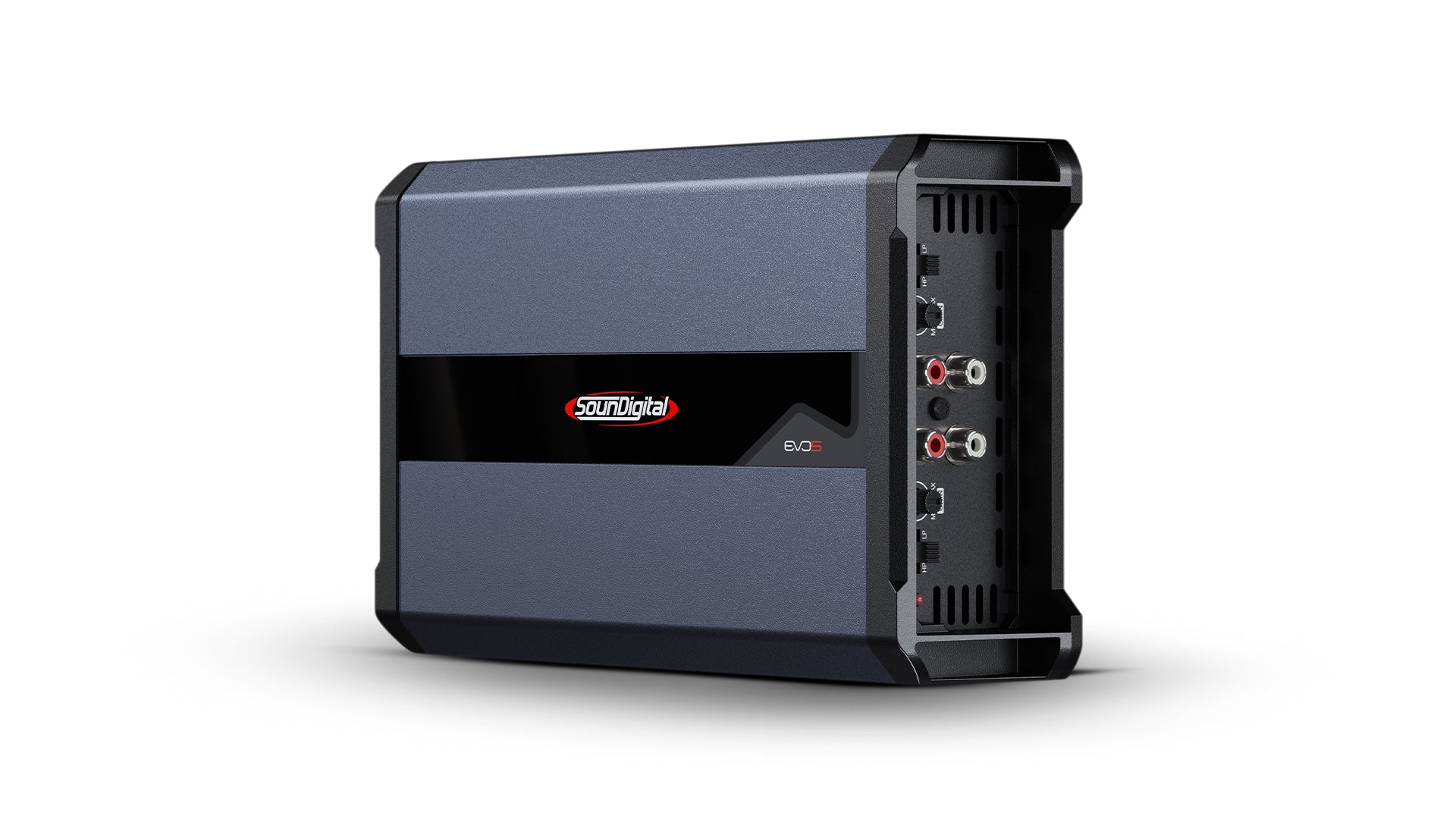

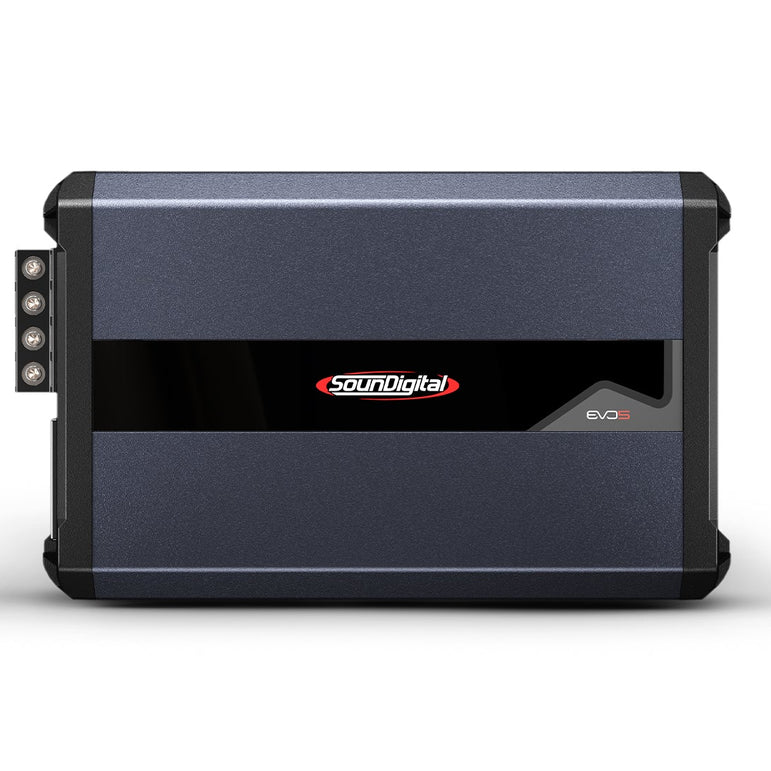

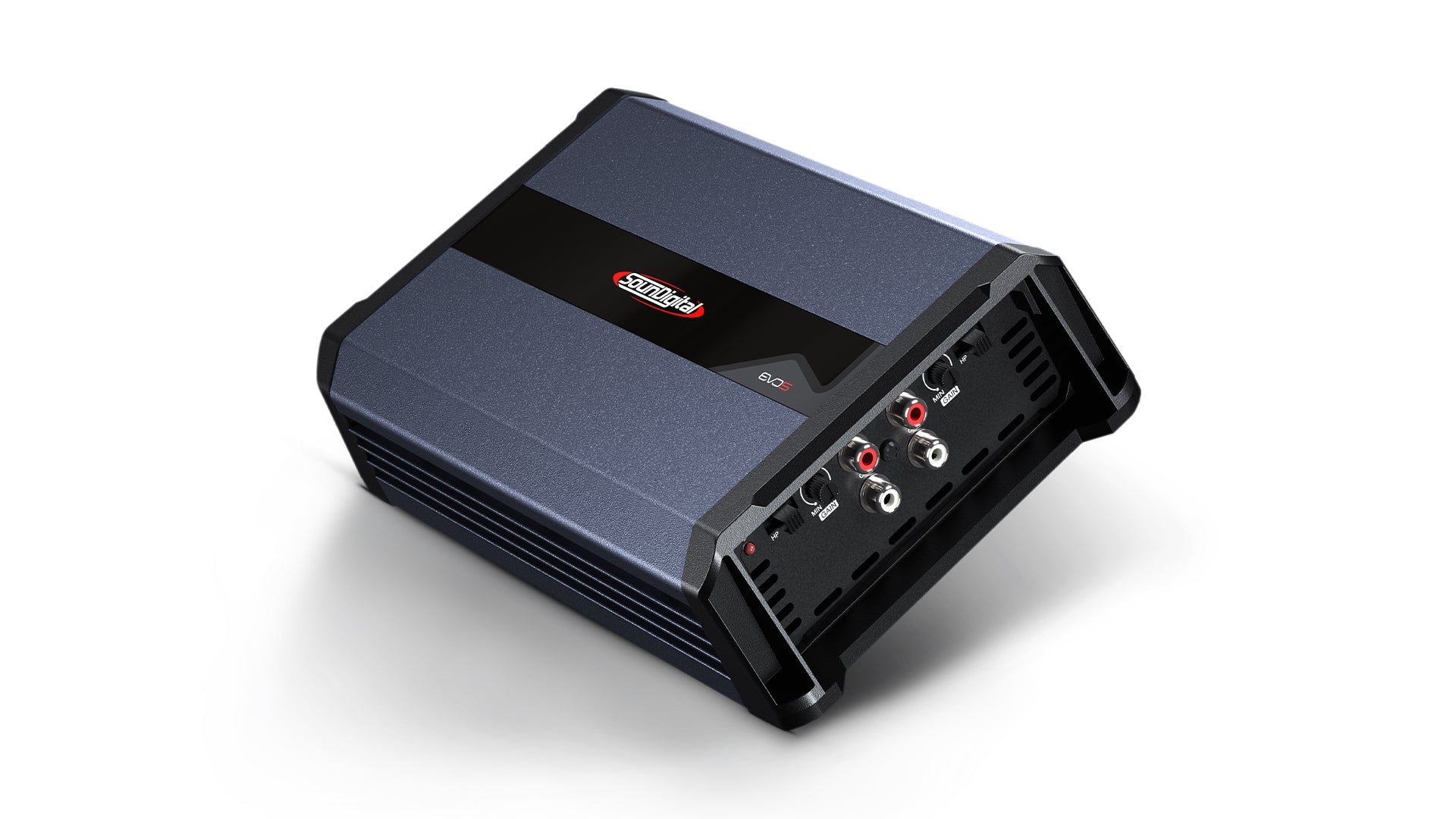

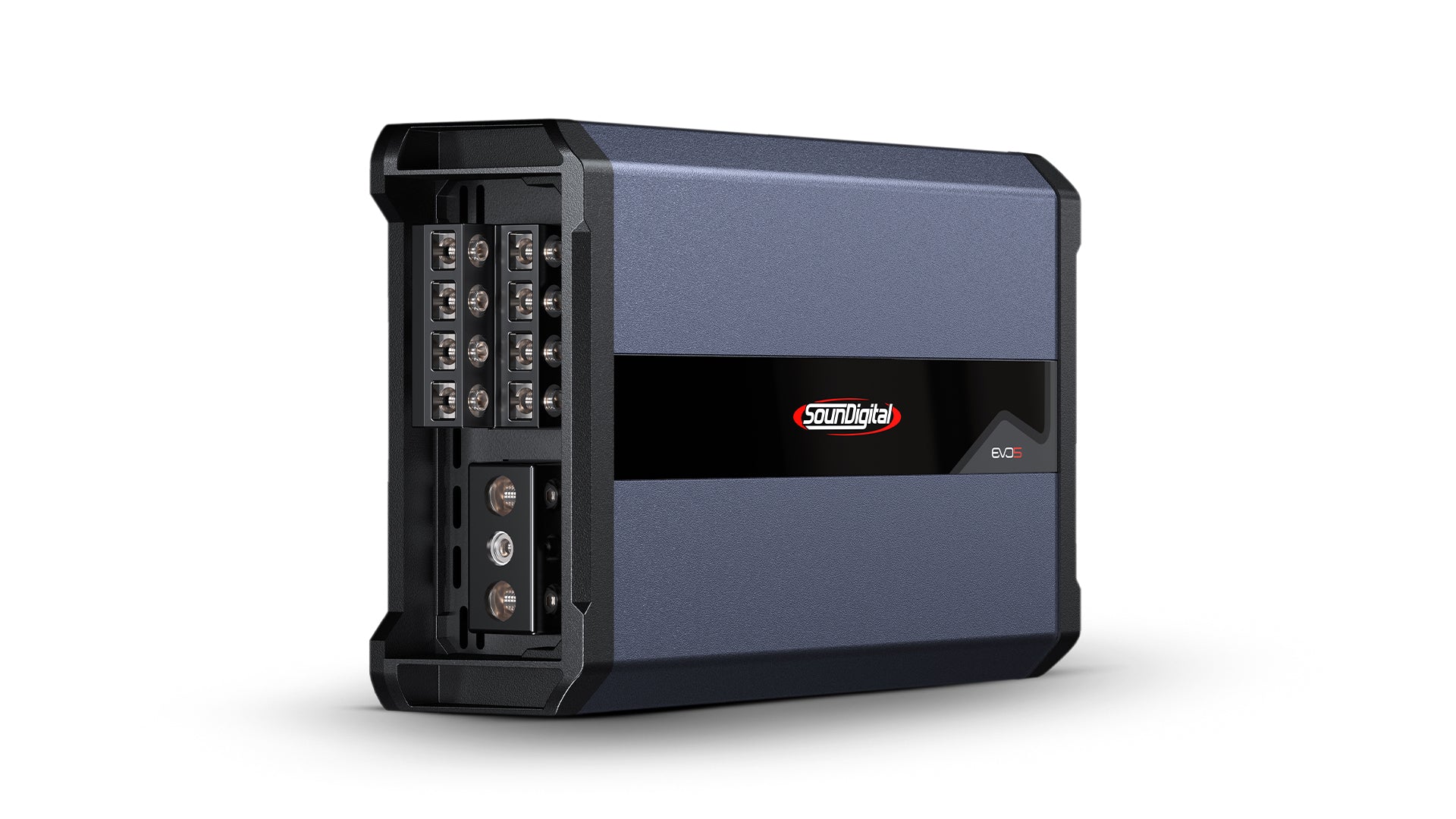

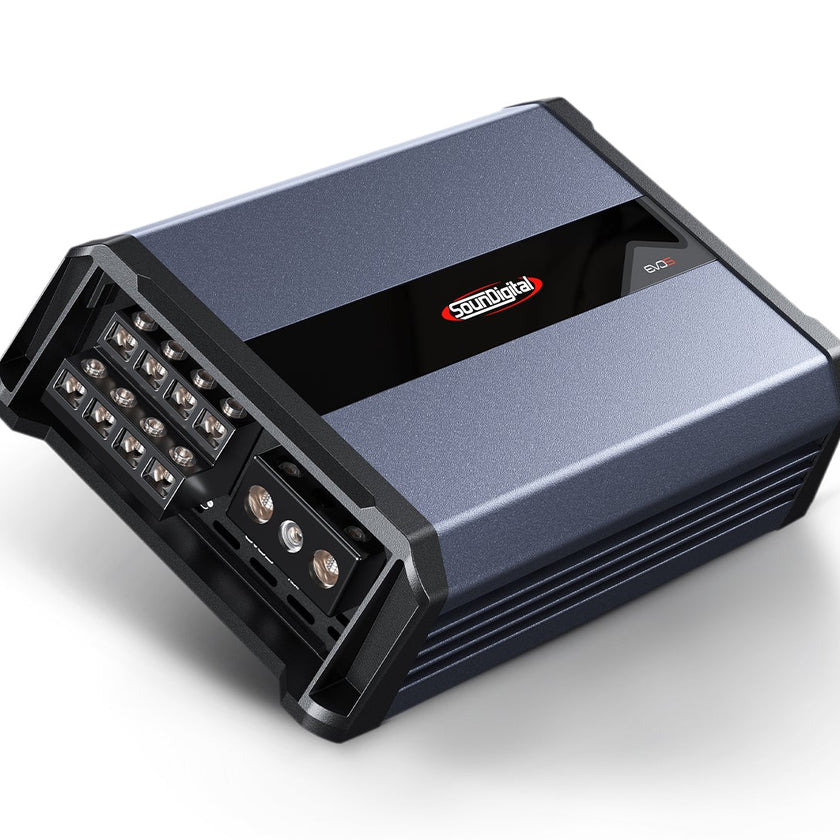

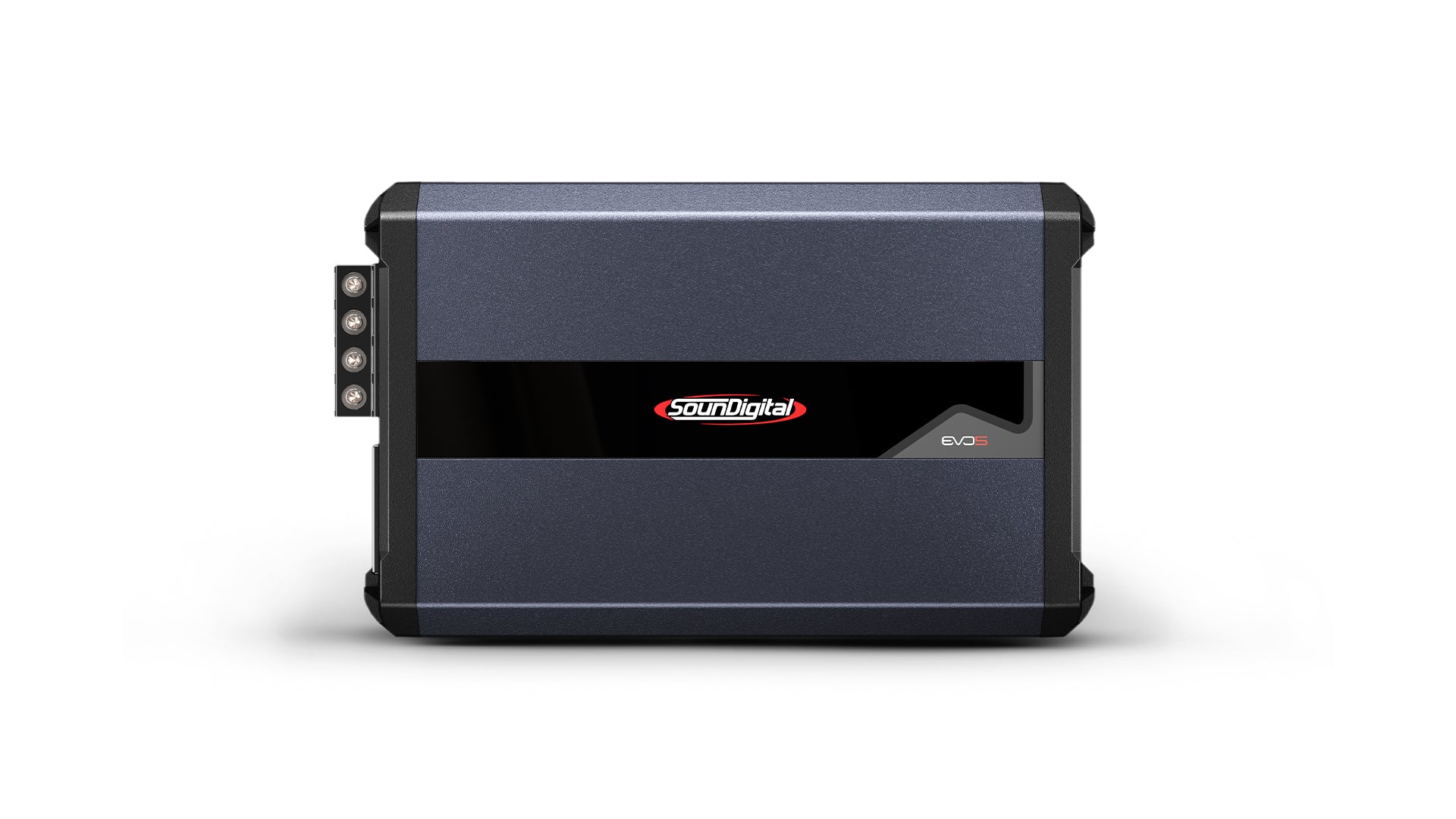

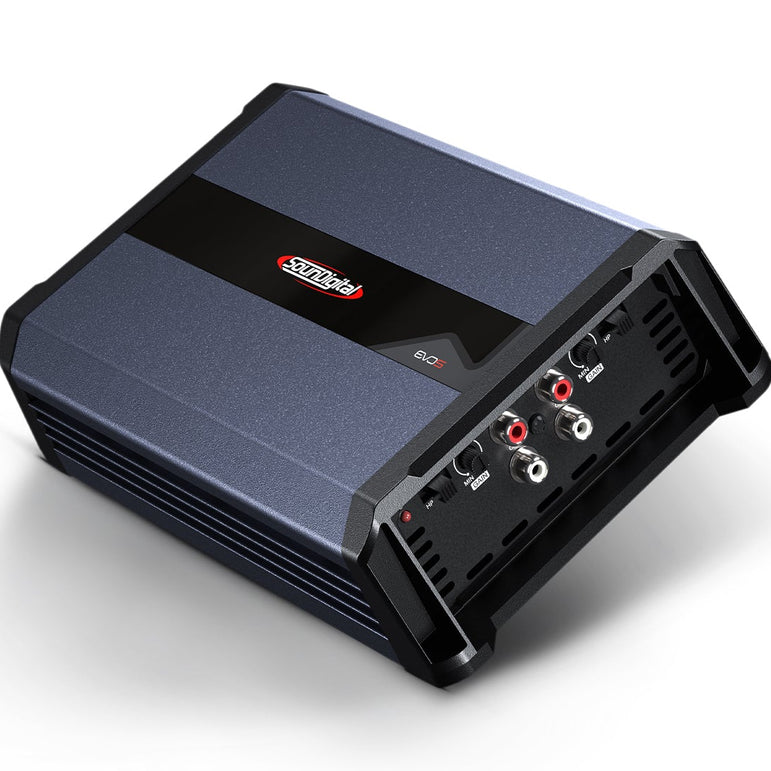

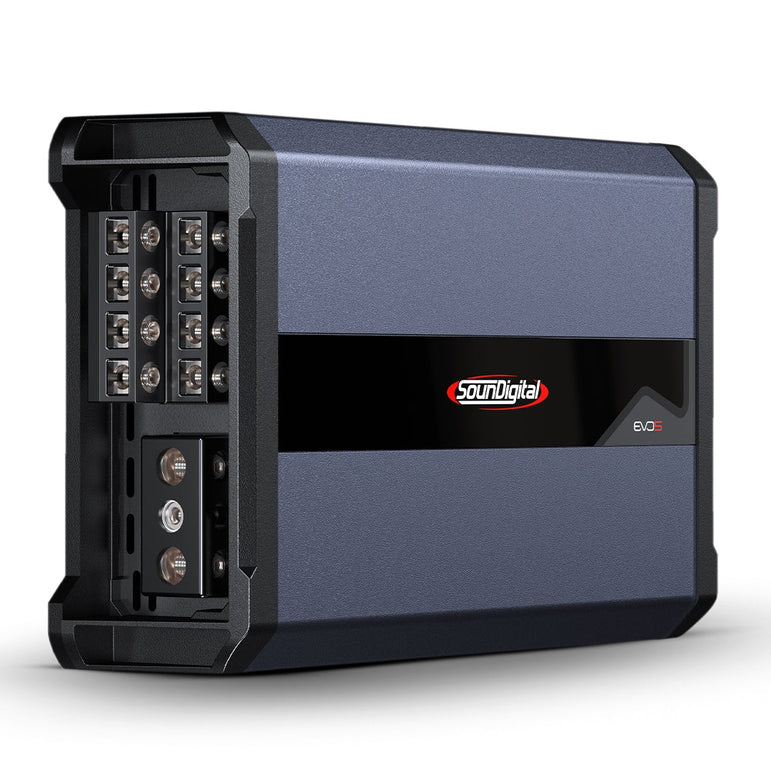

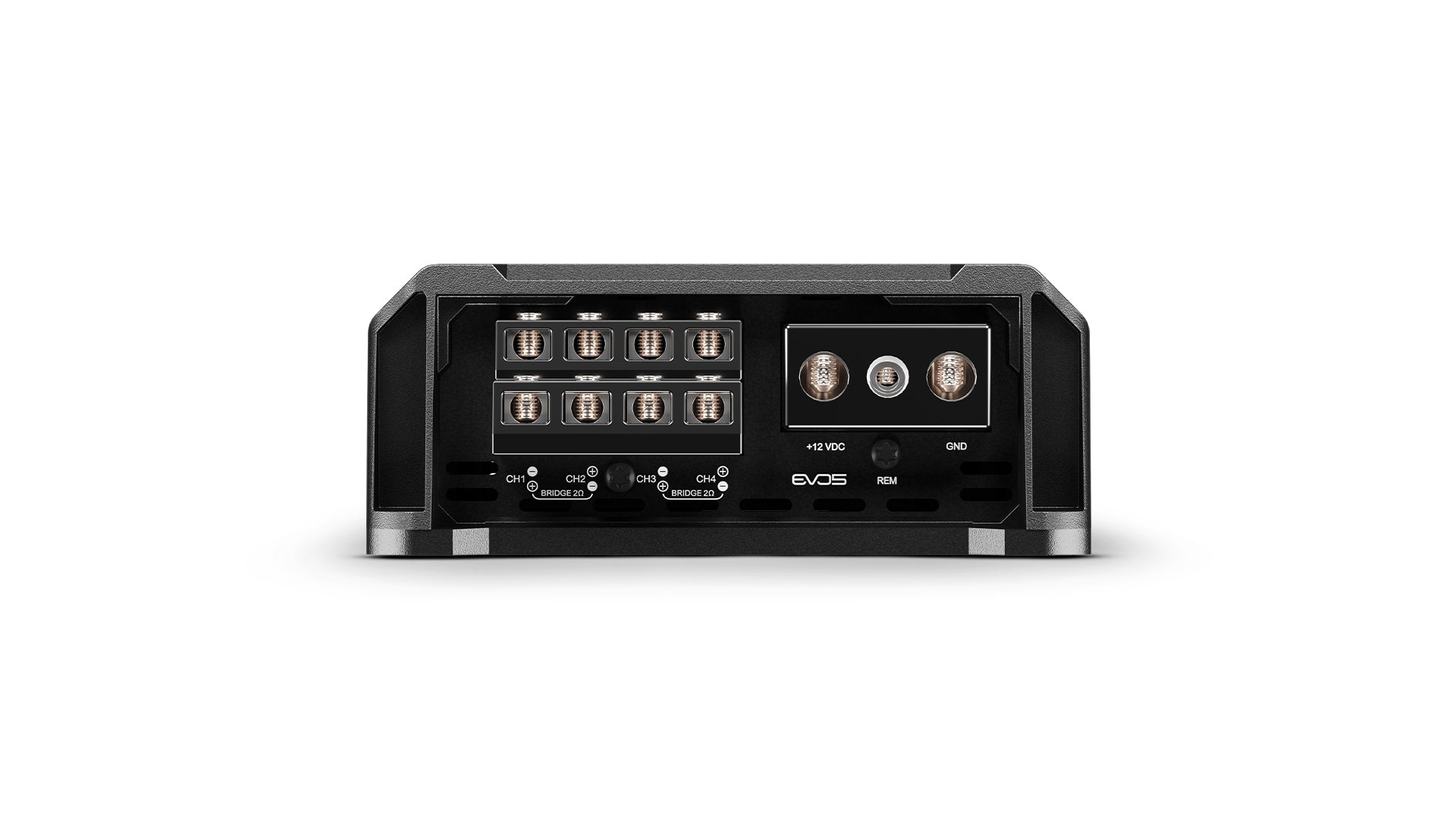

The SounDigital 2000.4 EVO 5 is a truly powerful full-range 4-channel digital amplifier with excellent efficiency. The EVO 5 brings the latest technology to a compact design and high-quality components.
SounDigital EVO 5 series amplifiers redefine the concept of playing LOUD! This amplifier brand has quickly grown into one of the largest manufacturers in Brazil — each amplifier is designed and manufactured in their own factory. The design team includes numerous prominent figures from the so-called Pancadao builders, who play music extremely loud for extended periods at outdoor events.
Technical specifications
- Output power @ 12.6 V: 4 × 330 W @ 2 Ω / 4 × 500 W @ 1 Ω
- Bridged @ 12.6 V: 2 × 600 W @ 4 Ω / 2 × 1000 W @ 2 Ω
- Operating voltage: 8–16 V
- Current consumption (music): 91 A
- Current consumption (max): 182 A
- Recommended fuse: 100 A
- Efficiency: 87 %
- Damping factor: 200
- Frequency response: 10 Hz–22 kHz
- SNR: 90 dB
- Crossover HPF/LPF: 80 Hz
- Power cable: 21 mm²
- Speaker cable: 2 × 2 mm²
- Dimensions (L × W × H): 227 × 136 × 55 mm
- Weight: 1.54 kg
Do not connect the amplifier below the rated load!
