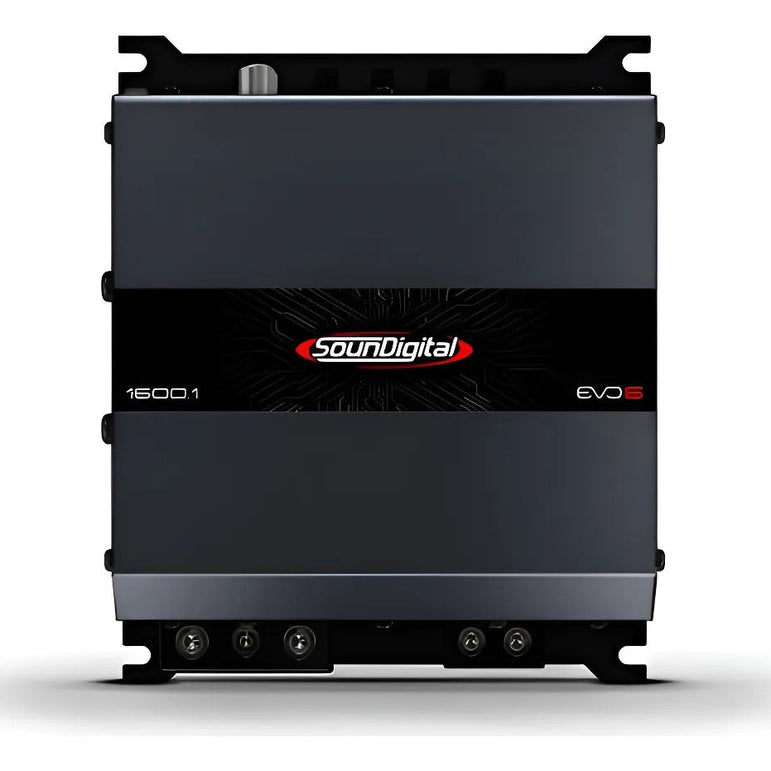

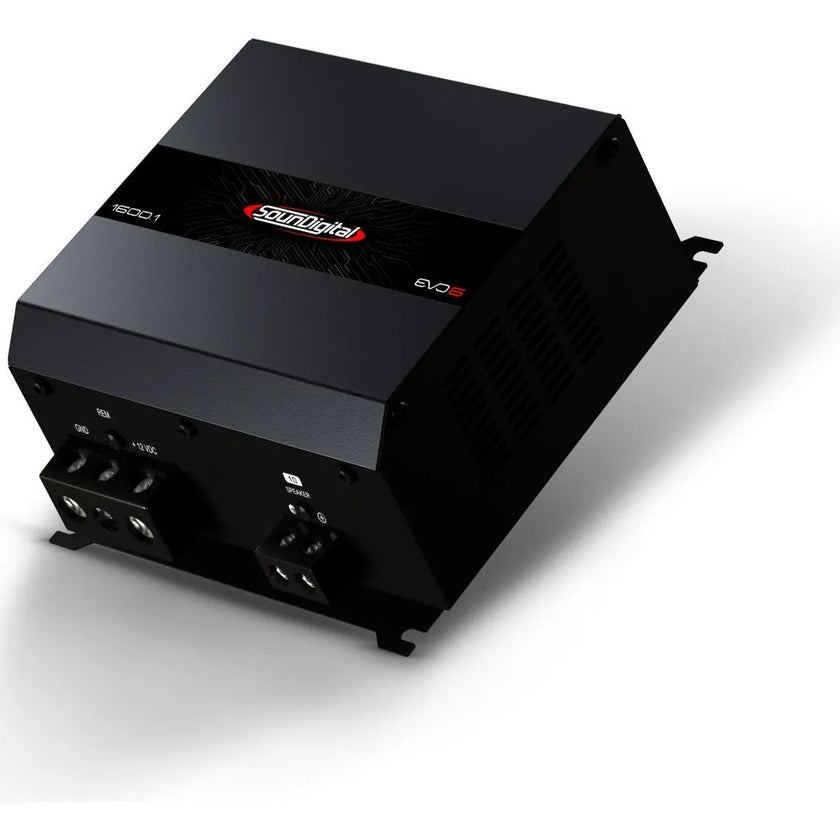

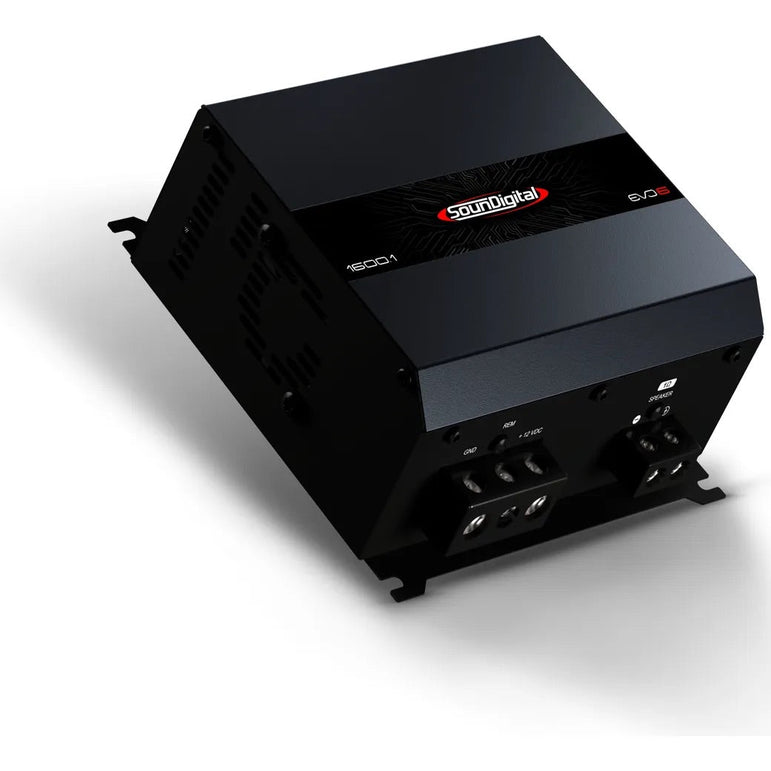

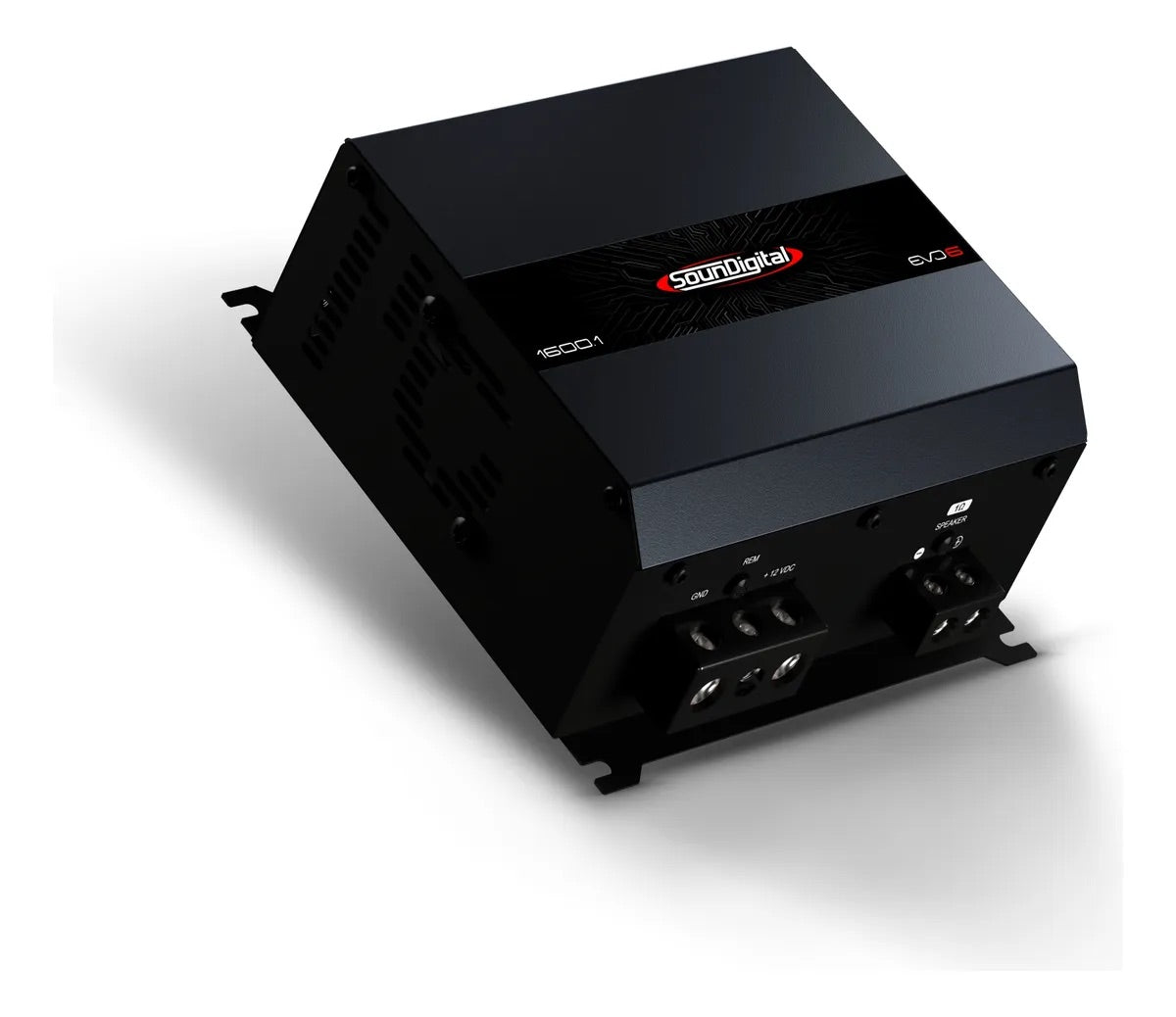

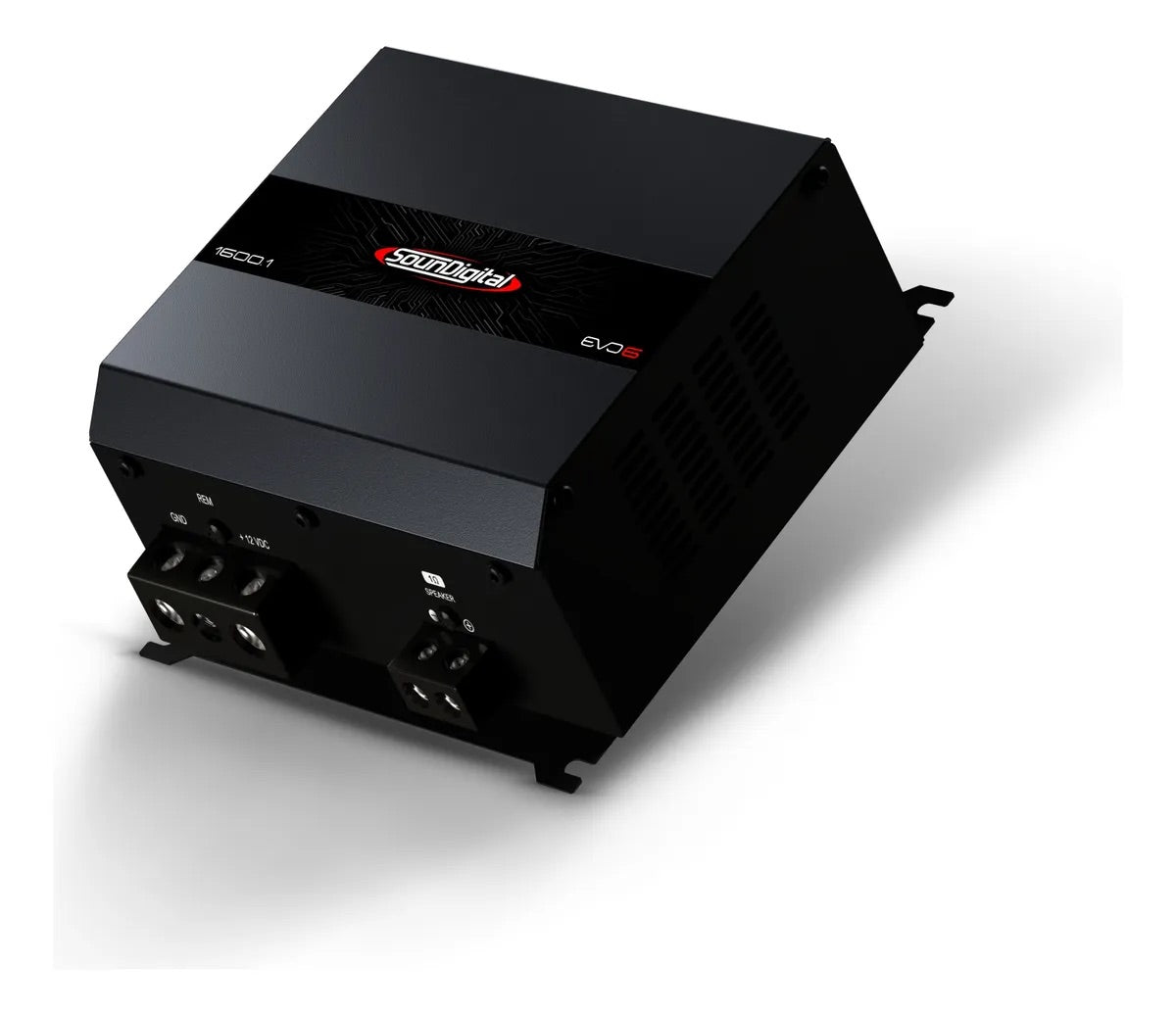

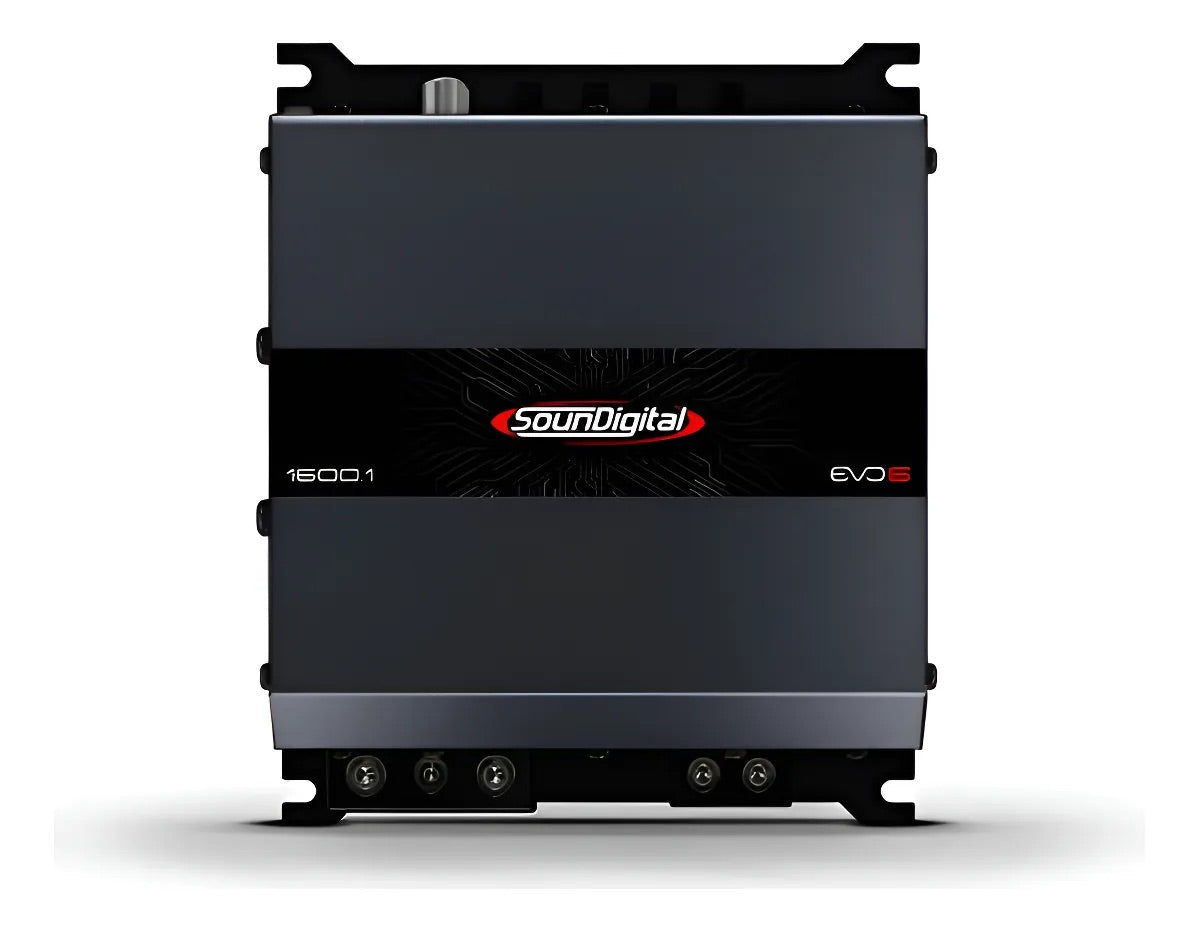

SounDigital 1600.1 EVO6 — Monoblock Amplifier

The SounDigital 1600.1 EVO6 takes the power/price/size ratio to a new level. This compact unit (18 × 13.6 × 5.5 cm) delivers 1600W RMS @ 1 Ohm. The operating voltage can drop as low as 9 volts. All SounDigital amplifiers are designed and manufactured in their own production facility in Brazil.

• Power RMS @ 1 Ohm: 1600W
• Power RMS @ 2 Ohm: 1056W
• Power RMS @ 4 Ohm: 697W
• Min. impedance: 1 Ohm
• Damping factor: >2000
• Operating voltage: 9–16V
• Current consumption @ 1 Ohm (music / max): 75 / 149 A
• Current consumption @ 2 Ohm (music / max): 71 / 143 A
• Current consumption @ 4 Ohm (music / max): 69 / 139 A
• Recommended fuse: 80 A
• Recommended battery: 80 Ah
• Efficiency @ 1 Ohm: 85% / @ 2 Ohm: 89% / @ 4 Ohm: 91.5%

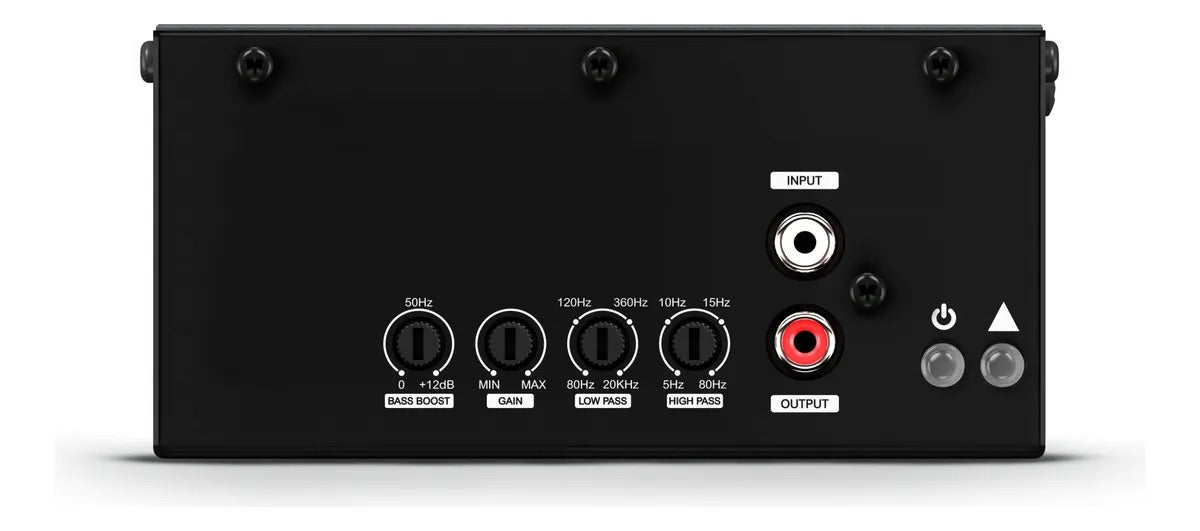

• Bass boost: 0–12 dB @ 50 Hz
• Low-pass filter (LPF): 50 Hz – 1 kHz
• Subsonic filter: 5–80 Hz
• Frequency response (-3dB): 5 Hz – 25 kHz
• S/N ratio @ 1 Ohm: 93.7 dB / @ 2 Ohm: 95 dB / @ 4 Ohm: 93.4 dB
• Input sensitivity: 0.2–2V
• Power cable: 16 mm² (5 AWG)

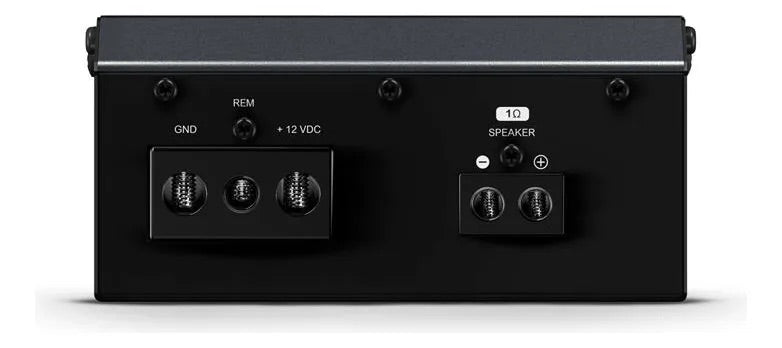

• Connections: RCA, speaker-level input
• Dimensions: 180 × 136 × 55 mm
• Weight: 1.13 kg

Do not connect the amplifier below the nominal load!
