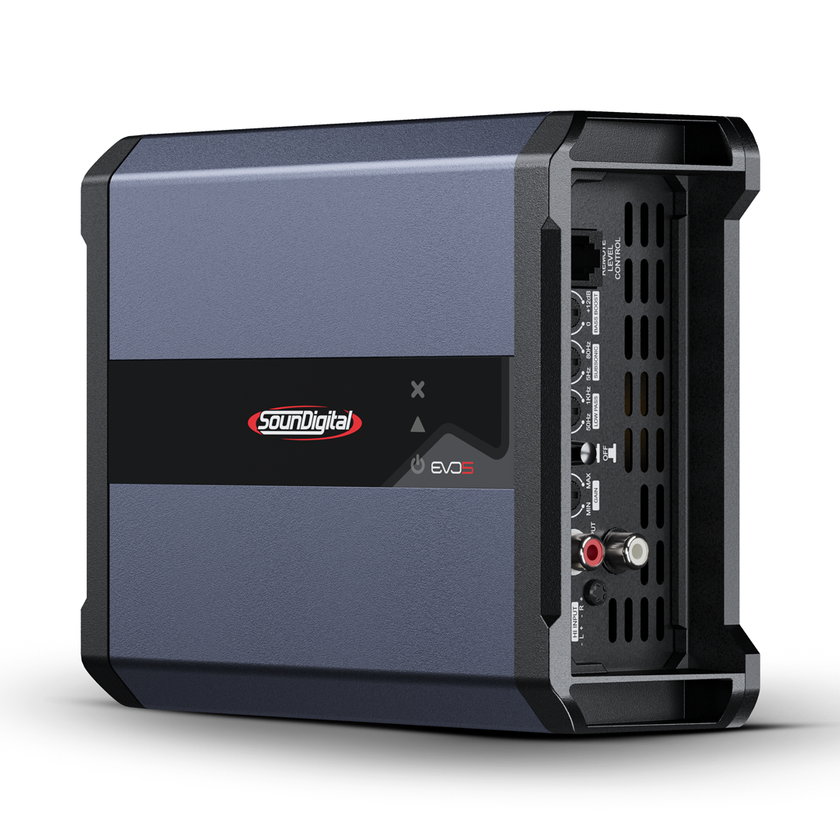

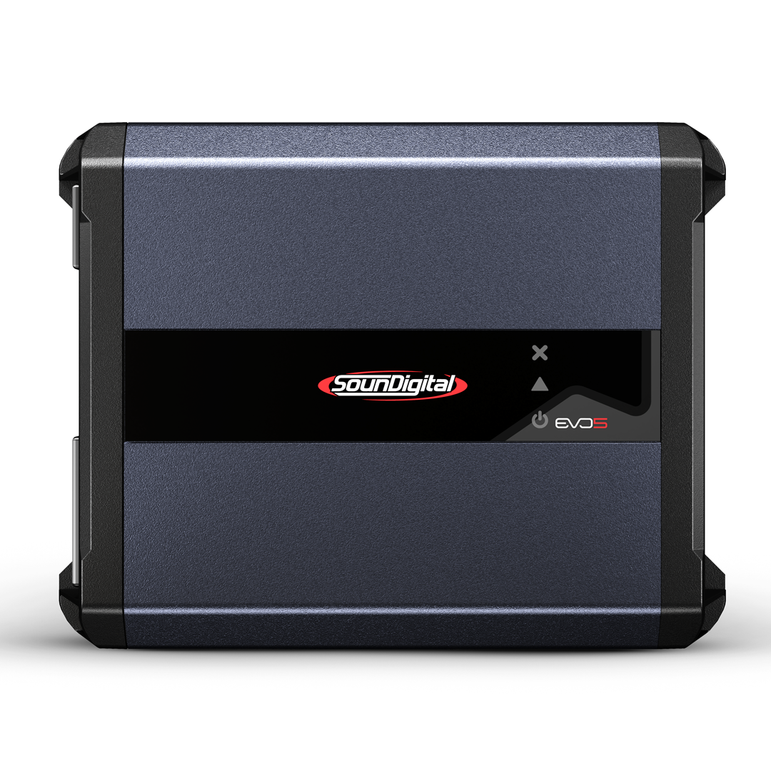

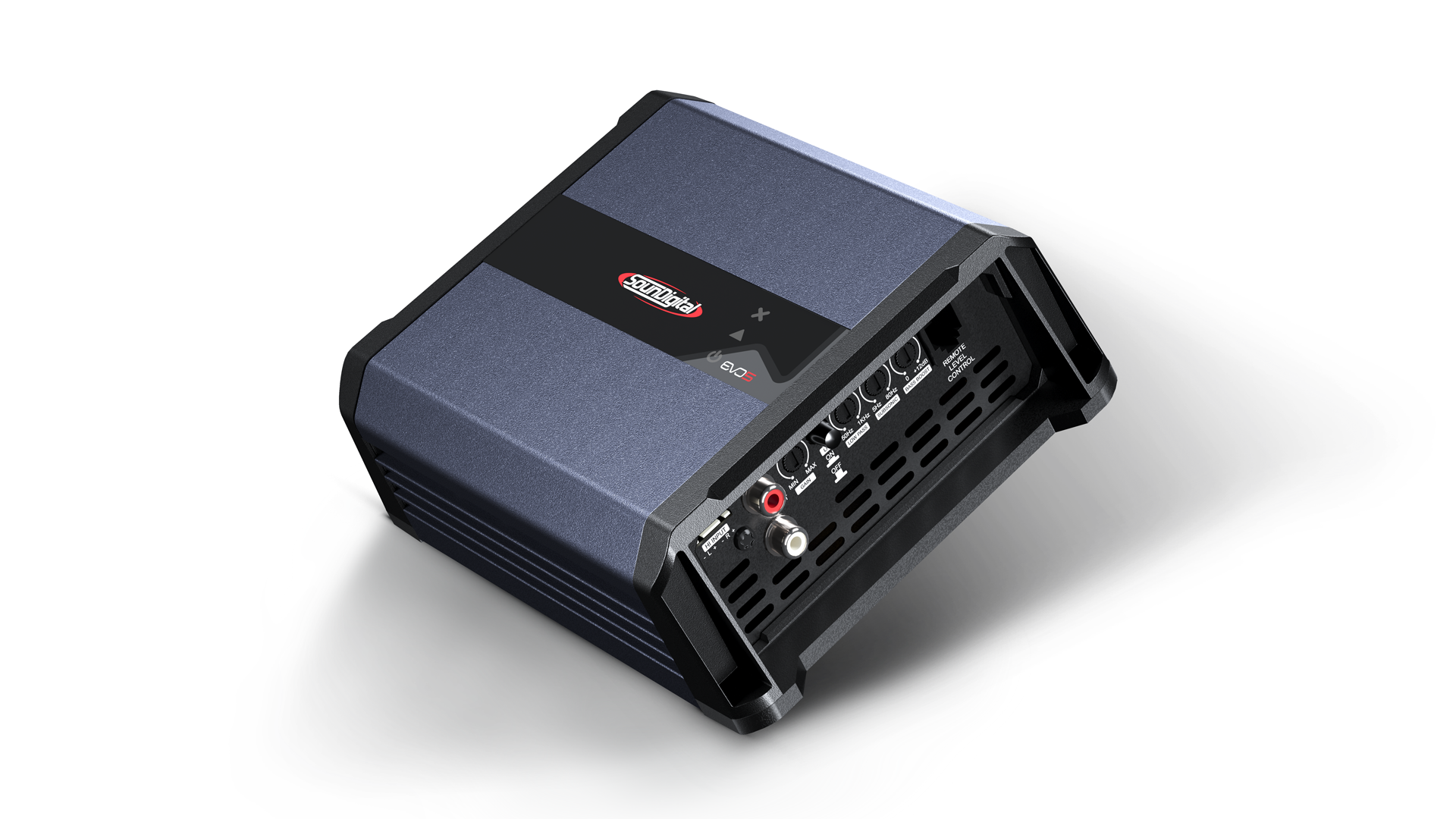

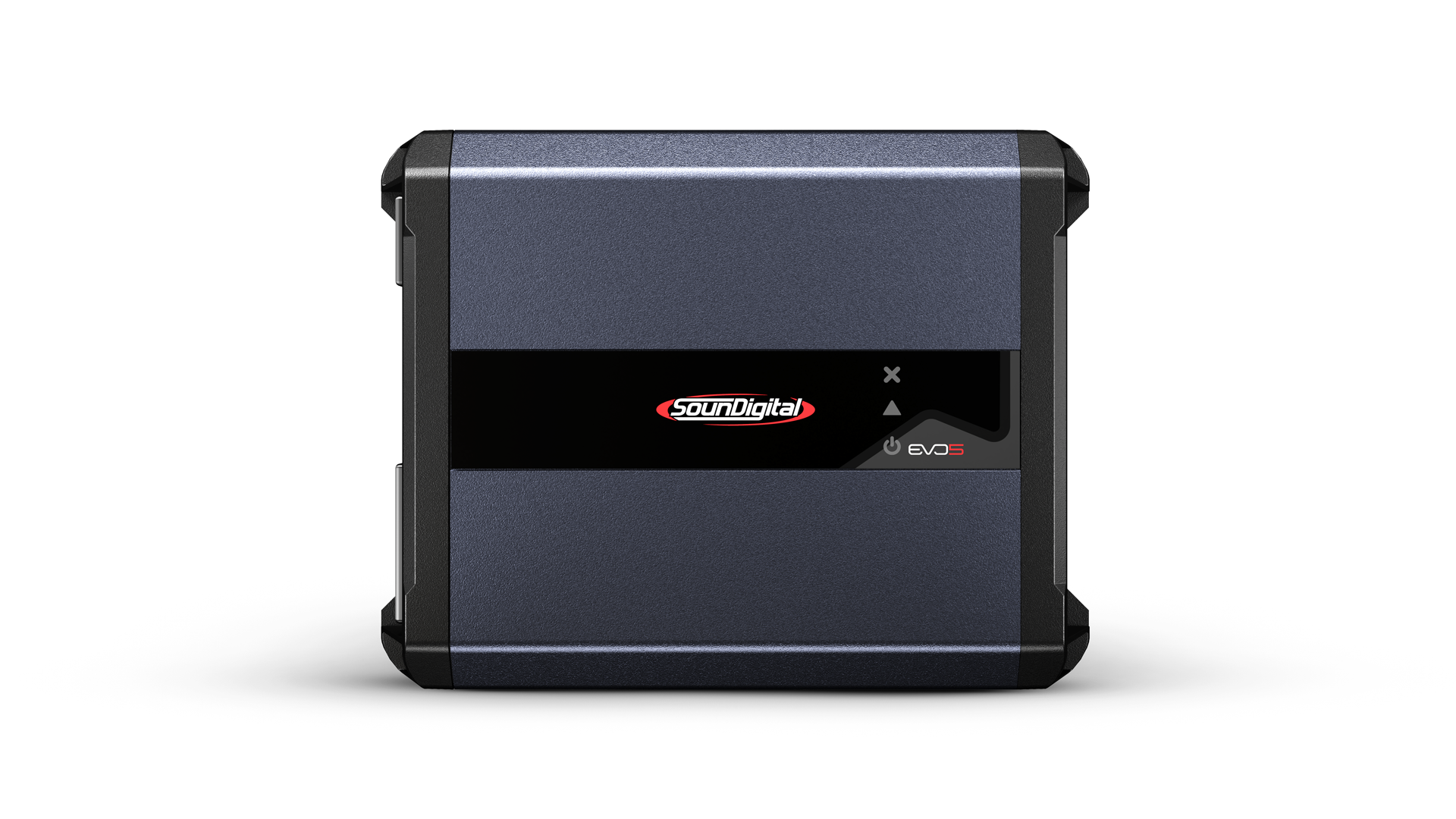

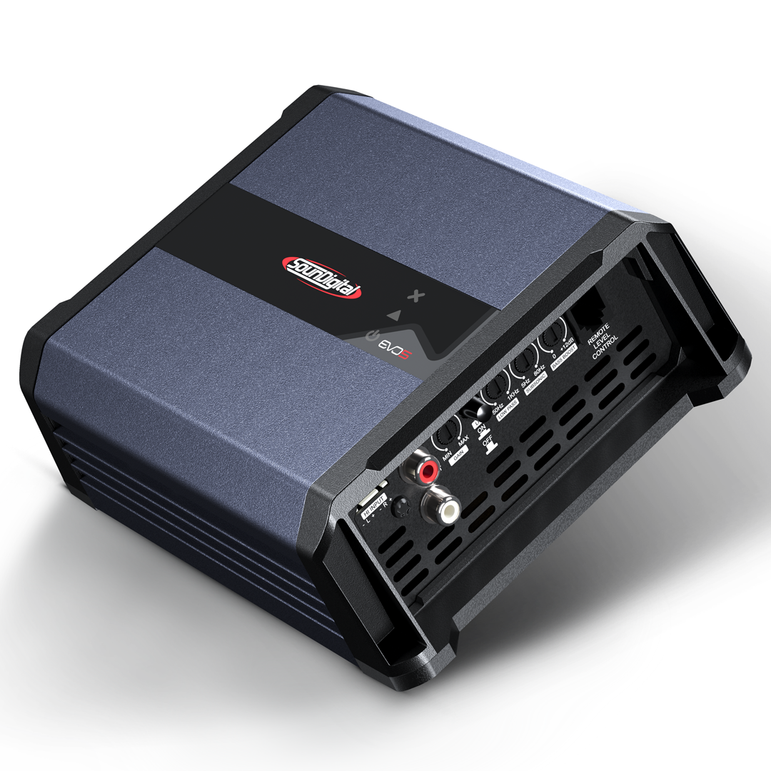

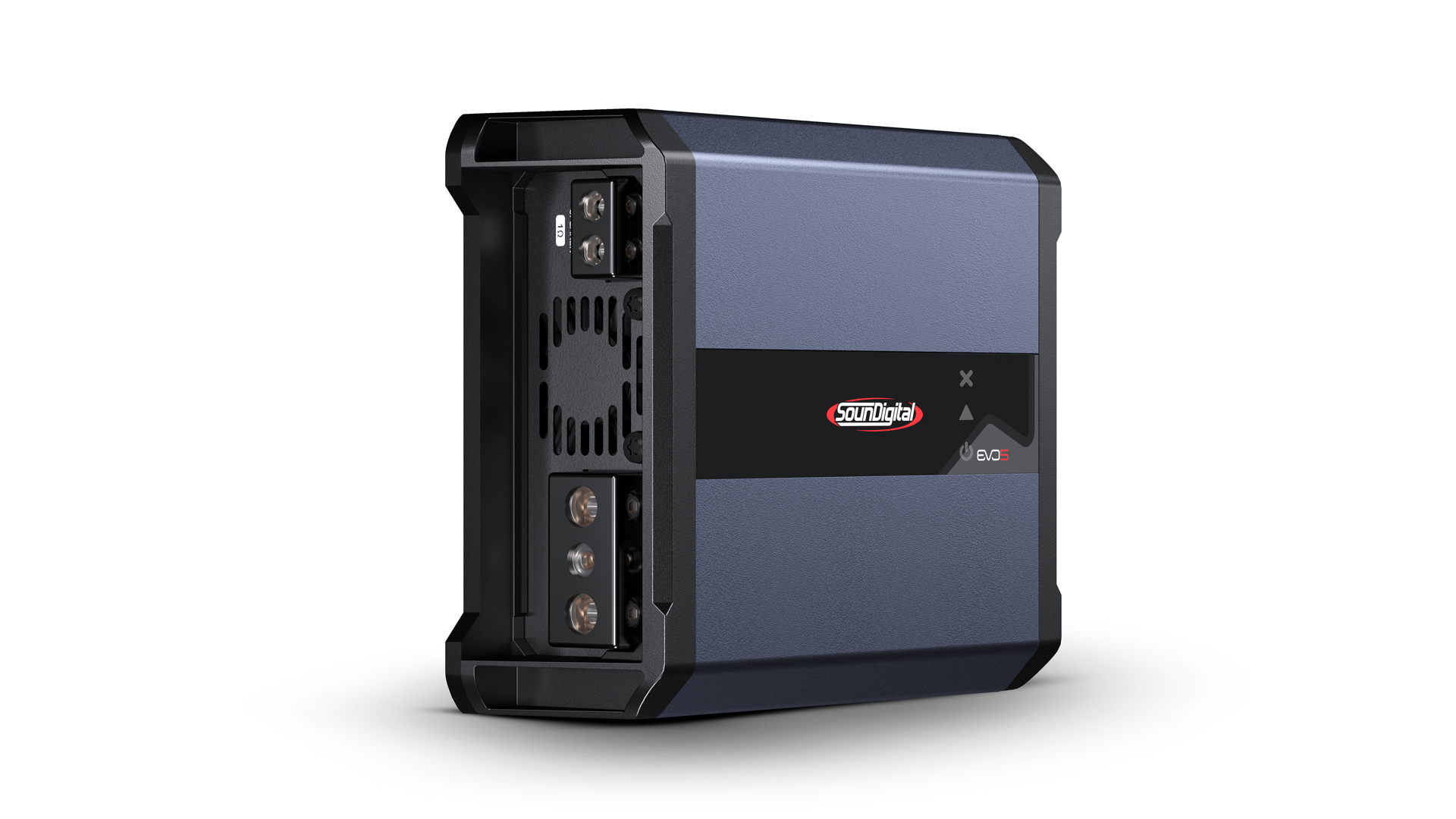

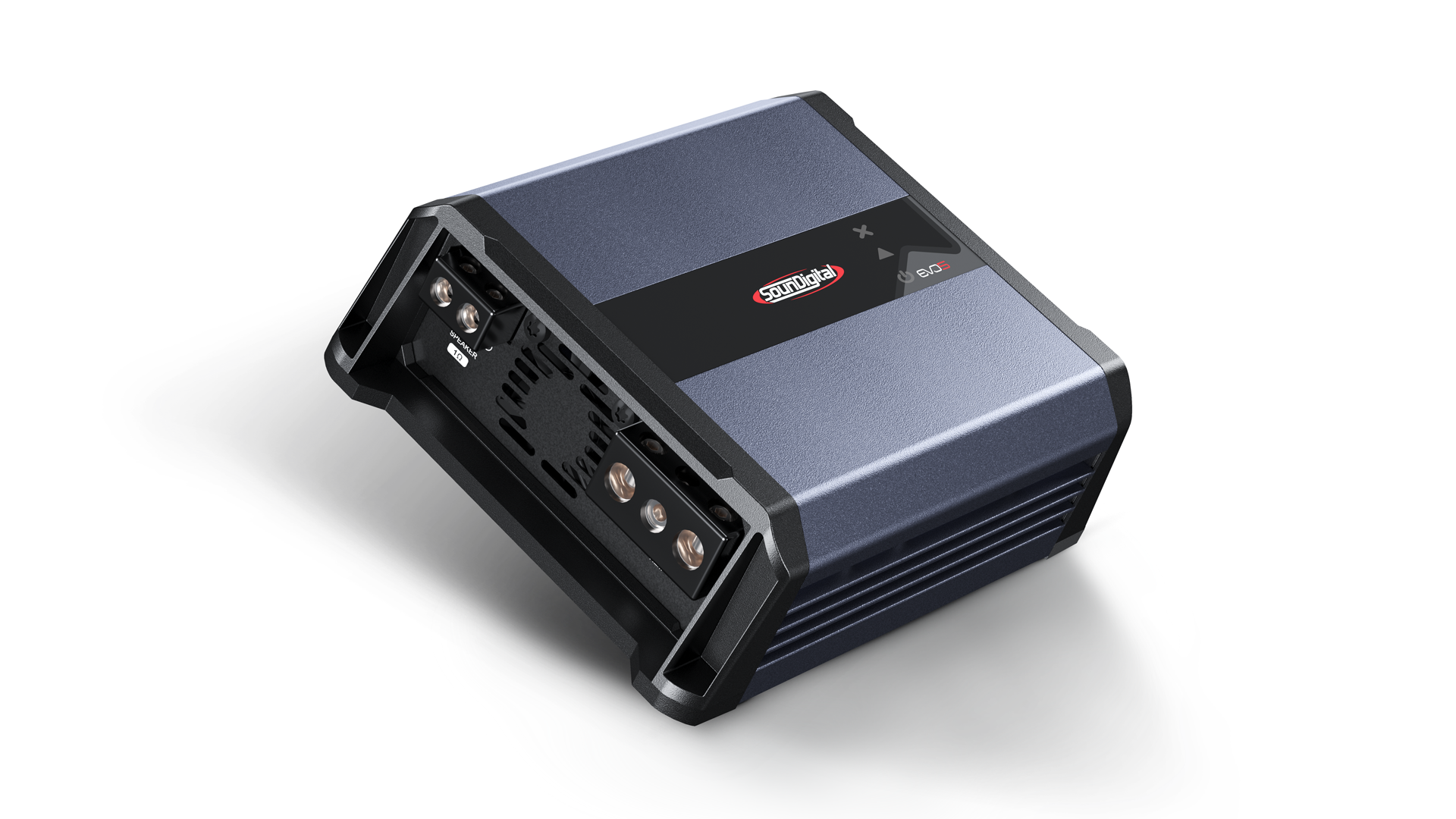

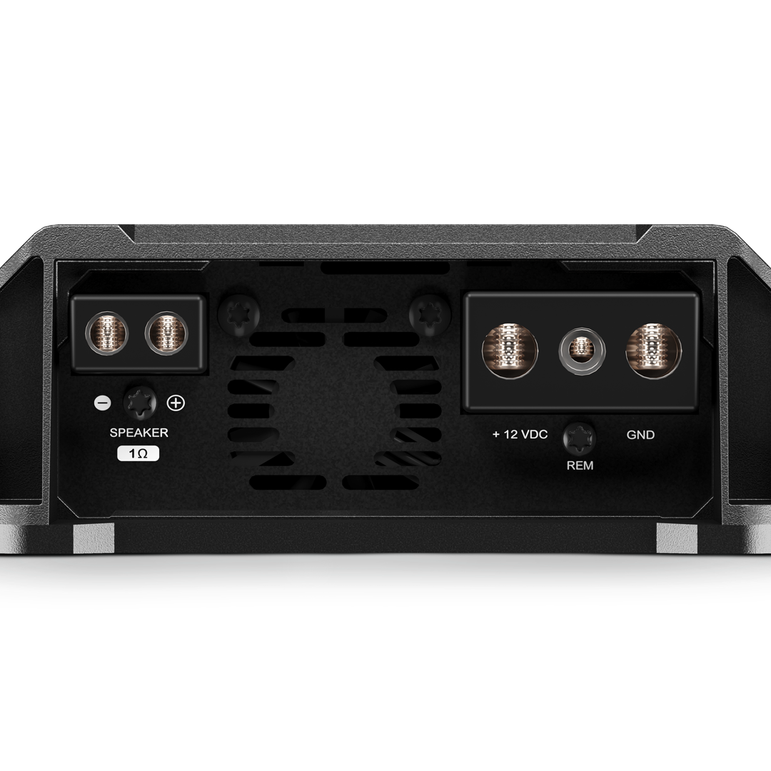

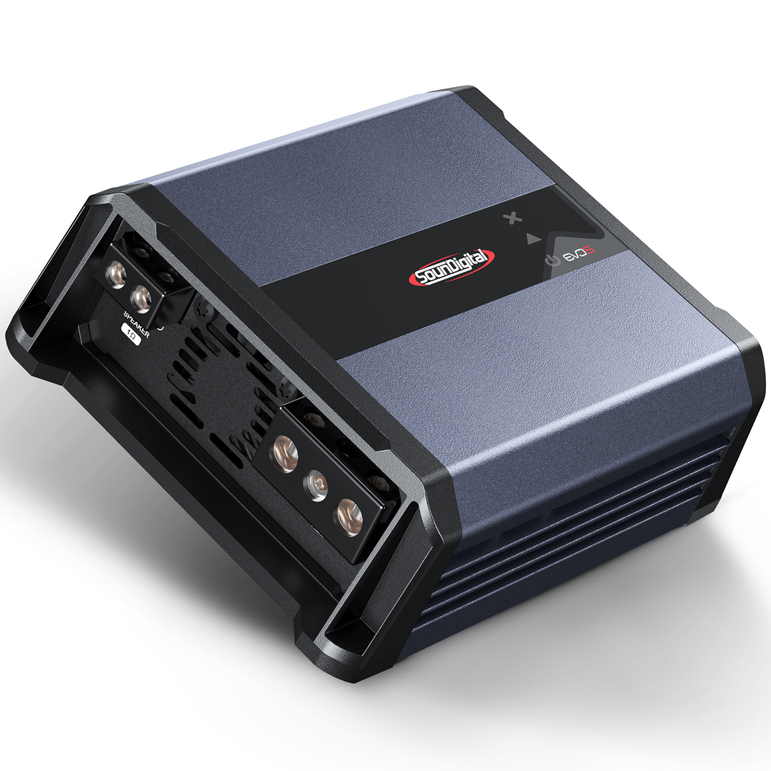

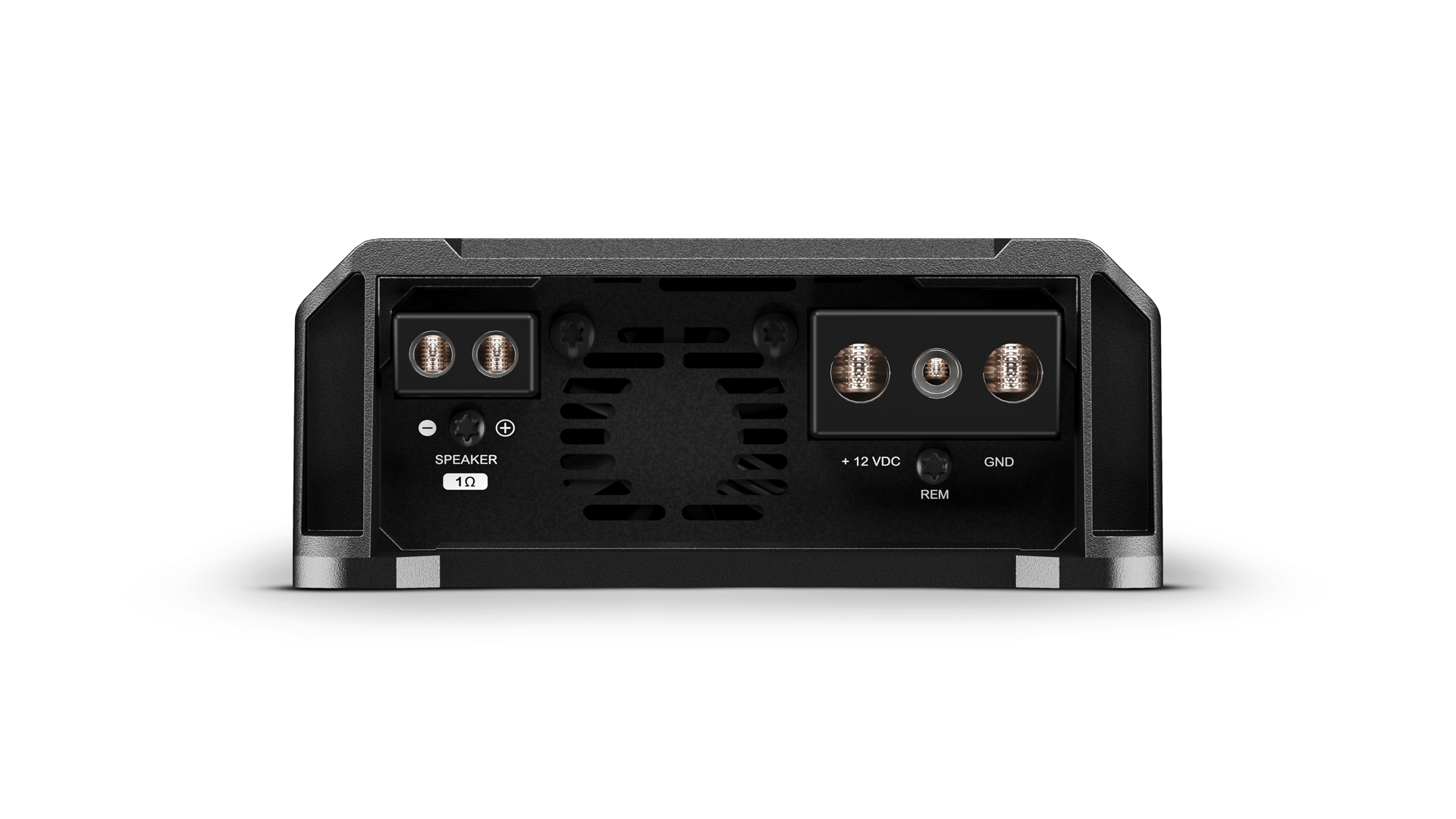

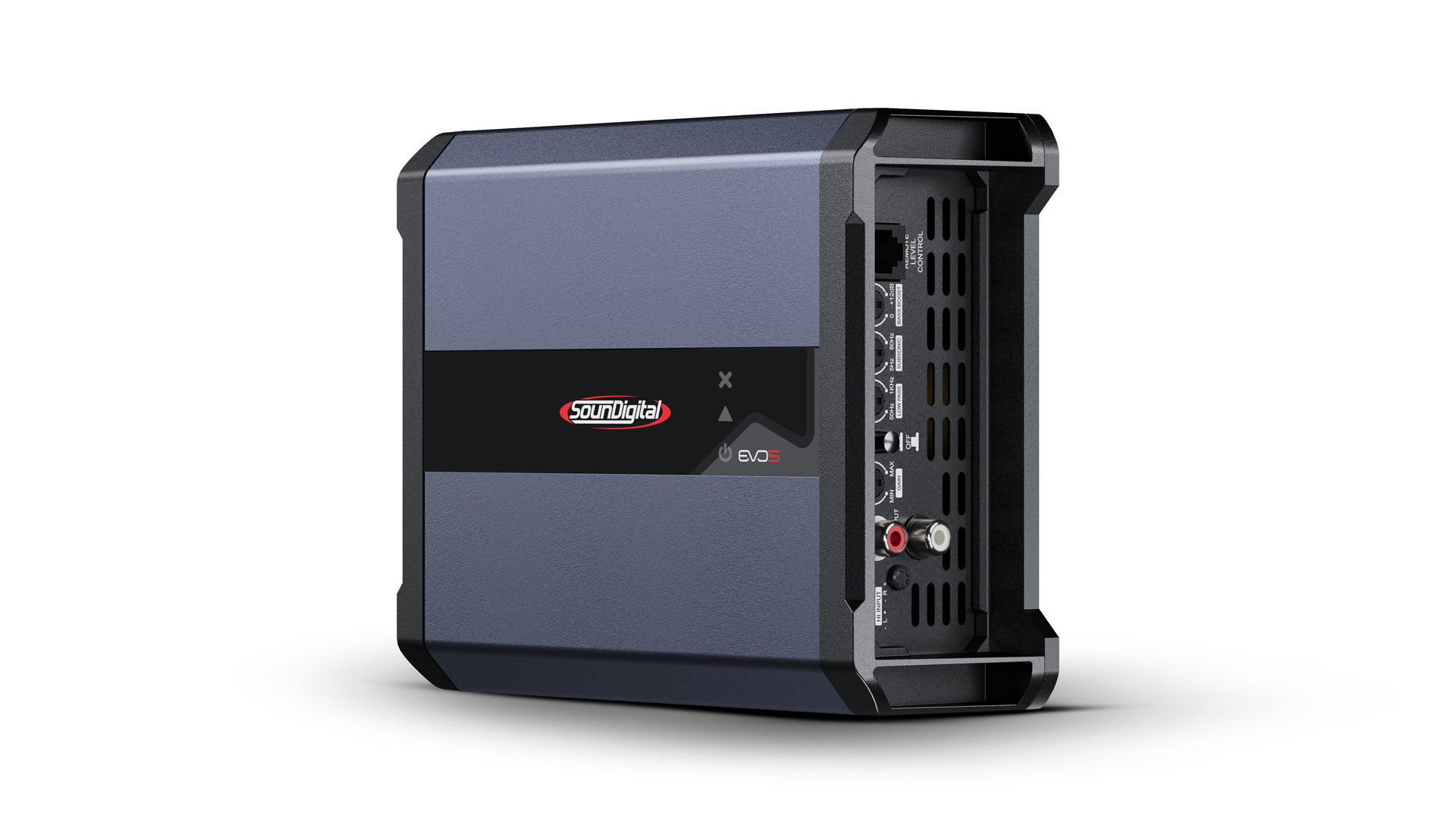

The SounDigital 1600.1 EVO 5 takes the power/price/size ratio of amplifiers to a new level. Never before has so much power been extracted from such small dimensions – and at a very reasonable price. Damping factor 2000, operating voltage from as low as 9 volts. All SounDigital models are designed and manufactured in their own production facility in Brazil.
Technical Specifications
- Output Power: 1 × 1600 W RMS @ 4 Ω
- Operating Voltage: 9–16 V
- Current Consumption (music): 69.4 A @ 4 Ω
- Recommended Fuse: 80 A
- Recommended Battery: 80 Ah

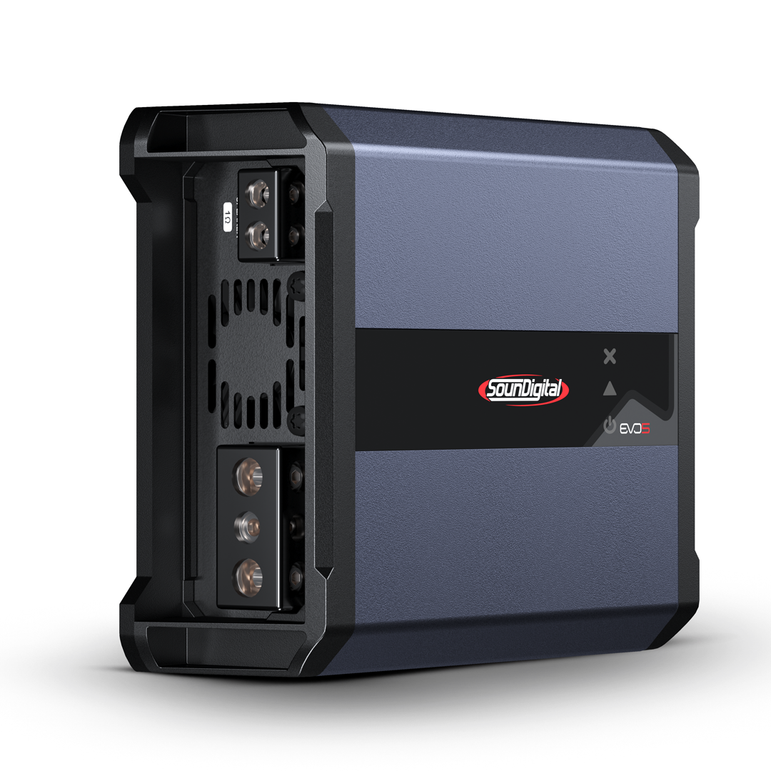

- Power Cable: 16 mm² (5 AWG)
- Efficiency: 91.5 %
- Damping Factor: 2000
- Frequency Response: 5 Hz–25 kHz
- SNR: 93.4 dB @ 4 Ω

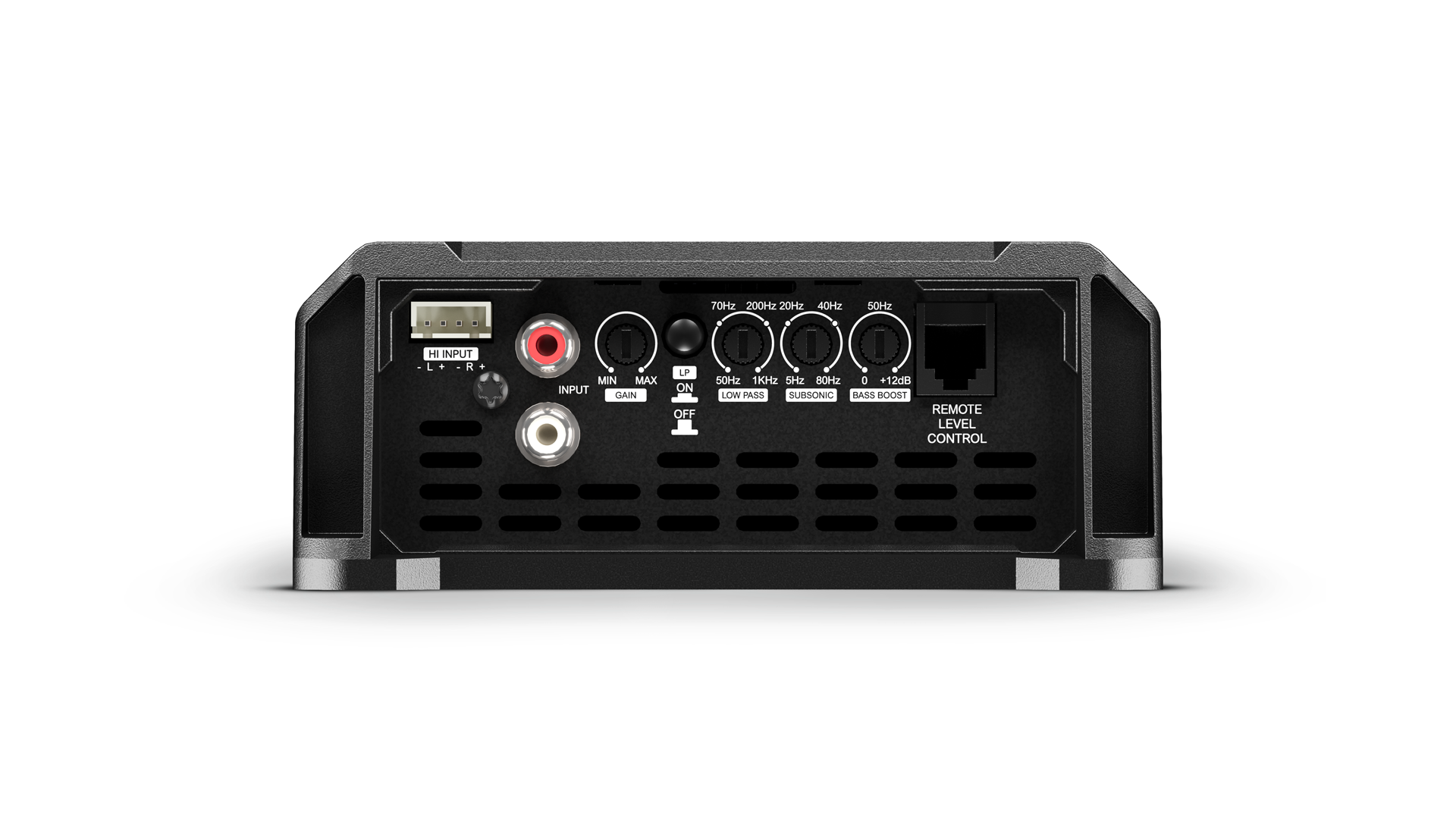

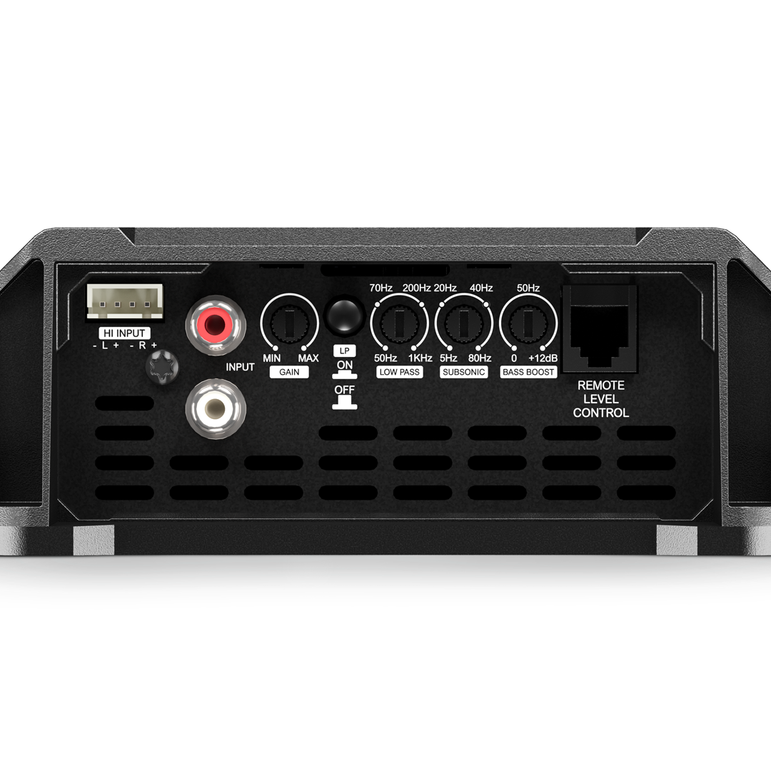

- Input Sensitivity: 0.2–2 V
- Subsonic Filter: 5–80 Hz
- Low-Pass Filter (LPF): 50 Hz–1 kHz
- Bass Boost: 0–12 dB @ 50 Hz
- Dimensions (L × W × H): 180 × 136 × 55 mm
- Weight: 1.13 kg
Do not connect the amplifier below the rated load!
