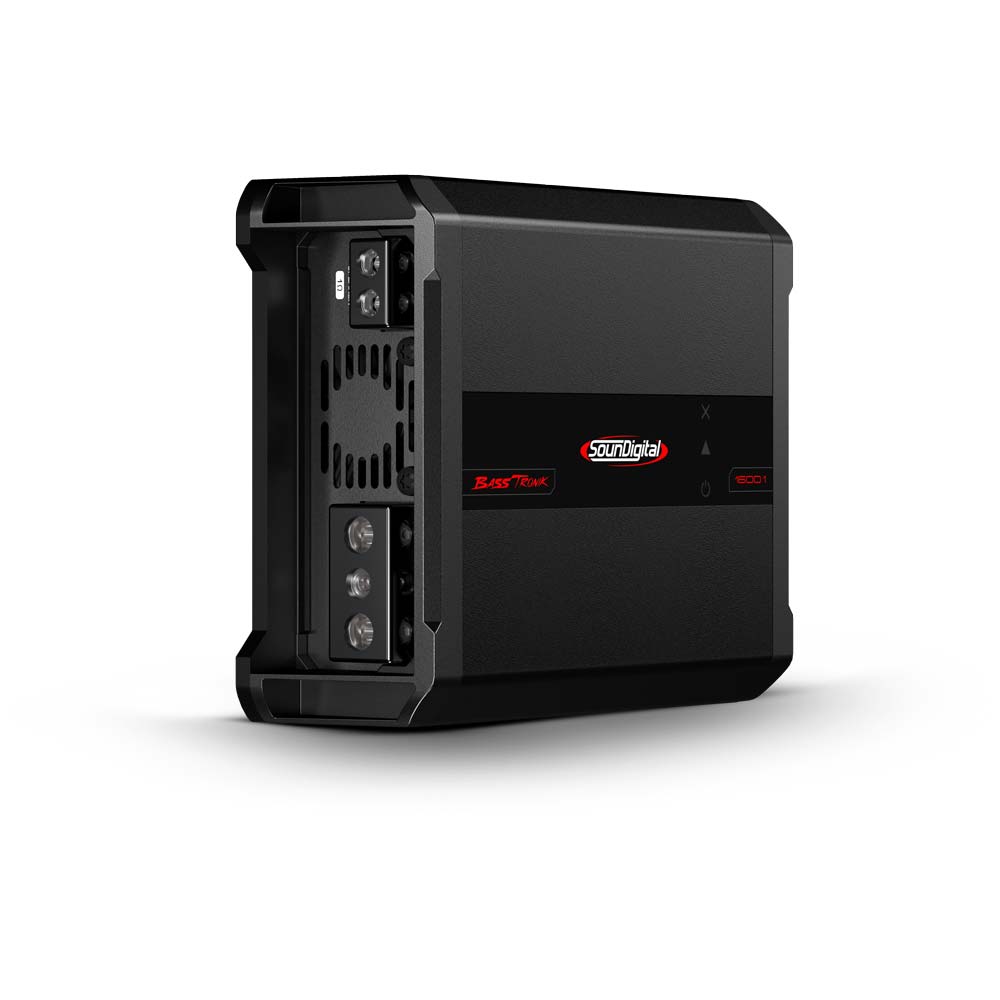

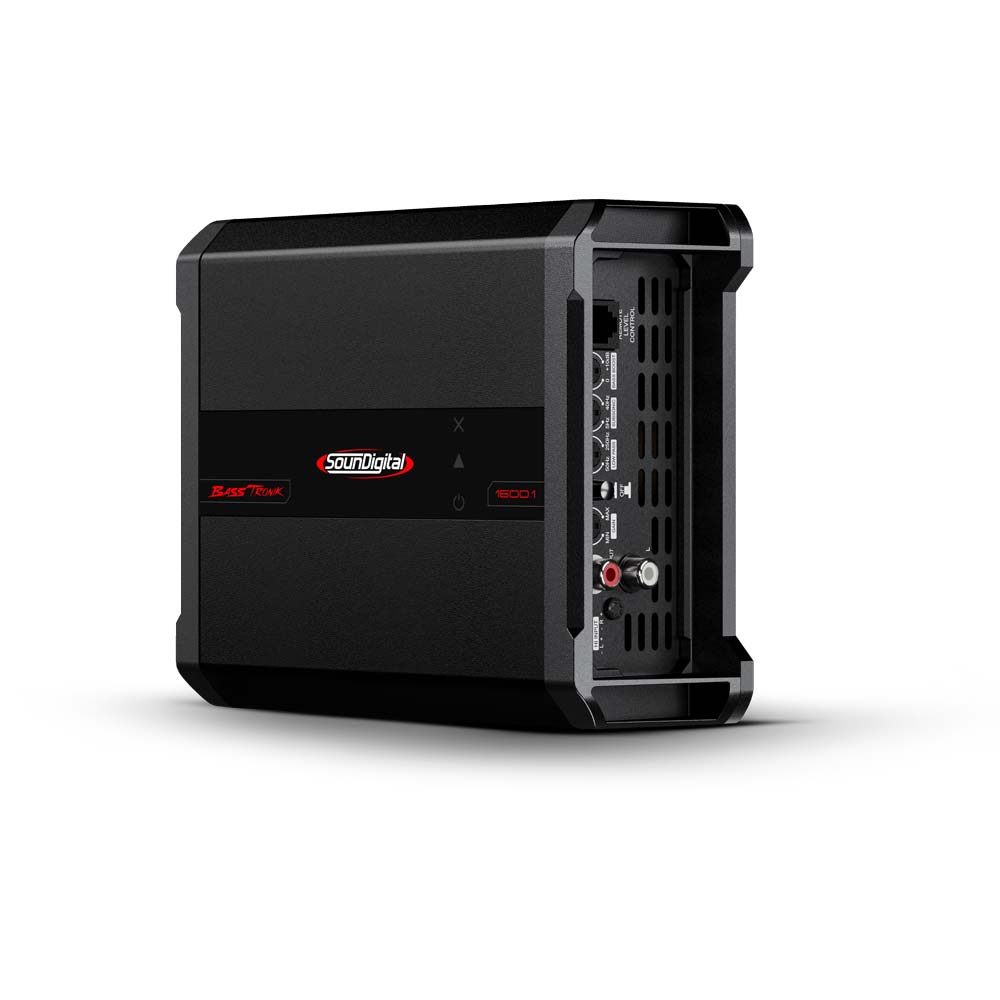

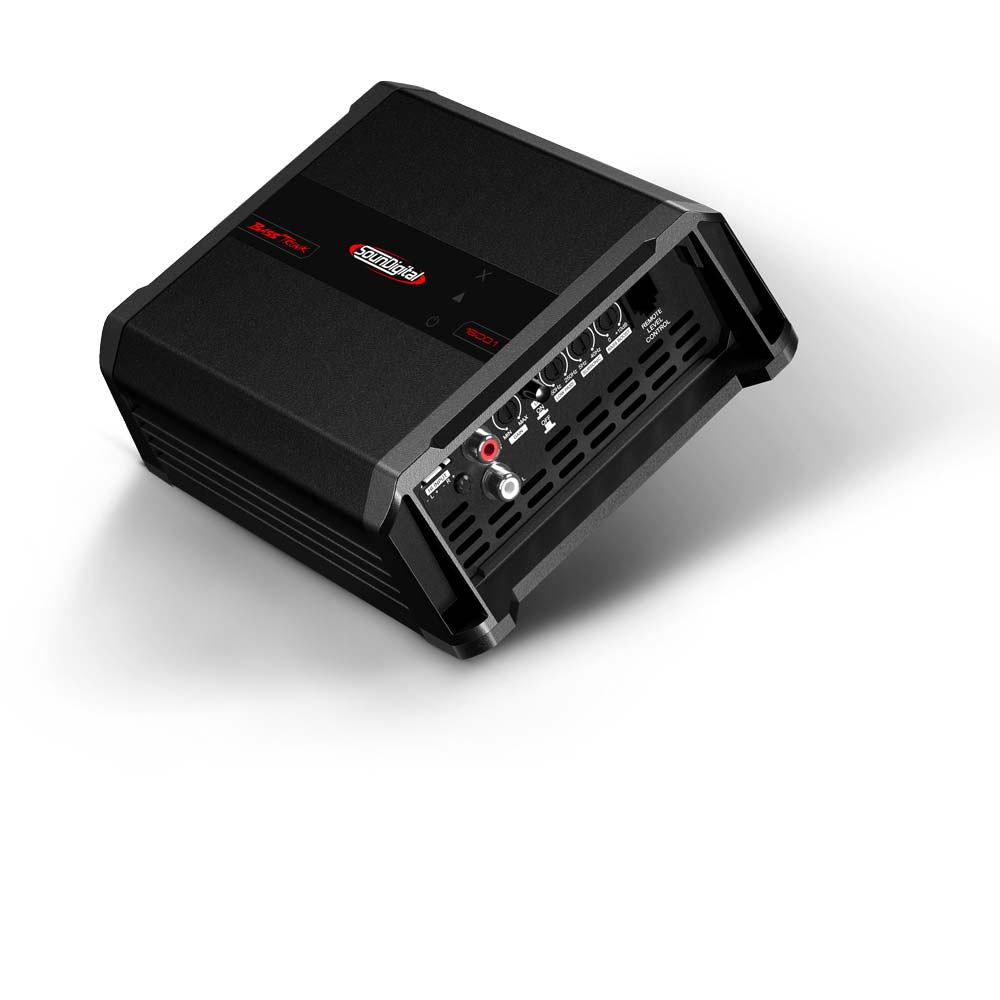

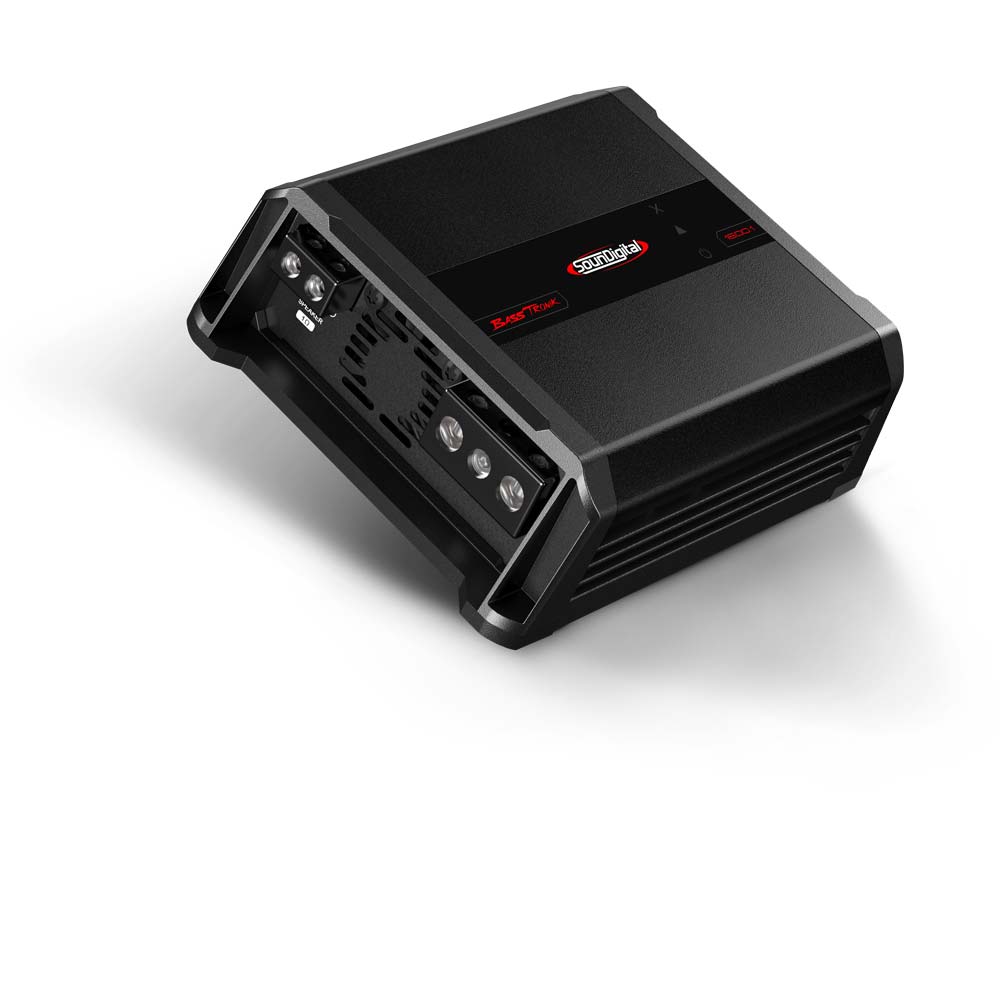

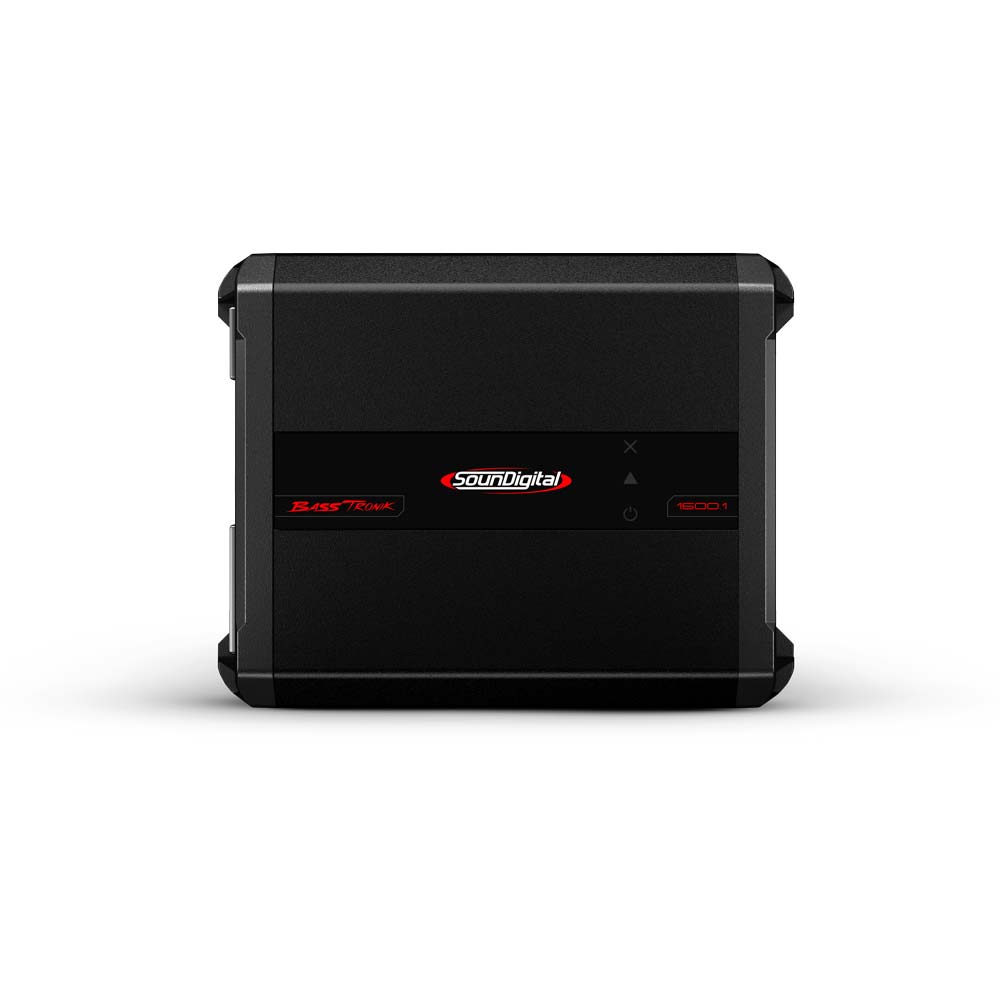

SounDigital 1600.1 BASSTRONIK — Monoblock Amplifier
The BASSTRONIK series is designed for powerful and direct bass reproduction. The redesigned power supply is SounDigital's largest and most stable to date. The continuously adjustable LPF and subsonic filters facilitate bass control. The low-pass filter can be switched off with the LP switch (full-range operation). In addition to RCA connectors, it features a speaker-level input and a connector for the SounDigital RLC remote control. All SounDigital amplifiers are designed and manufactured in their own production facility in Brazil.
- Power RMS @ 4 Ohm: 1600W
- Min. impedance: 4 Ohm
- Damping factor: >2000
- Operating voltage: 10–16V
- Current consumption (music / max): 82 / 164 A
- Recommended fuse: 100 A
- Recommended battery: 120 Ah
- Efficiency: 85%
- Bass boost: 0–10 dB @ 35 Hz
- Low-pass filter (LPF, 12dB/oct): 50–250 Hz
- Subsonic filter: 5–40 Hz
- Frequency response (-3dB): 5 Hz – 20 kHz
- S/N ratio: 90.2 dB
- Input sensitivity (RCA): 0.2–2V
- Input sensitivity (speaker level): 1.5–15V
- Power cable: 35 mm²

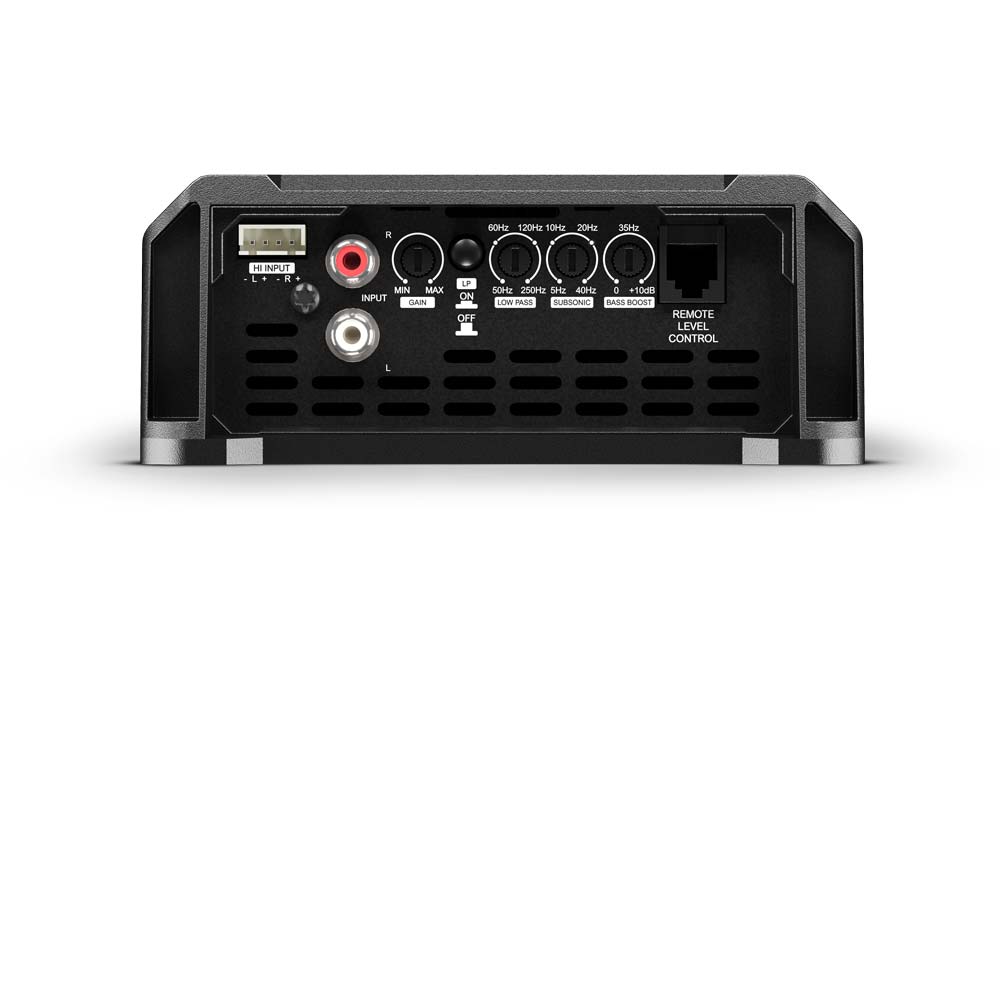

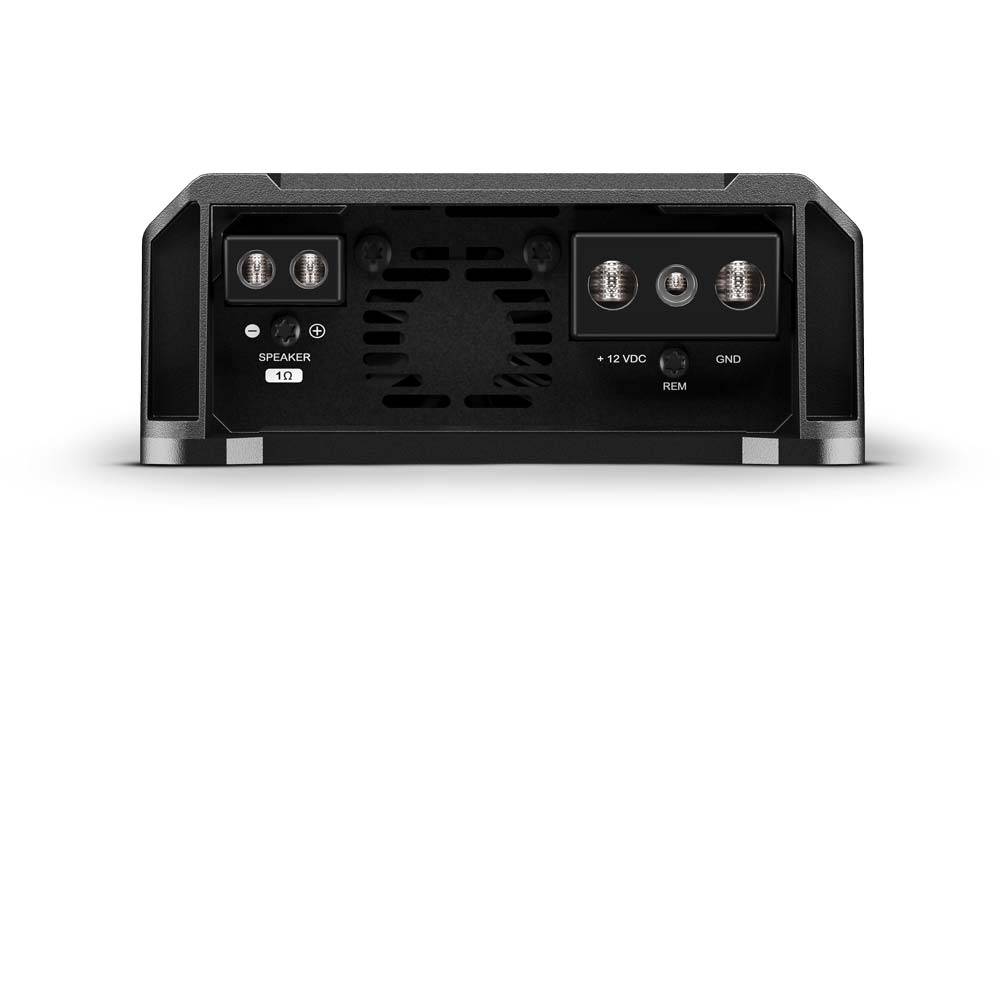

- Connections: RCA, speaker-level input, RLC connector
- Dimensions: 180 × 136 × 55 mm
Do not connect the amplifier below the rated load!
