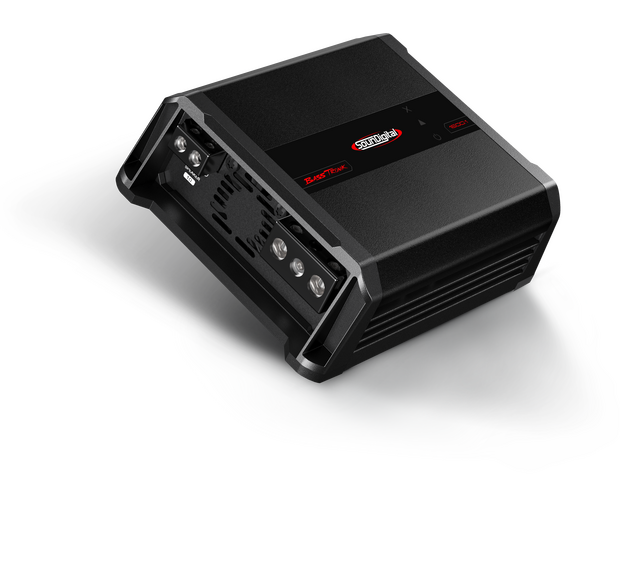

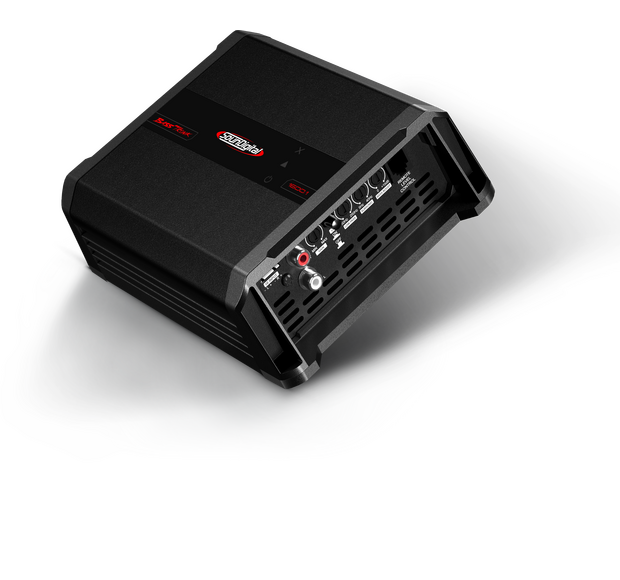

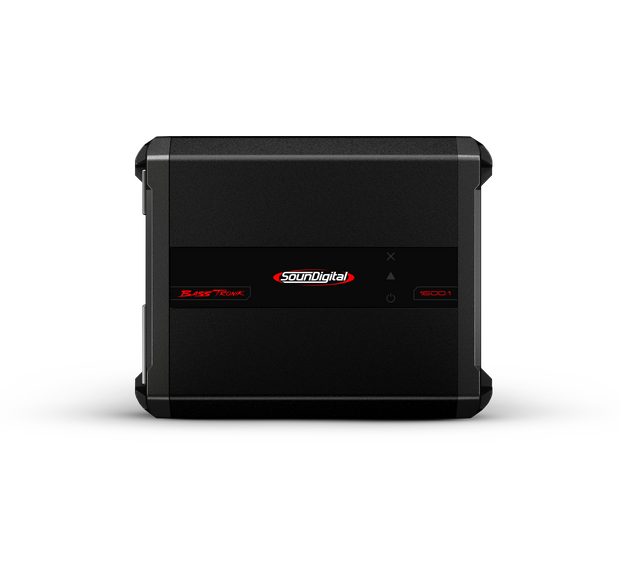

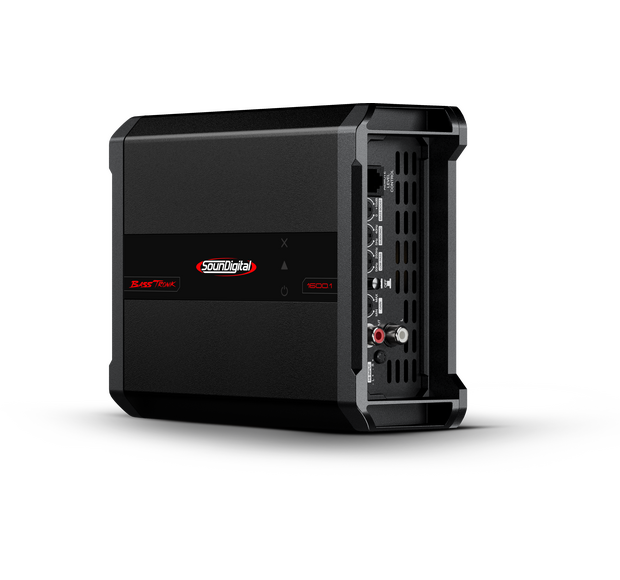

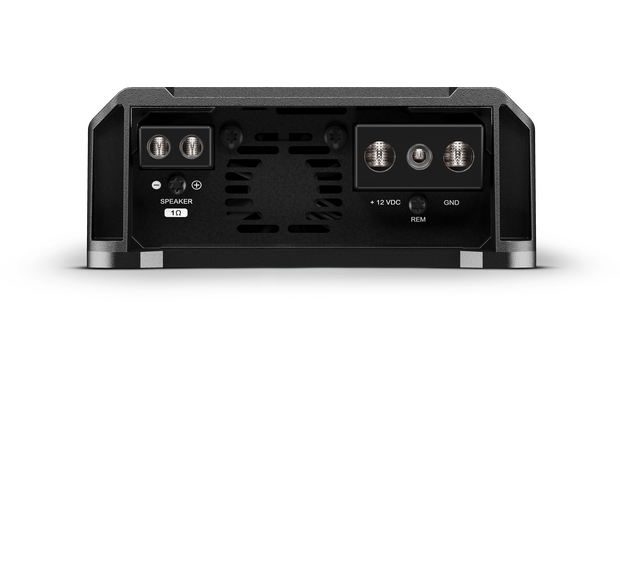

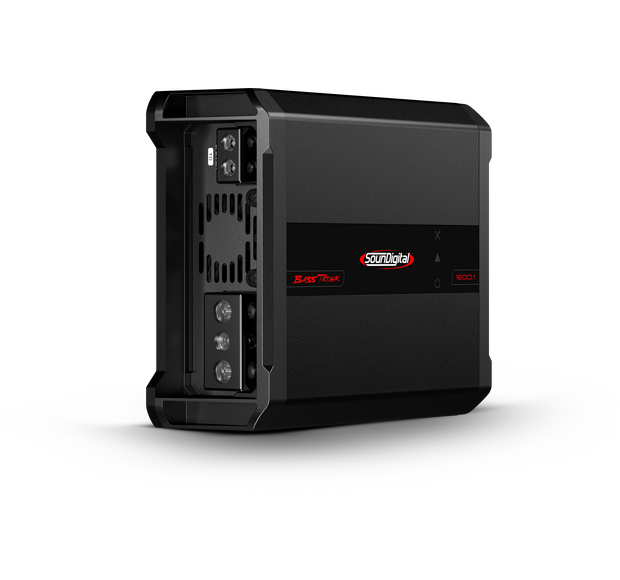

SounDigital 1600.1 BASSTRONIK — Mono Amplifier

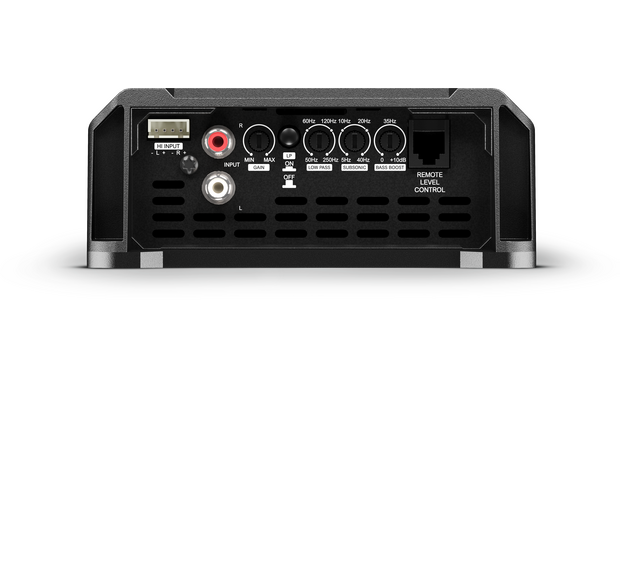

The BASSTRONIK series is designed for powerful and direct bass reproduction. The redesigned power supply is the largest and most stable in SounDigital's history. The fixed adjustable LPF and subsonic filter facilitate bass control. The low-pass filter can be switched off with the LP switch (full-range operation). In addition to RCA connectors, there is a speaker-level input and a connector for the SounDigital RLC remote control. All SounDigital amplifiers are designed and manufactured in their own production facility in Brazil.
- Power RMS @ 1 Ohm: 1600W
- Power RMS @ 2 Ohm: 1000W
- Power RMS @ 4 Ohm: 650W
- Min. impedance: 1 Ohm
- Damping factor: >2000
- Operating voltage: 10–16V
- Current consumption (music / max): 82 / 164 A
- Recommended fuse: 100 A
- Recommended battery: 120 Ah
- Efficiency: 85%
- Bass boost: 0–10 dB @ 35 Hz
- Low-pass filter (LPF, 12dB/oct): 50–250 Hz
- Subsonic filter: 5–40 Hz
- Frequency response (-3dB): 5 Hz – 20 kHz
- S/N ratio: 90.2 dB
- Input sensitivity (RCA): 0.2–2V
- Input sensitivity (speaker level): 1.5–15V
- Power cable: 35 mm²
- Connections: RCA, speaker-level input, RLC connector
- Dimensions: 180 × 136 × 55 mm
Do not connect the amplifier below the rated load!
