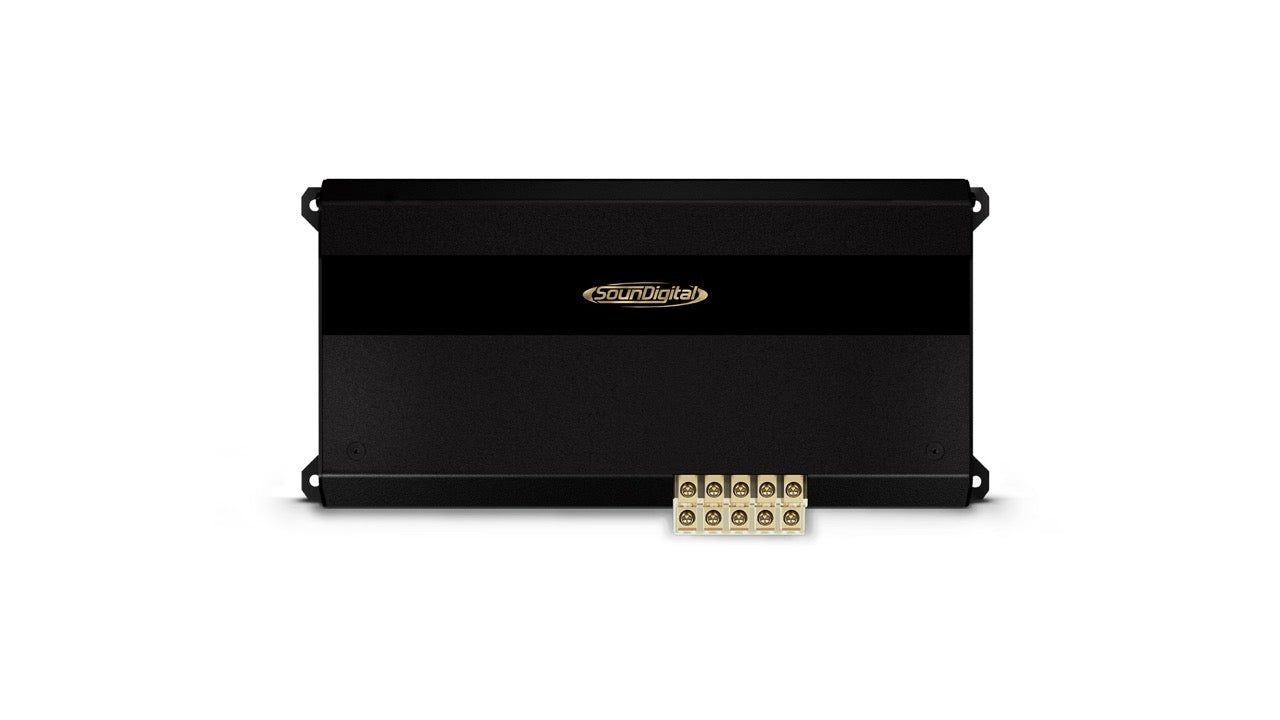

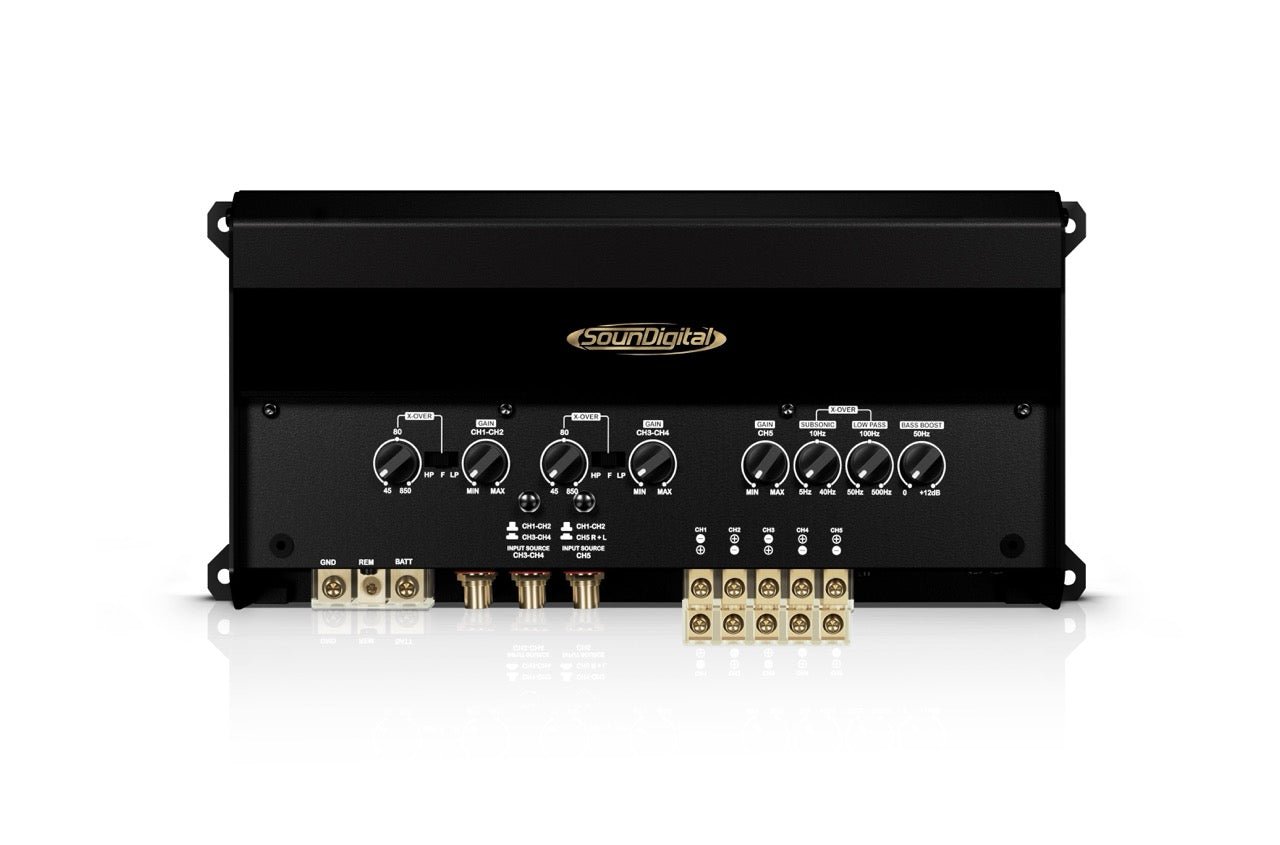

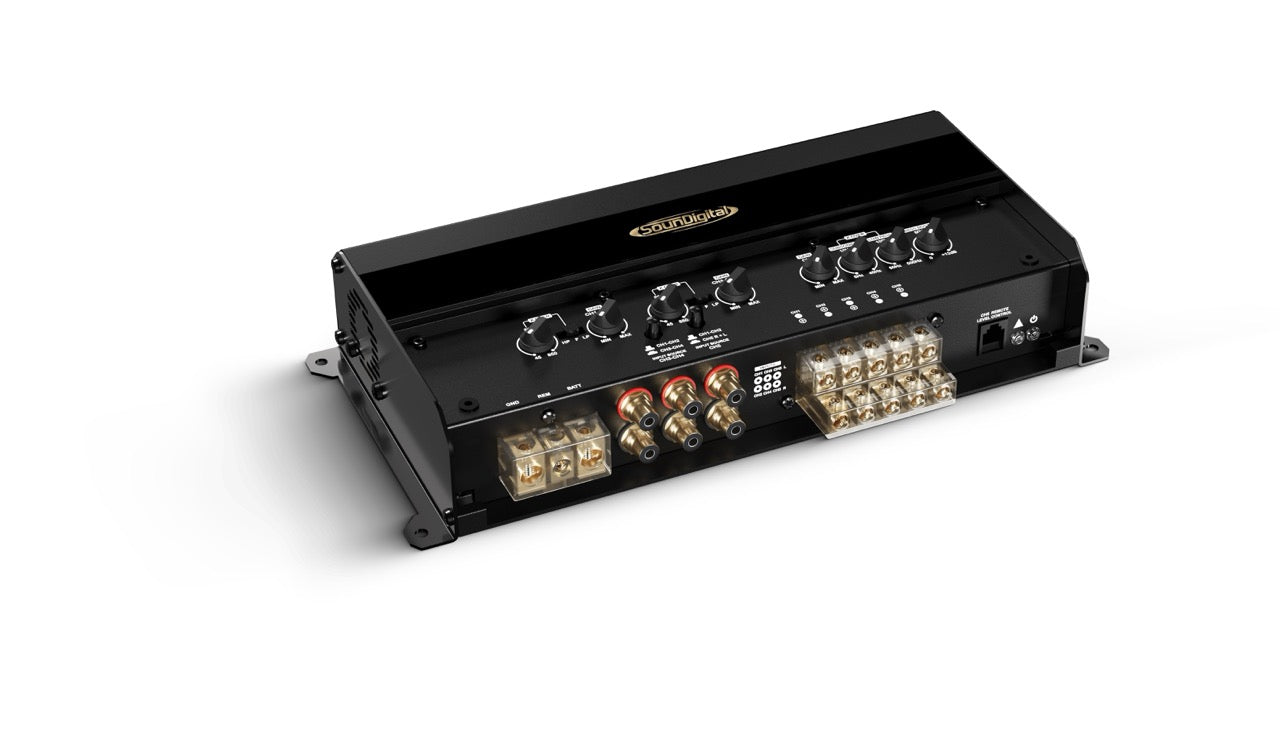

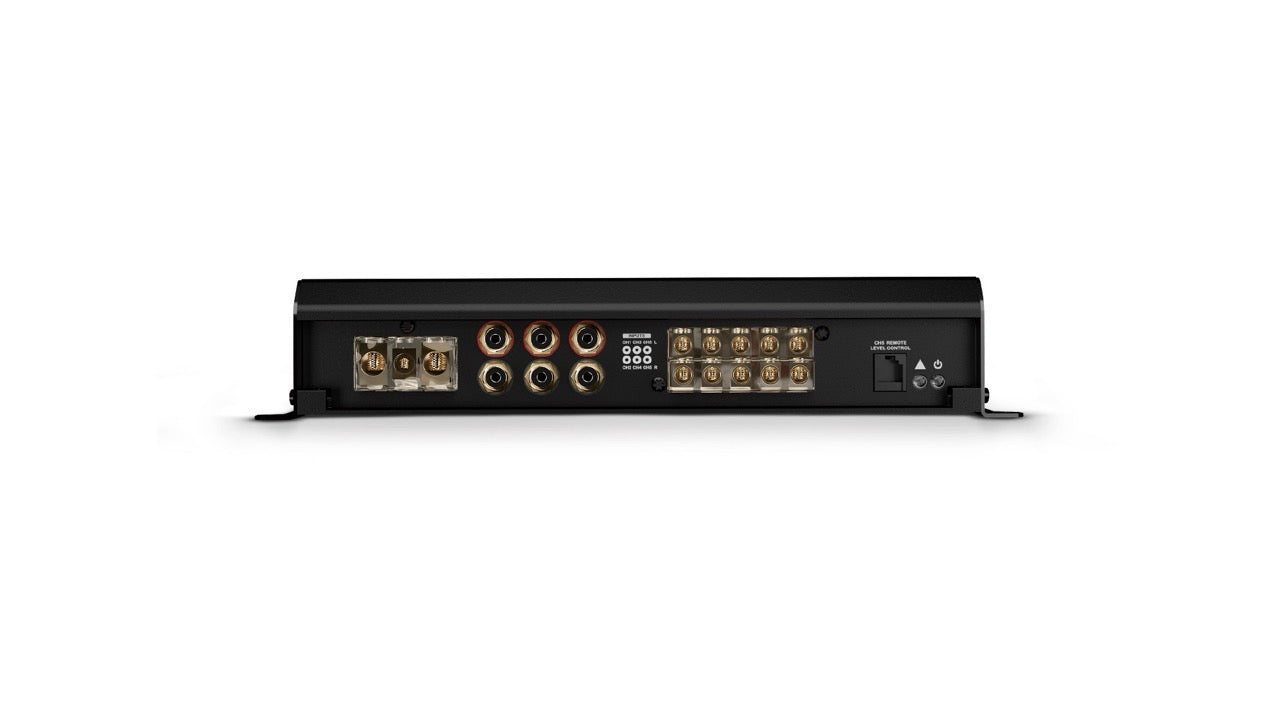

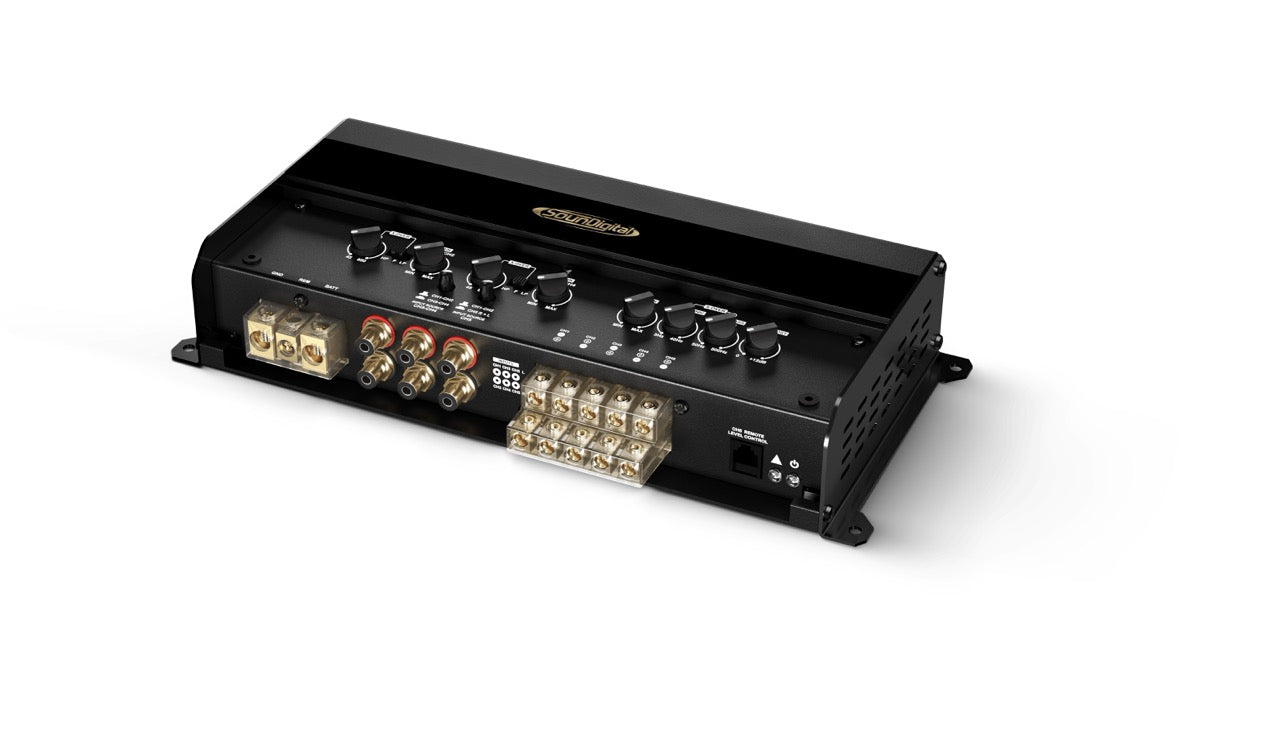

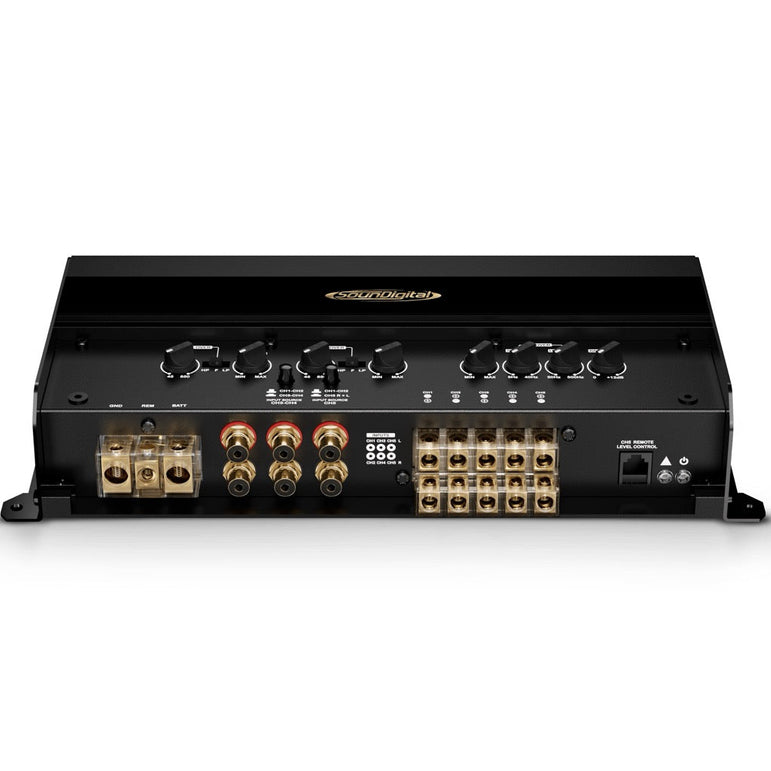

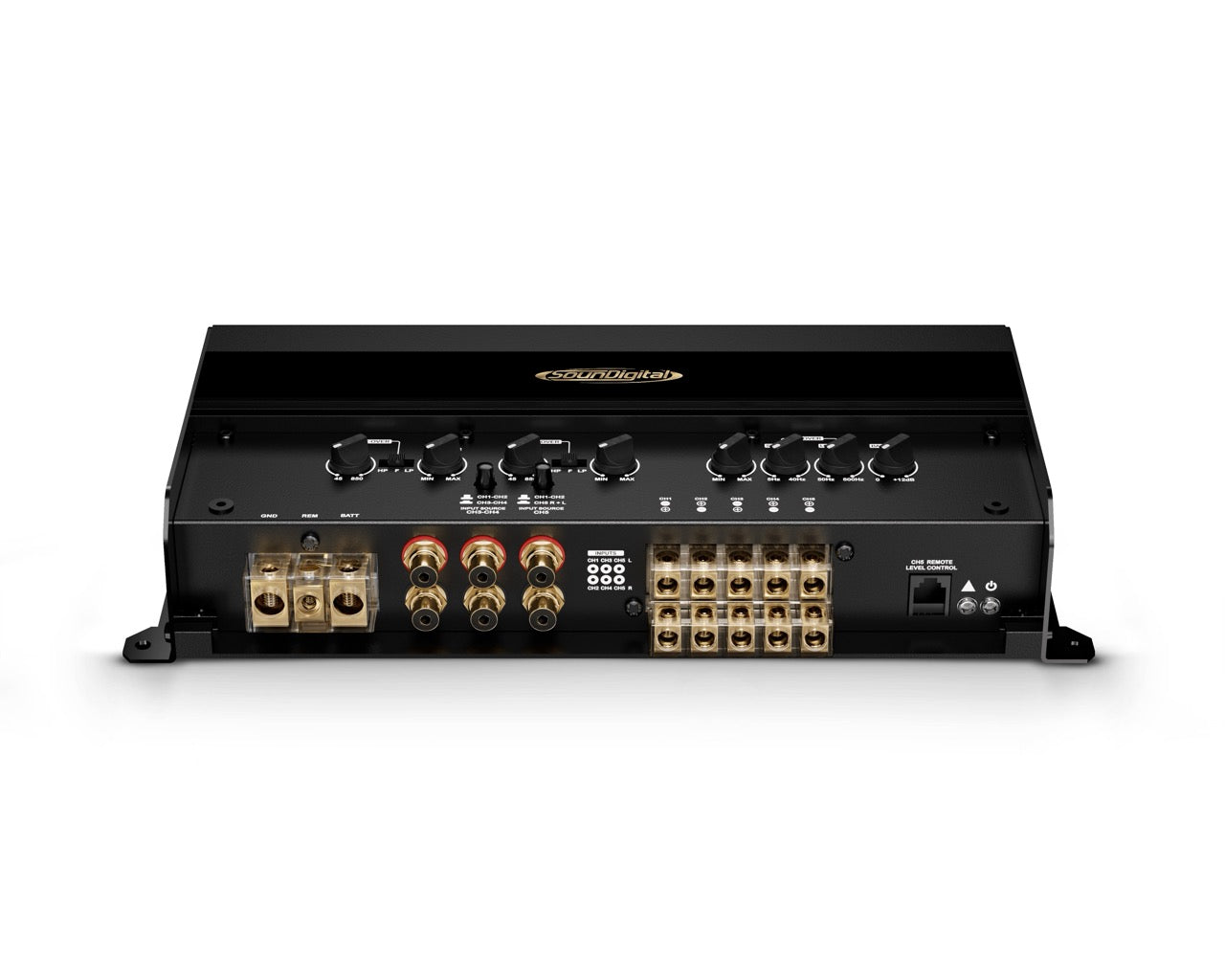

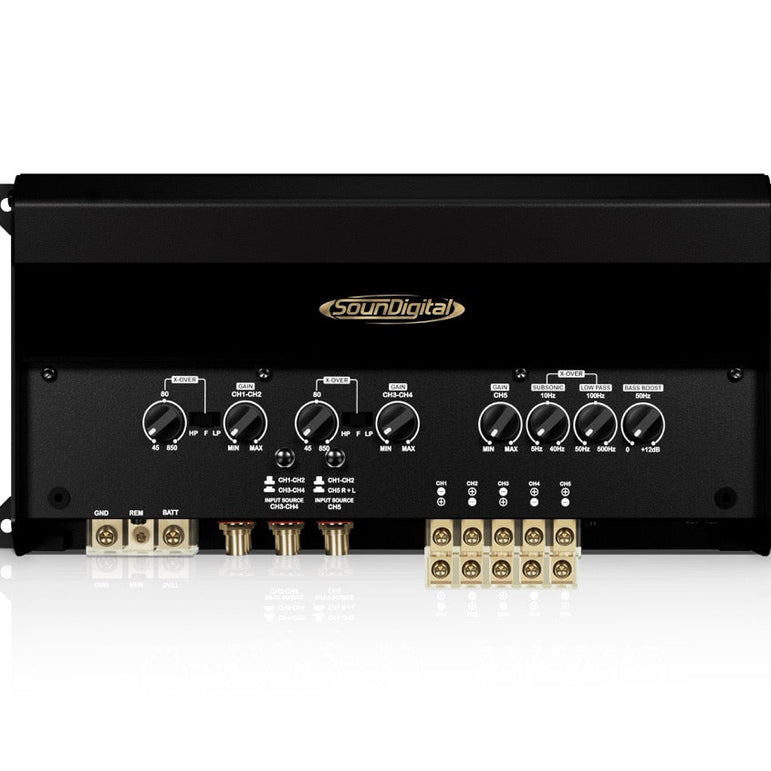

The SounDigital GAN 1500.5 Founders Edition is a revolutionary 5-channel GaN amplifier — serialized and available only in a limited quantity. Gallium nitride (GaN) technology enables exceptional sound quality, high efficiency (80%), and a compact size.
- Channels 1–4: 4 × 125 W RMS @ 4 Ω
- Channels 1–4 bridged: 2 × 250 W RMS @ 8 Ω
- Channel 5 (sub): 1 × 660 W RMS @ 4 Ω / 1 × 1000 W RMS @ 2 Ω
- Operating voltage: 9–16 V
- Current consumption (music): 65 A
- Current consumption (max): 130 A
- Recommended fuse: 80 A
- Efficiency: 80 %
- Damping factor: 150 (channels 1–4) / 75 (sub)
- Frequency response: 6 Hz–65.25 kHz
- SNR: 105 dB
- Crossover CH1–4 HPF/LPF: 45–850 Hz
- Crossover CH5 HPF: 5–40 Hz / LPF: 50–500 Hz
- Dimensions (L × W × H): 298 × 150 × 54 mm
What is GaN?
The use of gallium nitride (GaN) in amplifiers is a relatively new but highly significant development in the field of electronics and amplifiers.
Gallium nitride was discovered in the 1960s, but research and development of the material as a semiconductor only gained momentum in the following decades. In the 1990s and 2000s, GaN technology was further developed and improved. Researchers and engineers have focused on improving material quality and developing techniques for growing GaN crystals on suitable substrates.
SoundDigital has utilized GaN technology to create more powerful and smaller amplifiers with better sound quality!
