SounDigital 12000.1 EVOX 1Ω monovahvistin 12000W RMS

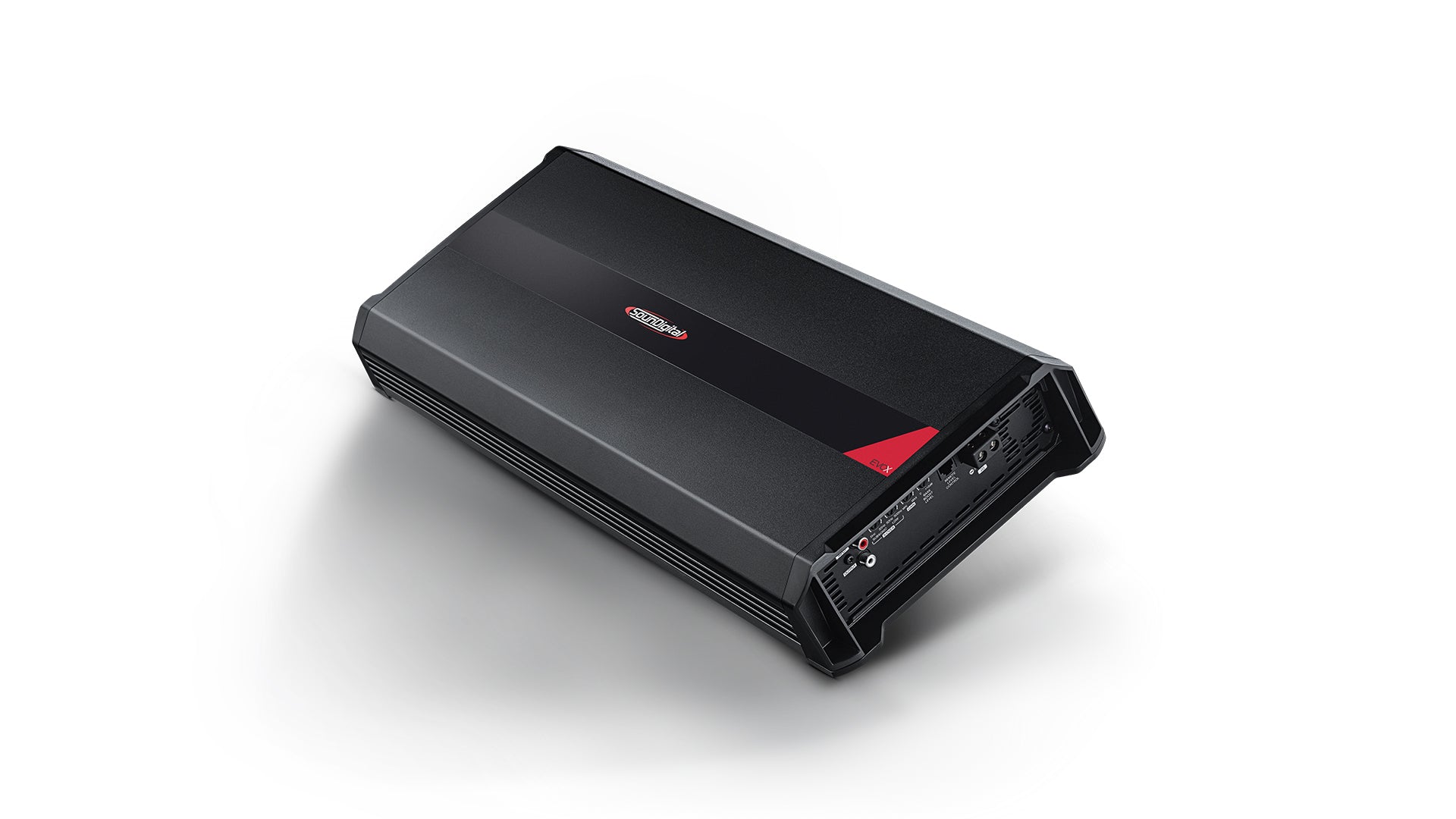

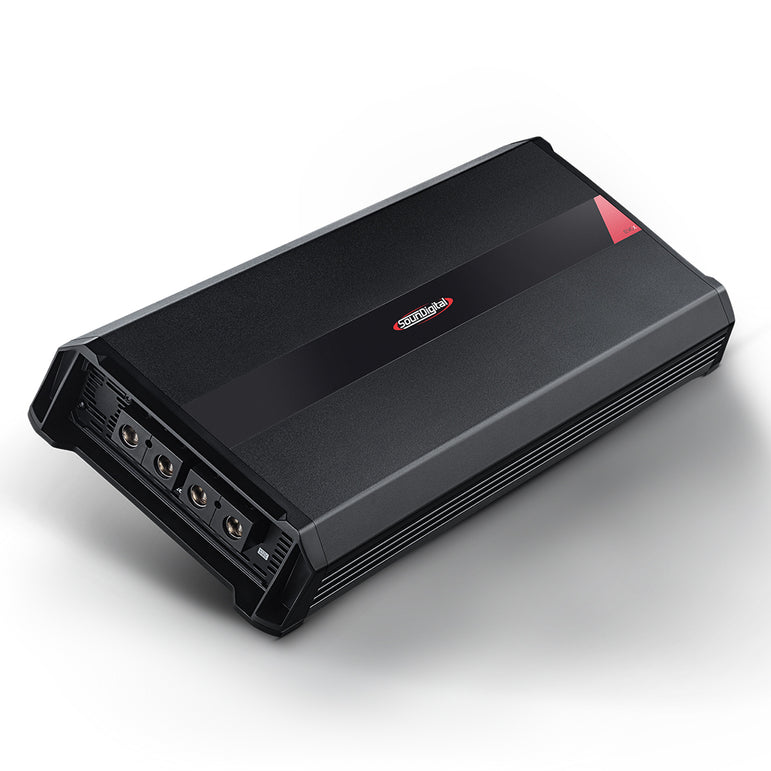

SounDigital 12000.1 EVOX 1ohm

• 1-channel amplifier
• 13000W
• 1 Ohm model
• When you want to play loud!

The EVO X Line brings the latest technology to a compact design and high-quality components. With groundbreaking technology, SounDigital introduced something into car audio amplifiers that had not yet been explored: thermal coupling via the RTGP system.

The unique RTGP (Thermal Recovery Generation Power) system ensures both higher thermal efficiency and durability and stability for SounDigital products.

Specifications:
Compatible with SD-RLC Remote level control.

- Power @ 12.6V @ 4Ω: 1 X 5227 WRMS
- Power @ 12.6V @ 2Ω: 1 X 7920 WRMS
- Power @ 12.6V @ 1Ω: 1 X 12000 WRMS
- Power @ 14.4V @ 4Ω: 1 X 5828 WRMS
- Power @ 14.4V @ 2Ω: 1 X 8831 WRMS
- Power @ 14.4V @ 1Ω: 1 x 13380 WRMS
- Operating Voltage: 8V – 16V
- Current Draw (Music): 627 A
- Current Draw (Max): 1253 A
- Recommended Fuse (Music): 675 A
- Total Efficiency: 76%
- Damping Factor: 200
- Frequency Response (-3dB): 5Hz – 500Hz
- SNR: 76dB
- Crossover HPF: 5Hz – 30Hz
- Crossover LPF: 50Hz – 500Hz
- THD + N (10% Rated Power): 0.1%
- Product Dimensions: 20.8 x 8.8 x 2.8 in

Do not connect the amplifier below the rated load!

Do not run your amp under rated impedance!.
