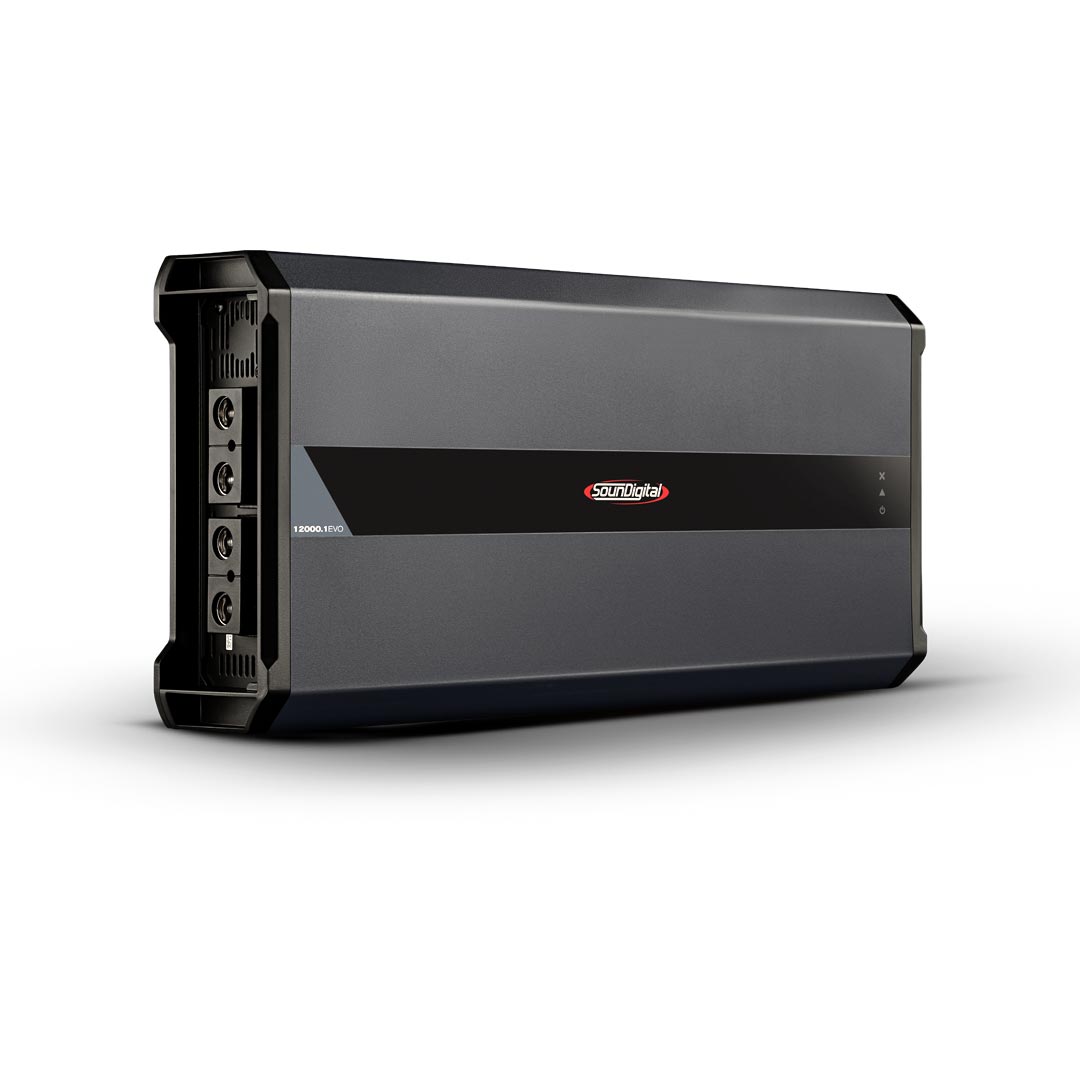

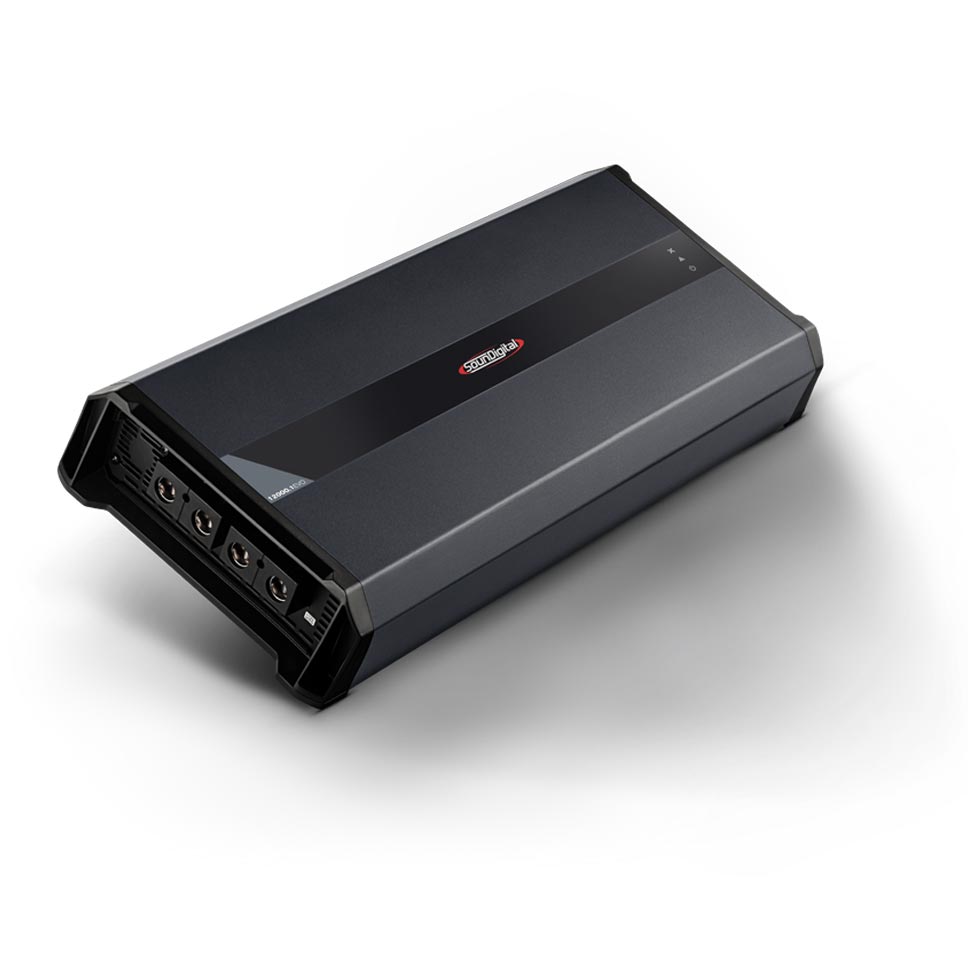

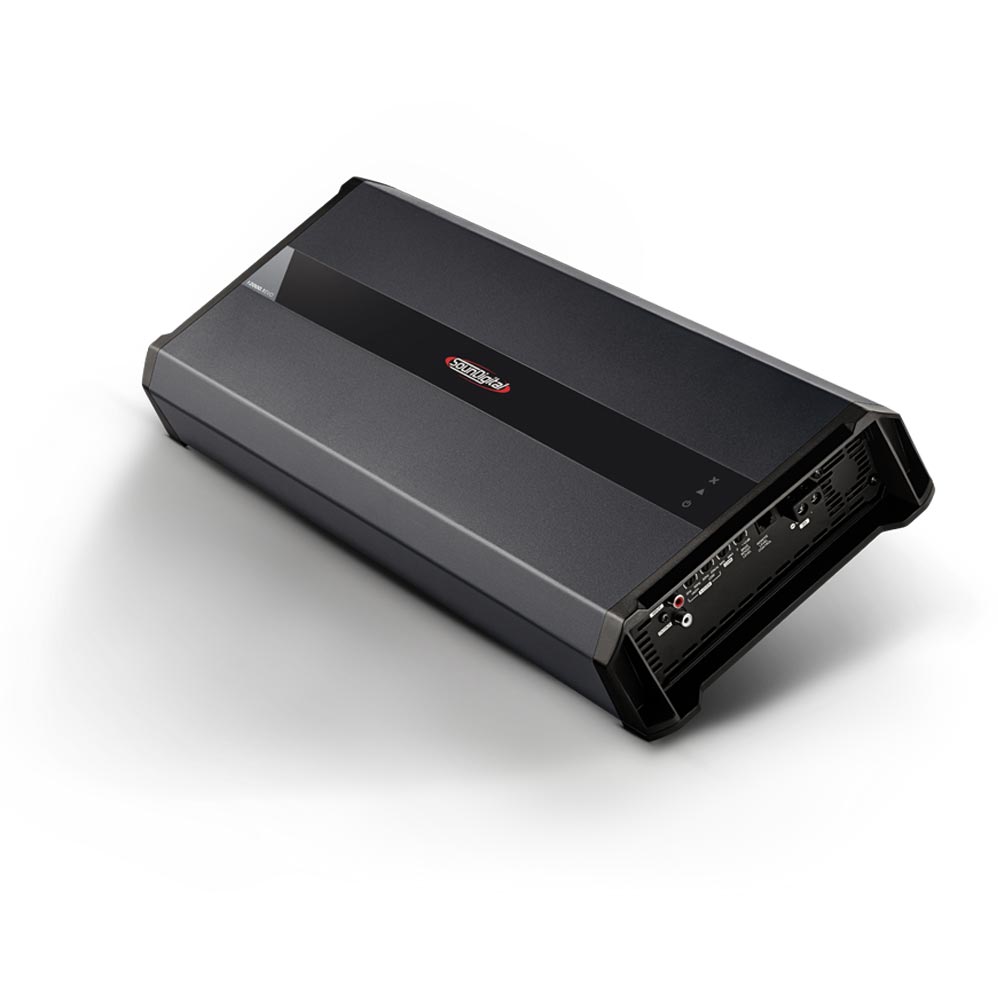

SounDigital 12000.1 EVO 4.0 - 2 Ohm

SounDigital 12000.1 EVO 4.0 — Mono Amplifier

SounDigital Evolution series amplifiers redefine the concept of playing loud. The brand has quickly grown to become one of the largest amplifier manufacturers in Brazil — no wonder, as every amplifier is designed and manufactured in its own factory. The design team includes Pancadão builders who play music extremely loud for extended periods at outdoor events — this pushes the amplifiers to their limits. Compatible with the SD-RLC remote control.

• RMS power @ 2 Ohm: 12,000W (13,380W @ 14.4V)
• RMS power @ 4 Ohm: 7920W (8831W @ 14.4V)
• Min. impedance: 2 Ohm
• Low-pass filter (LPF): 50 Hz – 6 kHz
• High-pass filter (HPF): 5–80 Hz
• Frequency response (-3dB): 5 Hz – 6 kHz
• THD: 0.08%
• Connections: RCA, speaker-level input, RLC connector
• Dimensions: 530 × 225 × 71 mm
• Weight: 7.2 kg

Do not connect the amplifier below the nominal load!
