SounDigital 12000.1 EVO 4.0 Monoblock Amplifier 12000W RMS 1 Ohm Class D

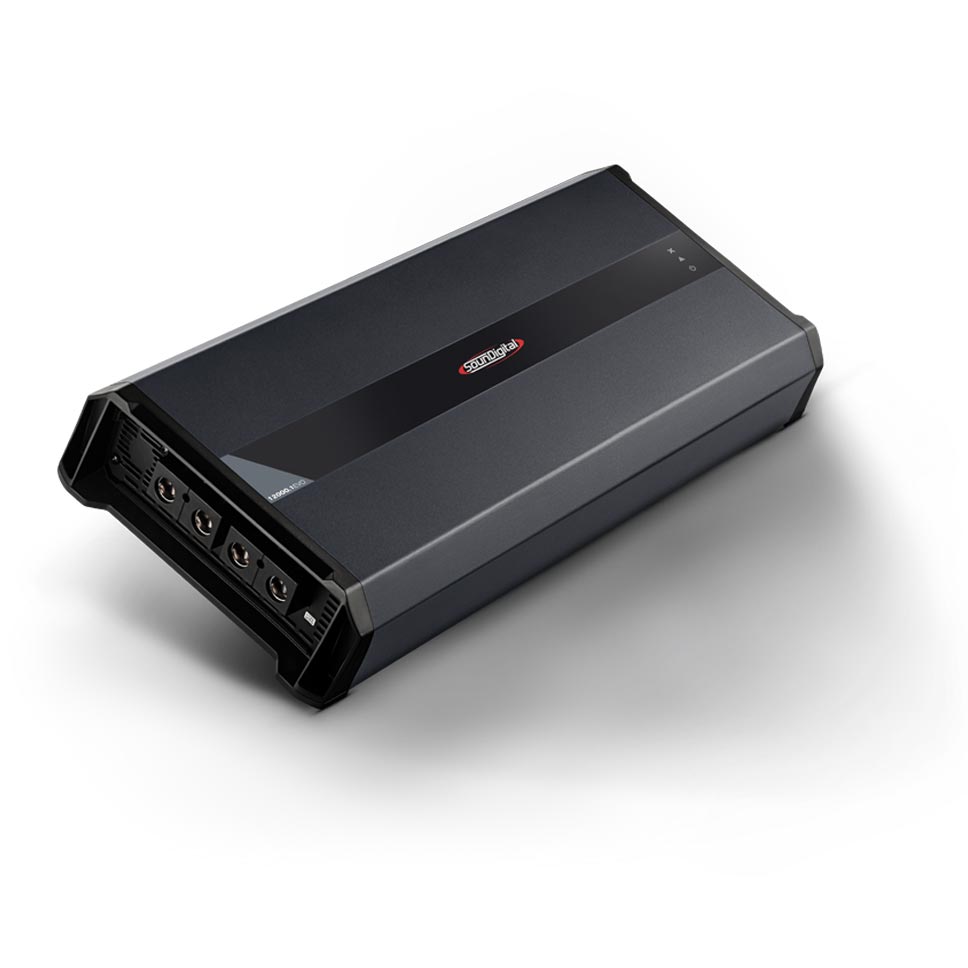

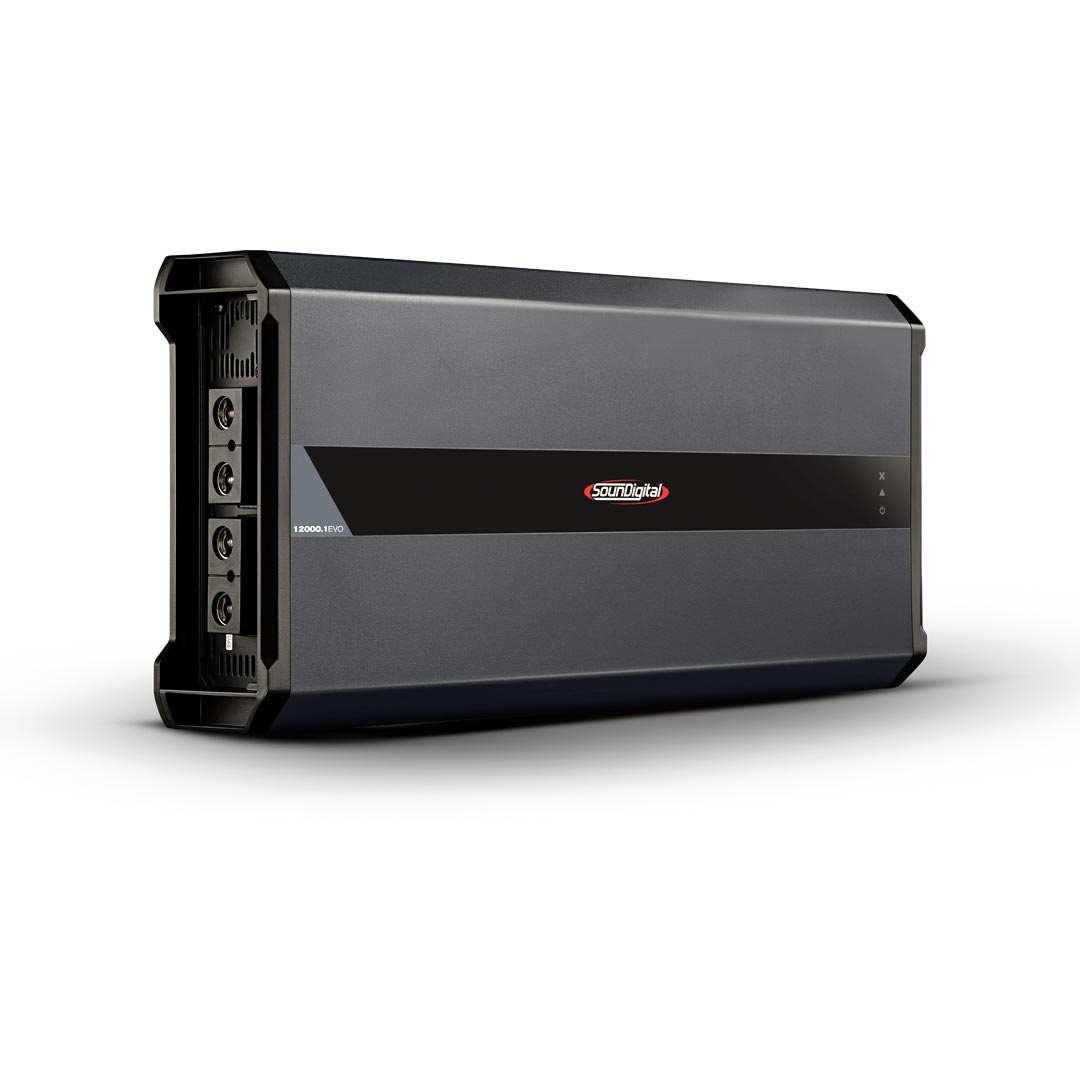

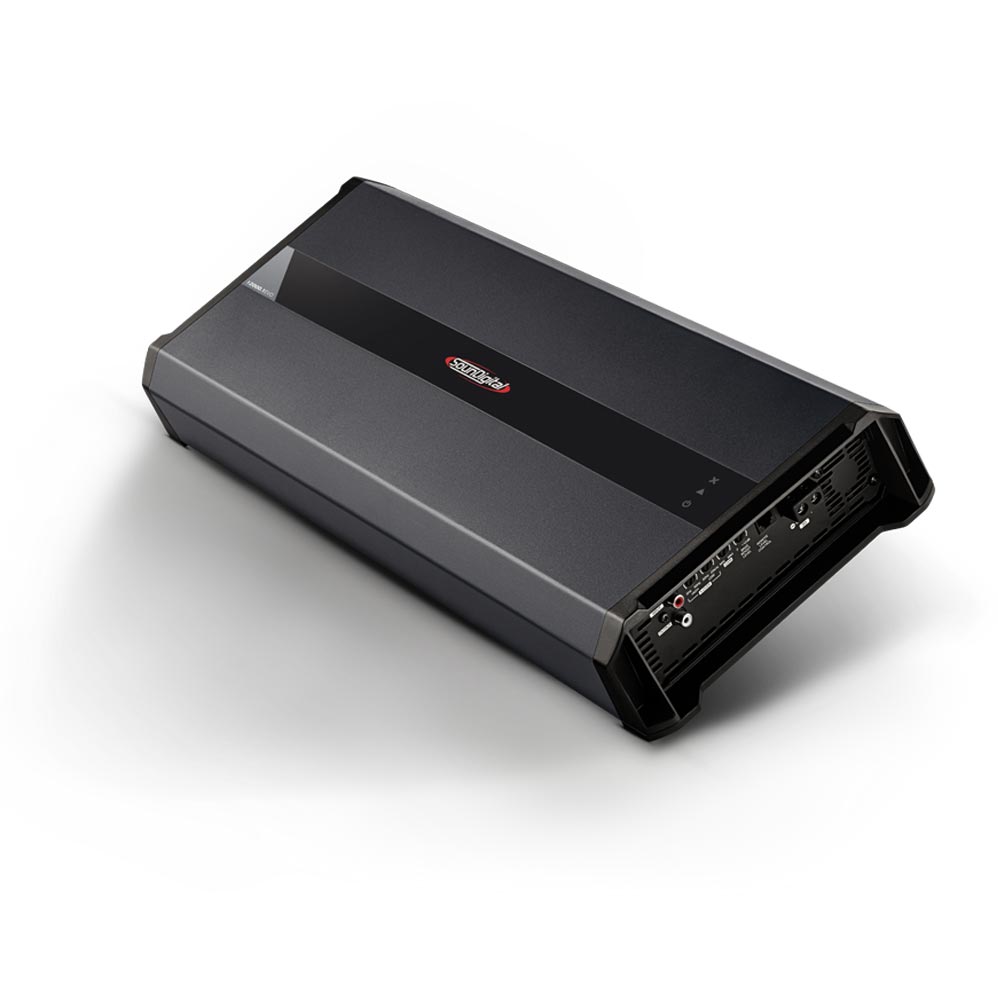

SounDigital 12000.1 EVO 4.0 — Mono Amplifier

SounDigital Evolution series amplifiers redefine the concept of playing loud. The brand has quickly grown to become one of the largest amplifier manufacturers in Brazil — and no wonder, as every amplifier is designed and manufactured in their own factory. The design team includes "Pancadão" builders who play music very loudly for long periods at outdoor events — pushing amplifiers to their limits. Compatible with the SD-RLC remote control.

• RMS Power @ 1 Ohm: 12,000W (13,380W @ 14.4V)
• RMS Power @ 2 Ohms: 7920W (8831W @ 14.4V)
• RMS Power @ 4 Ohms: 5227W
• Min. Impedance: 1 Ohm
• Low-Pass Filter (LPF): 50 Hz – 6 kHz
• High-Pass Filter (HPF): 5–80 Hz
• Frequency Response (-3dB): 5 Hz – 6 kHz
• THD: 0.08%
• Connections: RCA, speaker-level input, RLC connector
• Dimensions: 530 × 225 × 71 mm
• Weight: 7.23 kg

Do not connect the amplifier below the rated load!
