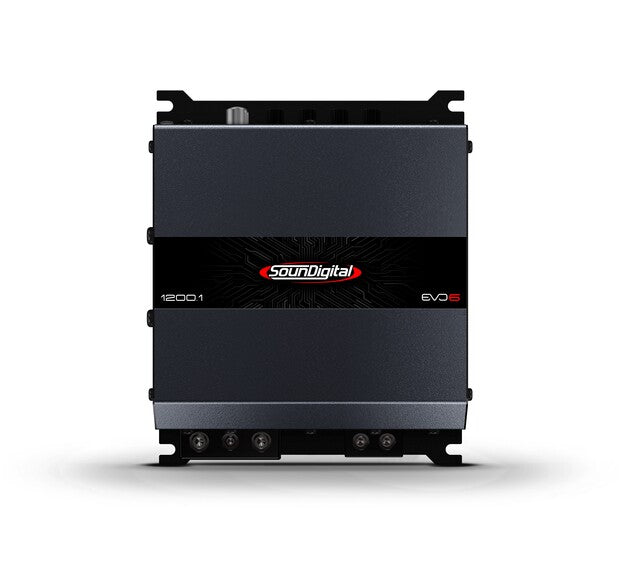

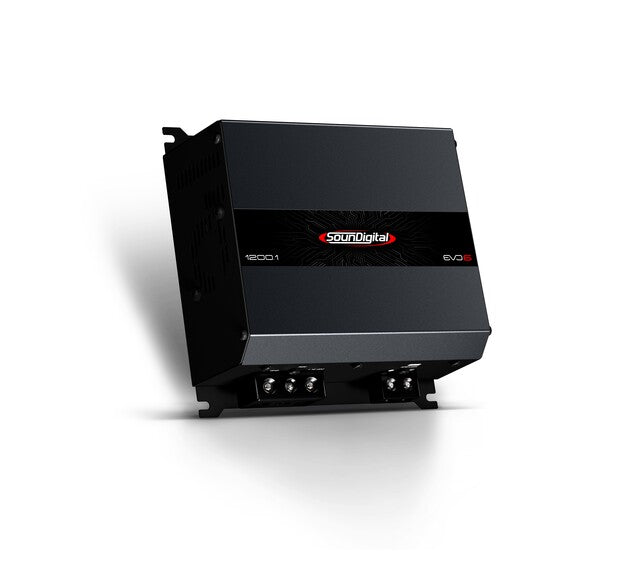

SounDigital 1200.1 EVO6 — Monoblock Amplifier

The SounDigital 1200.1 EVO6 takes the power/price/size ratio to a new level. This compact amplifier (14.7 × 12.9 × 6.6 cm) delivers 1200W RMS @ 2 Ohm. The operating voltage can drop as low as 9 volts. All SounDigital amplifiers are designed and manufactured in their own production facility in Brazil.

• Power RMS @ 2 Ohm: 1200W
• Power RMS @ 4 Ohm: 800W
• Min. impedance: 2 Ohm
• Damping factor: >2000
• Operating voltage: 9–16V
• Current consumption @ 2 Ohm (music / max): 52 / 105 A
• Recommended fuse: 60 A
• Recommended battery: 60 Ah
• Efficiency @ 2 Ohm: 91%
• Bass boost: 0–12 dB @ 50 Hz
• Low-pass filter (LPF, 12dB/oct): 80 Hz – 20 kHz
• Subsonic filter: 5–80 Hz
• Frequency response (-3dB): 5 Hz – 20 kHz
• S/N ratio: 93.7 dB
• Input sensitivity: 0.2–2V
• Power cable: 10 mm² (5 AWG)
• Connections: RCA, high-level input
• Dimensions: 14.7 × 12.9 × 6.6 cm
• Weight: 1.20 kg

Do not connect the amplifier below the rated load!
