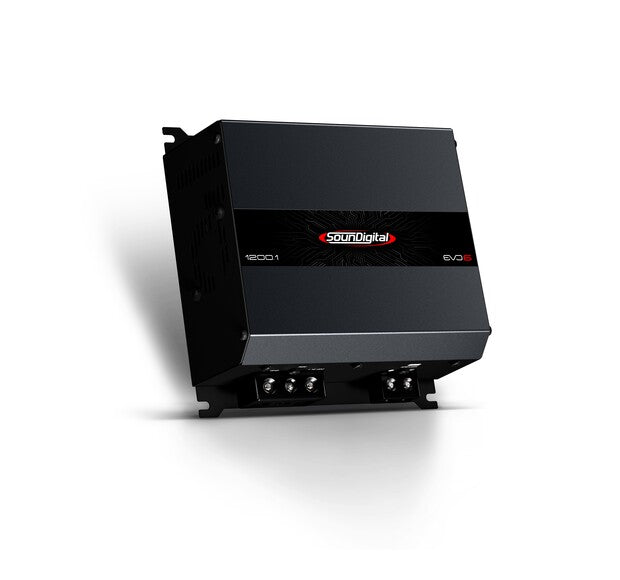

SounDigital 1200.1 EVO6 — Monoblock Amplifier

The SounDigital 1200.1 EVO6 takes the power/price/size ratio to a new level. The compact enclosure (14.7 × 12.9 × 6.6 cm) delivers 1200W RMS @ 1 Ohm. The operating voltage can drop as low as 9 volts. All SounDigital amplifiers are designed and manufactured in their own production facility in Brazil.

• Power RMS @ 1 Ohm: 1200W
• Power RMS @ 2 Ohm: 800W
• Power RMS @ 4 Ohm: 532W
• Min. Impedance: 1 Ohm
• Damping Factor: >2000
• Operating Voltage: 9–16V
• Current Consumption @ 1 Ohm (music / max): 54 / 108 A
• Current Consumption @ 2 Ohm (music / max): 52 / 105 A
• Recommended Fuse: 60 A
• Recommended Battery: 60 Ah
• Efficiency @ 1 Ohm: 88% / @ 2 Ohm: 91%
• Bass Boost: 0–12 dB @ 50 Hz
• Low Pass Filter (LPF, 12dB/oct): 80 Hz – 20 kHz
• Subsonic Filter: 5–80 Hz
• Frequency Response (-3dB): 5 Hz – 20 kHz
• S/N Ratio: 93.7 dB
• Input Sensitivity: 0.2–2V
• Power Cable: 10 mm² (5 AWG)
• Connections: RCA, Speaker Level Input
• Dimensions: 14.7 × 12.9 × 6.6 cm
• Weight: 1.20 kg

Do not connect the amplifier below its rated load!
