SonoVision SV-CAMMB5

The SV-CAMMB5 reversing camera with brake light is designed for Mercedes Sprinter models from 2006 onwards and VW Crafter models from 2006–2017.

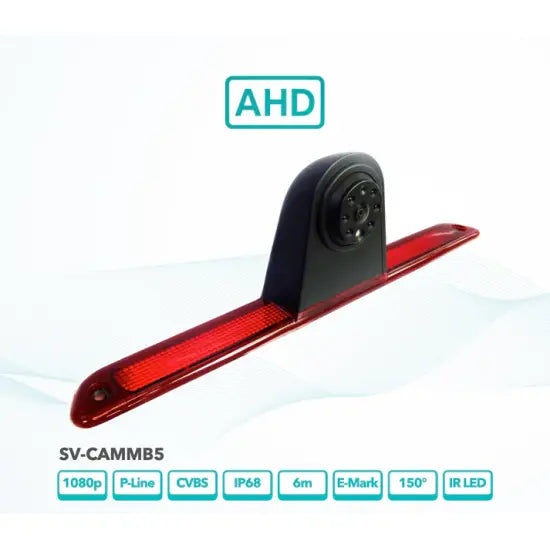

The camera unit replaces the vehicle's original third brake light. The SV-CAMMB5 combines a camera and a brake light, featuring a 1/4" CMOS2399 CMOS/AHD sensor, a 150-degree viewing angle, and an IP68 weather resistance rating. This means the device can withstand almost all conditions, enhancing the safety of the vehicle's rear while maintaining its original appearance.

• CVBS / AHD switchable
• Camera position adjustable
• Image sensor: 1/3" CMOS2399 CMOS/AHD
• TV system: NTSC
• Resolution: 1000 TV lines
• Effective pixels: 1920 (H) x 1080 (V)
• Viewing angle: 150°
• Waterproof rating: IP68
• Minimum illumination: 0.1 lux
• Video output: 1.0 Vp-p, 75 ohm
• Power supply: DC 12 V
• Operating temperature: -20 ℃ – 70 ℃
• Storage temperature: -30 ℃ – 70 ℃
• Certifications: CE / E-mark / FCC / RoHS / UKCA

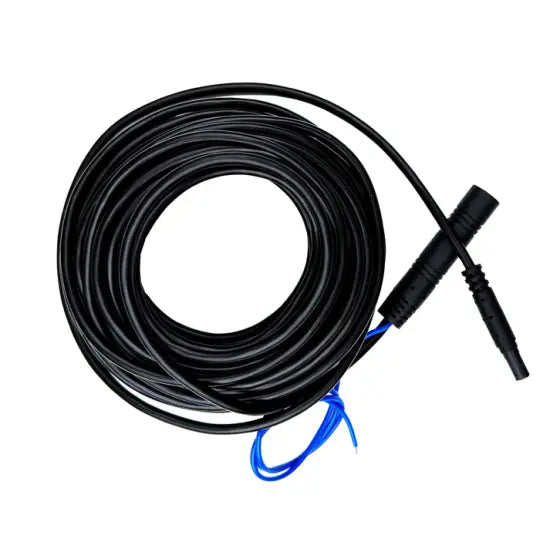

• Includes 10-meter extension cable
