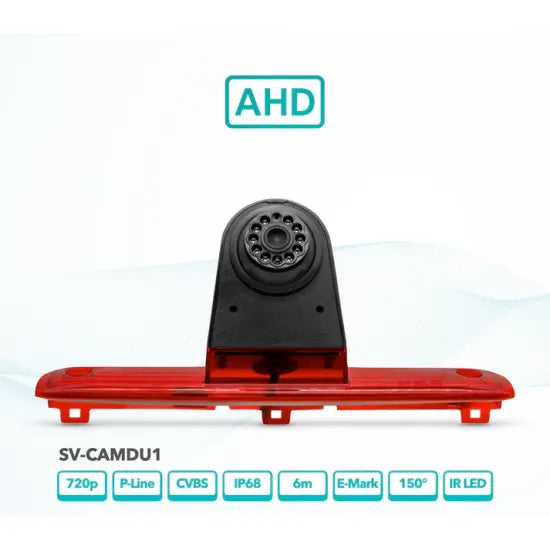

The SV-CAMDU1 is a reversing camera integrated into the brake light, featuring infrared LEDs to enhance night vision capabilities.
It is designed for Fiat Ducato, Peugeot Boxer, and Citroën Jumper vehicles from 2006 onwards. The camera unit replaces the vehicle's original third brake light. The SV-CAMDU1 camera and brake light combination features a 1/4” CMOS1336 CMOS/AHD sensor, a 150-degree viewing angle, and IP68-rated weather resistance, meaning it can withstand almost anything the environment can throw at it. The device enhances visual safety at the rear of the vehicle while maintaining its original appearance.
-
CVBS / AHD switchable
-
Camera position adjustable
-
Image sensor: 1/4” CMOS1336 CMOS/AHD (720p)
-
TV system: NTSC
-
Resolution: 1000 TV lines
-
Effective pixels: 1920 (H) × 1080 (V)
-
Viewing angle: 150°
-
Waterproof rating: IP68
-
Minimum illumination: 0.1 lux
-
Video output: 1.0 Vp-p, 75 ohm
-
Operating voltage: DC 12 V
-
Operating temperature: −20 °C – +70 °C
-
Storage temperature: −30 °C – +70 °C
-
Certifications: CE / E-mark / FCC / RoHS / UKCA
-

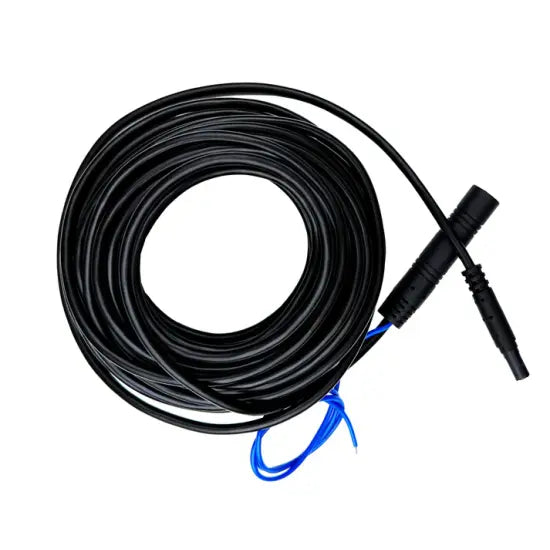

Includes 10-meter extension cable
-
Switchable parking lines
