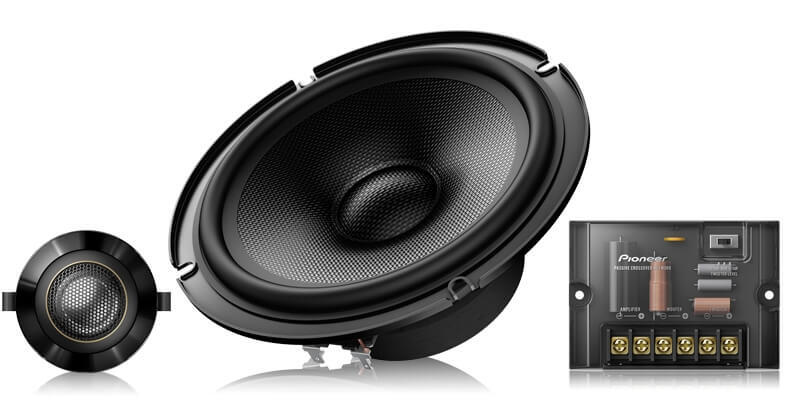

Pioneer TS-Z65CH

- 6.5″
- 2-way separate set
- Hi-Res Audio speakers
- 330W
- 4 Ohms

Full range Z-Separate series

PLAYBACK WITH EXTREME ACCURACY

6.5” Separate set, 2-way speaker system with new Twaron® cone, tweeter with metallic 29 mm aluminum alloy housing, new Vertex Drive system and oversized magnet. For extremely accurate reproduction.

The Z speaker series is based on highly advanced technology developed by Pioneer, using carefully selected materials and components that draw on decades of automotive speaker design experience and testing.

Thanks to the OPEN & SMOOTH™ sound concept, Z Series car speakers offer excellent response and an extended frequency range, specifically designed to deliver dynamic and precise sound quality in the car. The result is a purity of sound that guarantees unprecedented sonic artistry.

• Hi-Res Audio speakers. The quality of music recordings available to listeners has evolved. Hi-Res Audio recordings contain significantly more information than a standard CD recording and require a speaker capable of smoothly reproducing frequencies of 40 kHz or higher. The TS-Z65CH speakers are designed to deliver clearer, crisper and more complex audio reproduction - reproducing music with incredible performance!

29mm aluminum alloy balanced aluminum dome tweeter. The aluminum alloy housing of the Z tweeter connector allows the tweeter to remain flat and linear in the ultrasonic path. The unique diaphragm shape, developed by HSDOM (Harmonised Synthetic Diaphragm Optimum Method) computer analysis, eliminates differential vibration generated by the diaphragm and improves high-frequency dispersion.

Pioneer's Vertex Drive system improves the mechanical connection between the voice coil and tweeter diaphragm, reducing distortion and ripple caused by low damping and increasing power handling.

Features:
Type: 2-way component speaker system for car (separate series speakers)
Hi-Res Audio certified car speakers
Sound pressure level (sensitivity): 85 dB (+ - 1.5 dB)
Frequency range: 32 Hz - 96 kHz
Continuous power handling (RMS): 110 watts
Maximum peak frame: 330 watts
Nominal impedance: 4 ohms

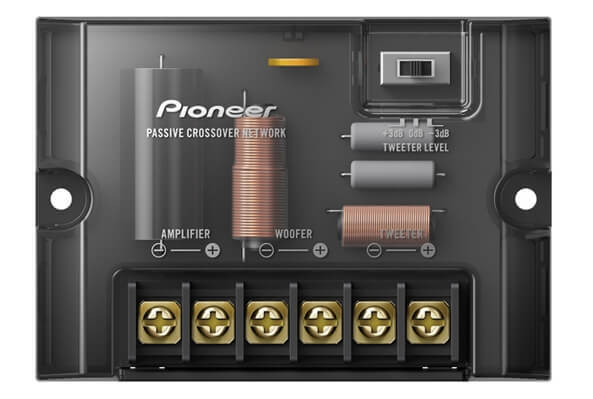

Crossover frequency: 1900 Hz
Installation depth: 6.6 cm

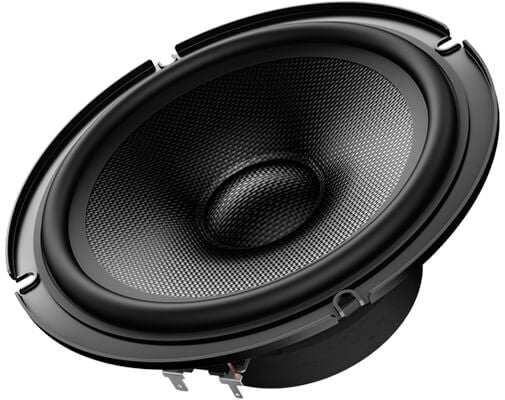

Subwoofers:
Diameter/size: 6.5”
Woofer material: Twaron® Aramid fiber cone + Double-layer reinforced cellulose fiber
Surround material: Butyl rubber
Cone reinforcement material: Burnished steel
Center material: Polypropylene
Magnet material: Ferrite
Magnet weight 0.43 kg

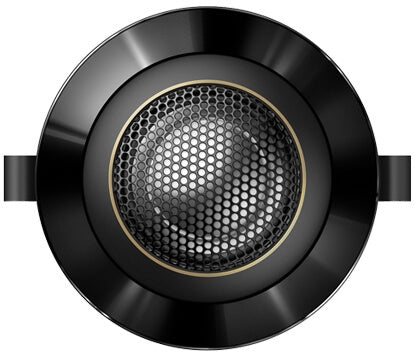

Tweeters:
Type: Aluminum balanced tweeter
Treble level adjustment -3dB / 0dB / +3dB
Material: Aluminum
Diameter: 29 mm
Magnet material: Neodymium
Magnet weight: 6.4 g
Flip type: Yes
