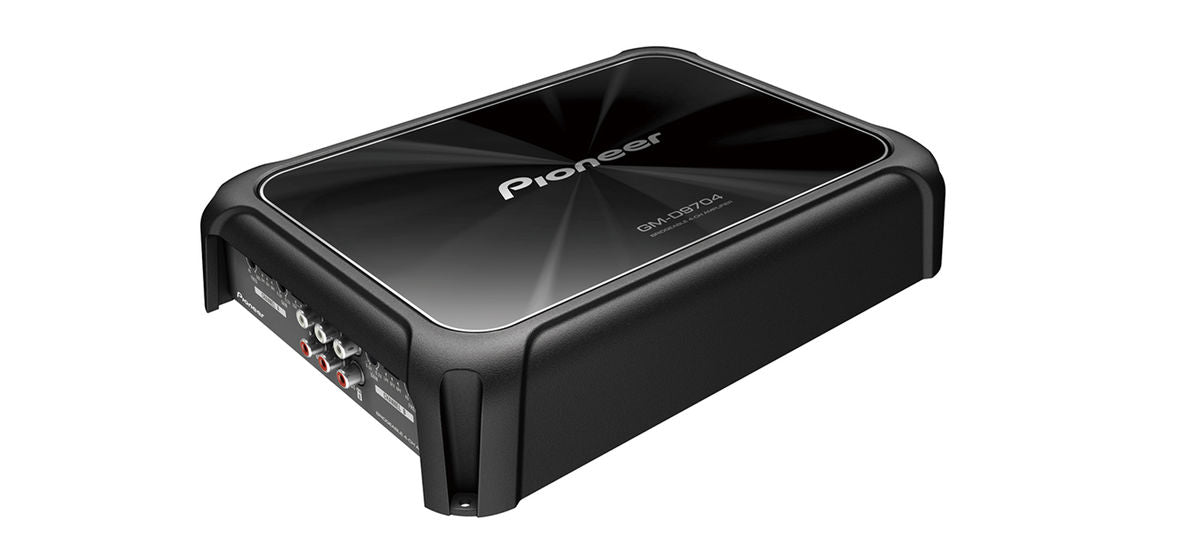

Pioneer GM-D9704
COMPACT POWER PACKAGE! Pioneer's Class-D amplifiers may be just that, _x000D_
what you've been looking for. They combine compact installation options with a stylish appearance._x000D_
_x000D_
Speaker line input sensor - Connect your OEM system without additional wiring harnesses._x000D_
_x000D_
Adjustable HPF/LPF -Adjust the high and low pass filters for the best sound._x000D_
_x000D_
Class D - Powerful and premium sound for you to enjoy._x000D_
_x000D_
Protection Control System (PCS) - Pioneer's PCS constantly monitors the amplifier's voltage, power consumption and temperature to ensure_x000D_
amplifier operation during long listening periods or if the amplifier is exposed to high temperatures in a car.
Specifications:
Adjustable LPFYes
D-classYes
Channel(s)4 / 2 / 1
RCA terminalsYes
Speaker TerminalsBlock
LPFYes
HPFYes
Maximum power4 x 260W (4Ω)
4 x 400W (2Ω)
1600W Total
Continuous power output4 x 130W RMS (4Ω)
4 x 200W RMS (2Ω)
4 x 130W RMS (1Ω)
2 x 400W RMS (4Ω bridged)
2 x 260W RMS (2Ω bridged)
Frequency response 10 Hz to 50 Hz
Input level controlRCA (0.2V - 6.5V)
SP (0.8V - 16V)
Distortion 0.05%
S/N ratio 95 dB
Chassis size (W x H x D) 252 x 60 x 215 mm
Crossover Frequency40 - 500Hz (-12 dB/oct) Hz.
