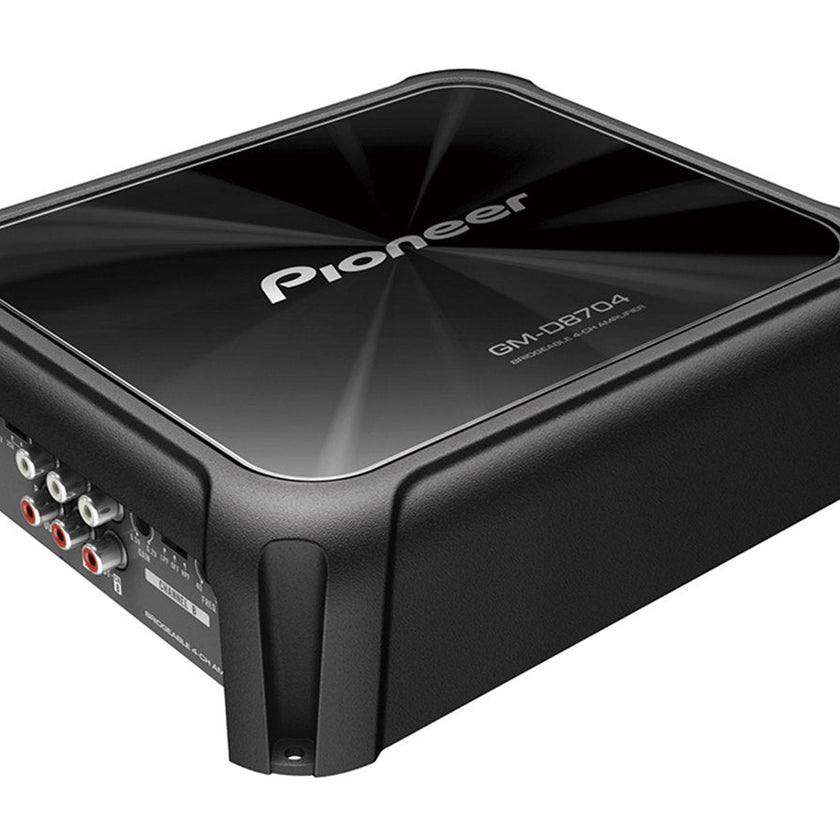

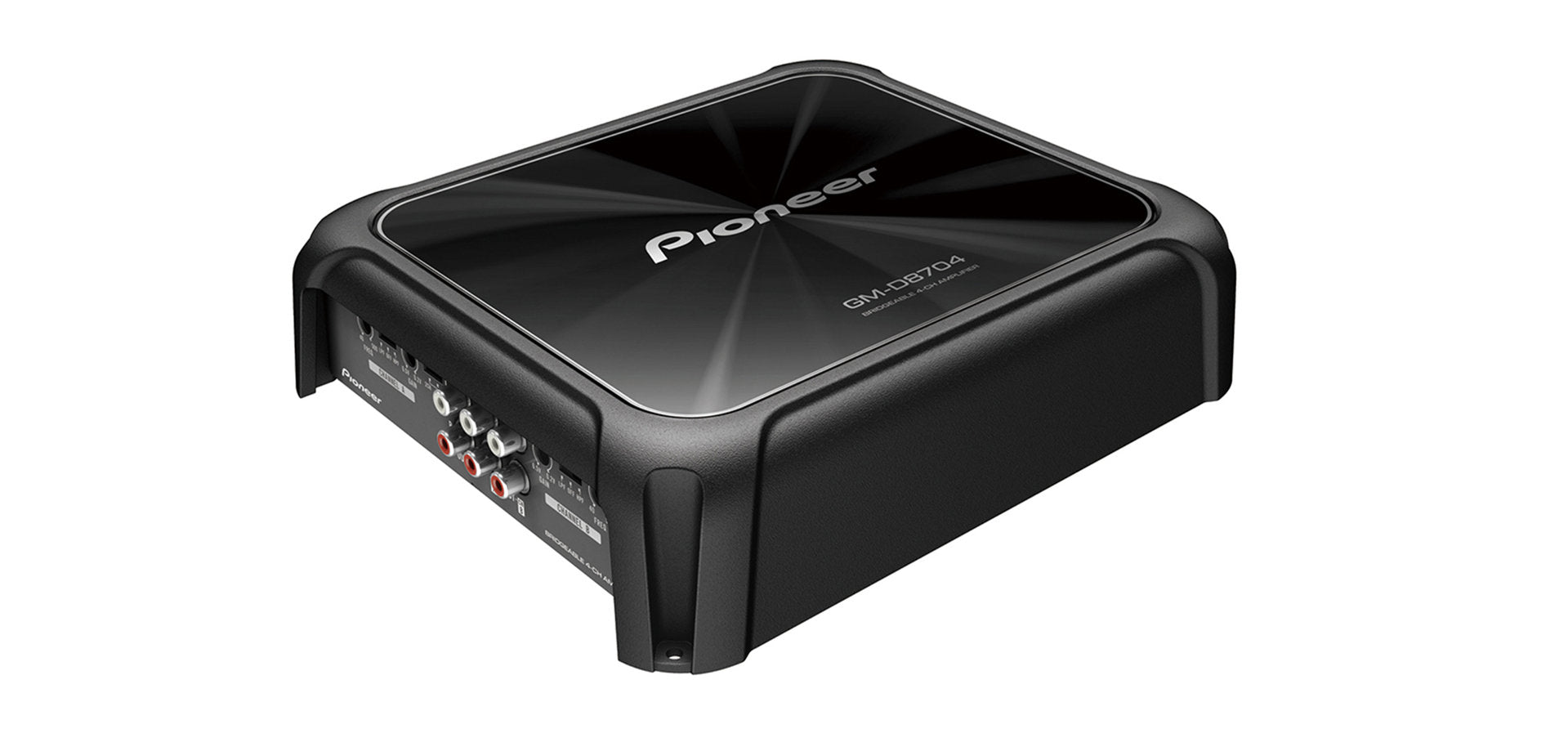

Pioneer GM-D8704
A COMPACT POWER PACKAGE! Pioneer's Class-D amplifiers are perhaps just that,
what you've been looking for. They combine compact installation options with a stylish appearance.
Speaker line input sensor - Connect your OEM system without additional wiring harnesses.
Adjustable HPF/LPF - Adjust the high and low pass filters for the best sound.
Class D - Powerful and premium sound for you to enjoy.
Protection Control System (PCS) - Pioneer's PCS constantly monitors the amplifier's voltage, power consumption and temperature to ensure
amplifier operation during long listening periods or if the amplifier is exposed to high temperatures in a car.
Specifications:
Specifications:
Adjustable LPF
D-class
Channel(s): 4 / 2 / 1
RCA terminals: Yes
Speaker Terminals: Block
LPF: Yes
HPF: Yes
Maximum power:
4 x 200W (4Ω)
4 x 300W (2Ω)
1200W Total
Continuous power output:
4 x 100W RMS (4Ω)
4 x 150W RMS (2Ω)
4 x 125W RMS (1Ω)
2 x 300W RMS (4Ω bridged)
Frequency response: 10 Hz to 50 Hz
Input level control:
RCA (0.2V - 6.5V)
SP (0.8V - 16V)
Distortion: 0.05%
S/N ratio: 95 dB
Chassis size (W x H x D): 252 x 60 x 215 mm
Crossover Frequency: 40 - 500Hz (-12 dB/oct) Hz.
