Phoenix Gold ZXM400.4iso

Installing an amplifier has never been easier.

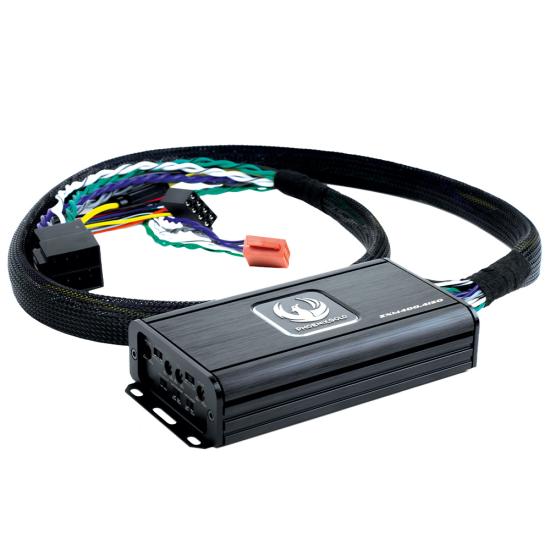

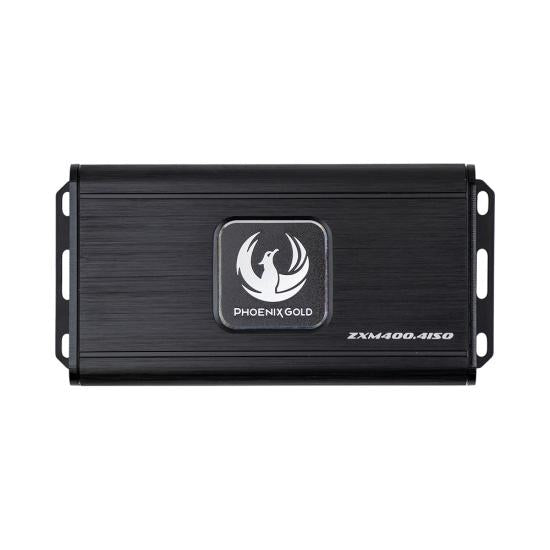

The Phoenix Gold ZXM400.4ISO is a true Plug & Play amplifier that delivers more power and better sound without cutting into your car's wiring or complicated DSP amplifier adjustments. The amplifier is specifically designed to connect to your car's OEM player.

In addition to the amplifier, all you need is a car-specific T-harness to connect the amplifier to your car's wiring harness. Car-specific T-harnesses are available for over 2000 different car models !

Features:

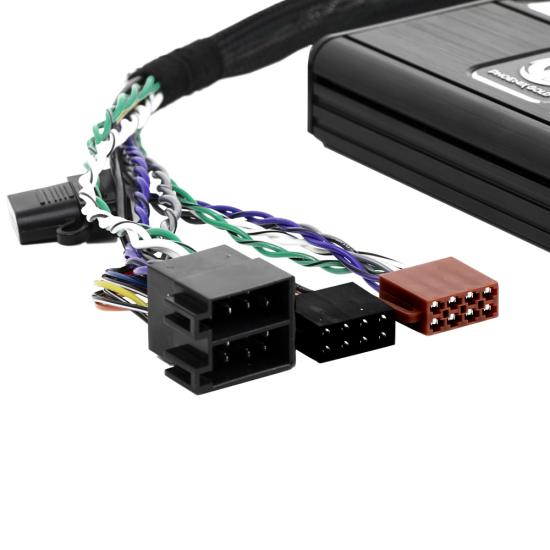

• Includes 1.2 m T-harness with ISO connectors

• Class-D technology

• Automatic start from high-level output

• Fully adjustable high-pass and low-pass filters

• Excellent signal-to-noise ratio and FM interference suppression

• Short-circuit, thermal and voltage protections

• LED status indicator

• Very small size for easy installation

• 100% Plug & Play – Compatible with ZDT wiring harness range

• No modifications to the car required – No cutting of wires, no coding

• Compact and efficient – ​​Small size, big performance

• Easy installation – Quick and clean upgrade to factory system

• OEM impedance simulation (OIS) allows the amplifier to be installed even in cars whose original player monitors the load of the speaker outputs.

Specifications

• Power (RMS):
  • 125W × 4 @ 2Ω
  • 60W × 4 @ 4Ω
  • 250 W × 2 @ 4 Ω (bridged)
• Frequency response: 20 Hz – 20 kHz
• Signal-to-noise ratio: > 90 dB
• THD: < 1%
• High/Low Pass Filters: 40–400 Hz / 12 dB/oct
• Input sensitivity: 0.45–20 V
• Operating voltage: 7–16.5 V
• Dimensions: 165 × 83.1 × 34.8 mm (with feet)
• Dimensions: 149 × 83.1 × 34.8 mm (without feet)

Car model-specific T-harnesses:

Phoenix Gold's car-specific Plug & Play wiring harnesses cover over 2,000 car models!

(If your car has ISO connectors, you don't even need a T-harness, the ZXM400.4ISO is installed with the ISO harness that comes with the amplifier).

What is the dummy load of an amplifier?

In some car models, the factory-installed player in the car mutes when an aftermarket amplifier is added to the speaker line and the player detects that there is no longer a speaker (resistor) in the speaker line. The ZXM400.4ISO solves the problem and allows you to use a six-ohm dummy load, which prevents the player from muting.
