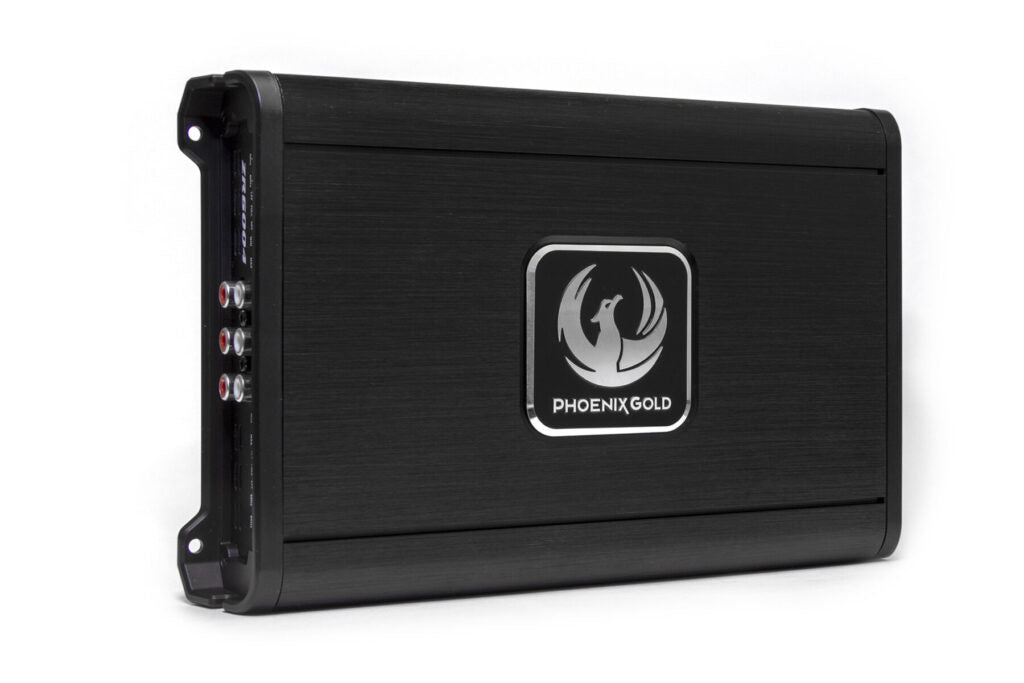

The Phoenix Gold ZR6004 is a four-channel Class D amplifier that delivers 4 x 100W into a four-ohm load and 4 x 150W into two ohms!
Real power!
The ZR6004 is a very powerful, yet very compact four-channel amplifier (only 24cm long, thanks to its Class D design). Inside the stylish black casing is Phoenix Gold's signature gold design circuit board, complete with high-quality components.
Automatic start
The signal can be brought to the amplifier traditionally using RCA cables, but if the player does not have RCA outputs (e.g. a factory-installed player in a car), the amplifier also understands a speaker-level signal (requires an X12Line adapter). With a speaker-level signal, the amplifier does not require separate excitation, but turns on when it receives a signal.
Versatile adjustments

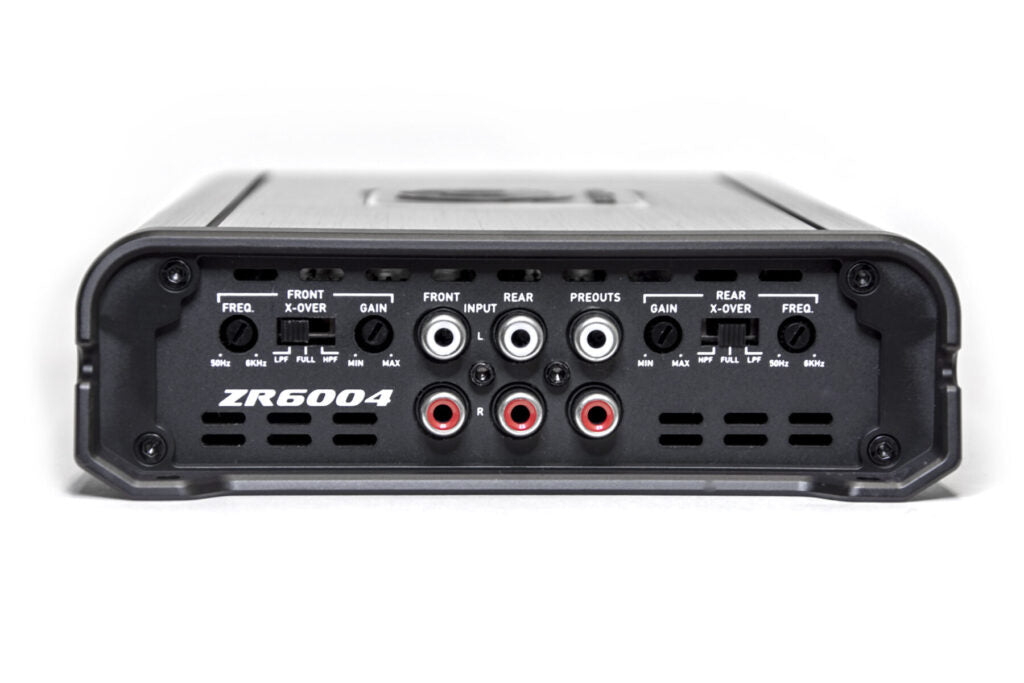

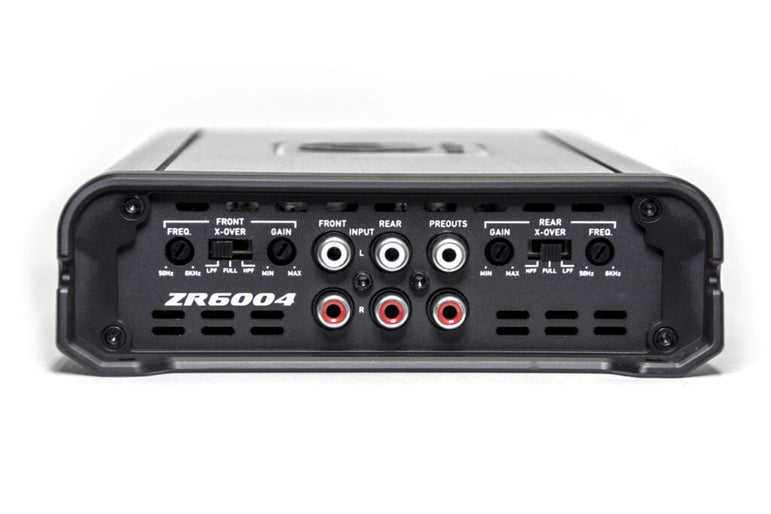

The ZT6004 includes a wide range of adjustment options. Both channel pairs have their own input sensitivity adjustments and their own independent crossover filters.
Channels 1 / 2: Off/Low Pass/High Pass
Channels 3 / 4: Off/Low Pass/High Pass
The low/high pass adjustment range is 50 – 6000 hertz and the crossover slope is 12dB/octave.
Specifications
- 4 x 100W (4ohm)
- 4 x 150W (2ohm)
- 2 x 300W (bridged 4ohm)
- RCA and speaker level input: Yes
- Autostart at speaker level: Yes
- Crossover filters ch. 1 & 2: Off / Lowpass / Highpass
- Crossover filters ch. 3 & 4: Off / Lowpass / Highpass
- Crossover filter adjustment range: 50 – 6000Hz
- Crossover slope: 12db/oct.
- Signal-to-noise ratio: >96dB
- Frequency range: 20 – 20,000Hz
- Dimensions: 234 x 160 x 48mm
PS. The same model series also includes the highly efficient mono amplifiers ZR10001 (1 x 1000W) and ZR20001 (1 x 2000W)
