The Phoenix Gold ZR20001 is a robust Class D mono amplifier that delivers a whopping 2000W RMS power into a one-ohm load.
Real power!

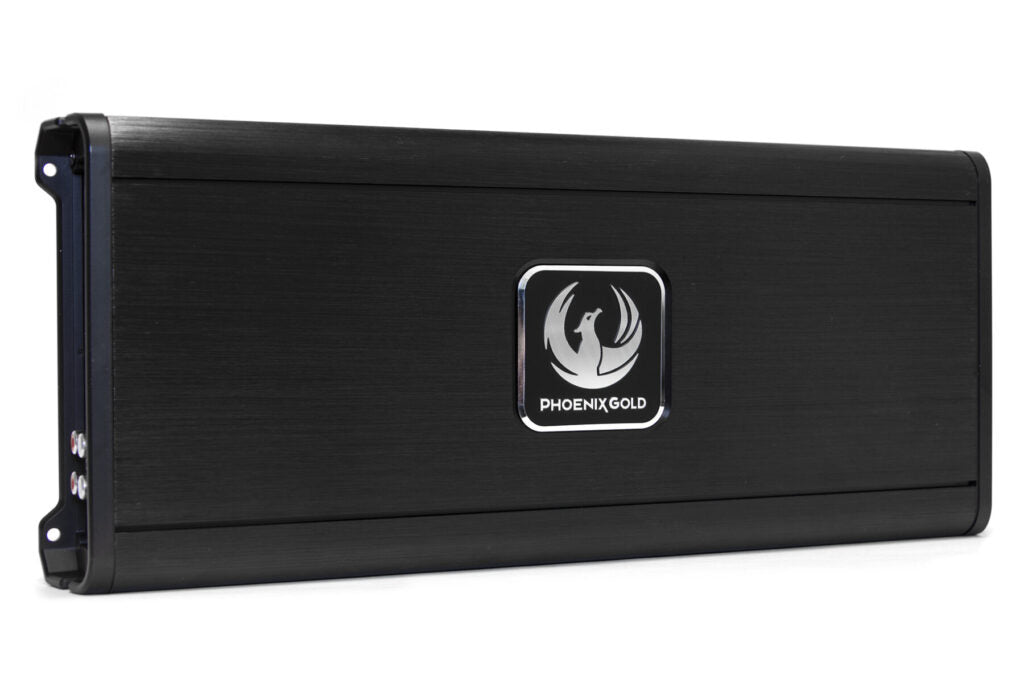

The ZR20001 is a truly powerful Class D mono amplifier, with a stylish black exterior housing Phoenix Gold's "signature gold design" circuit board, complemented by high-quality components.
Automatic start
The signal can be brought to the amplifier traditionally using RCA cables, but if the player does not have RCA outputs (e.g. a factory-installed player in a car), the amplifier also understands a speaker-level signal (requires an X12Line adapter). With a speaker-level signal, the amplifier does not require separate excitation, but turns on when it receives a signal.

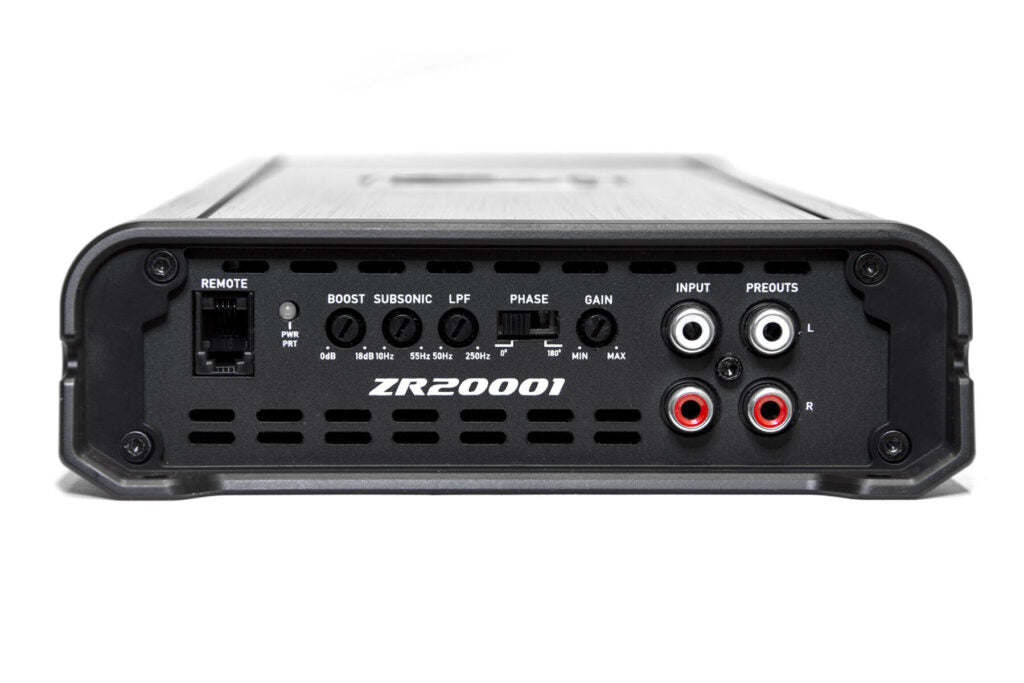

Versatile adjustments
The ZR20001 includes a wide range of adjustment options. The low-pass filter is adjustable in the range of 50 – 250Hz and the Subsonic in the range of 10 – 55Hz. In addition, the amplifier has an adjustable BassBoost 0 – +18dB as well as 0 / 180° phase shift and input sensitivity adjustment.
The amplifier also comes with a wired level control for installation on the dashboard, for example.
Specifications
- 1 x 800W (4 ohms)
- 1 x 1400W (2 ohms)
- 1 x 2000W (1ohm)
- RCA and speaker level input: Yes
- Autostart at speaker level: Yes
- Low-pass filter: 50 – 250Hz (24dB / oct.)
- Subsonic: 10 – 55Hz (12dB / Oct.)
- Bass Boost: 0 – +18dB
- Phase shift: 0 / 180°
- Crossover slope: 12db/oct.
- Signal-to-noise ratio: >96dB
- Frequency range: 20 – 400Hz
- Dimensions: 383 x 160 x 48mm
PS. In the same model series there is also a smaller mono amplifier ZR10001 (1 x 1000W) and a powerful four-channel ZR6004
