Phoenix Gold ZR12005

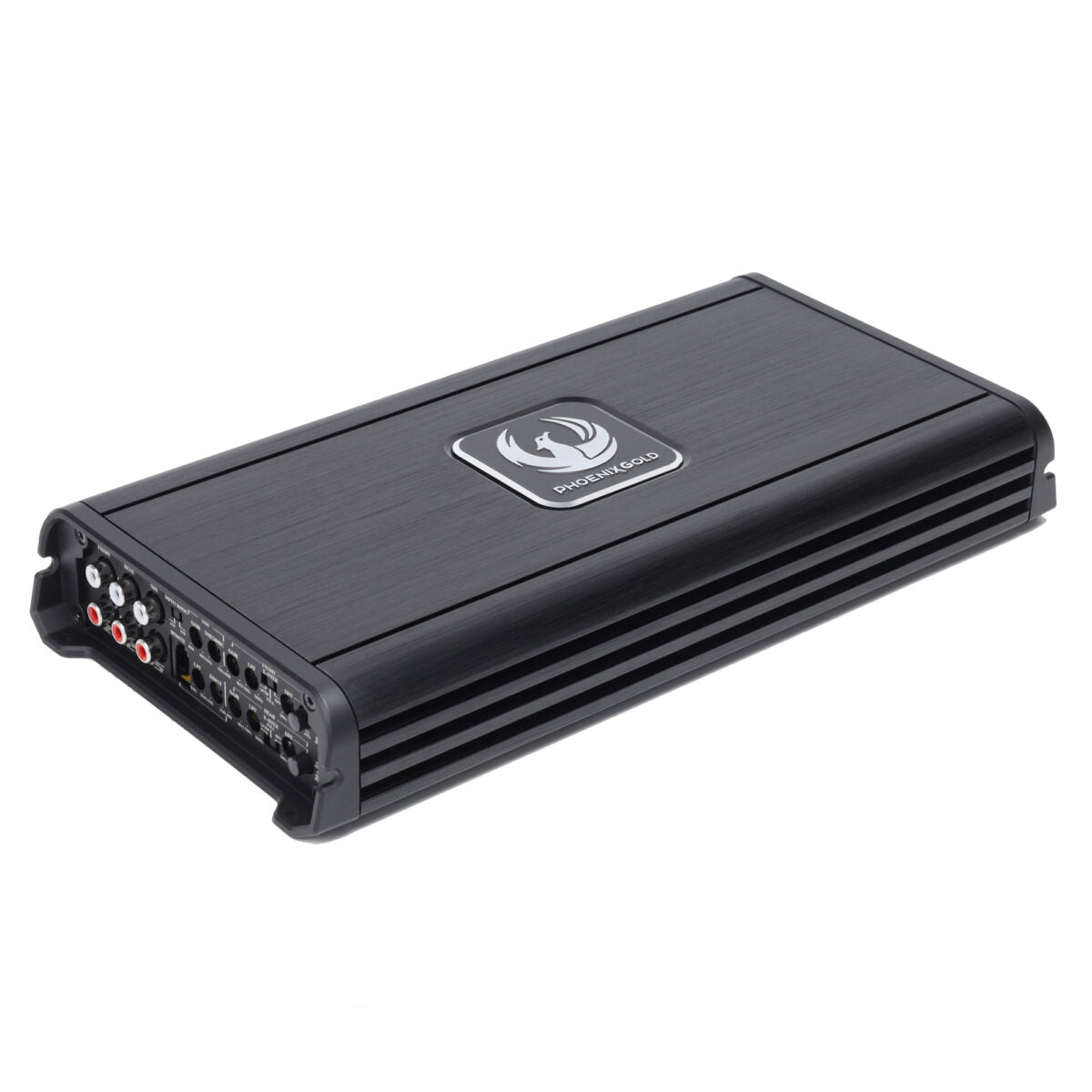

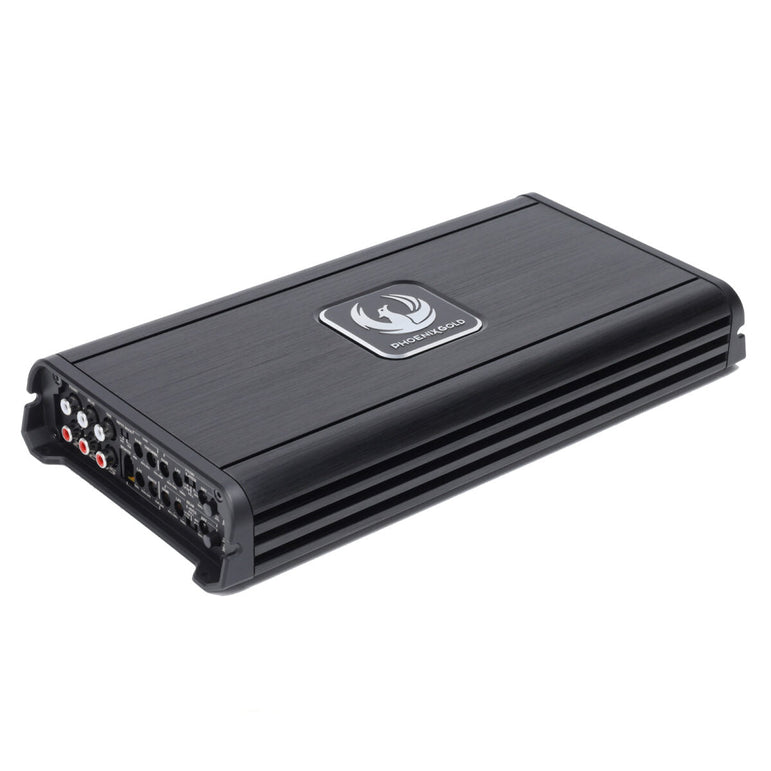

The Phoenix Gold ZR12005 is a robust five-channel Class D amplifier that lets you control your entire system.

Real power for the entire system!

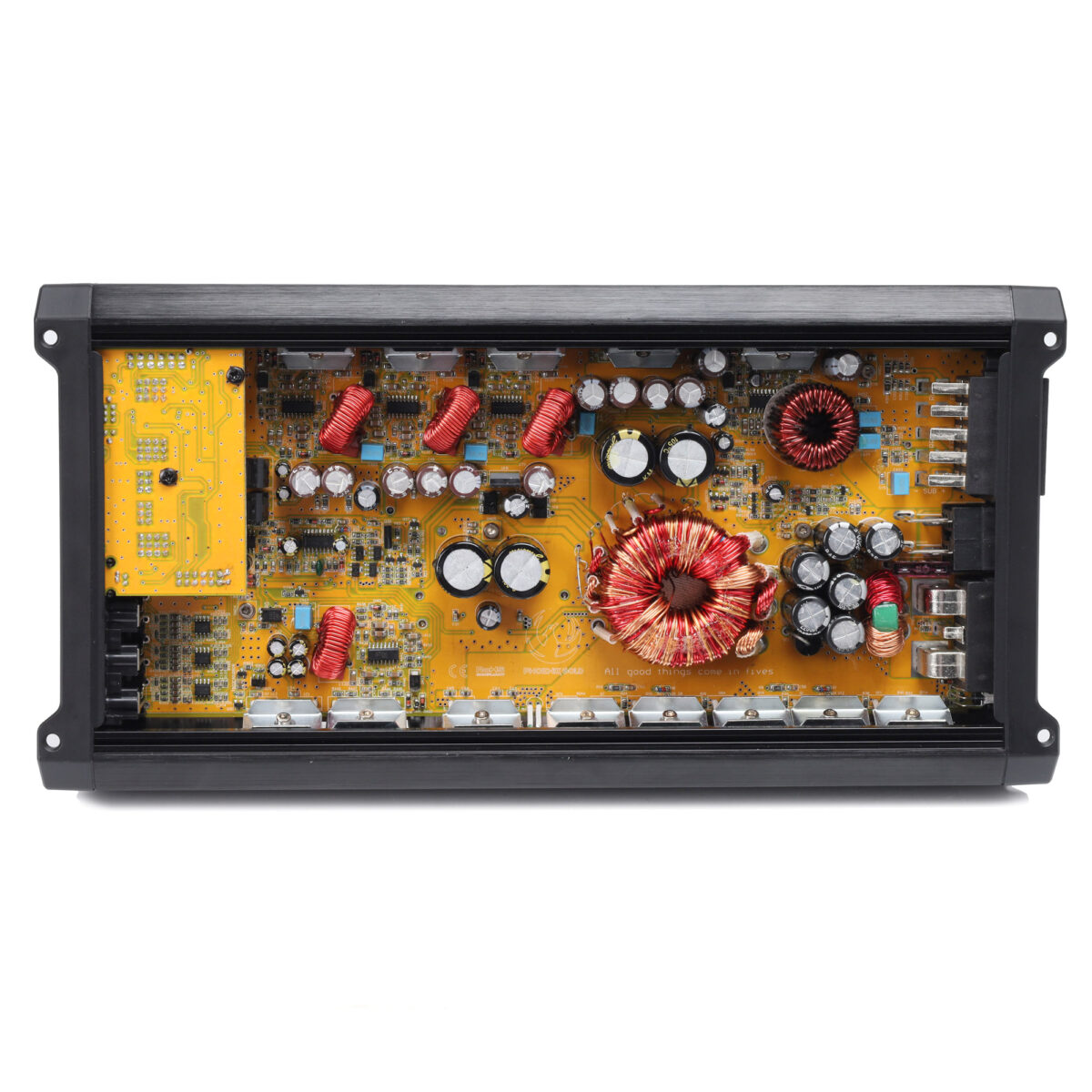

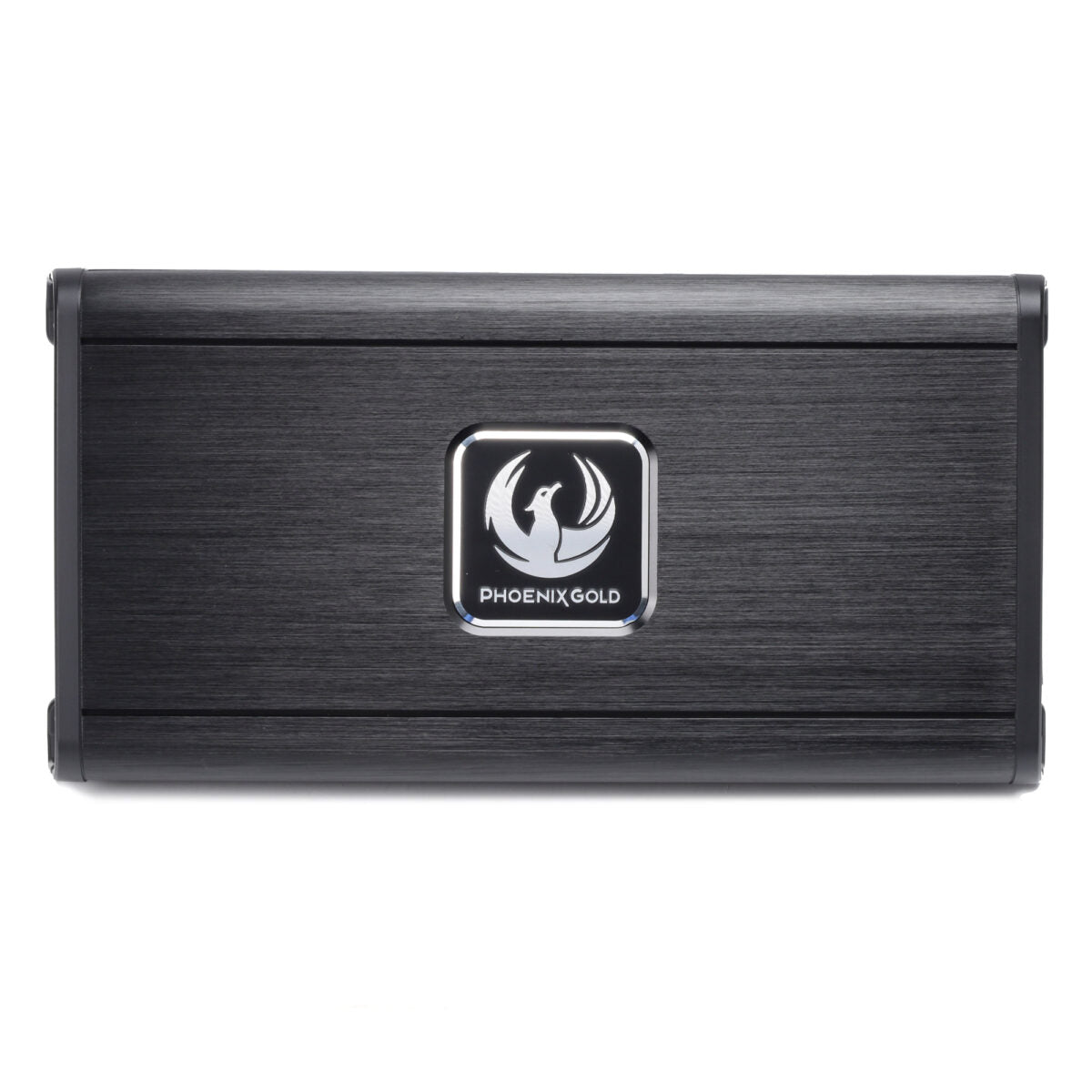

The ZR12005 is a truly powerful Class D amplifier, with a stylish black exterior housing Phoenix Gold's signature gold design circuit board, complete with high-quality components.

Automatic start
The signal can be brought to the amplifier traditionally using RCA cables, but if the player does not have RCA outputs (e.g. a factory-installed player in a car), the amplifier also understands a speaker-level signal (requires an X12Line adapter). With a speaker-level signal, the amplifier does not require separate excitation, but turns on automatically when it receives a signal.

Versatile adjustments

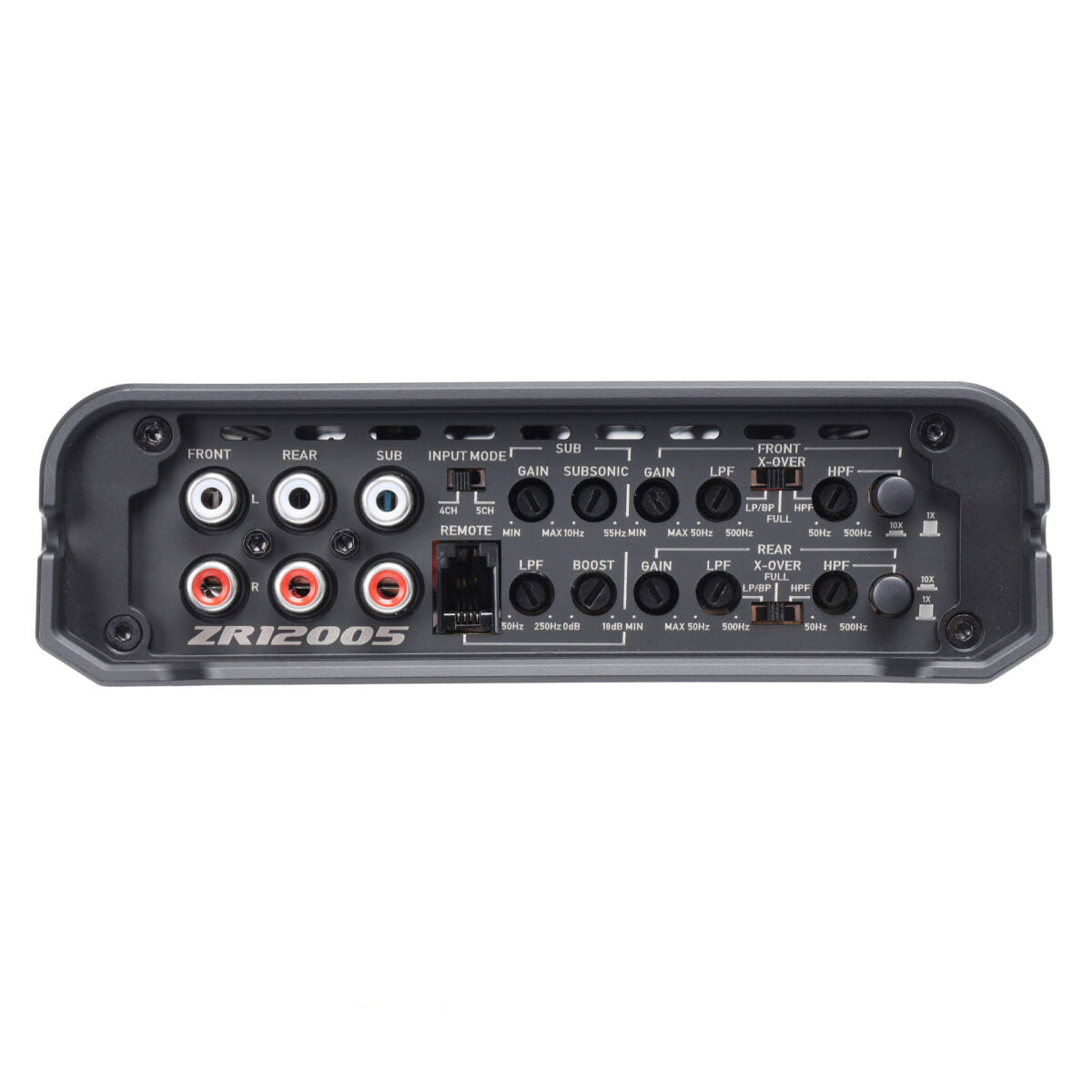

The ZR12005 includes a variety of adjustment options.
The Front and Rear outputs have their own low-pass/high-pass filters, which you can also use as bandpass filters. The sub channel has a low-pass filter, BassBoost, and Subsonic.
There are separate input sensitivities for the front, rear and sub outputs.

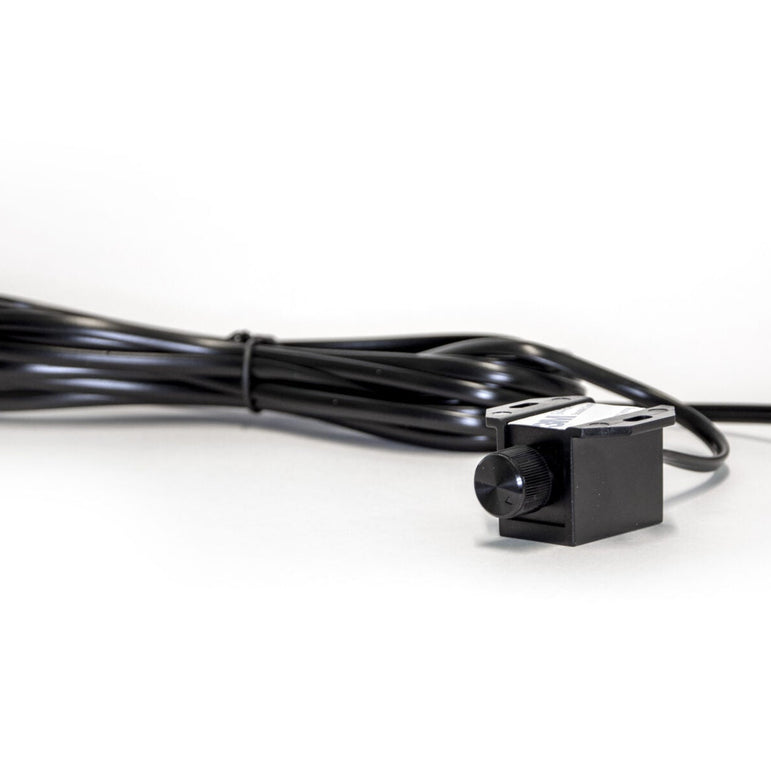

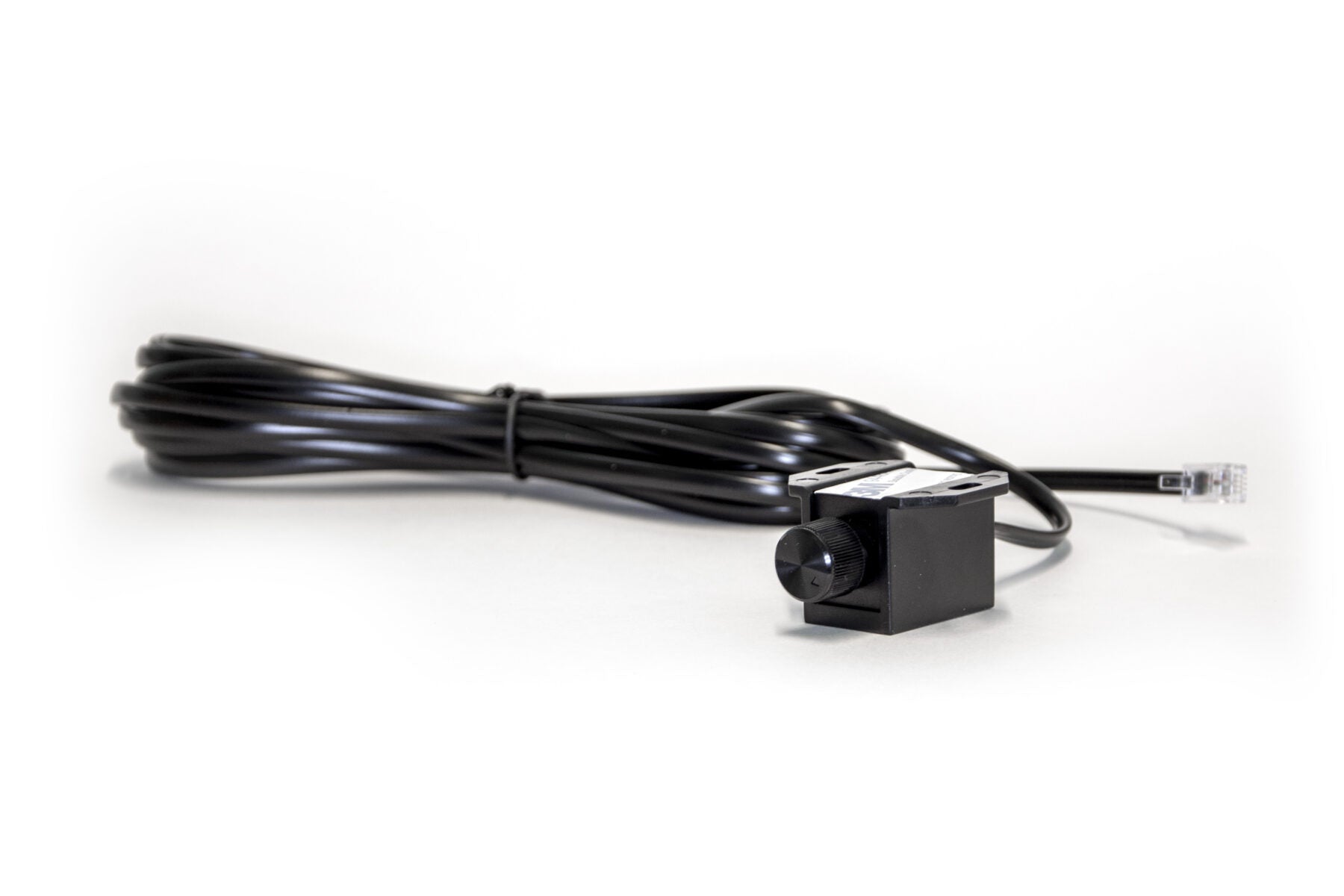

A wired level control is also included for adjusting the subwoofer from the front seats.

Specifications

• 4 x 100W (4 ohms)
• 1 x 275W (4 ohms)
• 4 x 175W (2 ohms)
• 1 x 500W (2ohm)
• RCA and speaker level input: Yes
• Autostart at speaker level: Yes
• Low-pass filter for front channels: 50 – 5000Hz (12dB / oct.)
• Low-pass filter for rear channels: 50 – 5000Hz (12dB / oct.)
• High-pass filter for front channels: 50 – 5000Hz (12dB / oct.)
• Low-pass filter for rear channels: 50 – 5000Hz (12dB / oct.)
• Low-pass filter for sub channel: 50 – 250Hz (24dB / oct.)
• Subchannel subsonic: 10 – 55Hz (24dB / oct.)
• Bass Boost: 0 – +18dB
• Signal to noise ratio: >87dB (front/rear), 92dB (sub)
• Frequency range: 10 – 25,000Hz
• Wired level control: Yes
• Dimensions: 323 x 160 x 48mm
