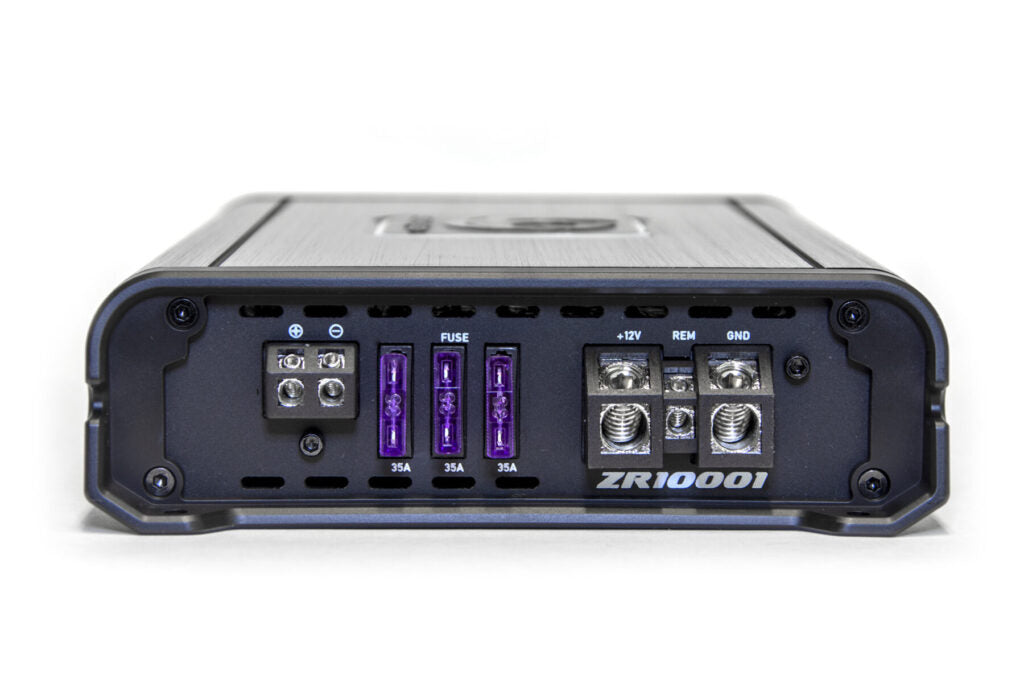

The Phoenix Gold ZR10001 is a Class D mono amplifier that delivers 1000W RMS power into a one ohm load.
Real power!

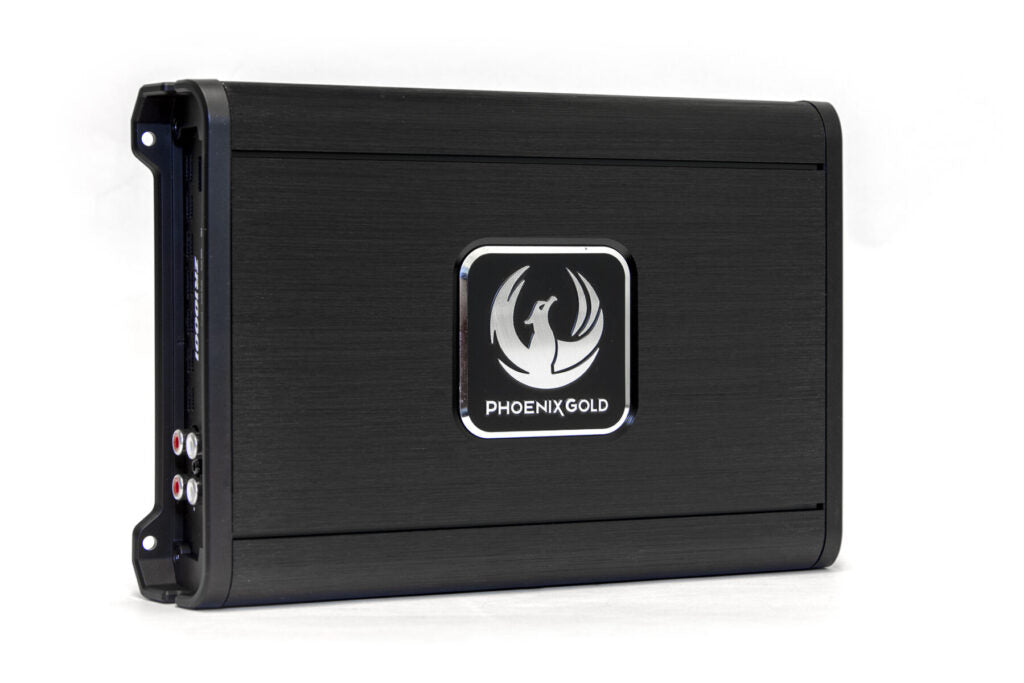

The ZR10001 is a very powerful, yet very compact mono amplifier (only 25cm long) thanks to its Class D design. Inside the stylish black casing is Phoenix Gold's signature gold design circuit board, complete with high-quality components.
Automatic start
The signal can be brought to the amplifier traditionally using RCA cables, but if the player does not have RCA outputs (e.g. a factory-installed player in a car), the amplifier also understands a speaker-level signal (requires an X12Line adapter). With a speaker-level signal, the amplifier does not require separate excitation, but turns on when it receives a signal.
Versatile adjustments

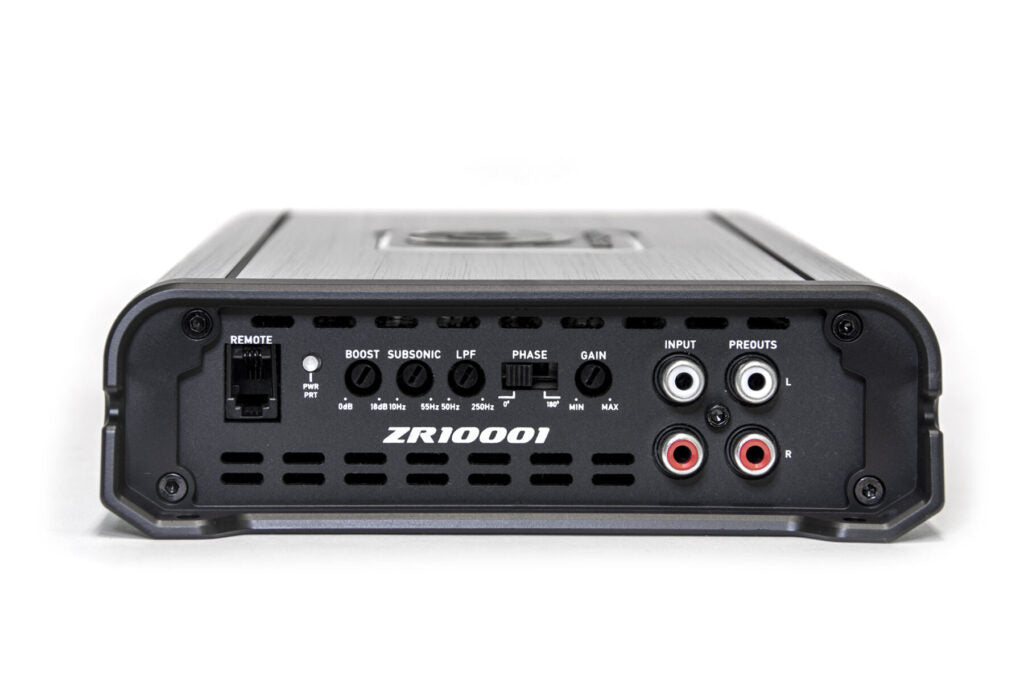

The ZT10001 includes a wide range of adjustment options. The low-pass filter is adjustable in the range of 50 – 250Hz and the Subsonic in the range of 10 – 55Hz. In addition, the amplifier has an adjustable BassBoost 0 – +18dB as well as 0 / 180° phase shift and input sensitivity adjustment.

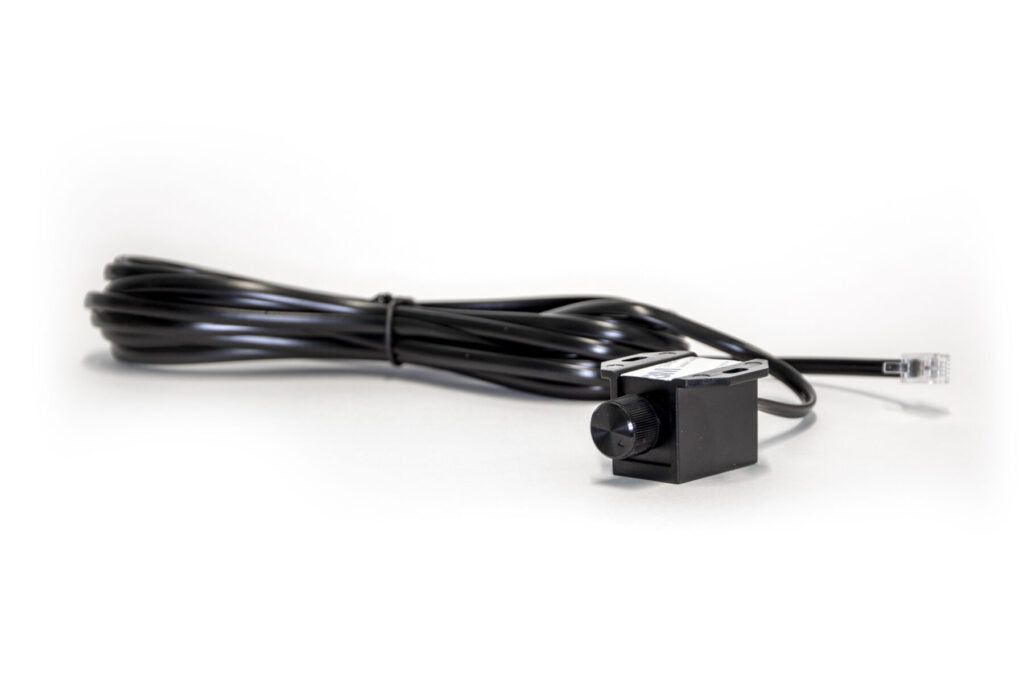

The amplifier also comes with a wired level control for installation on the dashboard, for example.
Specifications
- 1 x 430W (4 ohms)
- 1 x 720W (2 ohms)
- 1 x 1000W (1ohm)
- RCA and speaker level input: Yes
- Autostart at speaker level: Yes
- Low-pass filter: 50 – 250Hz (24dB / oct.)
- Subsonic: 10 – 55Hz (12dB / Oct.)
- Bass Boost: 0 – +18dB
- Phase shift: 0 / 180°
- Crossover slope: 12db/oct.
- Signal-to-noise ratio: >96dB
- Frequency range: 20 – 400Hz
- Dimensions: 253 x 160 x 48mm
PS. In the same model series, there is an even more robust mono amplifier ZR20001 (1 x 2000W) and the powerful four-channel ZR6004.
