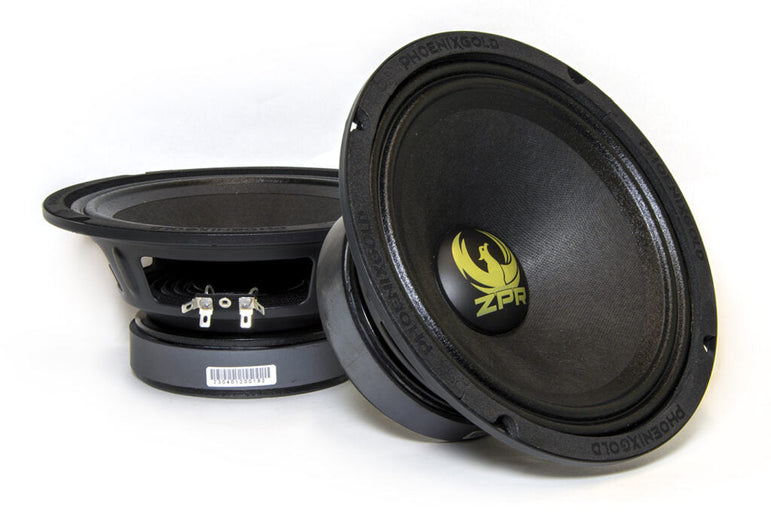

Phoenix Gold ZPR84

Phoenix Gold introduced the ZPX and ZPR ranges to the European market, which include midrange/midbass speakers designed purely for SPL use.
ZPR is the more robust of the collections, the so-called EXTREME version .

The Phoenix Gold ZPR84 drivers feature 2″ OFC voice coils , large 34oz ferrite magnets, lightweight paper pulp cones, and Triple Roll top mounts.

34oz monster magnet

Triple Roll suspension

Lightweight paper pulp cone

• 8″ EXTREME SPL speaker
• Impedance: 4ohm
• Playback range: 60Hz – 10kHz
• Power handling RMS/Max: 325W/650W
• Sensitivity: 92dB
• Voice coil: 2″
• Magnet: 34oz
• Installation depth: 88mm
• Mounting hole diameter: 180mm
• Outer diameter: 209mm

• Re: 3.0ohm
• Fs: 70.4Hz
• Qms: 4.40
• Qes: 0.70
• Qts: 0.60
• Cms: 0.30mm/N
• Left: 20.6l
• BL: 5.7 N/A
• Sd: 221.7cm²
• Weight: 17.1g
