Phoenix Gold ZDSKV3 6.5″ stand-alone set

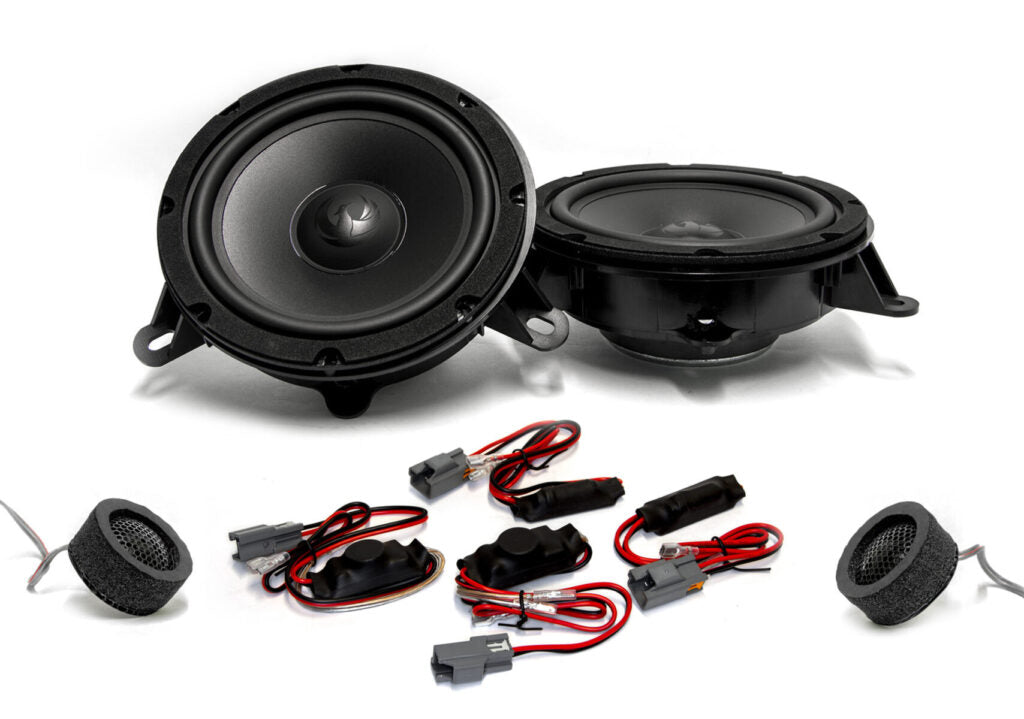

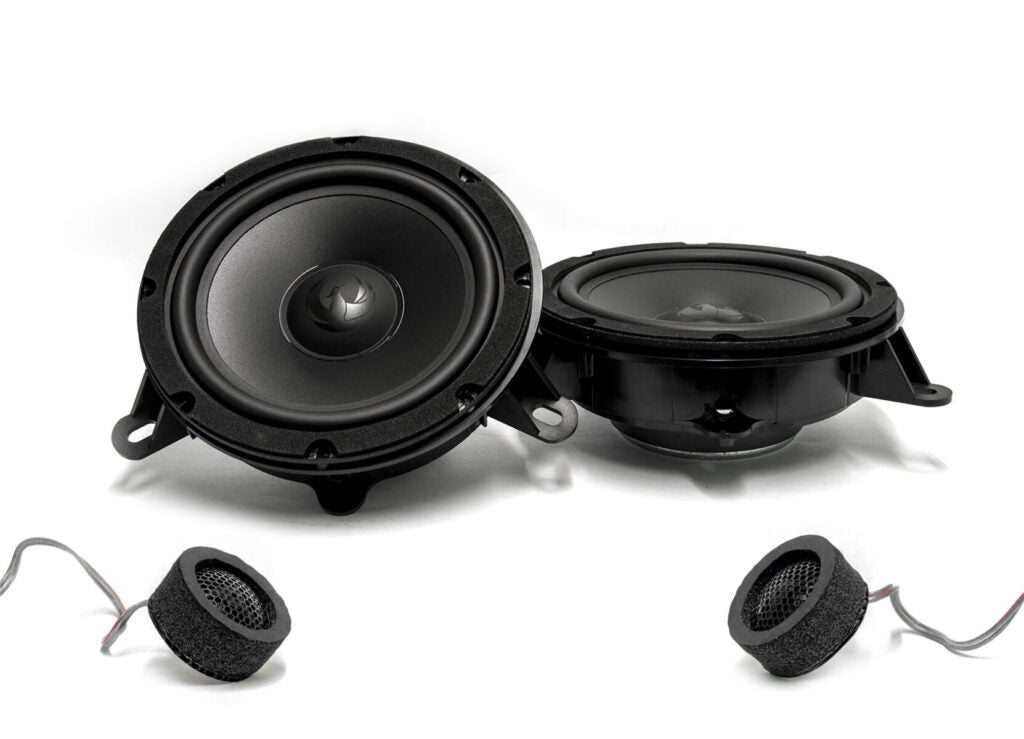

The Phoenix Gold ZDSKV3 is a 165mm (6.5″) stand-alone kit that fits directly into a variety of Volvo models.

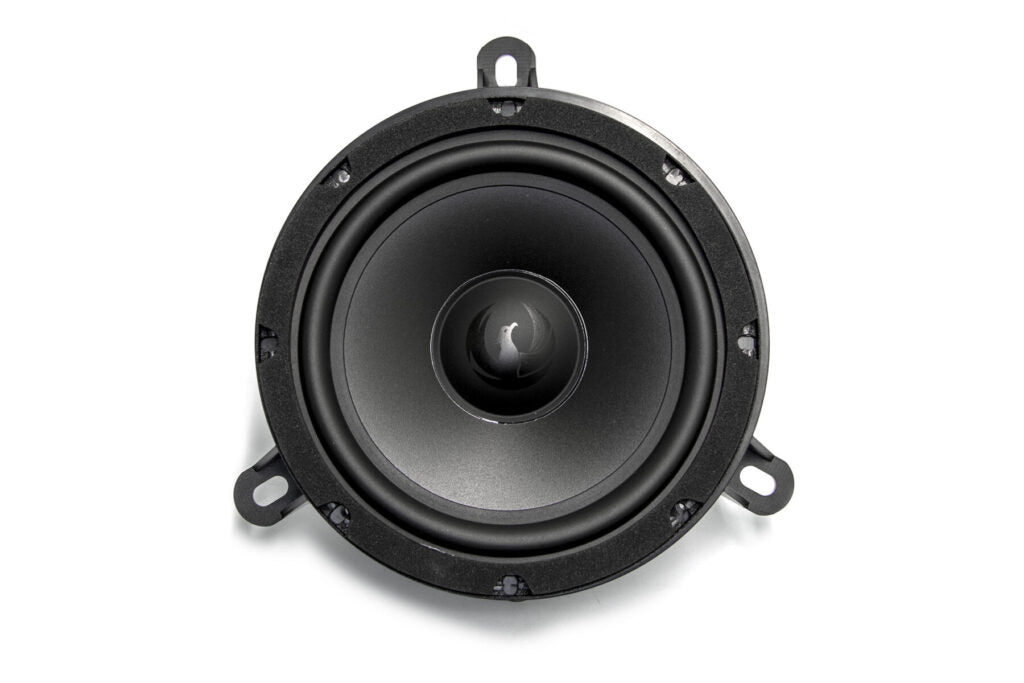

The separate set includes Phoenix Gold's ZX65C midbasses, which have a metal body, polypropylene cone and rubber top suspension. The midbasses come with speaker adapters suitable for Volvo, which allow the speaker to fit perfectly in the car door.

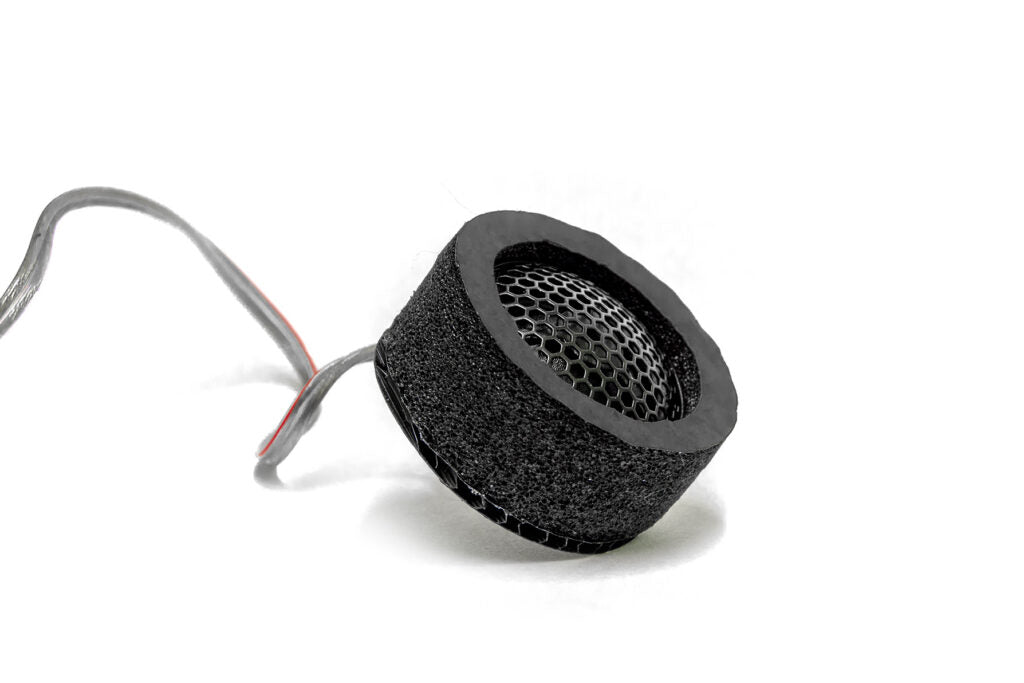

The ZDSKV3 separate set includes Phoenix Gold ZX1TC fabric dome tweeters and soft foam rings for these, which are used to install the tweeters in place of the Volvo's original tweeter.

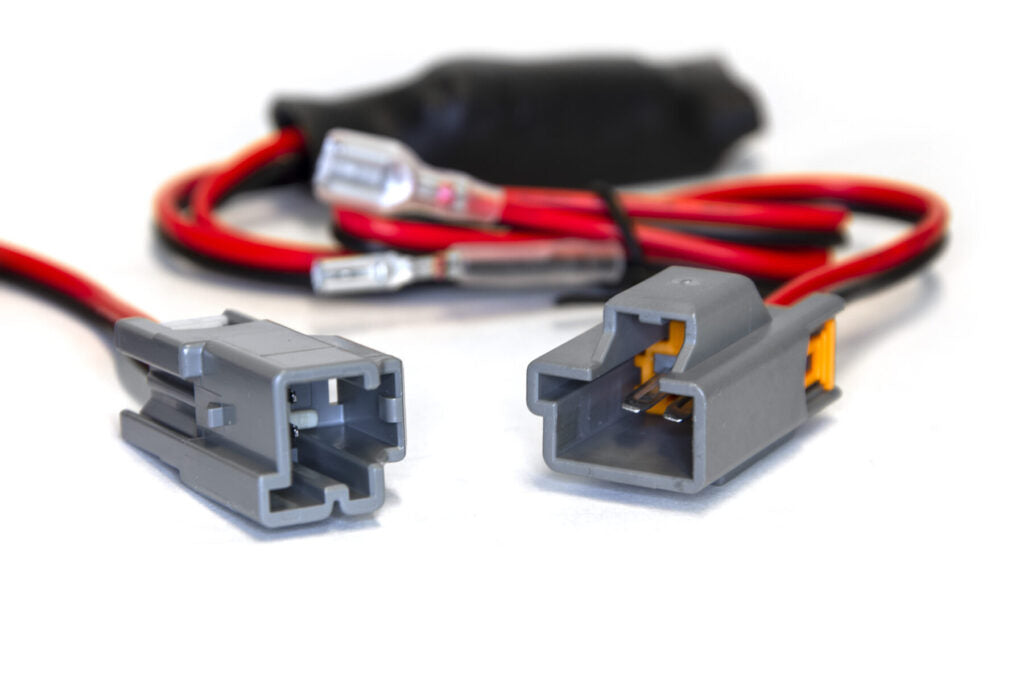

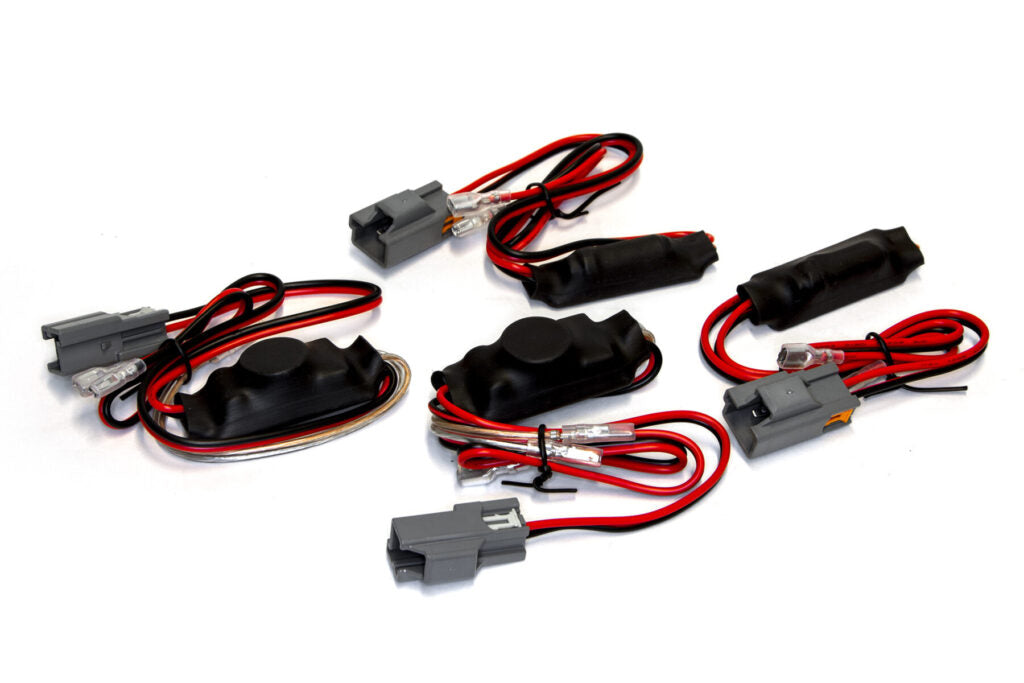

Each element has its own crossover, which makes installation easier. The crossovers have connectors that fit directly into Volvo's original speaker connectors, and the wires on the other end of the filter fit directly into the Phoenix Gold elements. Installing the kit does not require cutting or modifying the car's original wiring.
There are high-pass 4kHz, 12dB/oct high-pass filters for the tweeters and 4kHz, 6dB/oct. low-pass filters for the midbass.

• Midbass:
  • 165mm (6.5″)
  • Polypropylene cone
  • Rubber suspension
  • Metal frame
  • Sensitivity: 89dB
  • 25mm voice coil
  • Ferrite magnet
  • Power rating RMS / Max: 60W / 120W
• Treble:
  • 25mm
  • Fabric skullcap
  • Neodymium magnet
  • Sensitivity 91dB
  • Power consumption RMS / Max: 20W / 40W
• Crossover filters
  • High-pass filters for tweeters
  • Crossover: 4000Hz, 12dB/oct.
  • Low-pass filters for midbass
  • Crossover: 4000Hz, 6dB/oct.

Compatible car models:
C70 2006 – 2013
S60 2010 – 2017
V40 2012 – 2019
V60 2010 – 2017
V70 2007 – 2017
XC60 2008 – 2018
XC70 2007 – 2017
XC90 2007 – 2017

The separate set is suitable for front and rear doors.

Two different DSP amplifiers are also available for these cars, which are installed in the Volvo with a Plug & Play wiring harness.
ZDAPV2 = For cars with Volvo factory-installed amplifier
ZDAPV3 = For cars without Volvo OEM amplifier
