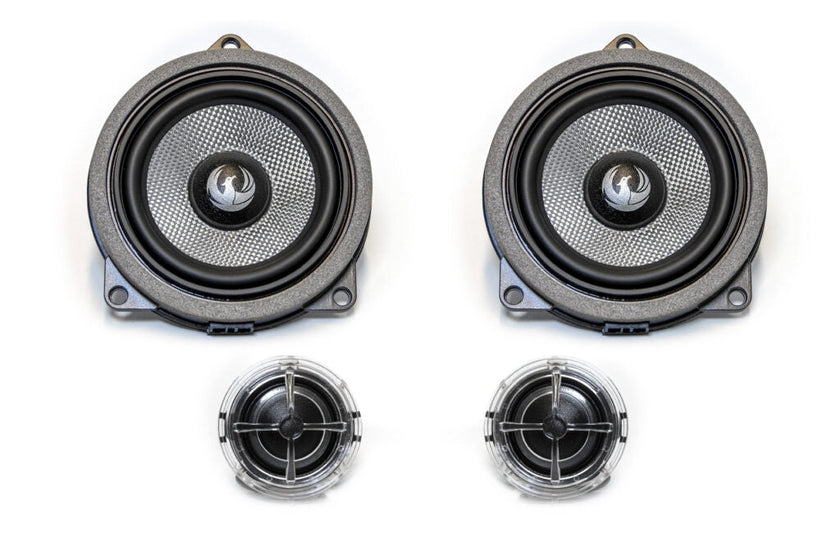

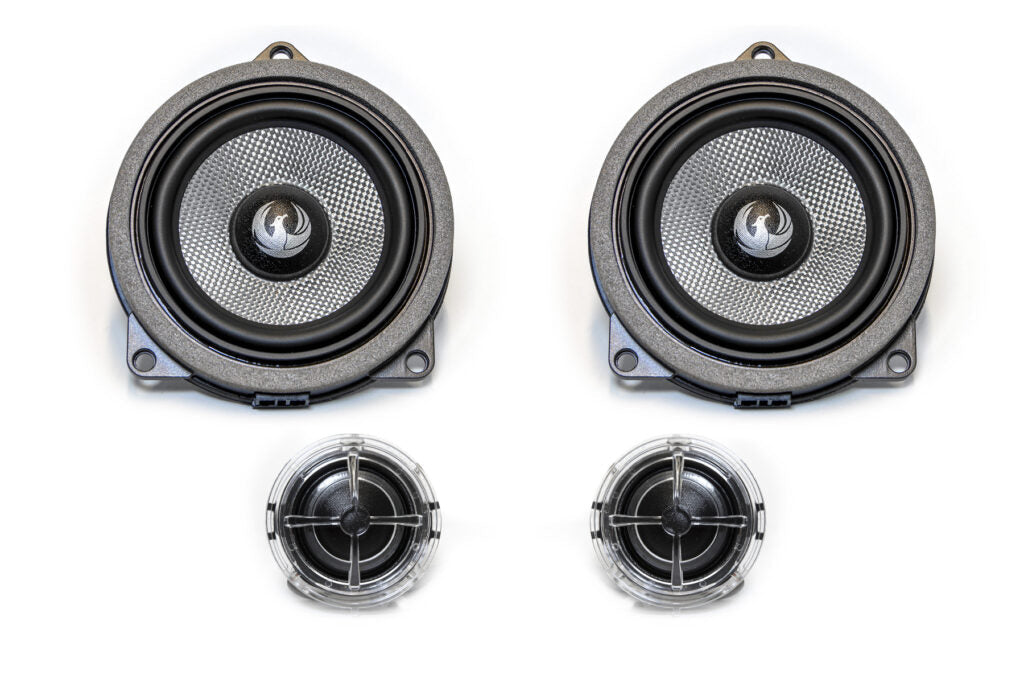

Phoenix Gold ZDSB100CS 4" separate kit BMW / Toyota Supra

The Phoenix Gold ZDSB100CS is a high-quality separate set that is made to fit the original speaker positions of several BMWs.

Midrange

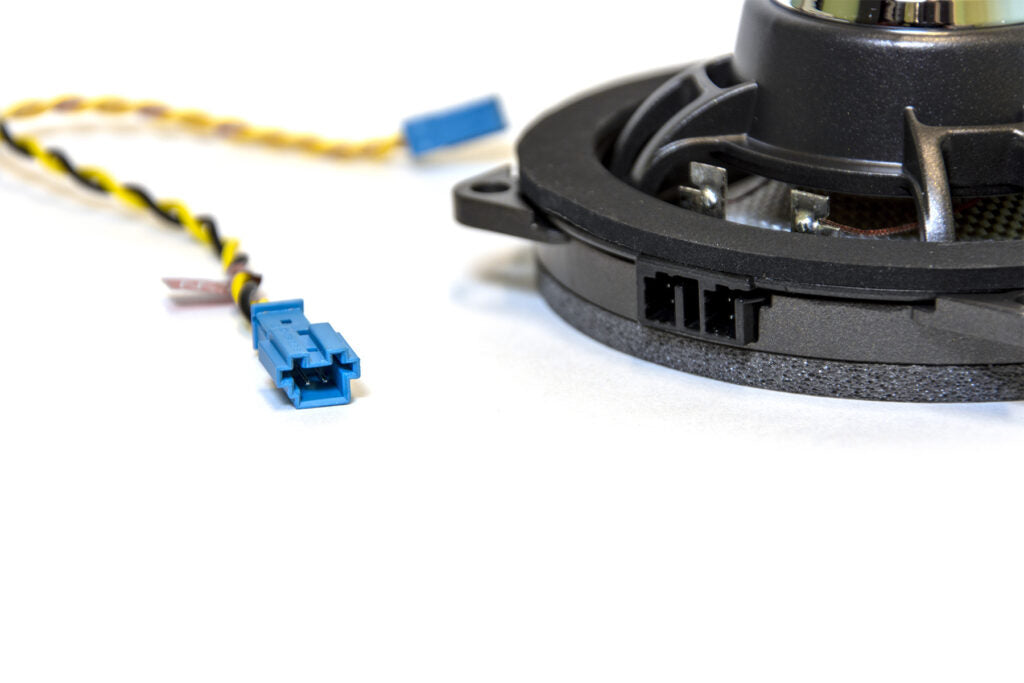

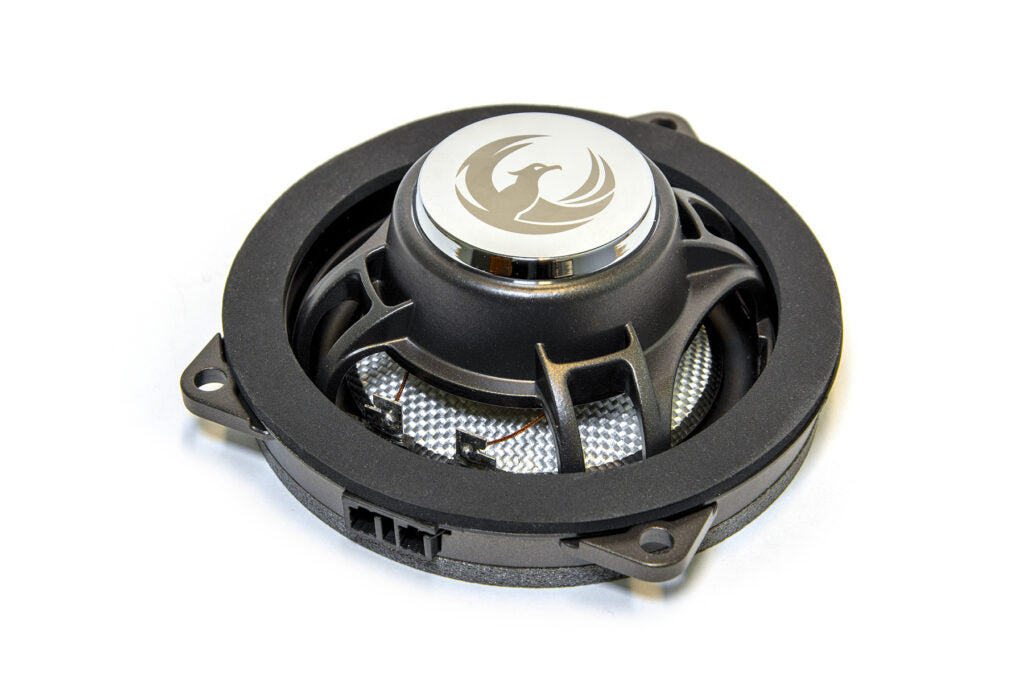

The midrange is made of solid cast aluminum drivers with a sandwich composite cone. The speaker fits perfectly into the original BMW speaker slot and there are integrated sealing rings on the top and bottom of the driver to ensure a proper fit in the car. The connectors correspond to the original BMW connectors, so the original speaker cables fit directly into the drivers.

Trebles

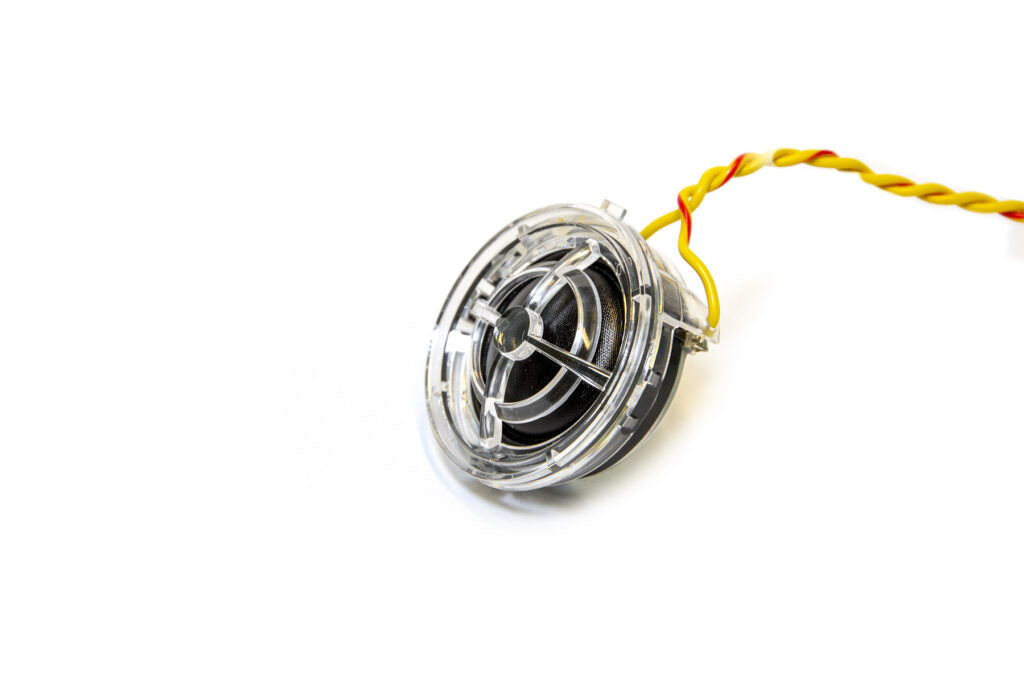

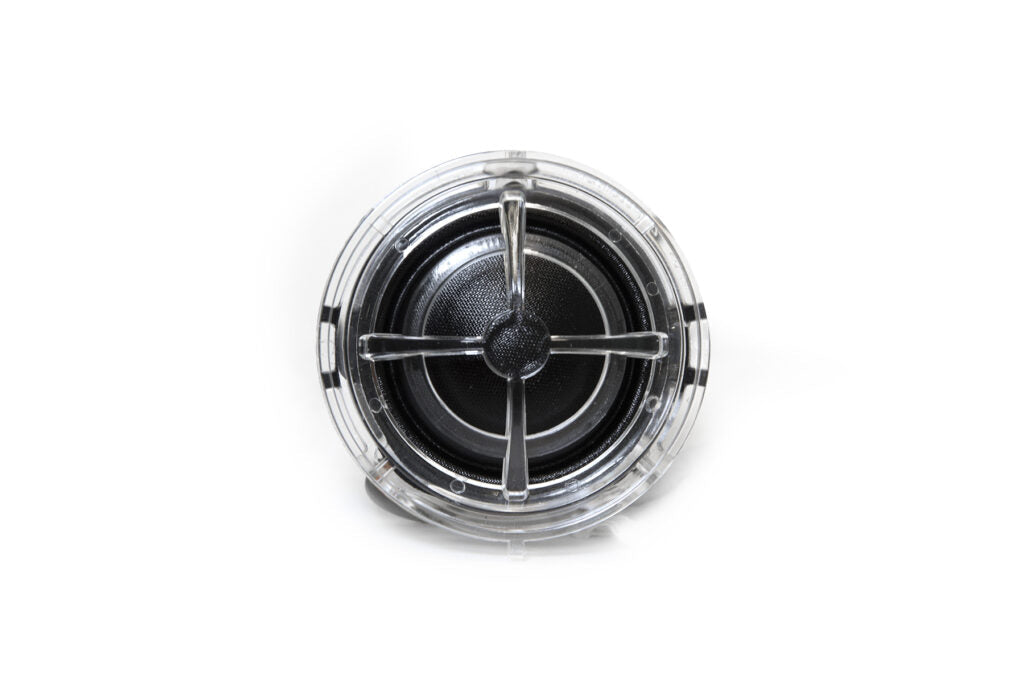

The tweeters in the ZDSB100CS stand-alone series are Plug & Play, just like the midbasses. To make installation easier, the crossover is integrated into the tweeter cable.
The tweeter has a fabric dome, which has a very pleasant and effortless sound.

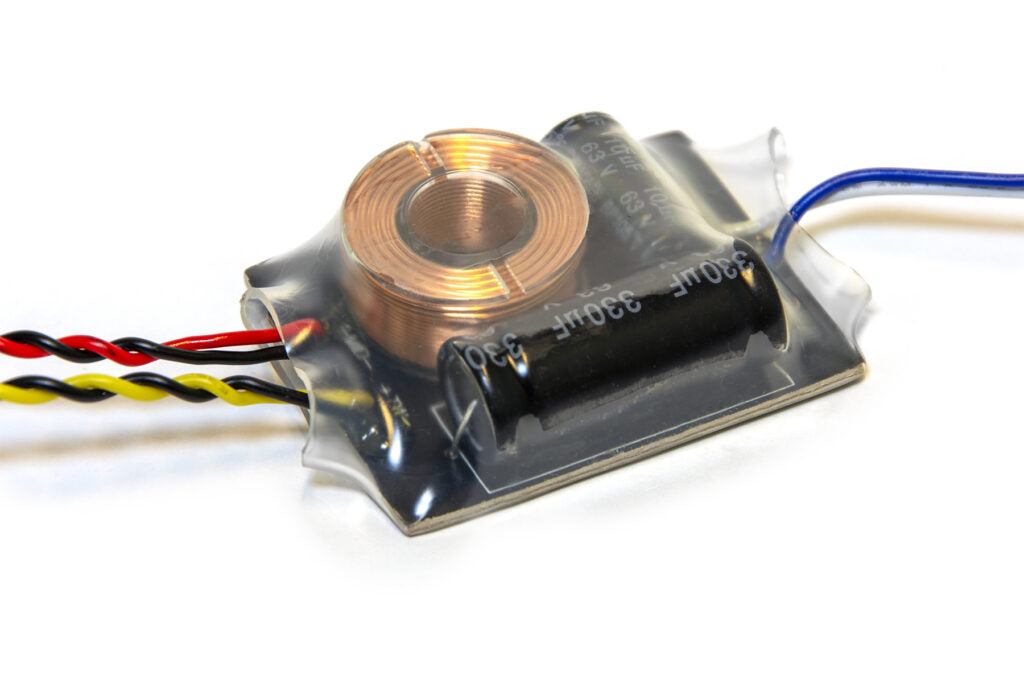

Connectors and crossovers
The set can be installed in two different ways.
You can bring the speaker wire from your car's original midrange to the Phoenix Gold midrange and the wires from the midrange to the Phoenix Gold tweeter. In this case, the set is 100% plug & play.
However, we recommend using the crossovers that come with the separate kit, in which case the car's original speaker wire is brought to the crossover input and separate wires for the Phoenix Gold midrange and tweeter come out of the crossover.
This is a better option in terms of sound and as an "extra job" only requires attaching the crossover to the inner door panel, e.g. with cable ties.

Specifications

• 4″ separate set
• Cast-iron midrange
• Fabric dome tweeters
• 12dB/oct. crossover filters
• Plug & Play installability
• Impedance: 4ohm
• Sandwich composite cone in midbass
• Neodymium magnet
• 1″ (25mm) voice coil
• Power consumption RMS/Max: 120W / 60W
• Frequency range: 100Hz – 20kHz

Compatibility:

(The speakers are designed to be installed as front speakers and rear speakers. Installation may require modifications, e.g. to the car's speaker locations or sealing rings)

BMW 1-Series (F20) 2011 -> Front door
BMW 1-Series (F21) 2012 -> Front door
BMW 1-Series (F40) 2019 -> Front door
BMW 1-Series (F52) 2019 -> Front door

BMW 2-Series (F22) 2015 -> Front door
BMW 2-Series (F23) 2015 -> Front door + Side panel rear
BMW 2-Series (F44) 2020 -> Front door + Rear door
BMW 2-Series (F45) 2014 -> Front door + Side panel rear
BMW 2-Series (F46) 2015 -> Front door + Side panel rear
BMW 2-Series (F87) 2015 -> Front door

BMW 3-Series (F30) 2011 -> Front door + Rear door
BMW 3-Series (F31) 2012 -> Front door + Rear door
BMW 3-Series (F34) 2013 -> Front door + Rear door
BMW 3-Series (F80) 2014 – 2018 Front door + Rear door
BMW 3-Series (G20) 2019 -> Front door + Rear door
BMW 3-Series (G21) 2019 -> Front door + Rear door

BMW 4-Series (F32) 2014 -> Front door + Side panel rear
BMW 4-Series (F33) 2014 -> Front door + Side panel rear
BMW 4-Series (F36) 2014 -> Front door + Rear door
BMW 4-Series (F82) 2014 -> Front door + Side panel rear
BMW 4-Series (F83) 2014 -> Front door + Side panel rear
BMW 4-Series (G22) 2020 -> Front door + Side panel rear

BMW 5-Series (G30) 2017 -> Front door + Rear door
BMW 5-Series (G31) 2017 -> Front door + Rear door
BMW 5-Series (G38) 2017 -> Front door + Rear door

BMW 6-Series (F06) 2012 -> Front door + Rear door
BMW 6-Series (F12) 2011 -> Front door
BMW 6-Series (F13) 2011 -> Front door
BMW 6-Series (G32) 2017 -> Front door + Rear door

BMW 7-Series (G11) 2015 -> Front door + Rear door
BMW 7-Series (G12) 2015 -> Front door + Rear door

BMW i3 2013 -> Front door + Rear door
BMW i4 (G26) 2022 -> Front door + Rear door
BMW i8 (L15) 2013 -> Front door

BMW X1 (F48) 2015 -> Front door + Rear door
BMW X1 (F49) 2015 -> Front door + Rear door

BMW X2 (F39) 2018 -> Front door + Rear door

BMW X3 (F25) 2010 – 2017 Front door + Rear door
BMW X3 (G01) 2017 -> Front door + Rear door

BMW X4 (F26) 2014 – 2018 Front door + Rear door + Headliner / Pillar
BMW X4 (G02) 2018 -> Front door + Rear door
BMW X4 (G02FL) 2018 -> Front door + Rear door

BMW Z4 (G29) 2018 -> Front door + Rear door

BMW MINI (F54) 2016 -> Front door + Rear door
BMW MINI (F55) 2014 -> Front door + Rear door
BMW MINI (F56) 2014 -> Front door + Rear door
BMW MINI (F57) 2016 -> Front door + Rear door

Rolls-Royce Wraith 2011-2016
Rolls-Royce Cullinan 2017+
Rolls-Royce Dawn 2015+
Rolls-Royce Drophead 2011-2016
Rolls-Royce Ghost 2008+
Rolls-Royce Phantom 2011+
Rolls-Royce Wraith 2012+

Toyota Corolla 2019+
