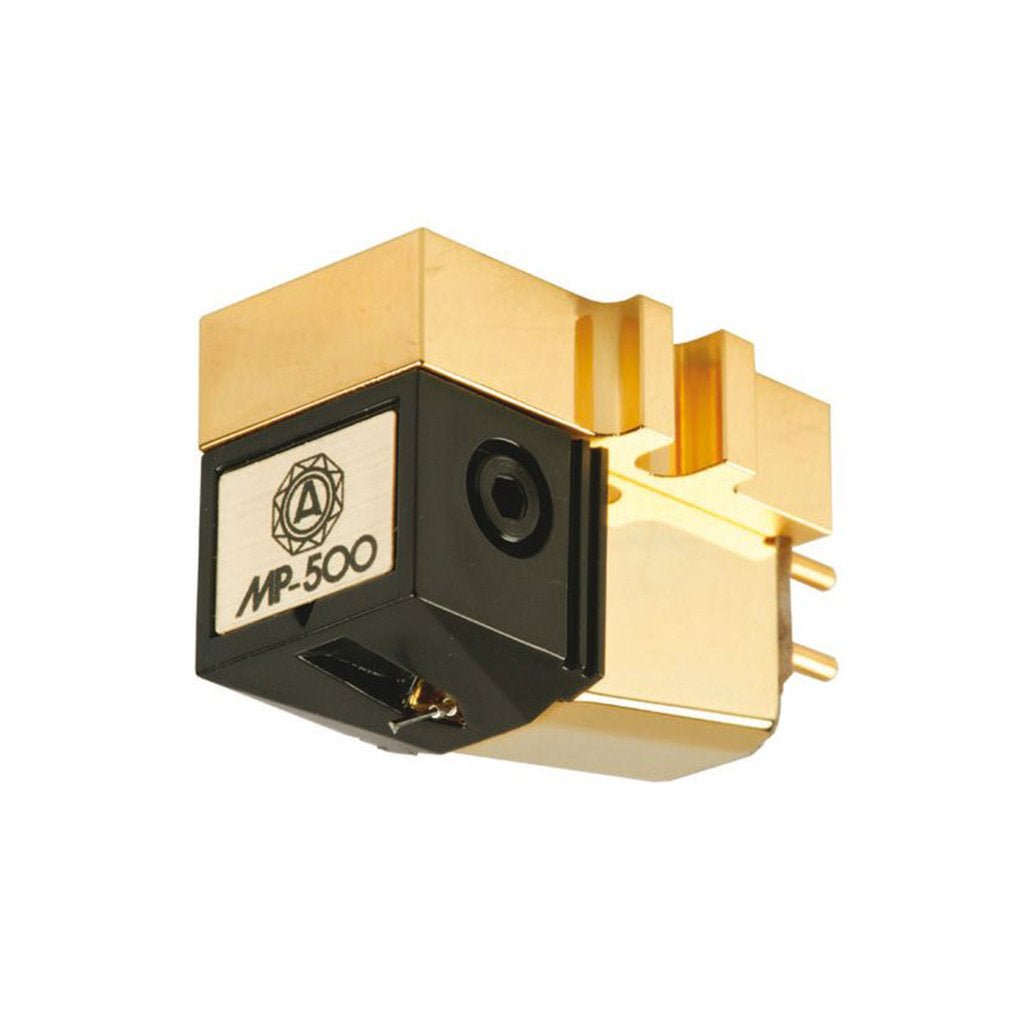

Nagaoka MP-500 Phono Cartridge

Nagaoka MP-500 MM Cartridge Nagaoka's flagship phono cartridge model. Samarium Cobalt / Moving Permalloy structure. A line contact stylus mounted...
Sale price €899,00Regular price
Regular price €899,00

Nagaoka MP-500 MM Cartridge

Nagaoka's flagship phono cartridge model. Samarium Cobalt / Moving Permalloy structure.

A line contact stylus mounted on a Boron cantilever, a fiberglass-reinforced body, a metal mounting flange, and a screw-fixed stylus unit ensure exceptional structural rigidity and enable remarkably clean detail reproduction.

The Nagaoka MP-500 is a top choice for those seeking the most natural reproduction from high output cartridges!

The Nagaoka MP-500 is able to deliver the high frequencies with a realism not yet seen at this price point. Specifically with well recorded jazz music, drums, especially cymbals, hold their place in the sound stage perfectly. Vocals are brought through without a hint of pushiness, and bass tones are accurately portrayed. Without question, this cartridge is a solid performer in its price range.

Founded in 1940, Japanese Nagaoka meticulously manufactures its cartridges from start to finish and also acts as a subcontractor for many major brands. The company's operations include the precision machining of metals, magnetic materials, and precious gem materials.

Nagaoka's globally renowned cartridges and audio accessories represent the traditional high Japanese quality concept.


Technical specifications:


  • Cantilever: Boron
  • Stylus profile: Line Contact
  • Output voltage: 3mV (5cm/sec)
  • Channel balance: better than 1dB
  • Frequency response: 20-28000Hz
  • Channel separation: 27dB
  • Weight: 8g
  • Tracking force: 1.3-1.8g
  • Loading: 47k
  • Dynamic compliance: 8.5 x 10-6 cm/dyne
  • Static compliance: 22 x 10-6 cm/dyne
