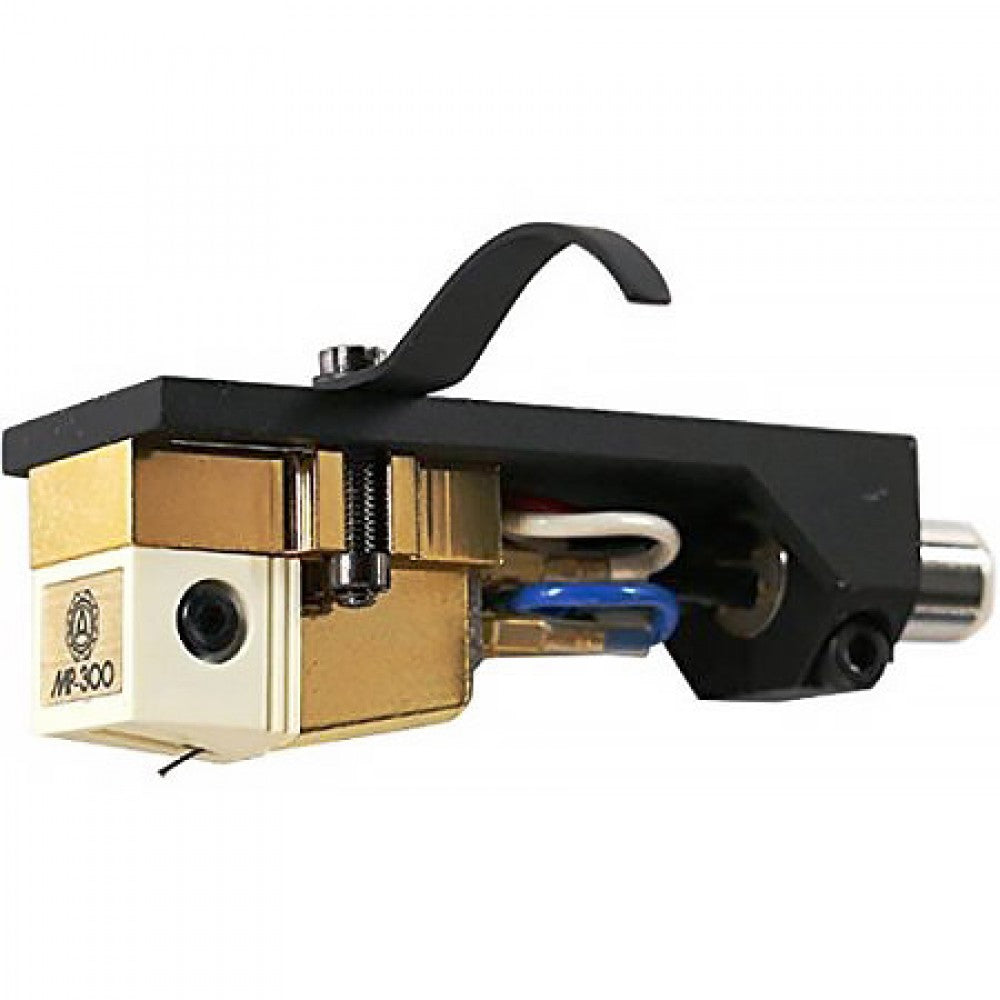

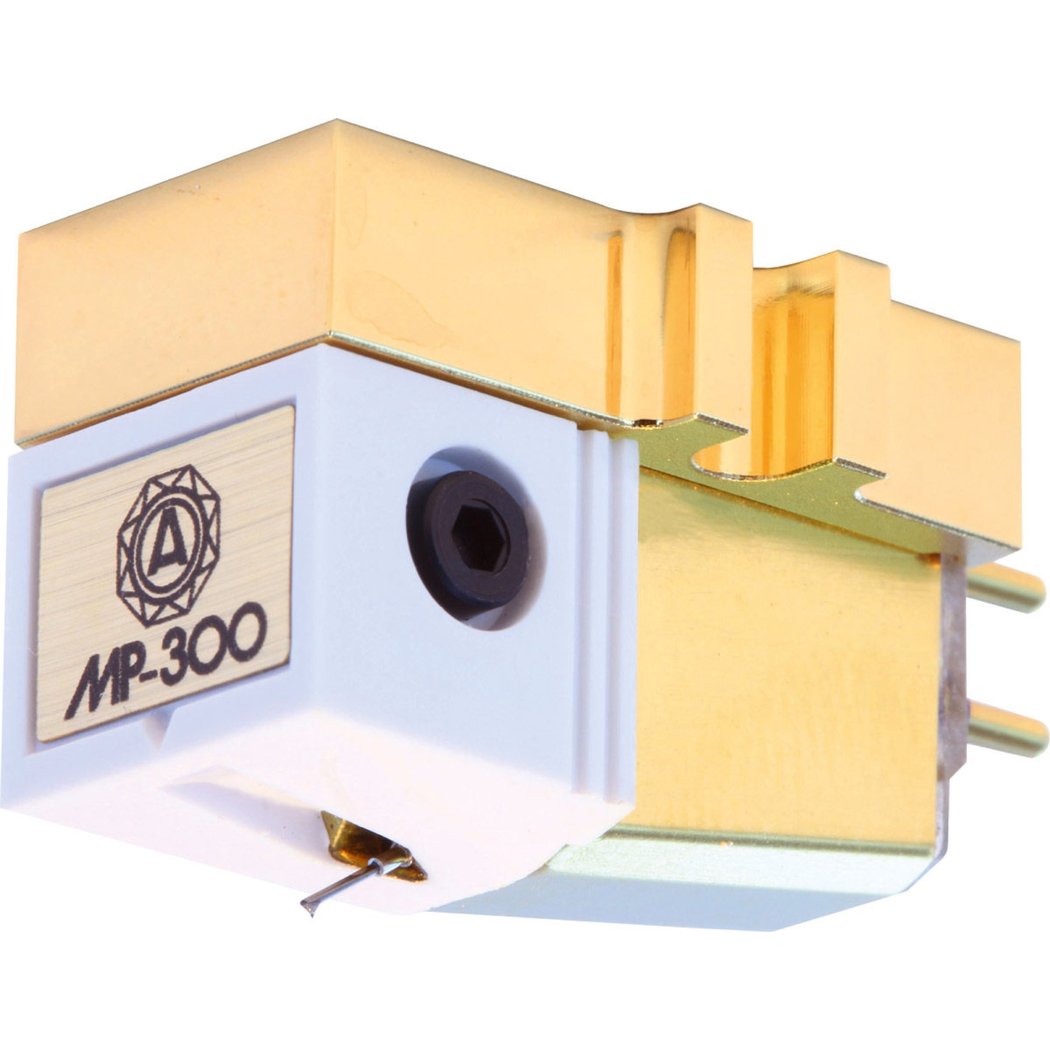

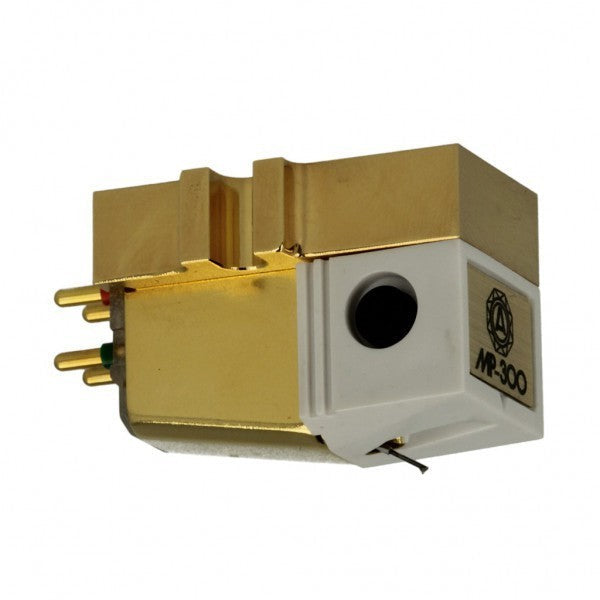

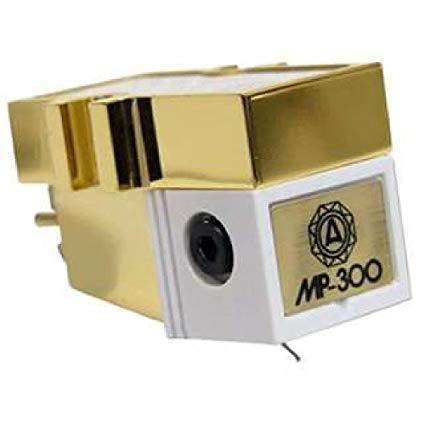

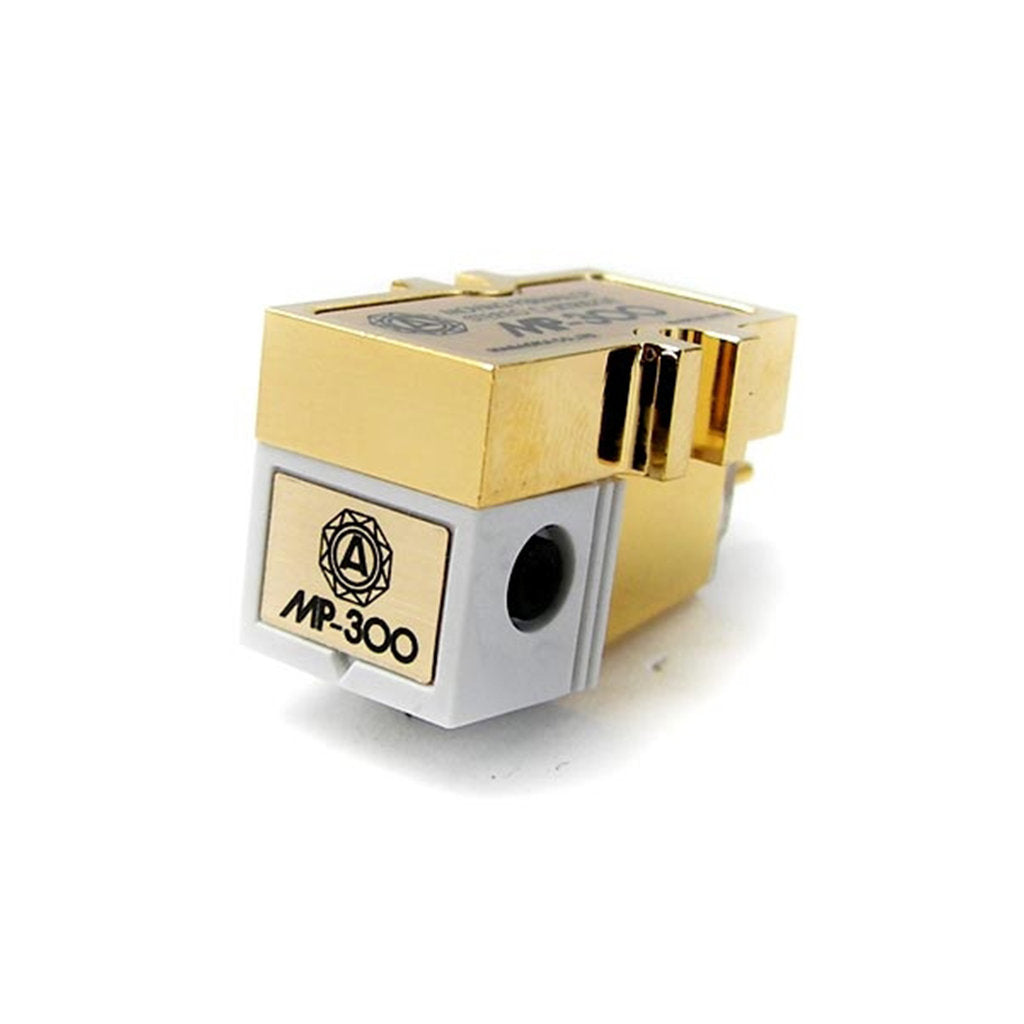

Nagaoka MP-300H MM Cartridge + Headshell
Elliptical stylus mounted on a Boron cantilever, fiberglass-reinforced body, metal mounting flange, and screw-fastened stylus unit.
Established in 1940, Japanese company Nagaoka meticulously manufactures its phono cartridges from start to finish, also acting as a subcontractor for many major brands. The company's operations include the precision machining of metals, magnetic materials, and precious stone materials.
Nagaoka's globally acclaimed phono cartridges and audio accessories represent the traditional high Japanese standard of quality.
Technical specifications:
- Cantilever: Boron
- Stylus type: Elliptical 0.4 x 0.7 mil
- Output voltage: 3mV (5cm/sec)
- Channel balance: better than 1dB
- Frequency response: 20-28000Hz
- Channel separation: 27dB
- Mass: 8g
- Tracking force: 1.3-1.8g
- Load impedance: 47k
- Dynamic compliance: 7.2 x 10-6 cm/dyne
- Static compliance: 20 x 10-6 cm/dyne
