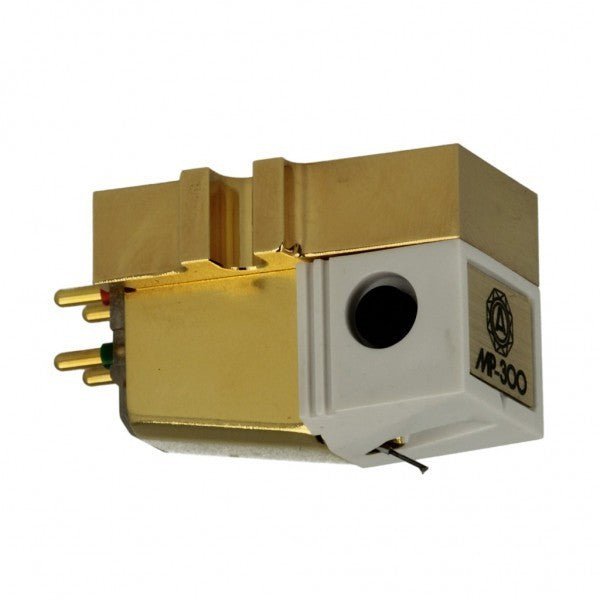

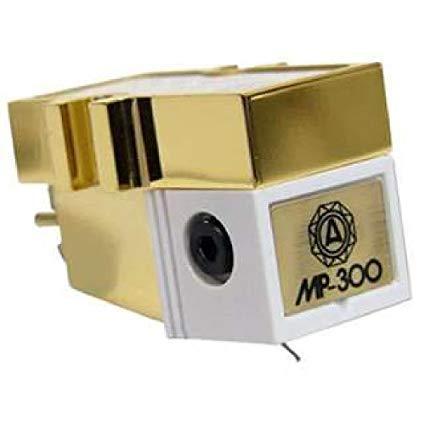

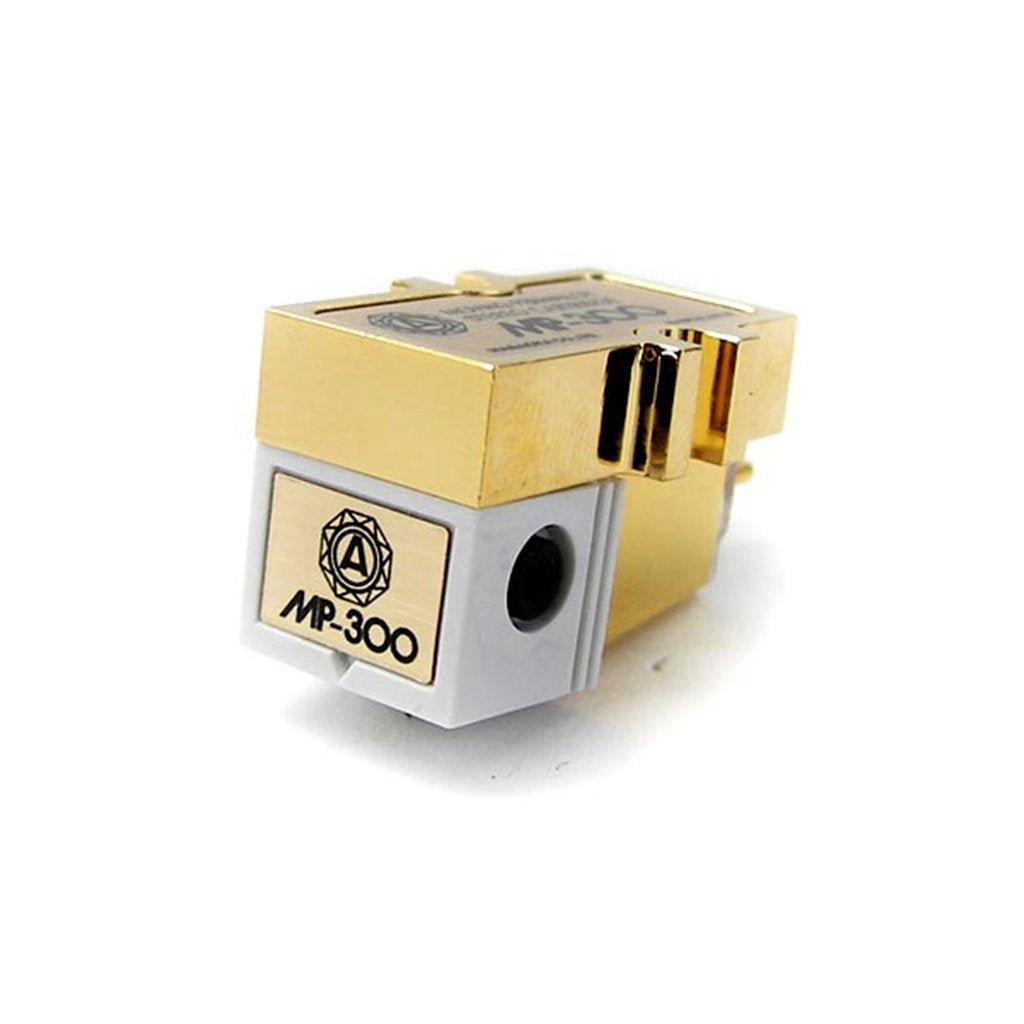

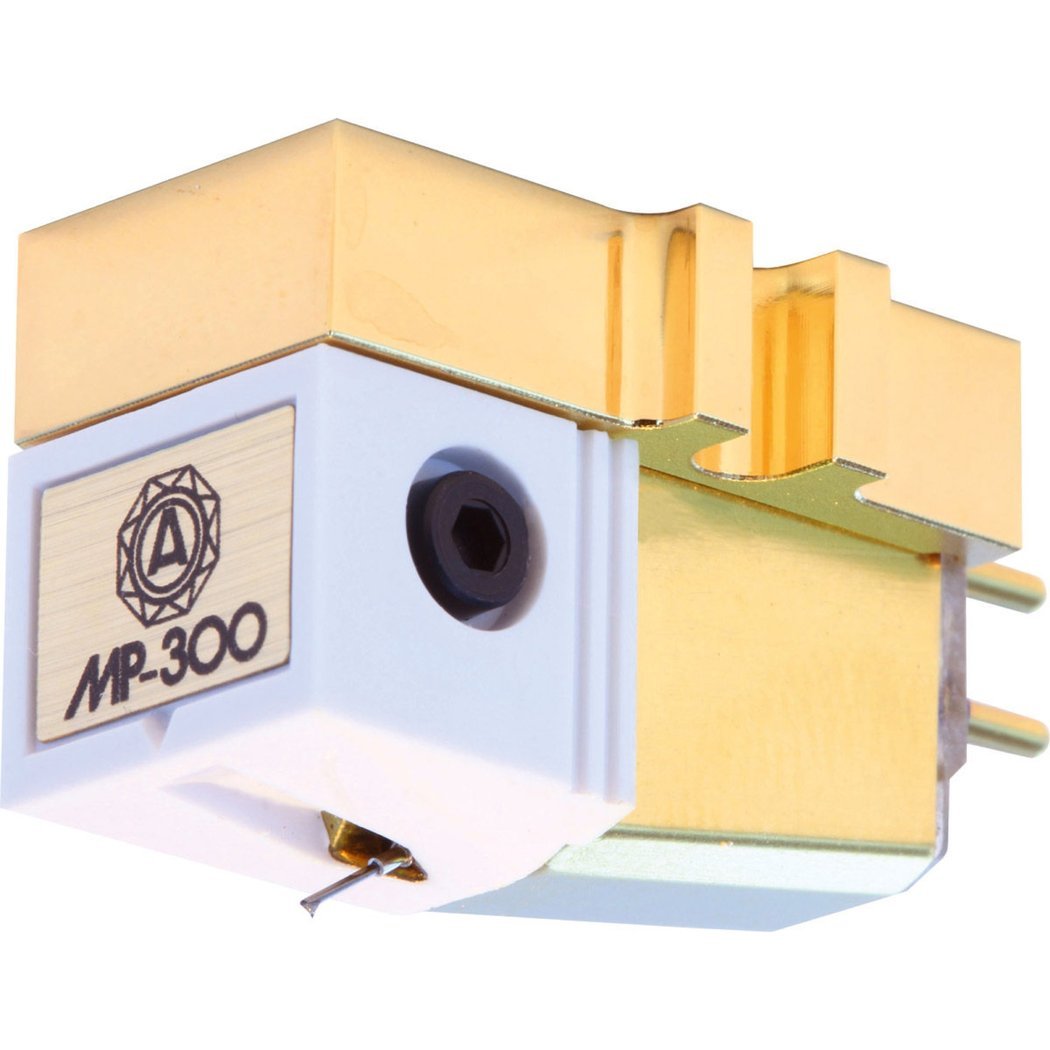

Nagaoka MP-300 MM Cartridge
Elliptical stylus mounted on a boron cantilever, fiberglass-reinforced body, metal mounting flange, and screw-fastened stylus unit.
Founded in 1940, Japanese Nagaoka meticulously manufactures its cartridges from start to finish, also acting as a subcontractor for many major brands. The company's operations include the precision machining of metals, magnetic materials, and precious gem materials.
Globally recognized, Nagaoka's cartridges and audio accessories represent the traditional high Japanese standard of quality.
Technical specifications:
- Cantilever: Boron
- Stylus tip: Elliptical 0.4 x 0.7 mil
- Output voltage: 3mV (5cm/sec)
- Channel balance: Better than 1dB
- Frequency response: 20-28000Hz
- Channel separation: 27dB
- Mass: 8g
- Tracking force: 1.3-1.8g
- Load: 47k
- Dynamic compliance: 7.2 x 10-6 cm/dyne
- Static compliance: 20 x 10-6 cm/dyne
