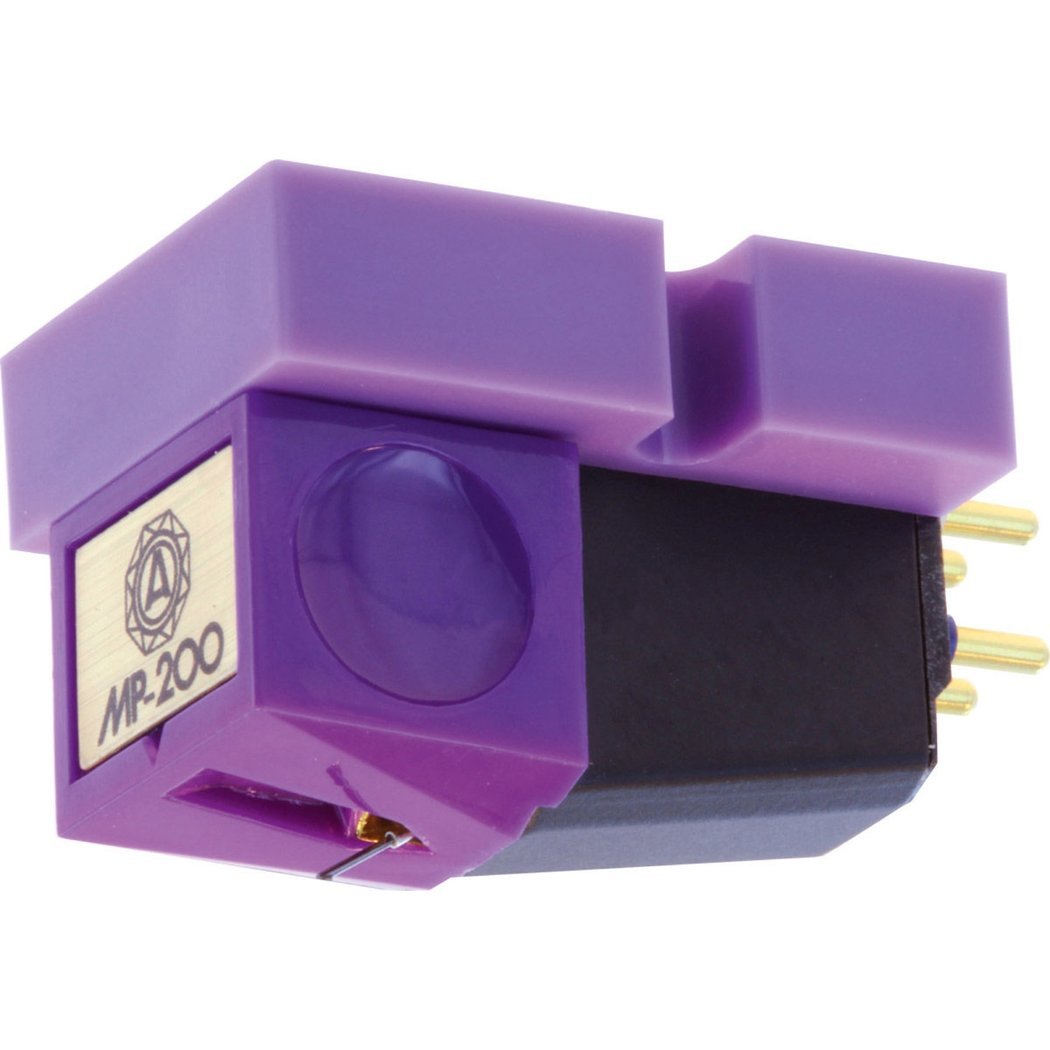

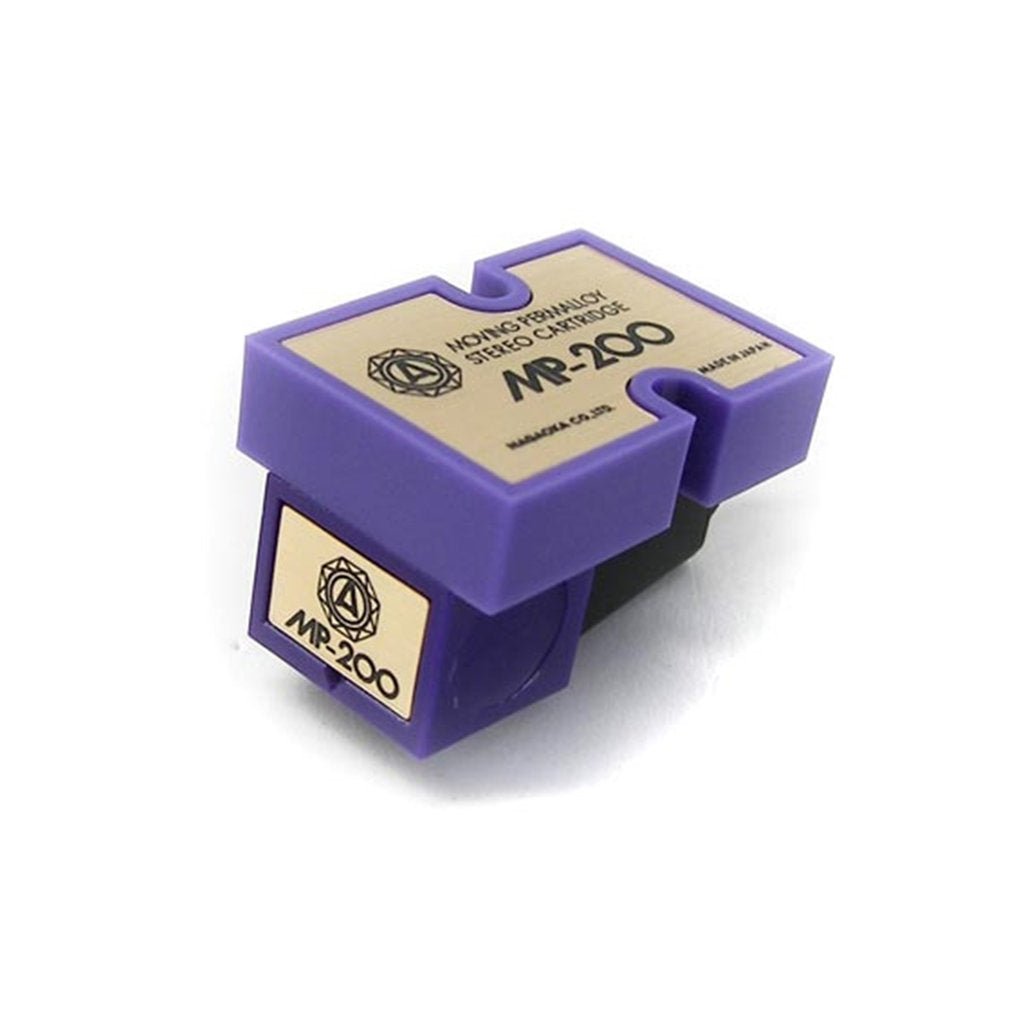

Nagaoka MP-200
A fine MM phono cartridge. A moving permalloy cartridge offering excellent value for money. Boron cantilever and elliptical stylus.
Founded in 1940, Japanese Nagaoka meticulously manufactures its phono cartridges in-house from start to finish, also acting as a subcontractor for many major brands. The company's scope of work includes the precision machining of metals, magnetic materials, and precious stone materials.
Globally acclaimed Nagaoka cartridges and audio accessories represent the traditional high Japanese standard of quality.
Technical specifications:
-
Cantilever: Boron
-
Stylus profile: Elliptical 0.4 x 0.7 mil
-
Output voltage: 4 mV (5 cm/sec)
-
Channel balance: Better than 1.5 dB
-
Frequency response: 20 - 23000 Hz
-
Channel separation: 25 dB
-
Mass: 6.5 g
-
Tracking force: 1.5 - 2.0 g
-
Loading: 47k
-
Dynamic compliance: 7.2 x 10-6 cm/dyne
-
Static compliance: 20 x 10-6 cm/dyne
