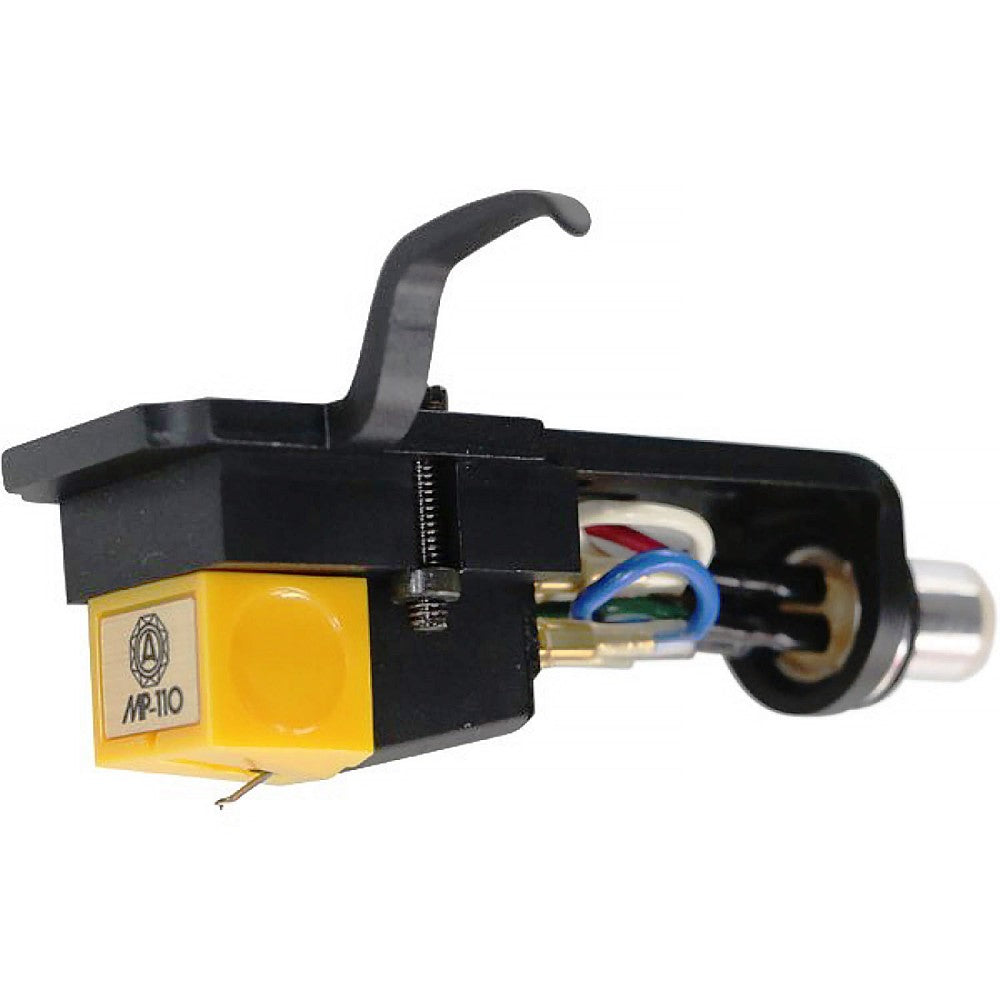

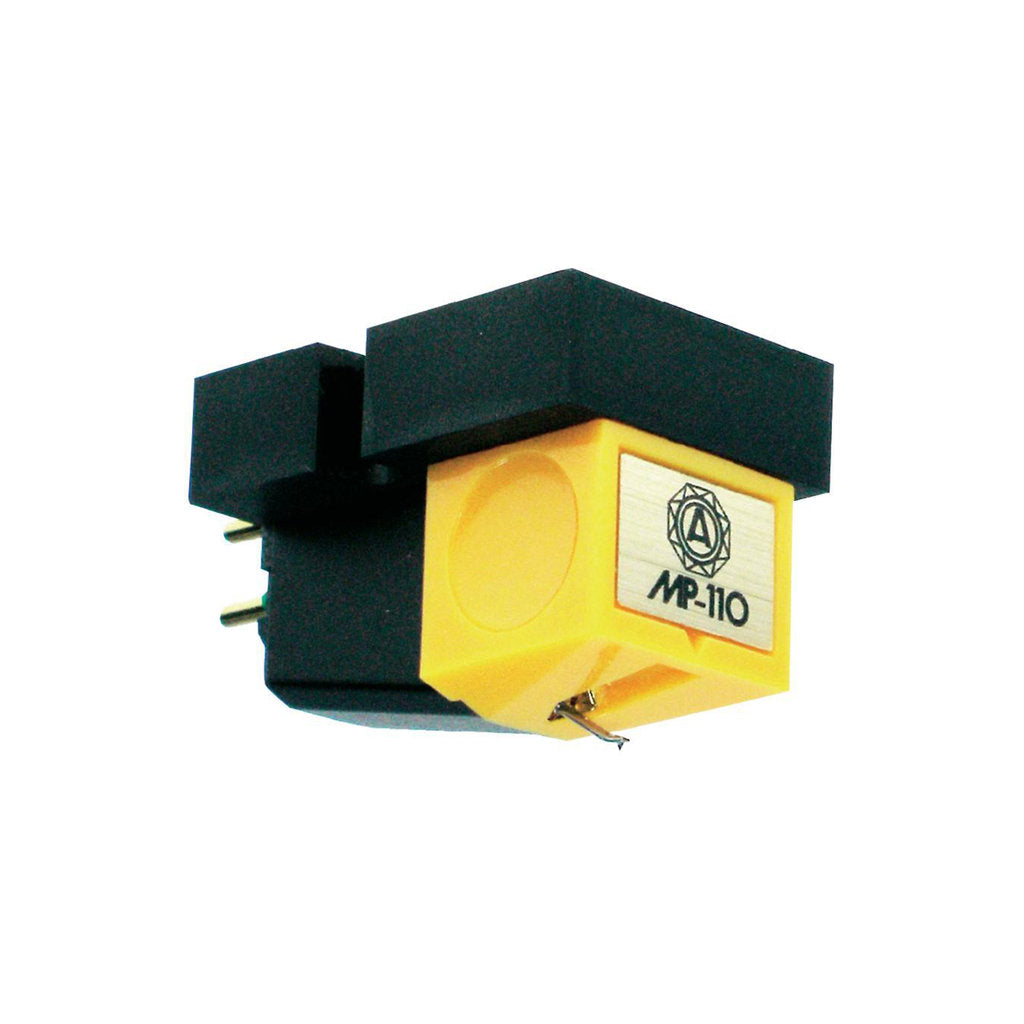

Nagaoka MP-110H Cartridge + Headshell
A high-quality MM phono cartridge from Nagaoka, with an elliptical stylus. A true budget best buy!
Founded in 1940, Japanese Nagaoka meticulously manufactures its cartridges from start to finish, also acting as a subcontractor for many major brands. The company's operations include precision machining of metals, magnetic materials, and gemstone materials.
Nagaoka cartridges and audio accessories, valued worldwide, represent the traditional high standard of Japanese quality.
Technical specifications:
-
Cantilever: Aluminum
-
Stylus Tip: Elliptical 0.4 x 0.7 mil
-
Output Voltage: 5 mV (5cm/sec)
-
Channel Balance: better than 1.5 dB
-
Frequency Response: 20 - 20000 Hz
-
Channel Separation: 23 dB
-
Mass: 6.5 g
-
Tracking Force: 1.5-2.0g
-
Load Impedance: 47k
-
Dynamic Compliance: 6.0 x 10-6 cm/dyne
-
Static Compliance: 18 x 10-6 cm/dyne
