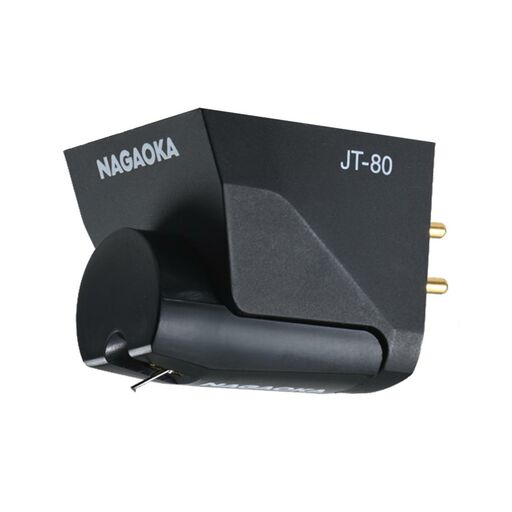

Nagaoka JT-80BK Phono Cartridge
High-quality, Japan-made MM phono cartridge.
Elliptical stylus and boron cantilever ensure excellent tracking and balanced sound.
Founded in 1940, Nagaoka of Japan meticulously manufactures its phono cartridges in-house from start to finish, also acting as a subcontractor for many major brands. The company's scope of work includes the precision machining of metals, magnetic materials, and precious stone materials.
Nagaoka's internationally acclaimed phono cartridges and audio accessories represent the traditional high standard of Japanese quality.
Technical specifications:
- Output voltage: 3.0 mV (5cm/sec)
- Frequency response: 20Hz ~ 20KHz
- Channel separation: 25dB (1Khz)
- Channel balance: 1.0 dB or less
- Recommended load impedance: 47KΩ
- Recommended capacitance: 100pF
- Body: Aluminum alloy
- Stylus construction: 0.4 × 0.7 mil
- Stylus pressure: 1.3 ～ 1.8 g
- Cartridge weight: 6.7 g
