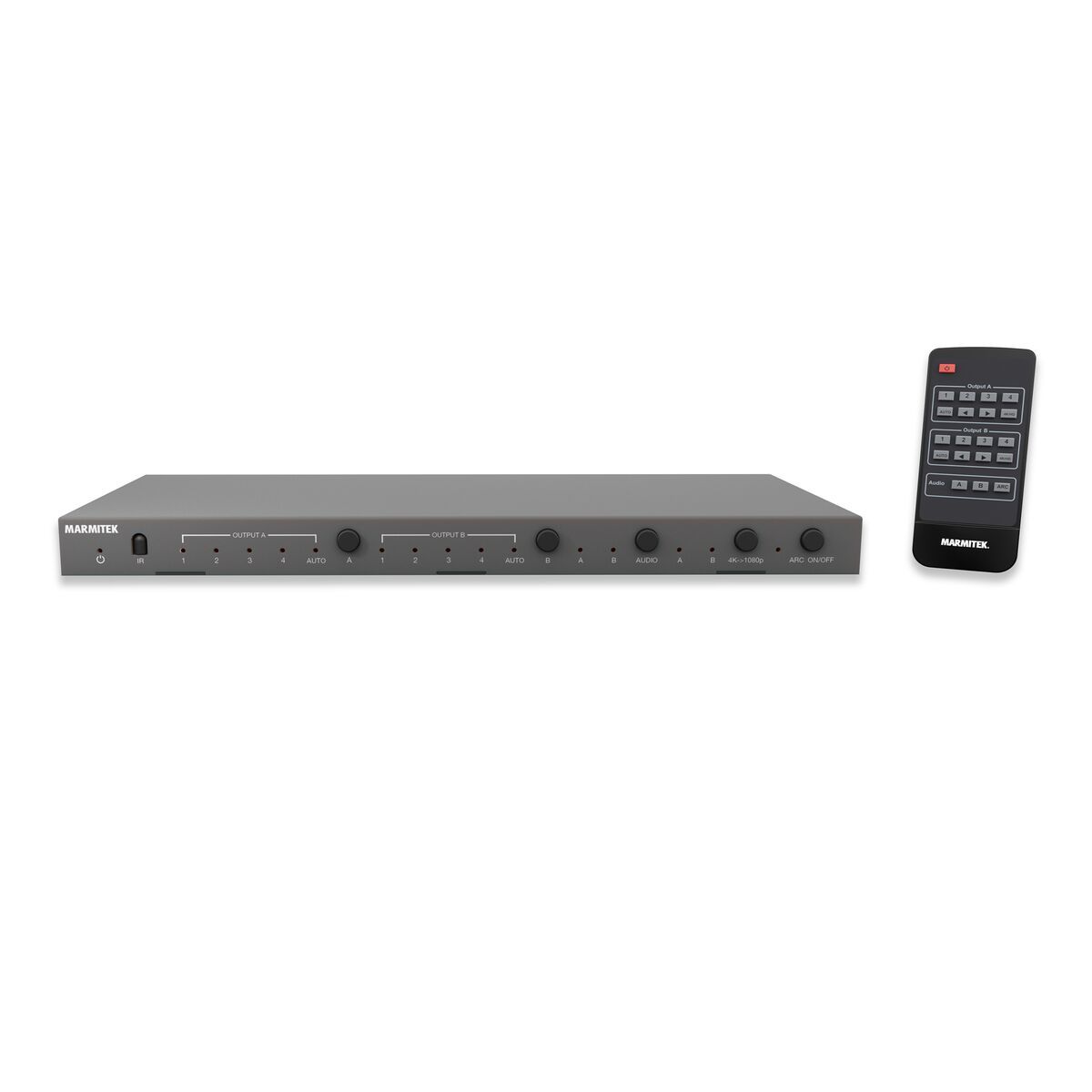

Marmitek Connect 642 Pro HDMI Matrix Switch

This 4K matrix switch allows you to connect 4 HDMI devices to two different display devices simultaneously, regardless of any...
Sale price €170,00Regular price
Regular price €170,00

This 4K matrix switch allows you to connect 4 HDMI devices to two different display devices simultaneously, regardless of any differences between the display devices. Watch the same or different content on two screens independently. Switch between desired HDMI sources using the remote control. The Connect 642 Pro supports up to 4K60 (4:4:4) and HDCP 2.2 connectivity, making it suitable for connection to a modern Ultra HD TV or projector.

Features:

Connect two TVs or projectors and switch between four HDMI sources.

The HDMI matrix switch allows you to view the same or different HDMI sources on two displays independently.

Use the built-in 1080p downscaling if one or more displays do not support 4K resolution.

Supports Ultra HD 4K60 resolution (3840 x 2160/60 Hz), Dynamic HDR, Deep Color, and 4:4:4 chroma subsampling.

Supports Dolby Atmos and DTS:X, as well as other common audio formats.

Automatic input switching and/or via remote control.

Supports HDCP 2.2 protected 4K Ultra HD content.

Built-in repeater and equalizer to prevent signal loss.

Supports Audio Return Channel (ARC) to avoid synchronization issues between picture and sound.

Digital optical output for connecting audio to an external amplifier.

Technical specifications:

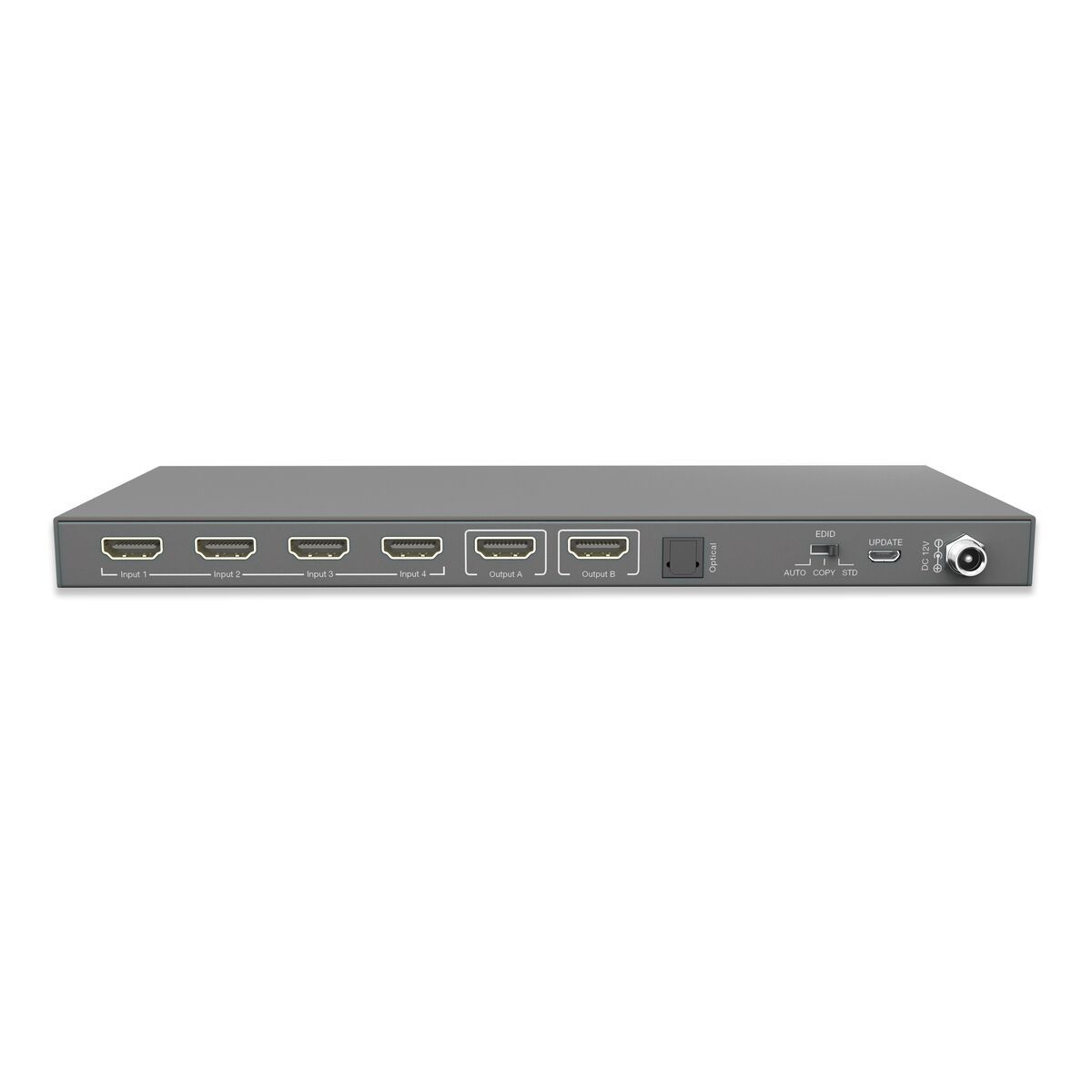

  • AV input: 4x HDMI
  • AV output: 2x HDMI
  • Digital audio output: 1x optical Toslink
  • Video resolution: max. 2160@60 Hz
  • PC resolution: max. 2560x2048
  • 3D formats: all 3D formats
  • Video bandwidth: max. 18 Gbps
  • HDMI standard: HDMI 2.0b, CEC, EDID, DVI
  • HDCP standard: HDCP 1.4/2.2
  • Color formats: RGB and YCbCr 4:4:4, 4:2:0 or 4:2:2
  • Color depth: max. 36-bit
  • HDMI audio: DTS-HD Master Audio, Dolby TrueHD, Dolby Atmos, DTS:X, Dolby Digital/AC3, DTS 5.1 and PCM stereo
  • Optical output: Dolby Digital/AC3, DTS 5.1 and PCM stereo
  • Dimensions (H x W x D): 18 x 242 x 104 mm
  • Weight: 620 grams
  • Operating temperature: +0 ... +40 ° C
  • Operating humidity: 20% - 90%
  • Power supply: 100-240 VAC 50/60 Hz, 5 VDC adapter
  • Package includes, in addition to the switch:

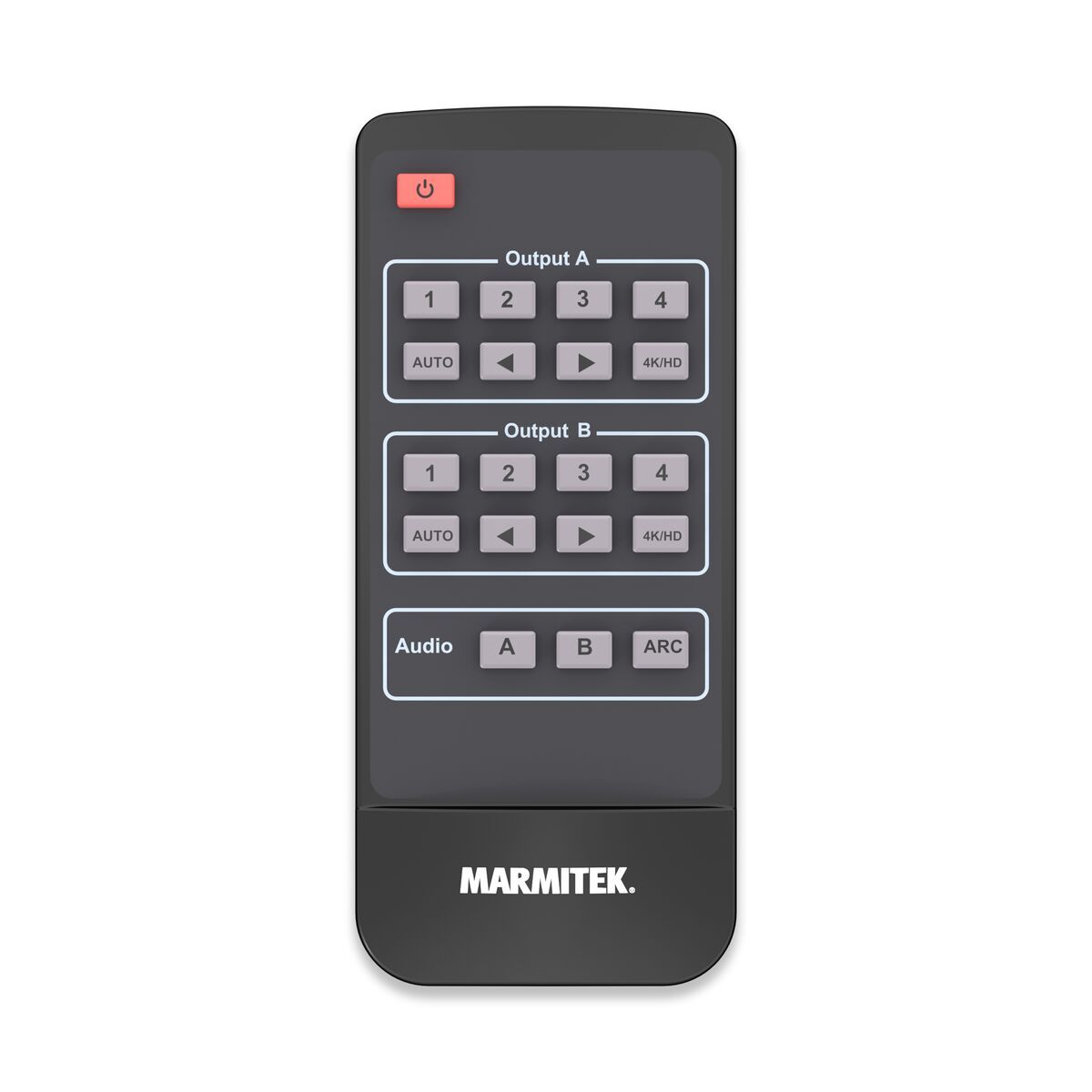

  • Remote control (batteries included)
  • HDMI cable, length 150 cm
  • Mounting brackets
  • Power adapter
  • User manual
  • Warranty 24 months
