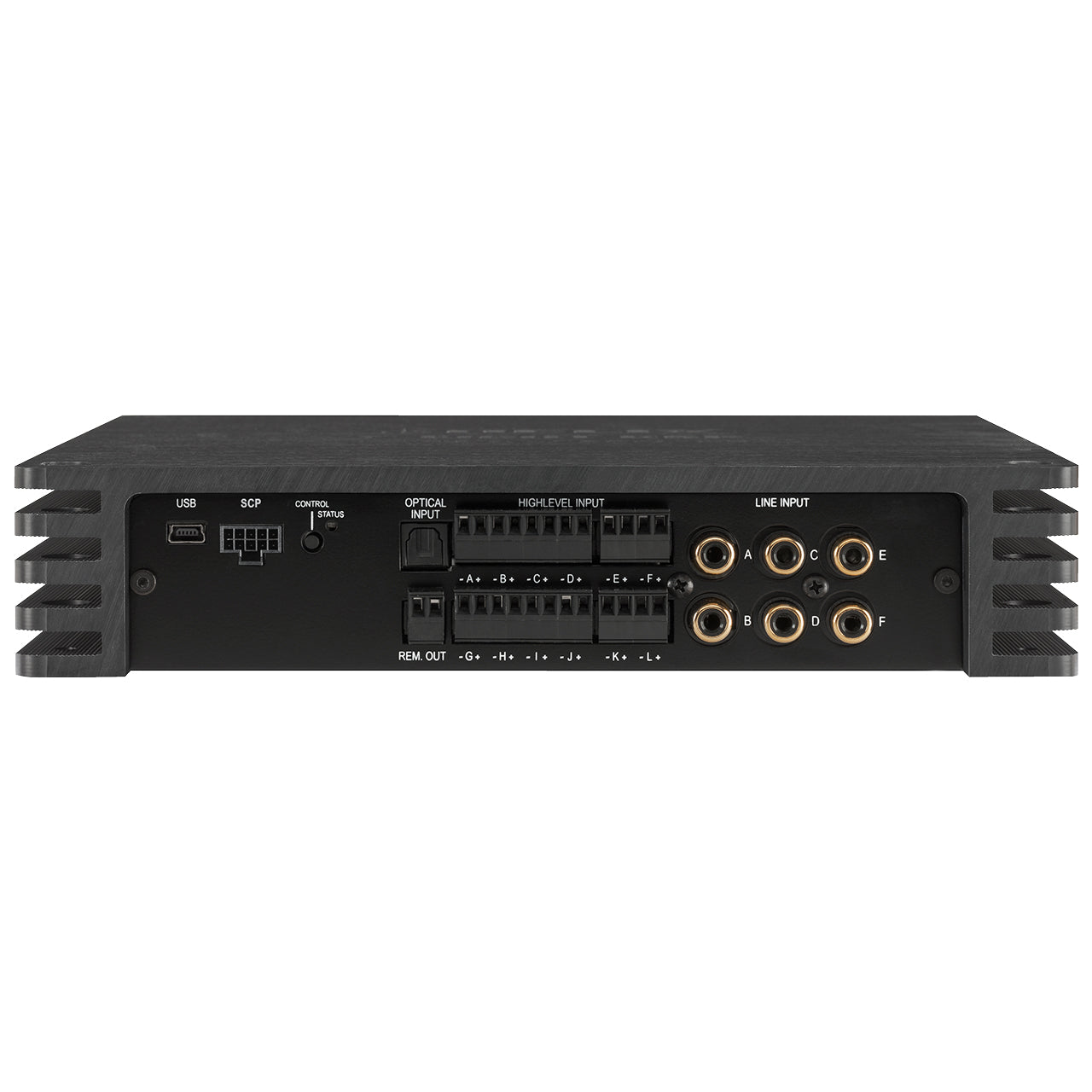

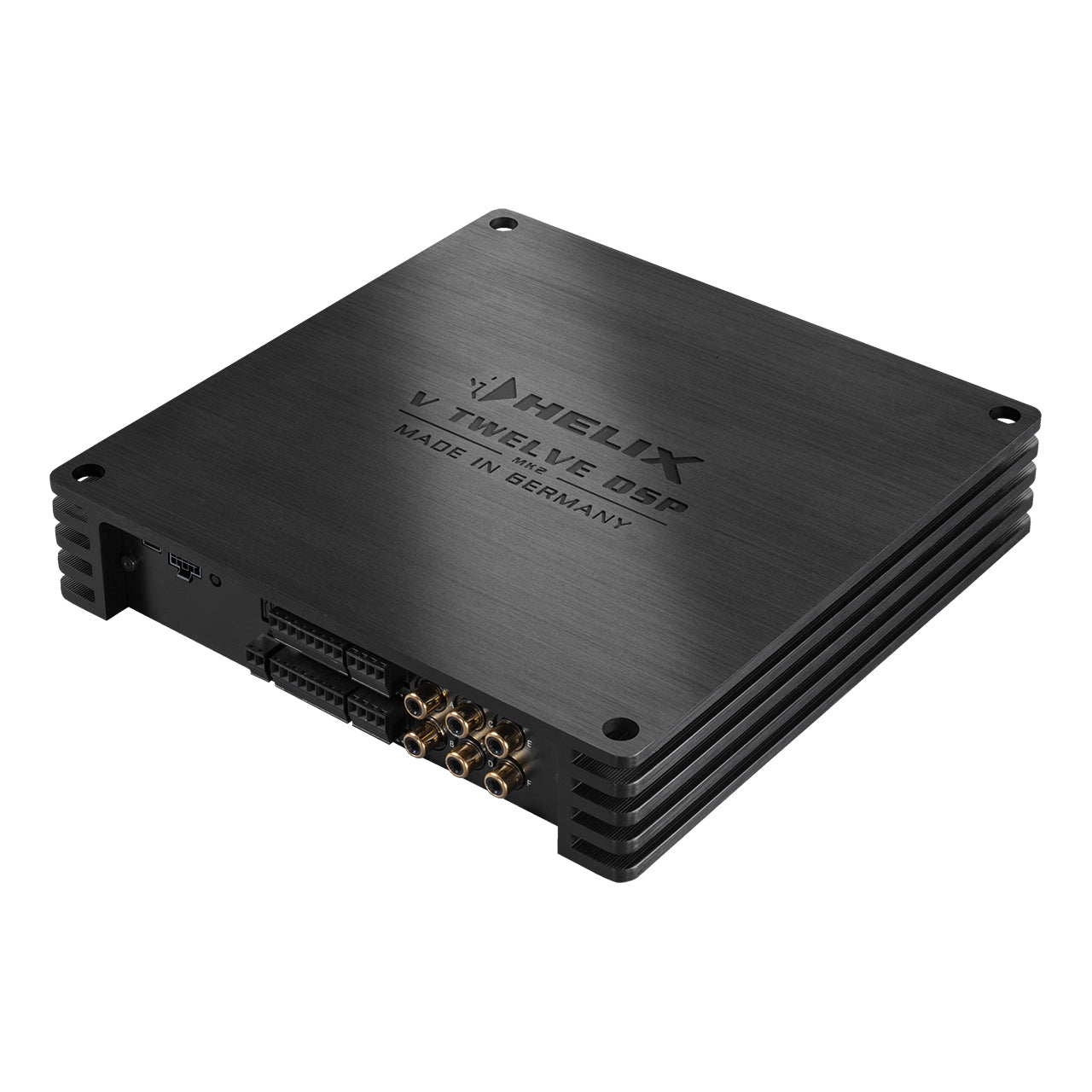

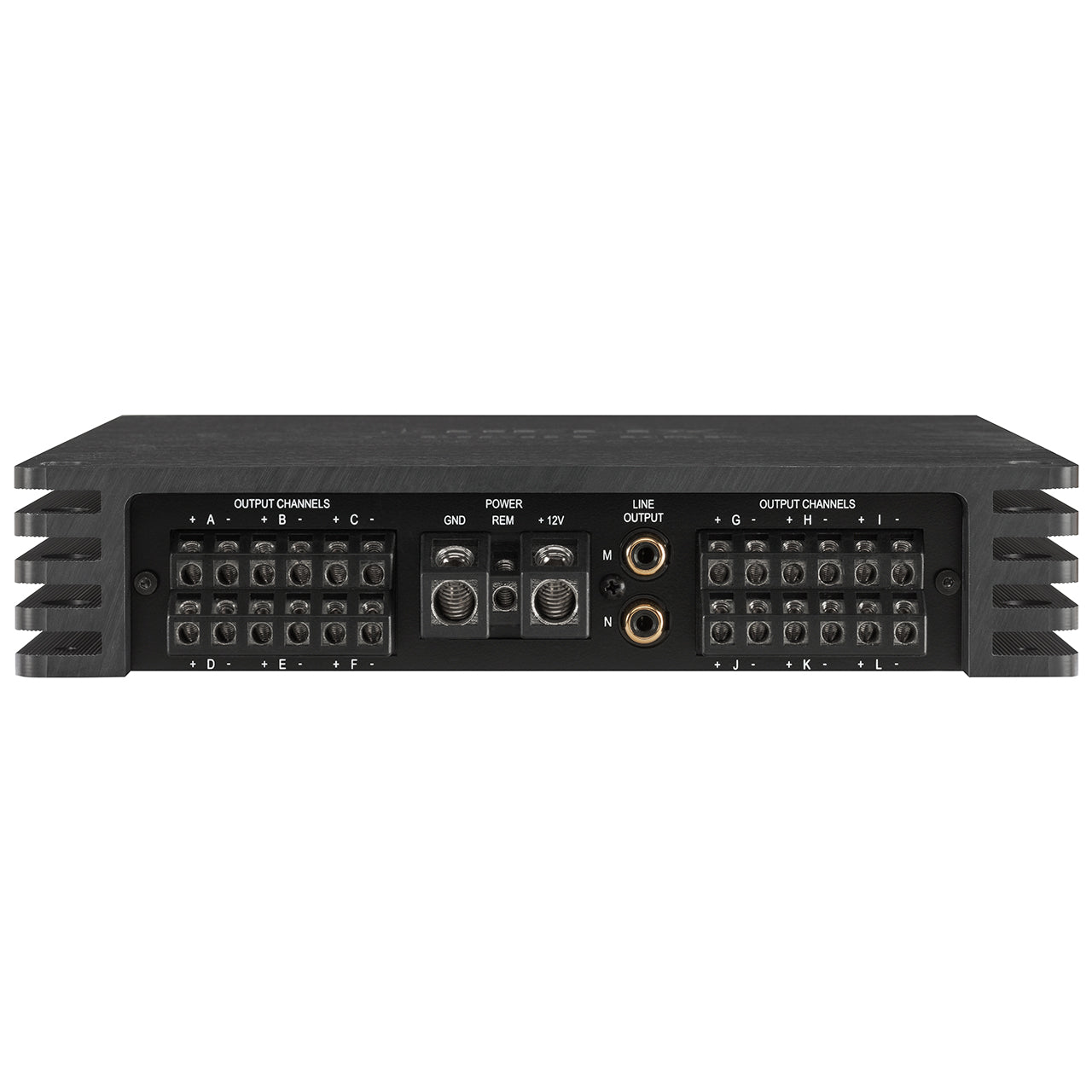

Helix V TWELVE DSP MK2
The king of connectivity!
12 High level inputs, 6 RCA inputs, 14 DSP channels, 12 speaker channels. Extremely compact. The new V TWELVE DSP is undoubtedly a technical milestone and a showcase of excellence when it comes to upgrading multi-channel premium sound systems in today's vehicles.
Specifications:
- @ 4 Ohms75 Watts per channel
- @ 2 Ohms 120 Watts per channel
Max. output power per channel Up to 160 Watts RMS @ 2 Ohms
Amplifier technology Pure Class GD
Inputs6 x RCA / Cinch
12 x High-level speaker input
1 x Optical SPDIF (12 - 96 kHz)
1 x Remote In
Input sensitivityRCA / Cinch max. 4 V or max. 8 years
High level max. 16 V or max. 32 years
Input impedance RCA / Cinch 12 kOhms
Input impedance high level9 - 33 Ohms or 20 kOhms
Outputs12 x Speaker output
2 x RCA / Cinch
2 x Remote Out
Output voltage RCA / Cinch 3 Volts RMS
Frequency response 20 Hz to 22,000 Hz
DSP resolution64 Bit
DSP power 295 MHz (1.2 billion MAC operations/second)
Sampling rate48 kHz
DSP type Audio signal processor
Signal converters A/D: AKM 32 Bit
D/A: AKM 32 Bit
Signal-to-noise ratio digital input 107 dB (A-weighted)
Signal-to-noise ratio analog input 102 dB (A-weighted)
Distortion (THD) 0.015 %
Damping factor 70
Operating voltage10.5 - 16 Volts (max. 5 sec. down to 6 Volts)
Idle current700 mA
Max. remote output current 500 mA
Fuse2 x 30 A LP-Mini-fuse (APS)
Additional featuresHEC slot, ADEP.3 circuit, Auto Remote switch, 32 Bit CoProcessor, Control Input
Dimensions (H x W x D) 44 x 220 x 220 mm.
