HELIX IK E8.1-DVC2 MK2

HELIX IK E8.1-DVC2 MK2

• 8″ pre-boxed subwoofer

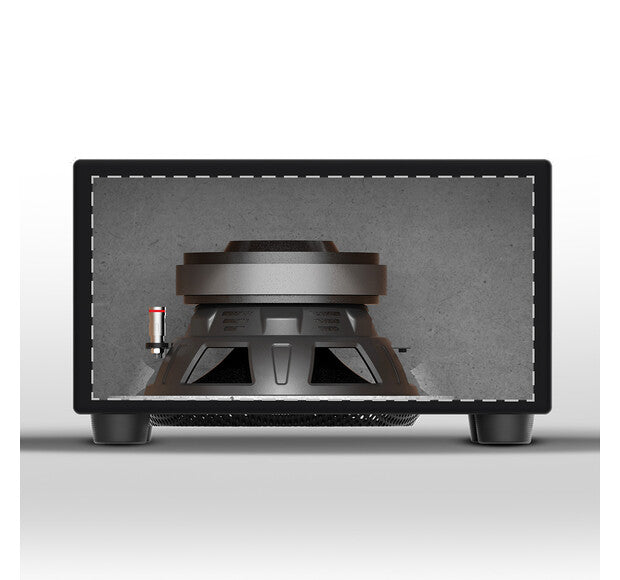

• Bass reflex enclosure
• 2 x 2 Ohm
• 300W

Match's IK-series 8″ subwoofer in a bass reflex enclosure is a compact solution for your bass needs.
It fits even in small trunks or under the seat of a van.

Specifications:
Technical data:

Power handling RMS P 300 Watts
Recommended amplifier power RMS 150 - 300 Watts
Impedance z 2 x 2 Ω
Max. linear excursion Xmax +/- 8.0 mm
Port tuning frequency Fb 43 Hz
Sensitivity
SPL
91 dB @ 2.83V / 1m
85 dB @ 1W / 1m

Dimensions (H x W x D)
184 x 310 x 285 mm
7.2 x 12.2 x 11.2″


Recommended DSP settings:

″Self-define″ highpass 44 Hz / Q = 1.6
EQ filter: 115 Hz / Q = 0.9 / -3.5 dB

Scope of delivery
1 x Downfire enclosure subwoofer IK E8.1-DVC2
1 x Data sheet
