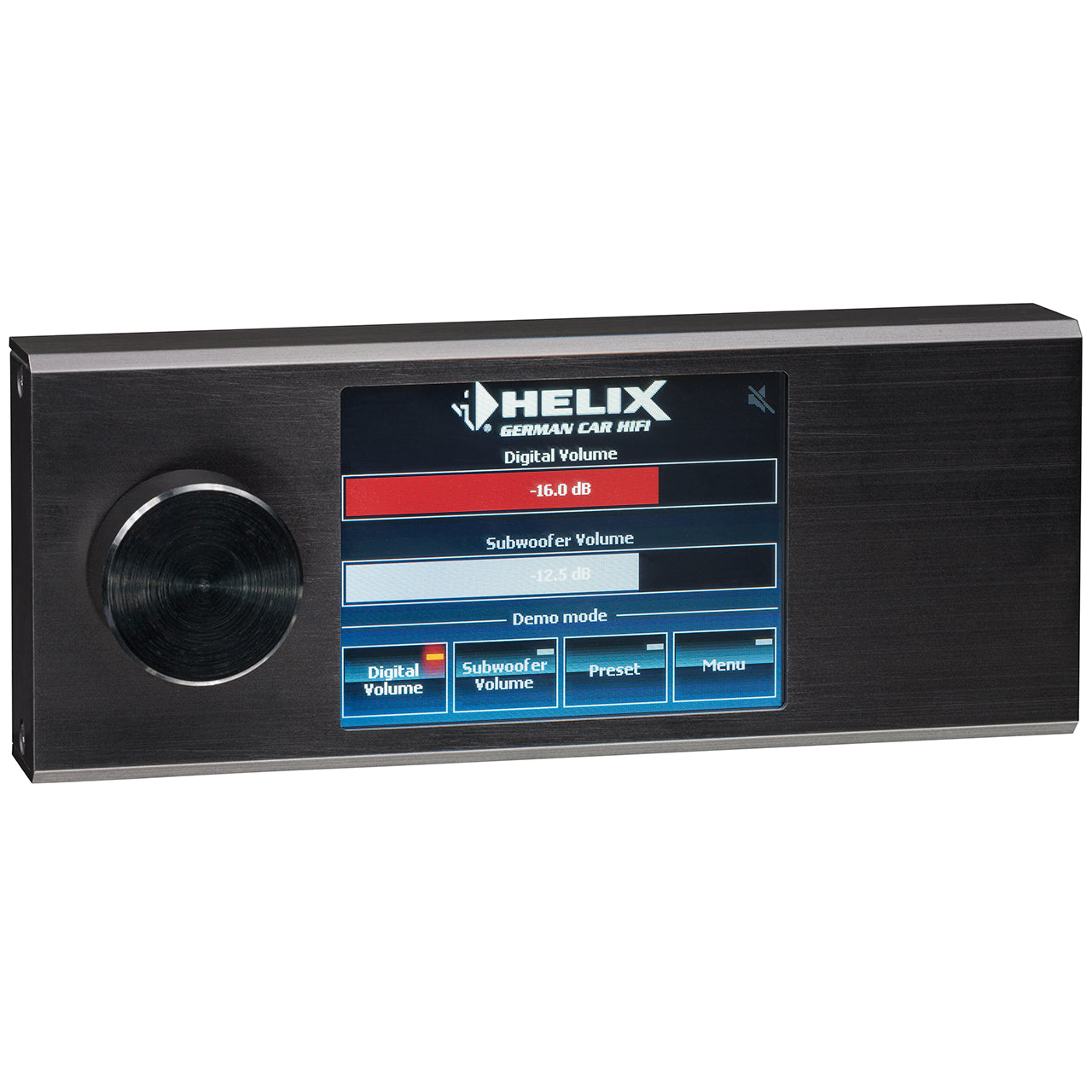

HELIX DIRECTOR remote control for SCP

• HELIX DIRECTOR remote control with SCP connector
• Volume
• Program source selection
• Subwoofer level control
• Display image rotation 180°

With DIRECTOR, you can easily control Helix and Match DSP processors. Thanks to its small size, it offers a wide range of installation possibilities! -2.8″ Touchscreen – Volume control for all program sources – Subwoofer level control – Program source selection – Switching between sound setups stored in the DSP – Control of the Helix HEC BT module (Bluetooth Connect functions: pairing, reconnect, disconnect) (Bluetooth Control functions: track forward/back, play/pause) 20 memory locations Automatic display dimming function Display image rotation 180°

Technical data:
Features
2.8“ / 7 cm touchscreen display and powerful ARM processor
Easy handling of the main functions
Volume control of all sources
Volume control of the subwoofer
Source selection
Control of the HEC BT module (Bluetooth® Connect functions: pairing, reconnect, disconnect / Bluetooth® Control functions: track forward/back, play/pause)
Switching between sound setups
Memory locations for 20 additional sound setups (only devices without ACO platform)
Automatic dimming function of the display
Display rotation adjustable to 180°
Compatible with all DSP products which are supported by DSP PC-Tool Version 3 and higher
Exclusive solid aluminum housing
17’ / 5.2 m connection cable included
Technical data
Dimensions (H x W x D)
53.50 x 135 x 18 mm
2.07 x 5.32 x 0.71″

Compatibility:

Helix:

DSP ULTRA S
DSP PRO MK3
DSP.3S
DSP MINI MK2
P SIX DSP ULTIMATE
V EIGHTEEN DSP
V TWELVE DSP MK2
AMPLIFY 206 DSP

MATCH:

UP 10DSP
UP 10DSP – 24V Edition
UP 8BMW
UP 8DSP
UP 6DSP
UP 4DSP
M 5.4DSP
PP 86DSP MK2

Scope of delivery:
1 x Remote control DIRECTOR
1 x Connection cable for Smart Control Port, 17′ / 5.2 m length
1 x Instruction manual
