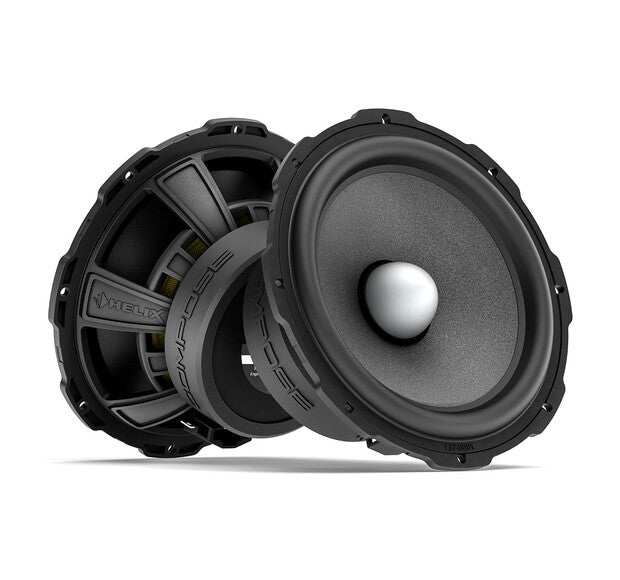

Helix Compose i5 Ci5 W165FM-S3 6.5" Midbass 3Ω

The HELIX COMPOSE i5 series guarantees an excellent sound experience in your vehicle. The i5 series is inspired by both the i3 and i7 series speakers, making it unbeatable in terms of price-performance ratio!

The impedance of the Compose series speakers has been optimized with Helix / Match DSP processors in mind.

Only high-quality materials are used in the Compose i5 series:

- The cones are silicone-coated paper cones, which achieve a very light structure, allowing for precise and expansive mid-range reproduction in the i5 series.

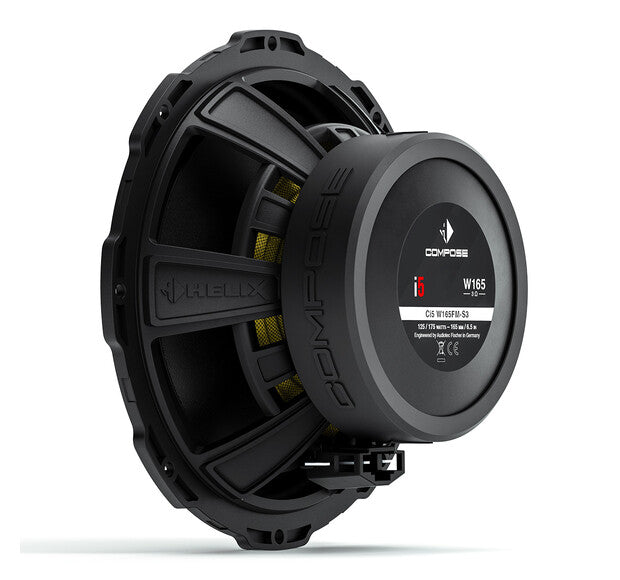

- The i5 series mid-range speaker features a metal phase plug, which reduces the compression effect and improves voice coil cooling.

- The baskets are made of polymer composite, further reinforced with glass beads, resulting in a very stiff and resonance-free material.

- Very powerful magnets

One of the key elements of the Compose series is the patented mounting system called FlexMount, which is based on specially developed speaker adapters.
This technology allows you to install i 7 speakers in an almost infinite number of car models by simply changing the adapter ring to one that fits your car.
The speaker is attached/detached from the adapter ring by twisting, which releases the protrusions on the element from the adapter.

FlexMount adapter rings are either included with the speaker or can be purchased separately (remember to check our FlexMount selection).

The i5 series is compatible with all FlexMount, FlexConnect, ProConnect, and WireKits adapters.

6.5″ mid-bass
FlexMount compatible
3 Ohm
175W

Technical data
Power handling RMS / Max. P
125 / 175 Watts
Impedance Z 3 Ω
DC resistance Re 3.1 Ω
Frequency response 50 Hz - 5,000 Hz
Resonance frequency Fs 50 Hz
Mechanical Q factor Qms 2.38
Electrical Q factor Qes 0.50
Total Q factor Qts 0.41
Compliance Cms 742 µm/N
Equivalent air volume Vas 17.9 L
Force factor B*I 5.2 Tm
Sensitivity SPL 92 dB @ 2.83 V / 1m
88 dB @ 1W / 1m
Cone area Sd 131 cm²
Moving mass Mms 14.0 g
Cone material Silicon coated paper cone
Mechanical resistance Rms 1.83 kg/s
Voice coil diameter ø 37 mm
Voice coil winding height 13.7 mm
Max. linear excursion Xmax +/- 3.9 mm
Outer diameter ø 165 mm / 6.5″
Installation diameter ø 142 mm / 5.59″
Installation depth 66.8 mm / 2.63″
Features ProConnect terminal,
FlexMount165
Compatibility
FlexMount165
WireKits

Scope of delivery
2 x Ci5 W165FM-S3
2 x Mounting material
