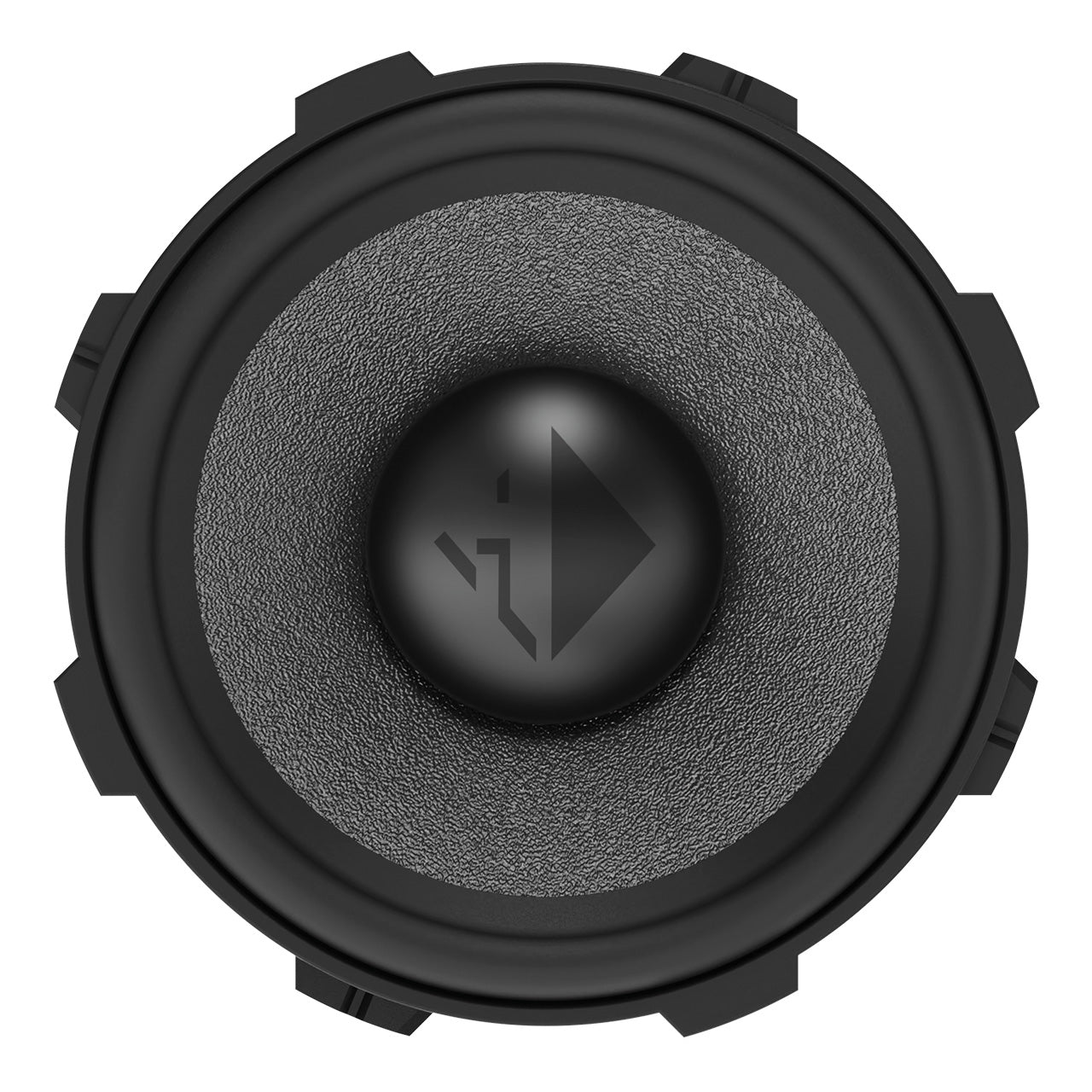

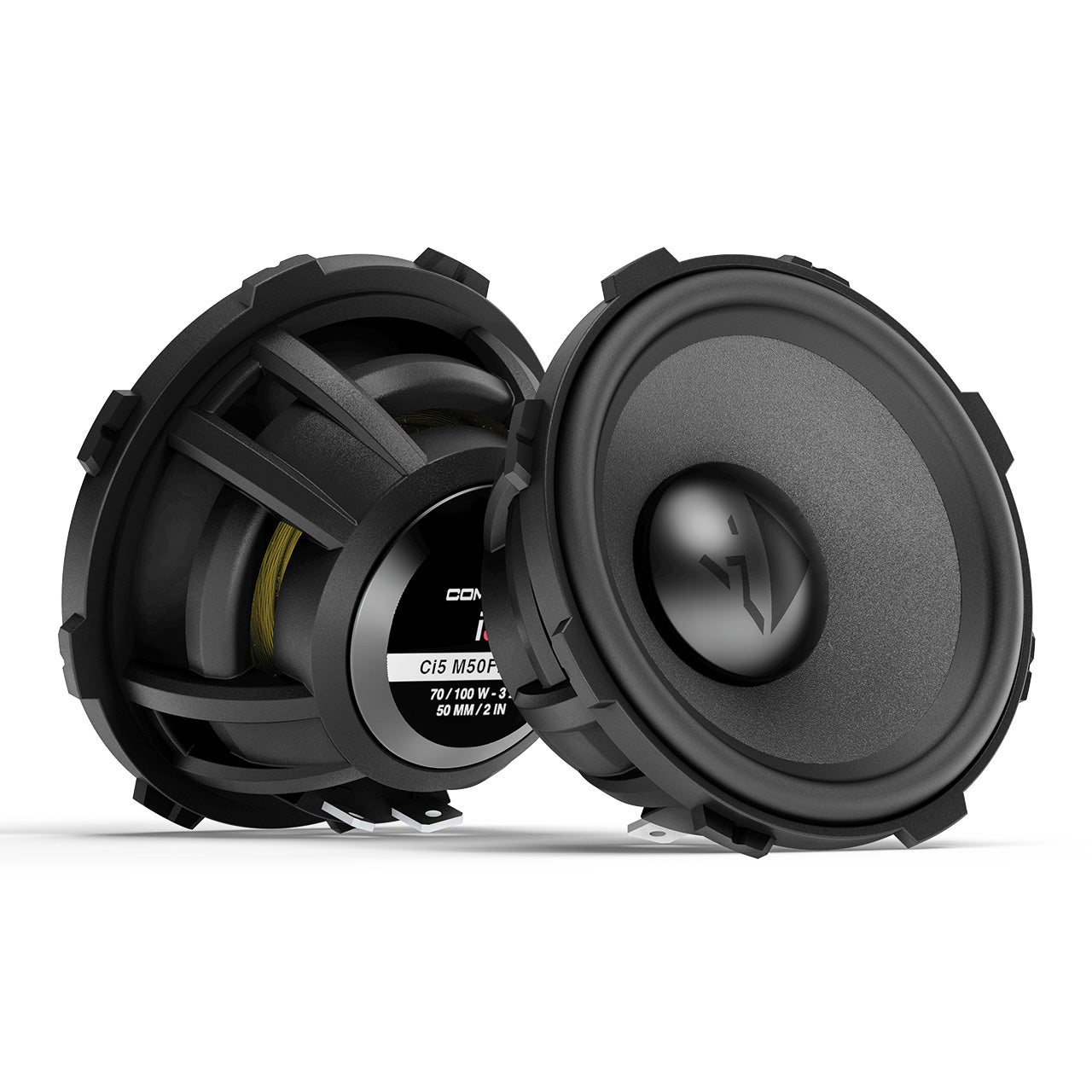

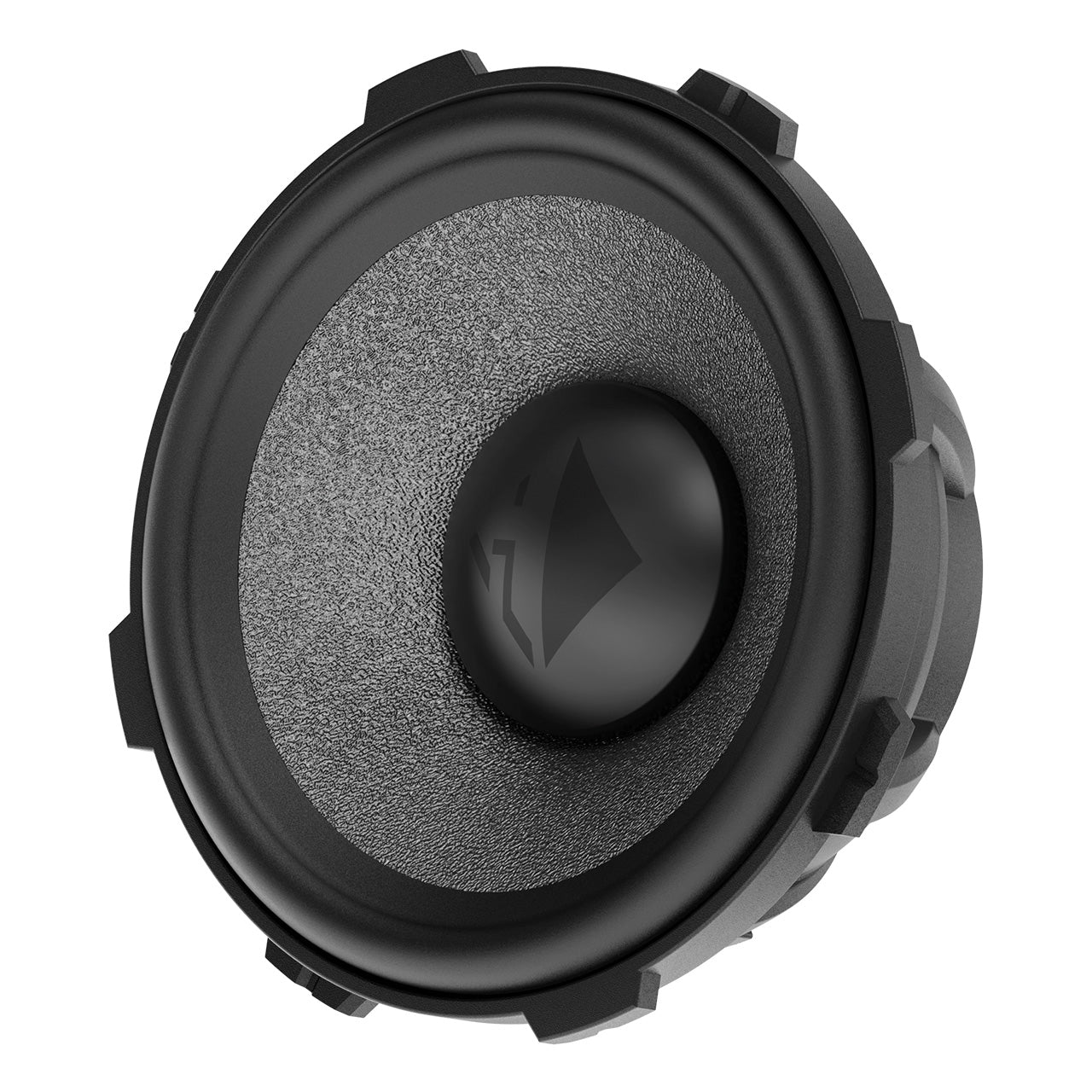

HELIX Ci5 M50FM-S3

HELIX Ci5 M50FM-S3

• 50 mm advanced full-range speaker
• Silicone-coated paper cone
• 3 ohms
• Neodymium magnet
• Compatible with FlexMount50 mounting rings

The Ci5 M50FM-S3 expands the COMPOSE series with a highly advanced 2-inch broadband driver that impresses with its exceptionally fine design.

Thanks to its small outer diameter and FlexMount technology, the Ci5 M50FM-S3 can be installed even in very tight OEM mounting locations, making it particularly suitable for installation locations where space is limited or where vehicle mounting location restrictions make it difficult to implement traditional two- or three-way configurations.


The Ci5 M50FM-S3's exceptionally wide frequency response enables systems that can operate without a separate tweeter. Alternatively, the speaker also works as a great midrange in all kinds of systems with limited installation space.

Specifications:
Technical data
Power handling RMS / Max. P
70 / 100 Watts
Impedance Z 3 Ω
DC resistance Re 3.1 Ω
Frequency response 300 Hz to 20,000 Hz
Resonance frequency Fs 240 Hz
Mechanical Q factor Qms 3.09
Electrical Q factor Qes 0.80
Total Q factor Qts 0.68
Compliance CMS
300 µm/N

Equivalent air volume Vas 0.16 L
Force factor B*I 2.8 Tm

Sensitivity SPL 89 dB @ 2.83 V / 1m
85dB @ 1W/1m
Cone area Sd 19.6 cm²
Moving mass MMS 1.43 g
Cone material Silicon coated paper cone
Mechanical resistance Rms 0.71 kg/s
Voice coil diameter ø 20 mm
Voice coil winding height 7 mm
Max. linear excursion Xlin +/- 2.5 mm
Max. mechanical excursion Xmax +/- 3.5 mm
Outer diameter ø 59.8 mm / 2.34″
Outer diameter with universal mounting ring ø 70.0 mm / 2.75″
Installation diameter ø 50.9 mm / 2.00″
Installation depth 25.2 mm / 0.99″

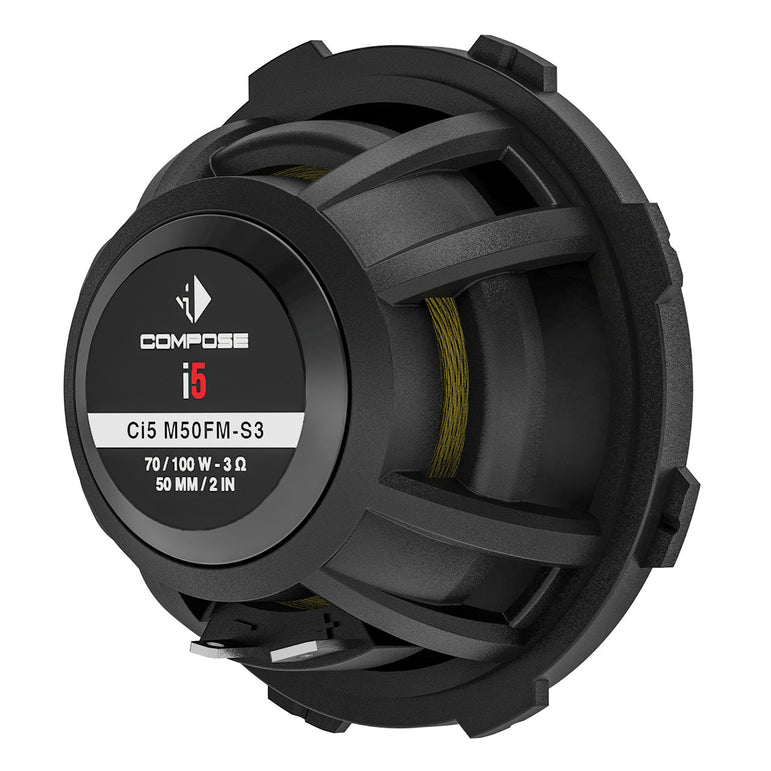

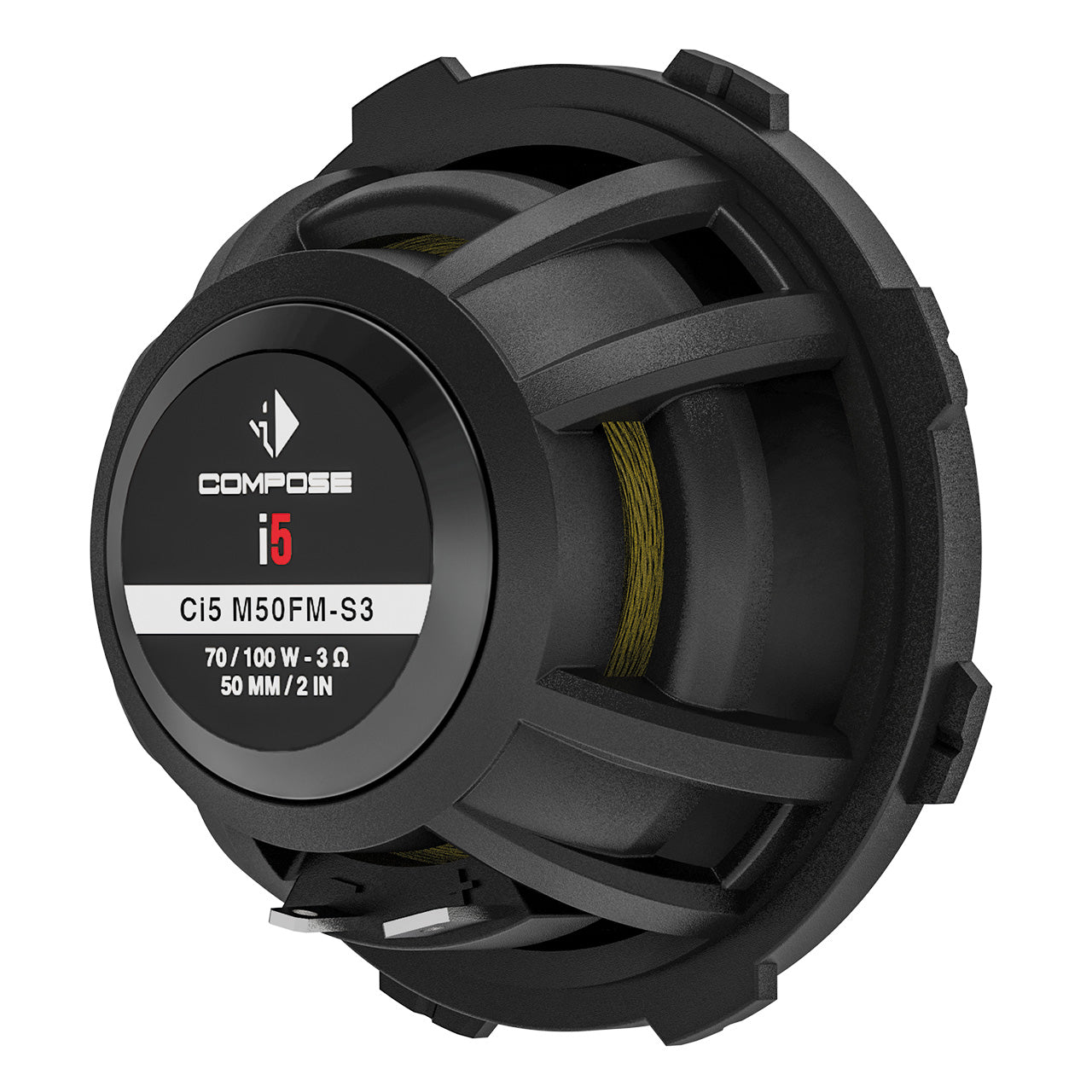

Features Powerful push-pull neodymium magnet system, FlexMount50

Compatibility: FlexMount50

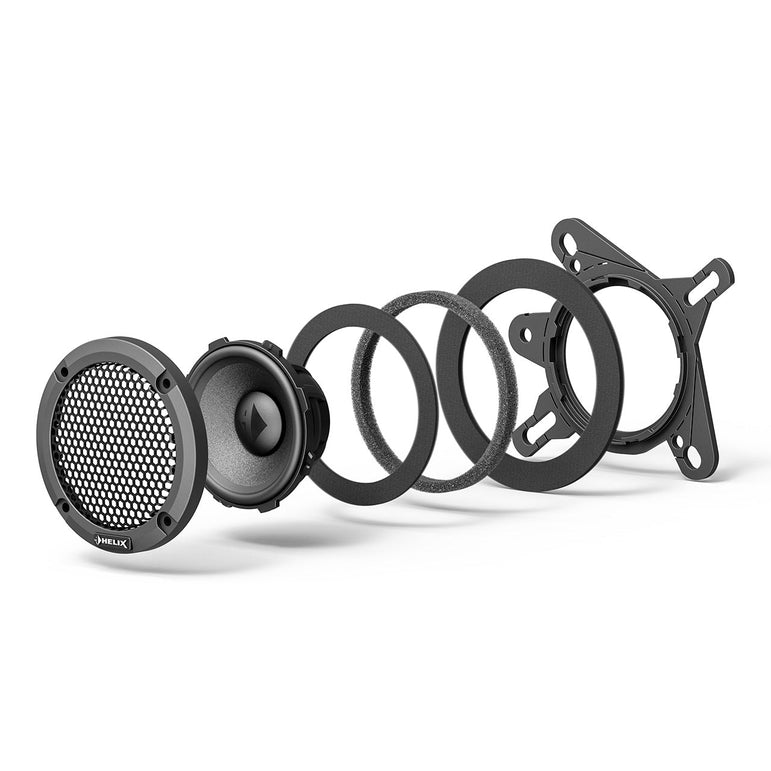

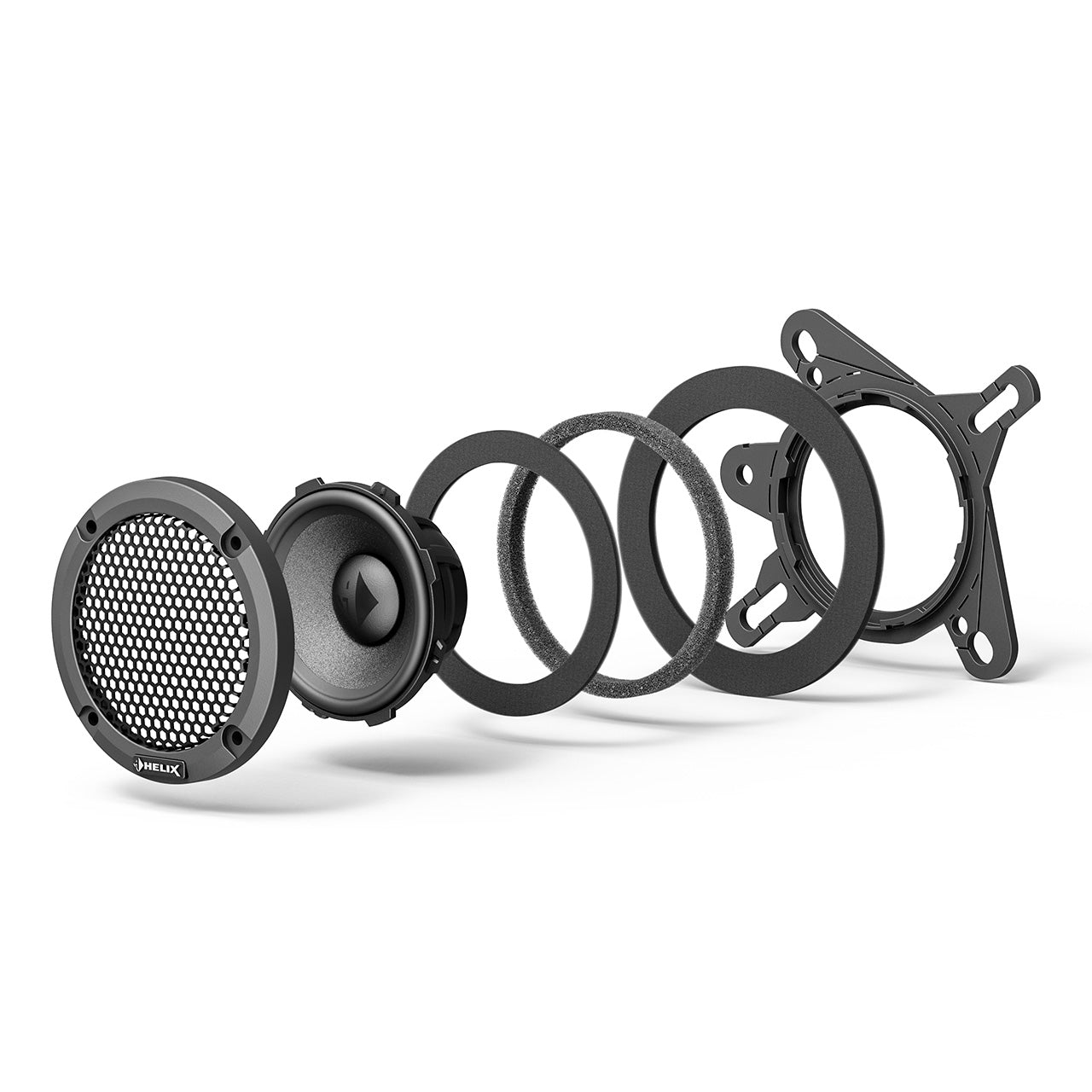

Scope of delivery
2 x Ci5 M50FM-S3
2 x Universal FlexMount CFM50 MULTI.1
2 x Speaker gasket
2 x Mounting ring with grille
1 x Mounting material
